UGR <19
Emitting light both up to the ceiling and down onto the workspace, the diamond prismatic lens distributes glare-free lighting with UGR<19 for a healthy working environment.
CLASS LEADING OFFICE LIGHTING WITH LOW GLARE
The OKA Suspended Direct/Indirect has all the attributes for setting a new standard for linear office lighting by making a statement in any modern office space. With its 60mm deep frame and wide body, the OKA Suspended Direct/Indirect defines architectural spaces and workspace, making a visual presence even when switched off.
The choice of 3 different colour temperatures suits any application and the light intensity can be dimmed with DALI. The Tunable White option allows the user to adjust the colour temperature contributing to the wellbeing of the workforce. The OKA Suspended Direct/Indirect has a wide range of use uses in an office environment. The shortest profile is perfect for task lighting, whilst the large 3000 mm units are suitable for large open space offices. Used as linear modular office lighting, it’s perfectly capable of providing uniform, efficient and comfortable lighting. The OKA Suspended Direct/Indirect is available in white, black and silver finish as standard with a further choice of colour as a custom solution.
The OKA can be specified with both CASAMBI and Philips EasyAir to increase user control.
Light Source Information
· LED
· Direct-Indirect Light Distribution
· LED outputs available from 55W / 6,166lm up to 189W / 20,320lm
· 3 Step McAdam
· CRI80 (CRI90 on request)
· LED efficiency of 125 lm/W · The Oka can achieve schemes of <19UGR, meeting the CIBSE, SLL and BCO guide to lighting standards.
· Colour Temperature available 3000K, 4000K or TW (2700K-5000K)
· Internal Drivers supplied
· Part L compliant
Design
· Suspended
· Structured aluminium

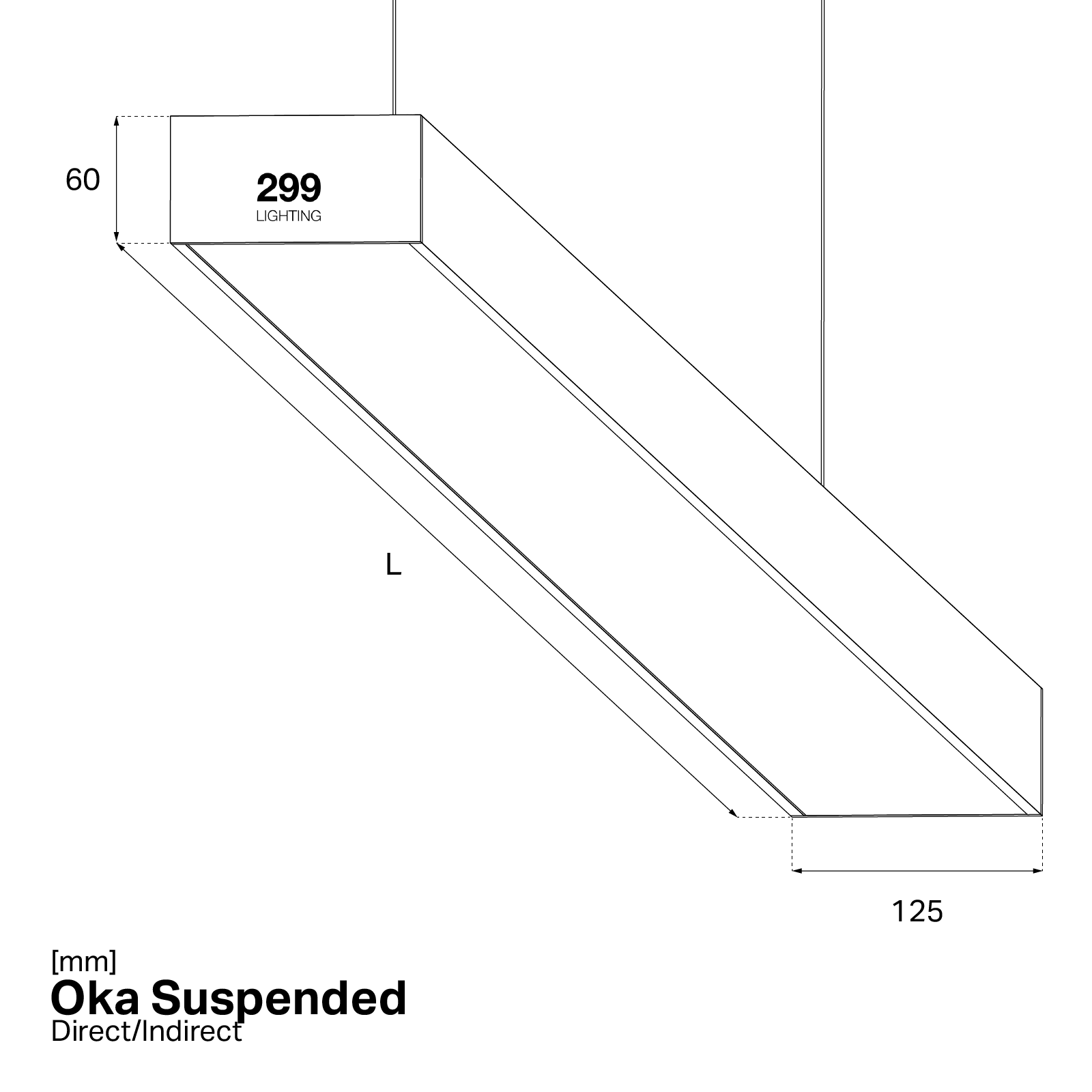

· Available in 4 standard sizes 1200mm, 1500mm, 2400mm and 3000mm (more sizes on request)
· Available in White, Black or Silver finish
Optics
· Opal and Microprismatic diffuser
Dimming
· Non-dimmable as standard
· DALI available on request
· Bluetooth DALI DIM available on request
· Tunable White available on request. It uses DALI DT 8 control drivers
Integrated Controls (on request)
· CASAMBI · Philips EasyAir
Installation
· Two suspension points with ceiling rose and power cable included
Miscellaneous
· 3hr Emergency available on request
· 2 year warranty
· Integral Emergency Available on all sizes
299 Lighting reserve the right to change the specification of any product without notice or pubic announcement
Emitting light both up to the ceiling and down onto the workspace, the diamond prismatic lens distributes glare-free lighting with UGR<19 for a healthy working environment.
The Oka Suspended is available in 4 different lengths from 1200 mm to 3000 mm.
Designed with attention to detail, it will impress the purists with clean lines, homogeneous light and a proportionately designed suspension system.
