Recessed Linear Lighting

The Rio Recessed Trimless is a contemporary aluminium linear LED profile designed for plasterboard or metal ceilings. It can be specified as a single luminaire or as a continuous light line, in standard or made-to-measure lengths, where a clean recessed line of light is required.

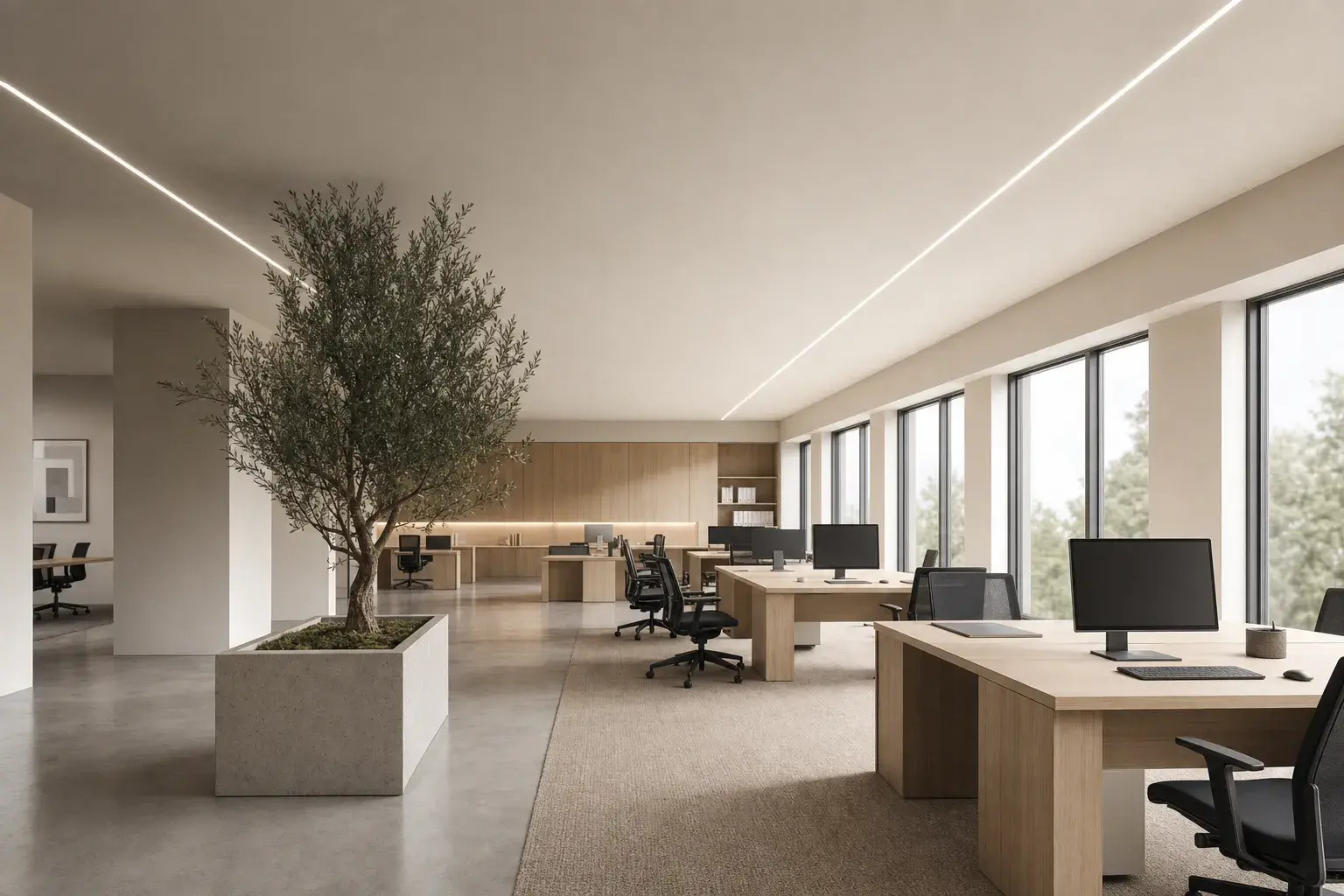

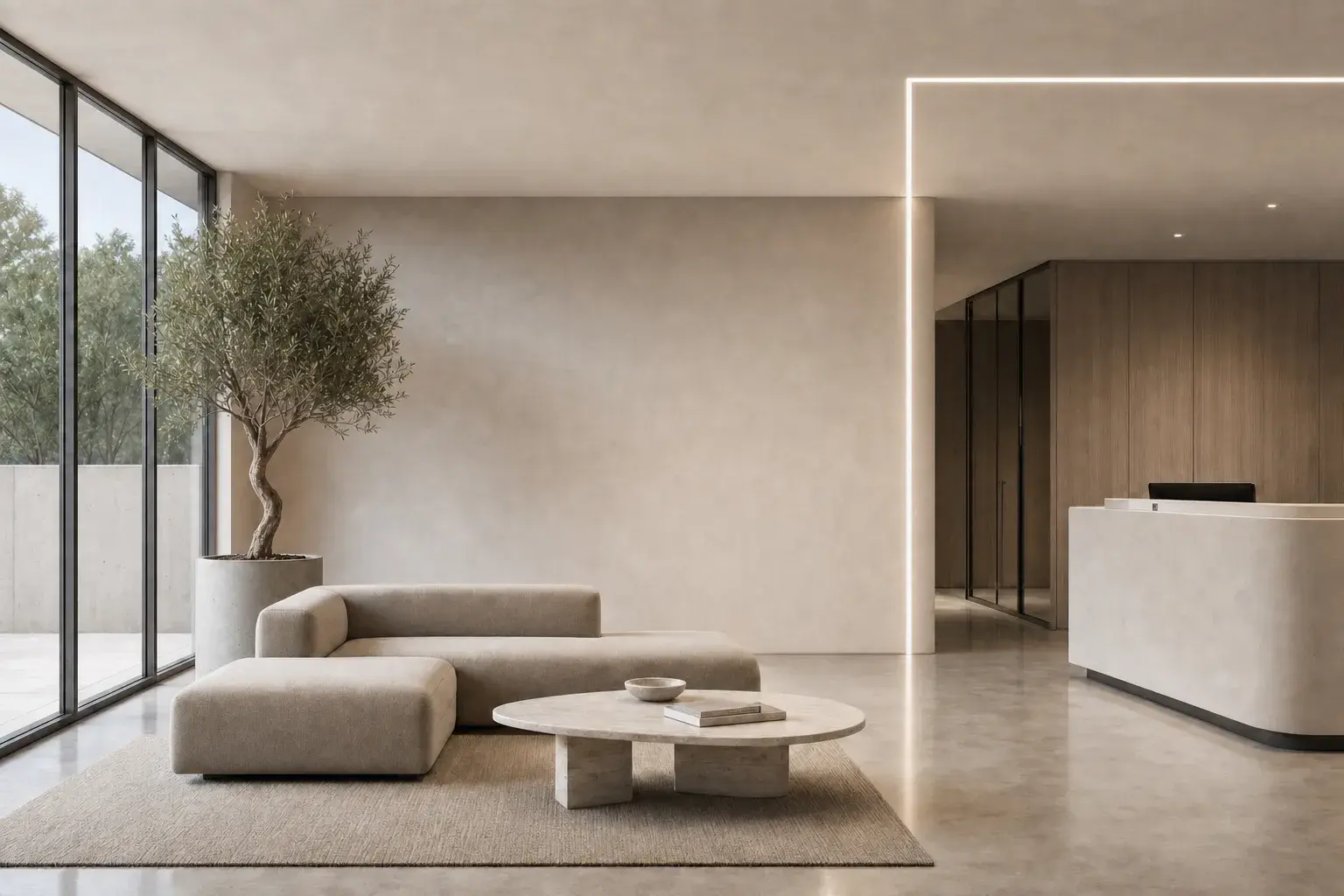

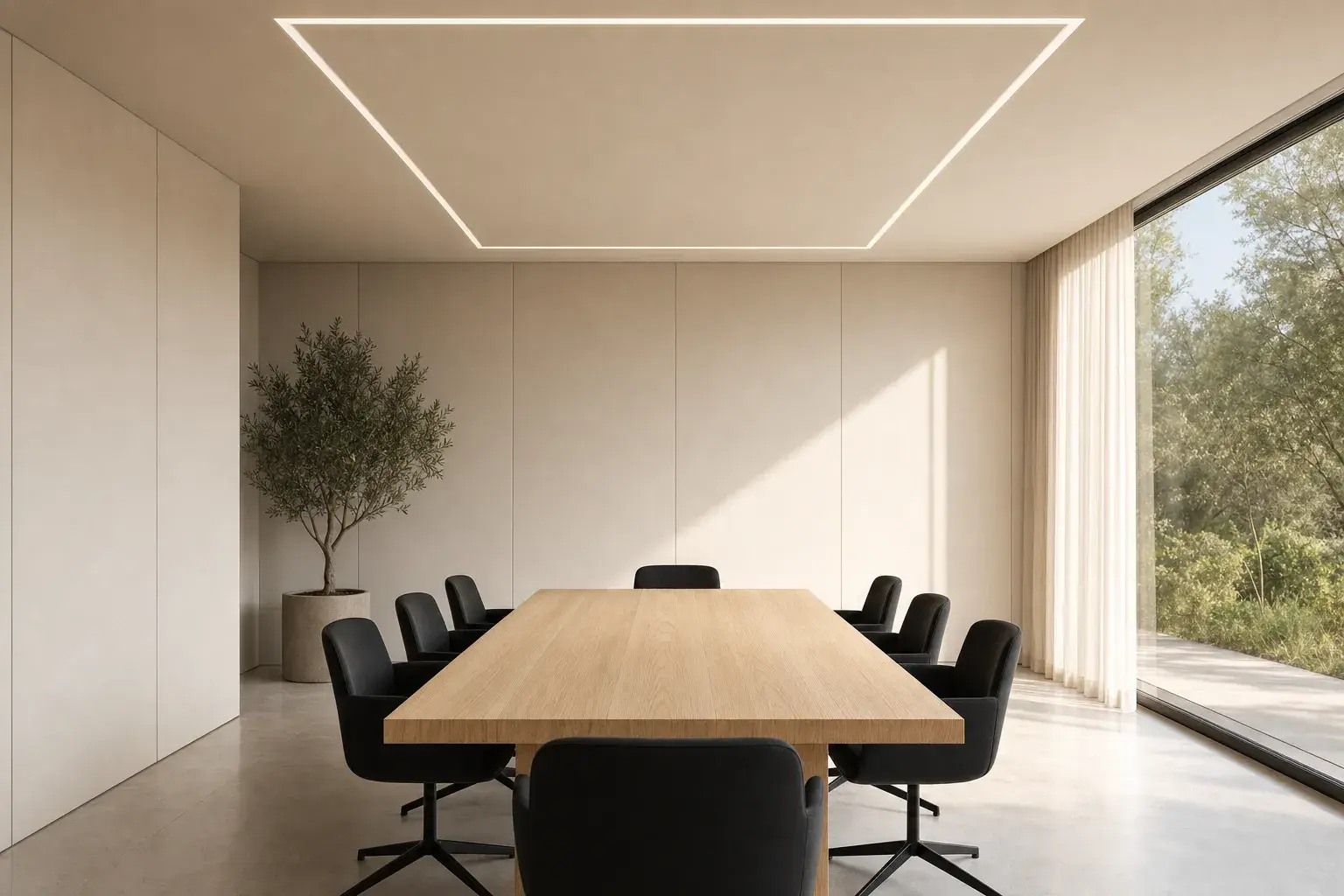

Use it in offices, schools, retail, hospitality, lobbies and corridors. An asymmetric optic is available where a vertical surface needs lighting, such as a feature wall or retail display. It also suits joinery and custom ceiling details that need a flush, plastered-in linear fitting.

Fitted with the opal diffuser it creates a smooth line of light in the ceiling. Prismatic, black opal and asymmetric optics are also available. The housing is powder-coated aluminium in white, black or grey.

It is a practical recessed linear option for Cat A and Cat B office fit-out and for architectural interiors that need a discreet ceiling line. Non-dimmable, DALI, Switch DIM and Casambi can be specified, with Tunable White from 2700 K to 5000 K where the colour temperature needs to change in use.

Light Source Information
· LED
· Direct distribution
· System power 16 W/m to 31 W/m
· High efficiency 1800 lm/m · High output 3500 lm/m
· Efficacy up to 125 lm/W
· Colour temperature 2700 K | 3000 K | 4000 K | 5000 K | Tunable White 2700 K to 5000 K
· CRI >80 | CRI >90 | CRI >95
· MacAdam Step 3
· Rated life L80 B20 100,000 h at 25 °C

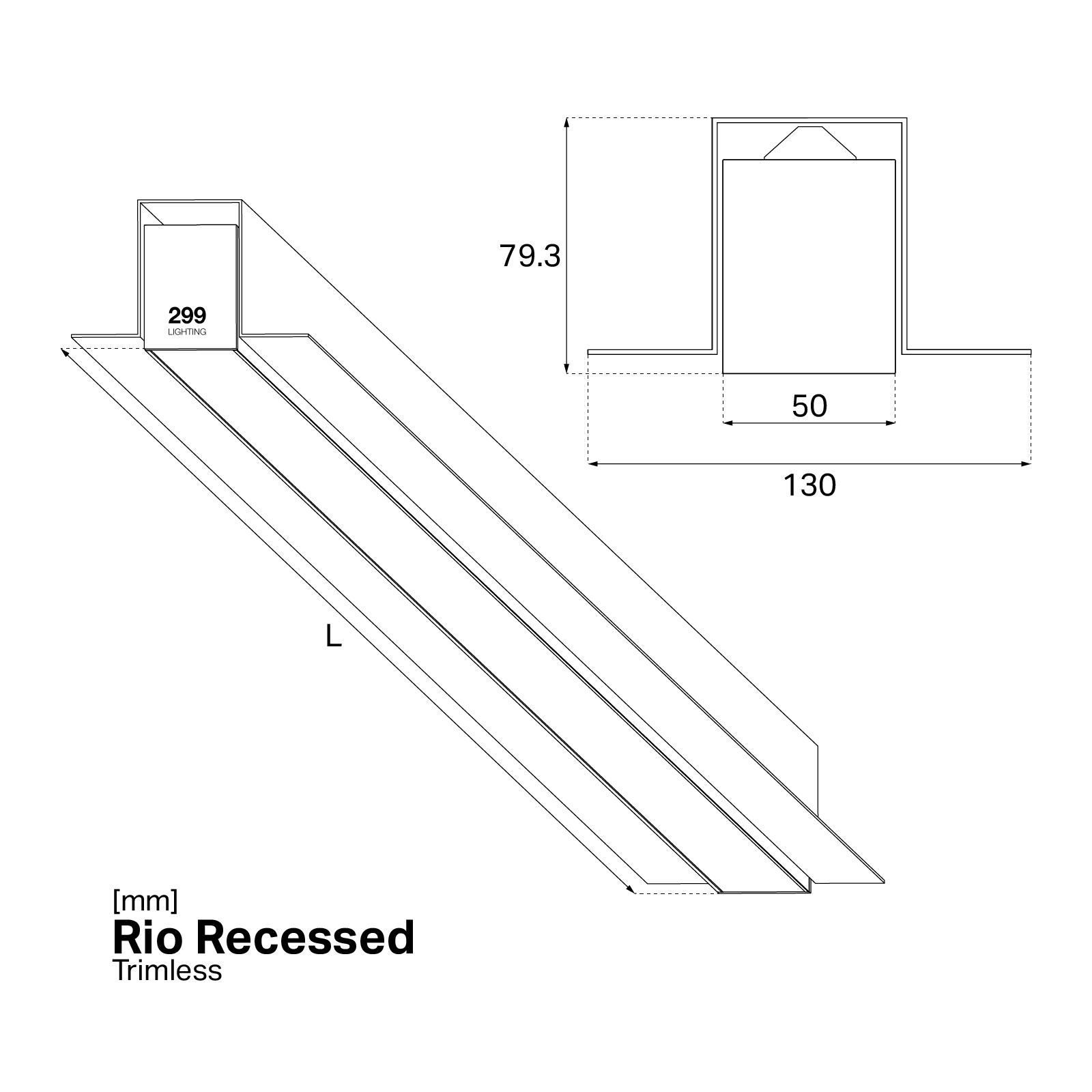

Design
· Aluminium housing with powder coat
· Recessed trimless ceiling mounted
· Standard finishes white, black and grey
· Recessed lengths 580 mm to 2820 mm in 70 mm increments
· Non-standard lengths available, with longer lead times
· IP54 available for recessed from the bottom side up
· 5 year warranty

Optics
· Opal PMMA
· Prismatic PMMA
· Black opal PMMA
· Asymmetric

Installation
· Suitable as an individual luminaire or a continuous light-line system
· Through wiring available
· Recessed end caps available in white, black and grey

Dimming
· Non-dimmable as standard
· Switch DIM available
· DALI available
· Tunable White available

Integrated Controls (on request)
· Casambi

299 Lighting reserve the right to change the specification of any product without notice or public announcement.
