Rio Wall Direct/Indirect

Request a quote Request a sample

Reply within one working day. Layouts and calculations included when we supply.

Linear wall light

The RIO Wall Mounted Direct/Indirect is the ultimate performance driven  linear profile. Designed with simplicity and attention to detail, the RIO Wall Direct/Indirect is contemporary and stylish. Used as an individual luminaire in standard size, or a continuous linear lighting system, the RIO Wall Direct/Indirect adds a contemporary feel to any workplace or architectural space. Specified with the opal diffuser, the RIO Wall Direct/Indirect creates clean lines of light. But the RIO Wall Direct/Indirect is not just a practical approach to office lighting. With its variation in mounting styles and diffusers, the RIO  is a perfect example of flexible linear  lighting. A true all-rounder, it is equally at home in an office and as architectural lighting.

The clean-cut illuminated corner modules invite you to play and create unique shapes in made-to-measure lengths. When specified with a black diffuser, the RIO Wall Direct/Indirect can turn into a bold architectural feature lighting. It is a perfect linear solution for joinery details and custom made feature walls or ceilings. And the best thing about RIO? The super easy installation! The wall mounted version of RIO comes with an L-shaped bracket allowing fast and easy installation.

The RIO has become an early adopter of the latest LED Tunable White technology, giving the user the freedom to select any custom colour temperature between 2700K and 5000K with a proven positive effect on health and wellbeing. The RIO Wall Direct/Indirect is available in 3 standard colours or ‘stand out from the crowd’ and choose any RAL colour or vinyl wrap to match your interior design. Ideal as a premium wall mounted linear lighting for Cat A and Cat B office fit-out and a flexible solution for bespoke schemes to complement the main design scheme using RIO Suspended.

The RIO can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

· LED
· Direct-Indirect Distribution
· LED outputs available from 27W 2,990lm up to 143W 15,364lm
· Efficiency of 102lm/W
· The Rio can achieve schemes of <19UGR, meeting the CIBSE, SLL and BCO guide to lighting standards.
· Colour Temperature 3000K | 4000K | Tunable White
· Internal Drivers supplied

Design

· Extruded aluminium profile
· IP20 Rated
· Wall Mounted
· Available in 7 standard sizes ranging from 866mm to 2246mm. Other sizes available on request 636mm-2246mm in 70mm increments
· Available in White, Black or Grey. Custom RAL available on request

Optics

· Opal Diffuser
· Microprismatic Diffuser
· Asymmetric Reflector
· Black Opal
· Modular Optics

Dimming

· Non-dimmable as standard
· DALI available on request
· Tunable White available on request. It uses DALI DT 8 control drivers

Integrated Controls (on request)

· CASAMBI · Philips EasyAir

Installation

· Can easily be connected into a system. Quick and simple power and control connection.

Miscellaneous

· 3hr Emergency available on request
· 2 year warranty

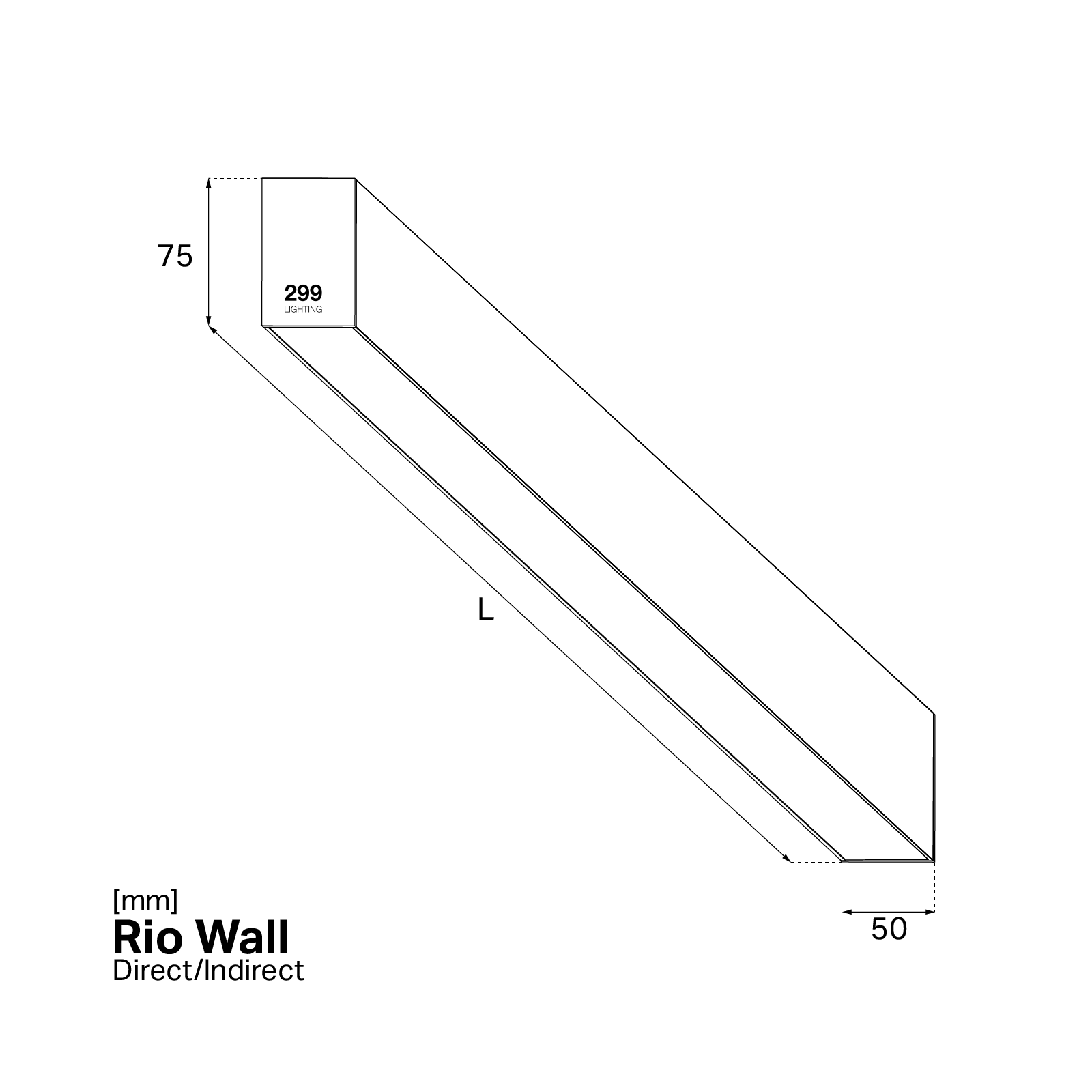

· Integral Emergency Dimensions Above 1266mm

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Downloads.

Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.

Questions about Rio Wall Direct/Indirect.

What is the efficacy of Rio Wall Direct/Indirect?

Rio Wall Direct/Indirect delivers up to 102 lm/W, depending on the output, optic and configuration chosen. The figure for your exact configuration is on the datasheet and your quotation.

How does Part L apply to Rio Wall Direct/Indirect?

Part L compliance is judged on the luminaire lumens per circuit-watt average that Approved Document L sets for general lighting across the whole installation, so one product's headline efficacy does not settle compliance. We check the average for your whole scheme when we prepare the layout.

Can Rio Wall Direct/Indirect be dimmed?

Yes. Rio Wall Direct/Indirect is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.

How do I get a quote or sample for Rio Wall Direct/Indirect?

Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.

Product Configurator

Product Configurator

Configure your Rio linear profile

Main Configuration

Description:
Power: -
Output: -
Efficacy: -
Length: -
Professional PDF Generator Active v3.8

Special Characteristics

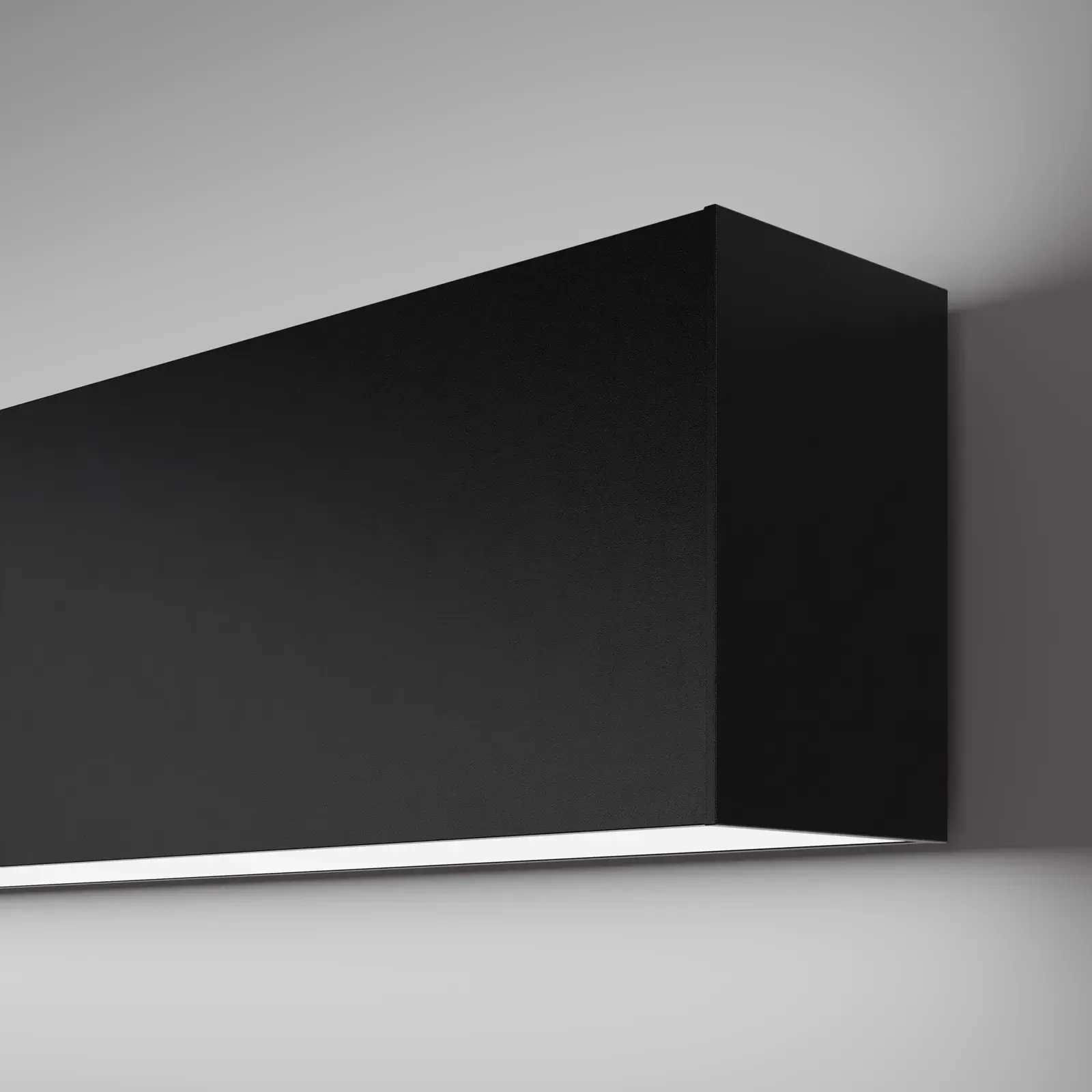

up and down wall light

Versatile

Thanks to its superb build quality, excellent performance, and high visual comfort, this up and down wall light is perfect for stimulating working environments and schemes looking to achieve LG7 compliance.

OfficeBanner-02

Customisation system and shapes

The design of the RIO lends itself perfectly to made to measure linear lighting solutions.

It gives the designer a true freedom creating a vast array of dimensional combinations.

linear-lighting-diffusers-off-3

5 different diffusers

First in its class, the RIO is not just about being office lighting in a different body, it offers 5 different types of diffusers, the RIO presents a welcome change to the usual linear LED lighting.

rio-plugandplay

Easy installation

Thanks to the wago connect system, the luminaire distributes edge-to-edge light with zero light bleed.

The click-in gear tray makes the RIO Wall Direct/Indirect the perfect straight out of the box LED linear lighting solution.

Clyde Wall

Wireless Control

All mounting styles of Rio can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

All mounting styles of Rio can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Light distribution example

rio-wall-directindirect-light-distribution-1

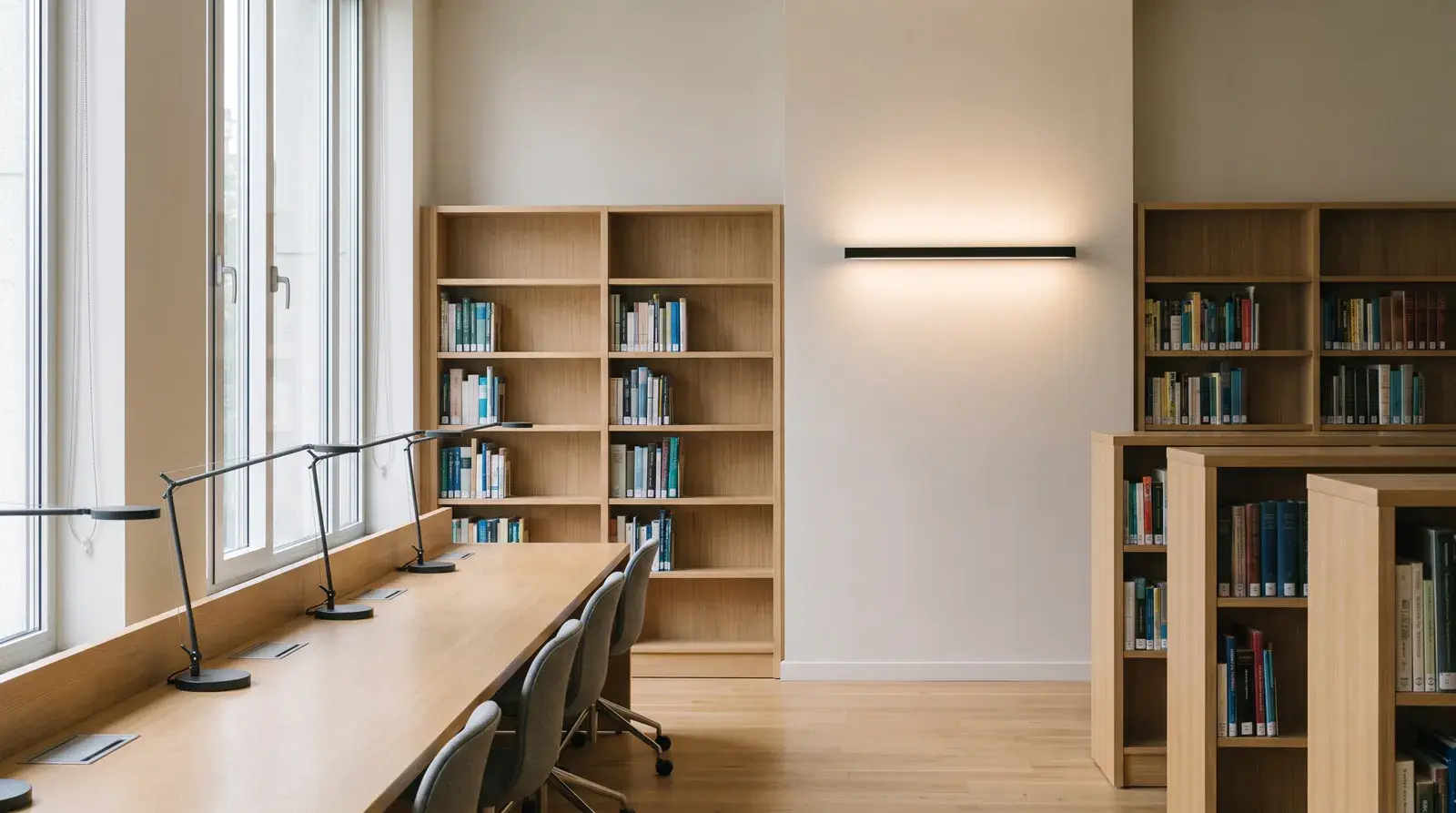

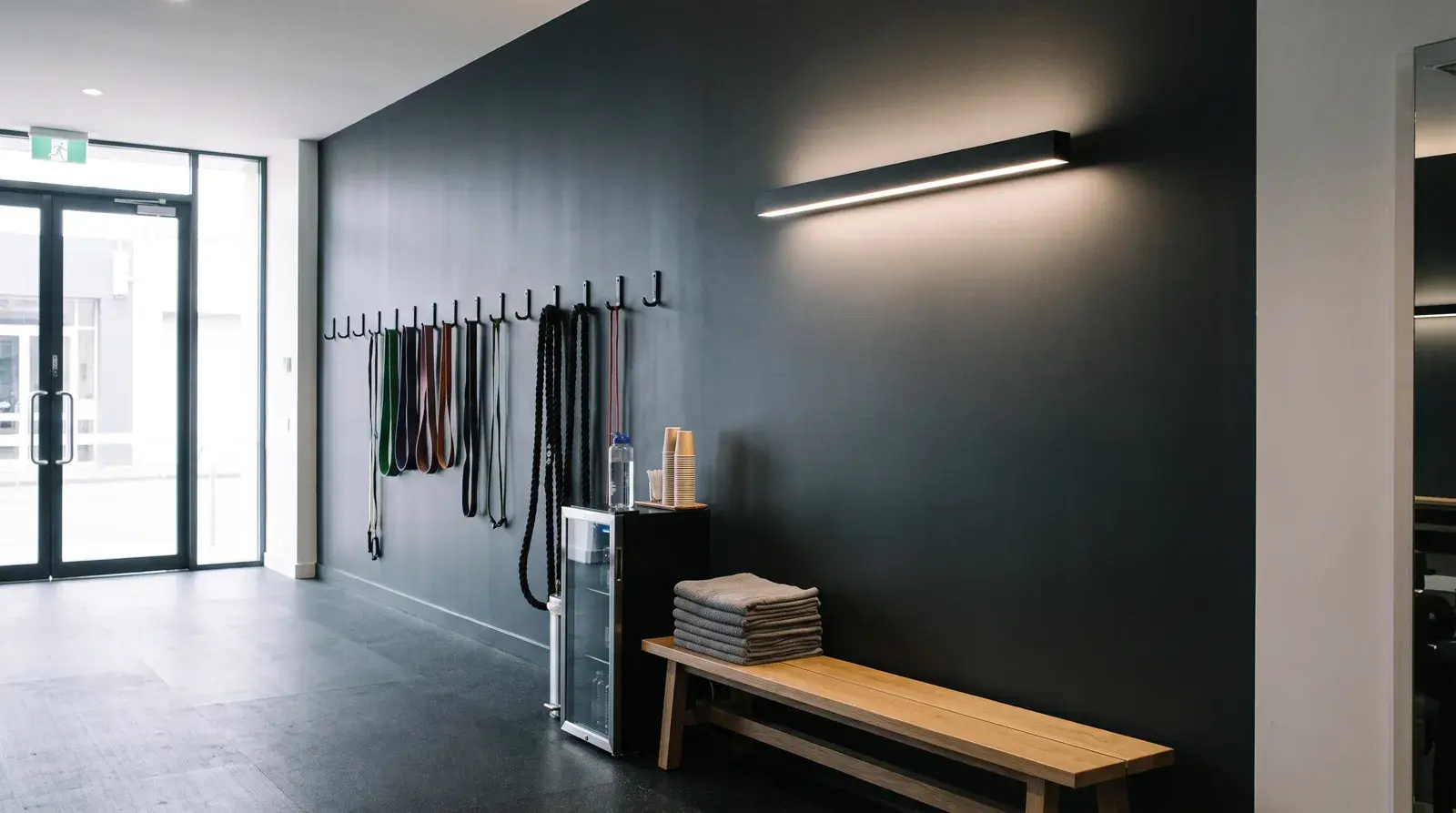

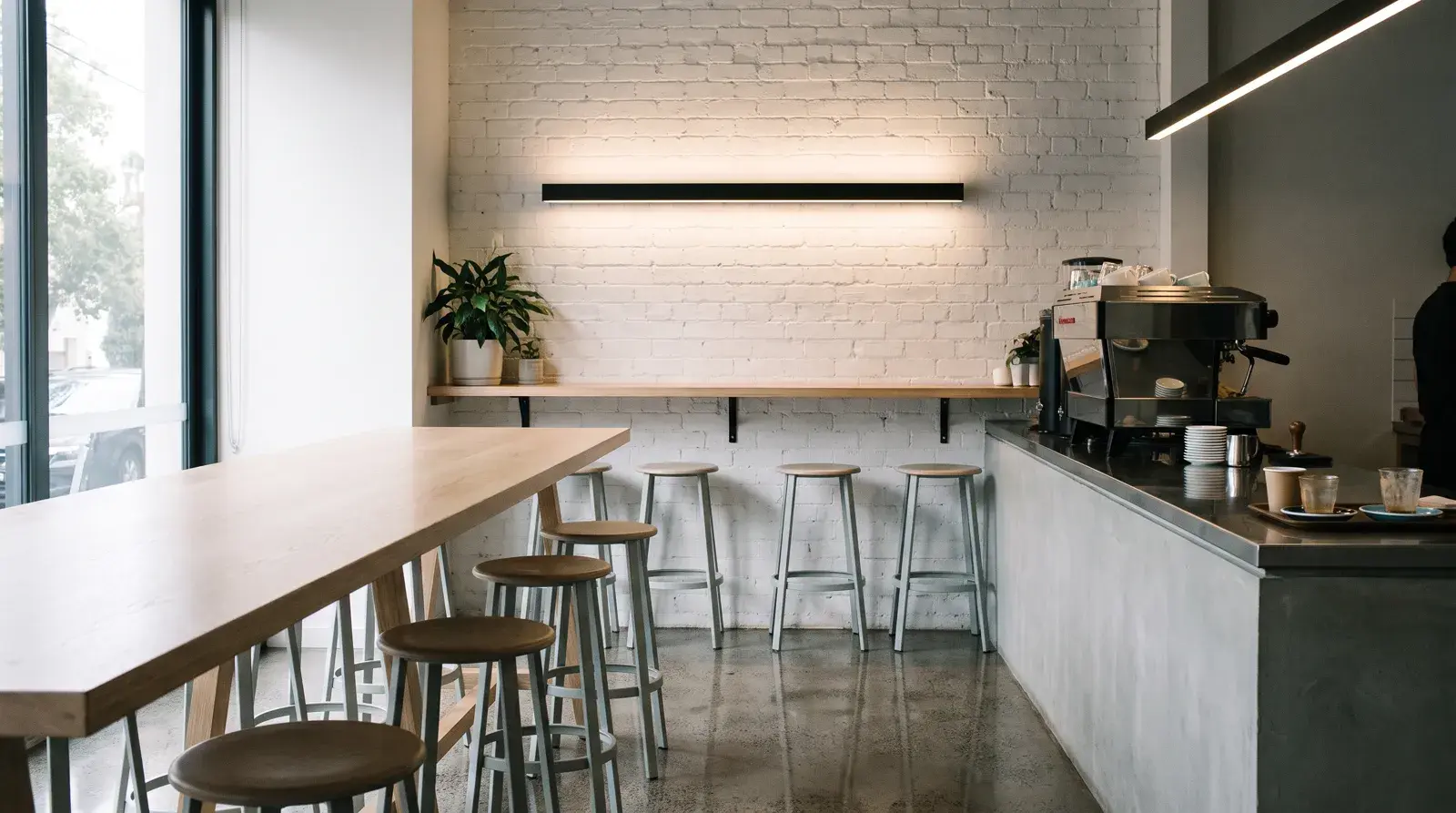

Product In Use
