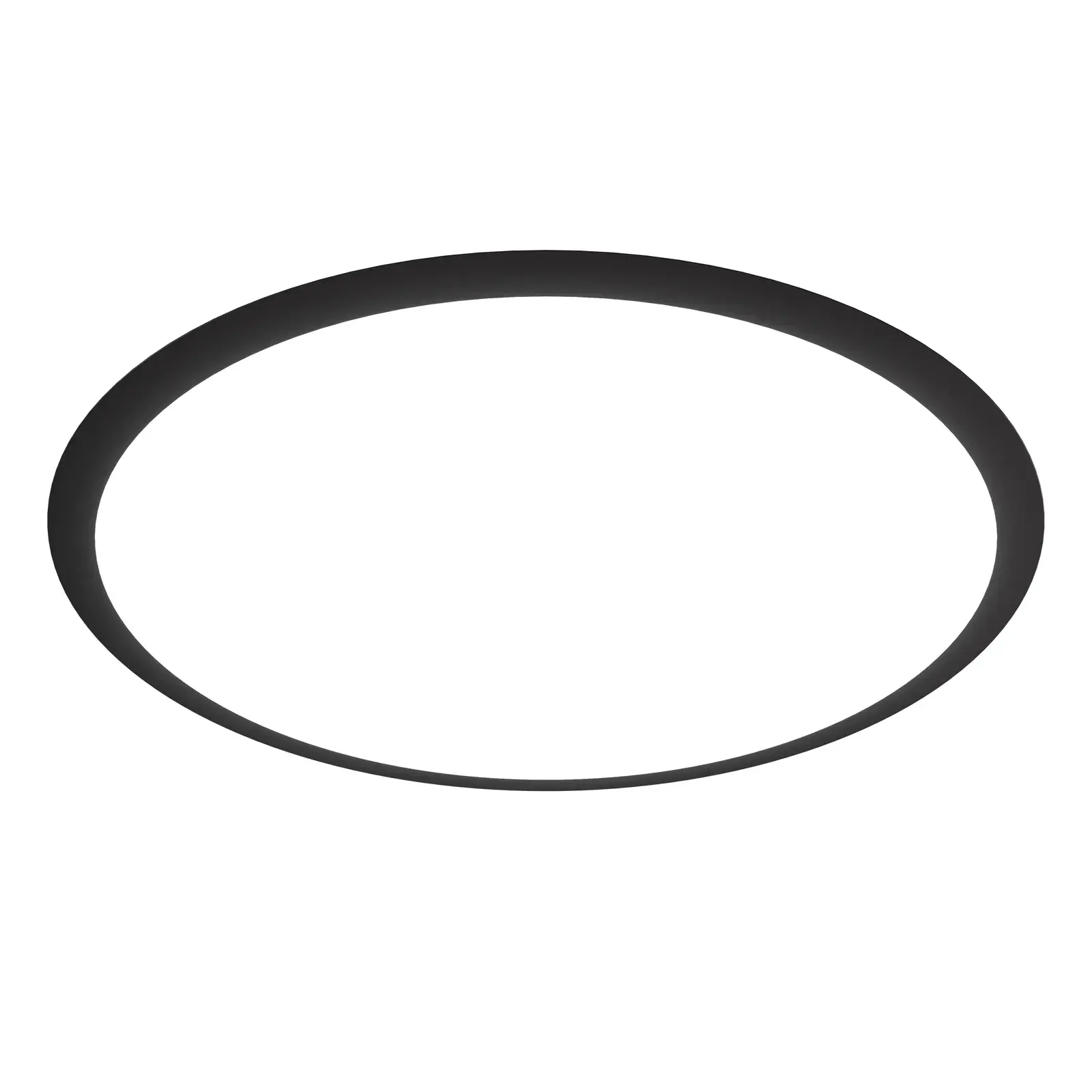

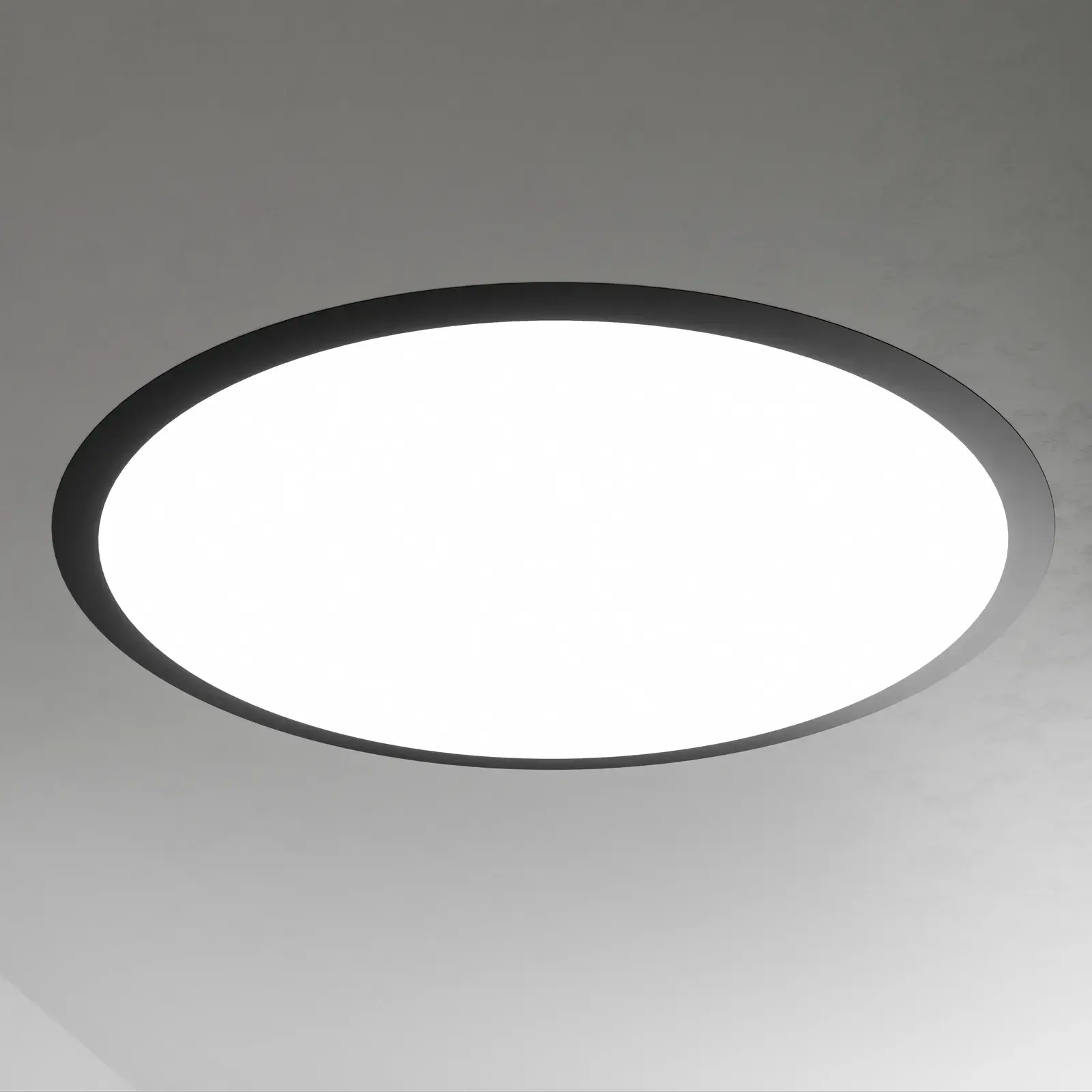

Segura Recessed Trim

LARGE  DOWNLIGHT WITH TRIM

Minimalist and bold at the same time, the family of architectural recessed downlights Segura can truly become a part of the architecture of any environment. The clean aesthetics of this architectural luminaire will enhance any commercial interior. When used with the trim, the recessed downlighter Segura adds an elegant finish to your crisp white ceilings, becoming a subtle feature itself. For a more bold design, choose any RAL finish and mix & match the six different sizes.

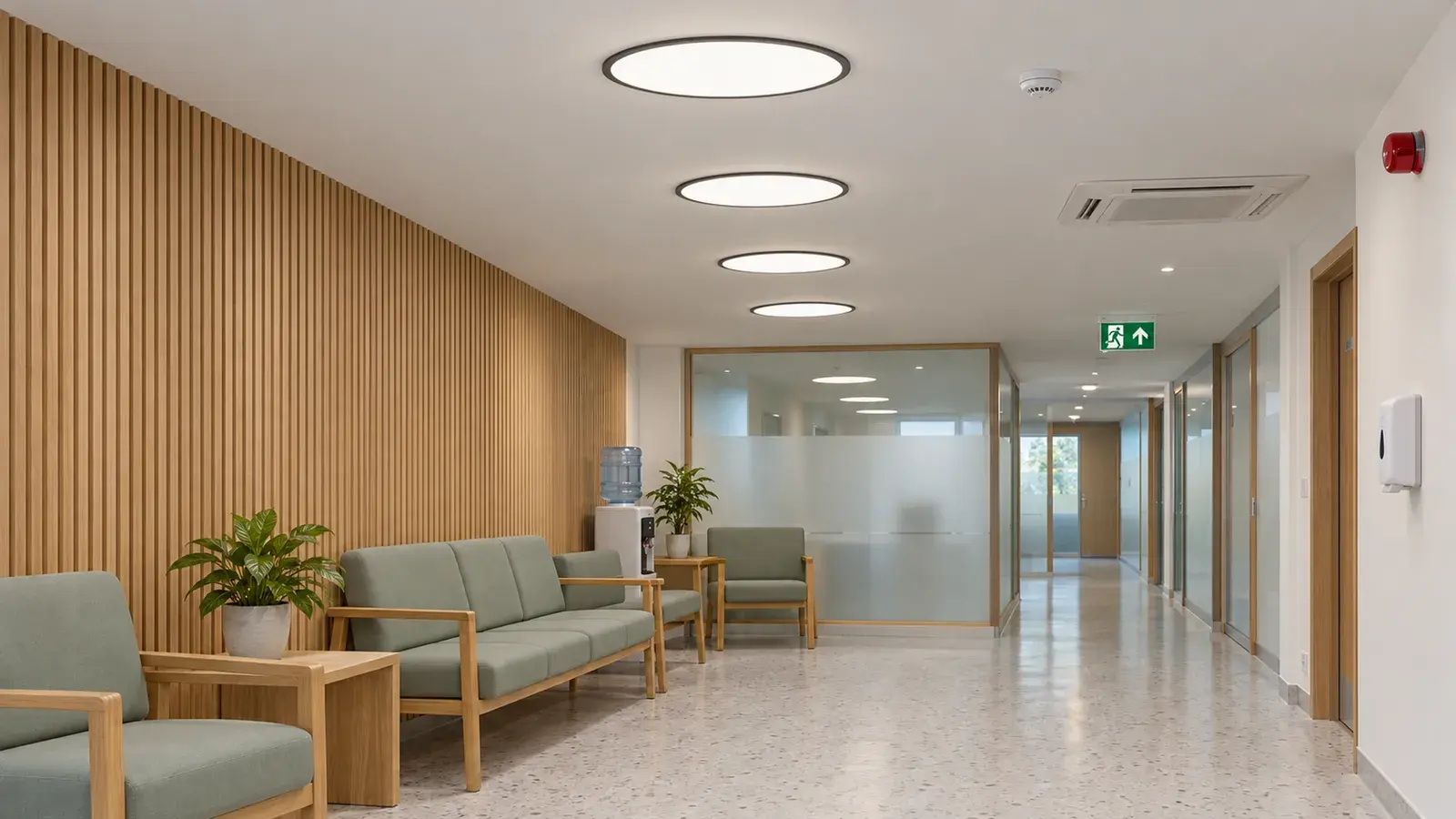

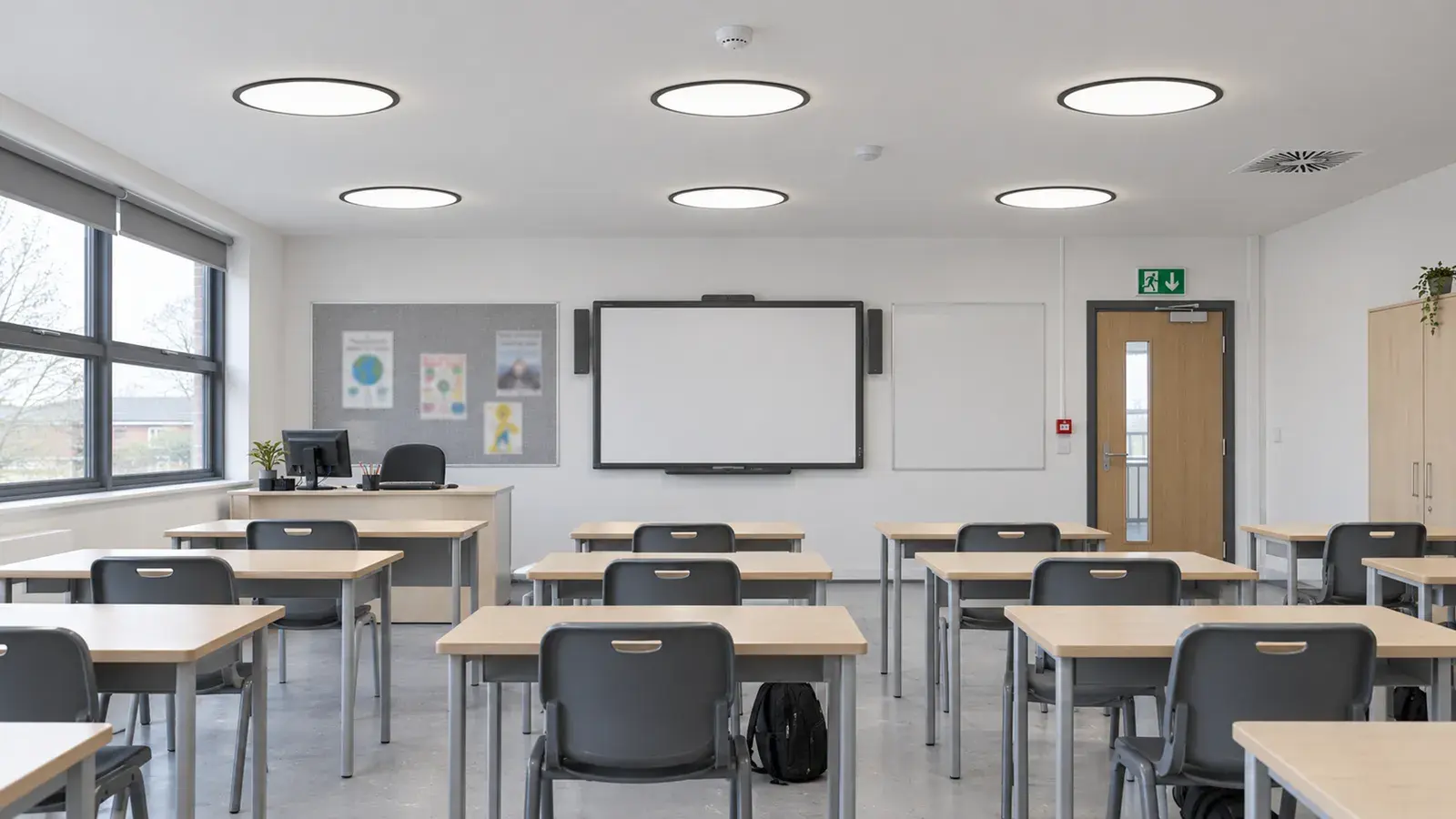

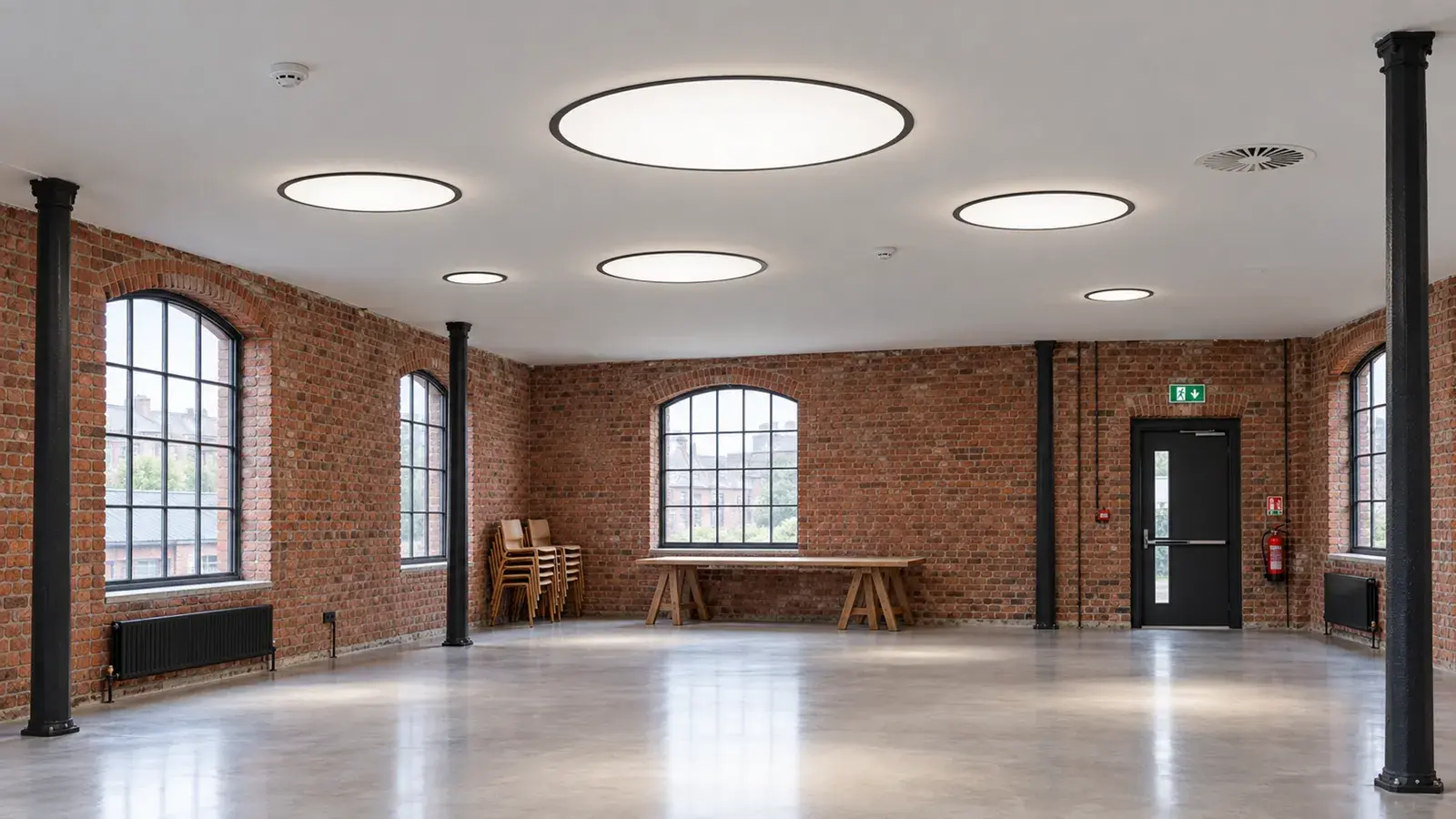

The choice is yours. Equipped with either opal or microprismatic diffuser, the Segura produces a pleasant uniformly distributed output of light. Increasingly popular with architects and designers, the Segura can be used throughout the entire project, or as feature lighting for a particular room. Ideal for breakout spaces, reception areas, galleries, offices and retail environments.

The SEGURA can be specified with CASAMBI to increase user control.

Light Source Information

· LED
· Direct Only
· LED outputs available from 12W / 1100 lm up to 198W / 23280 lm · 3- Step MacAdam ellipse · CRI80 · Efficiency of up to 117 lm/W · Colour Temperature 3000K | 4000K
· Internal Drivers supplied
· L80B20, Life-time of 50,000 hrs

Design

· Ceiling recessed with trim
· IP20 rated

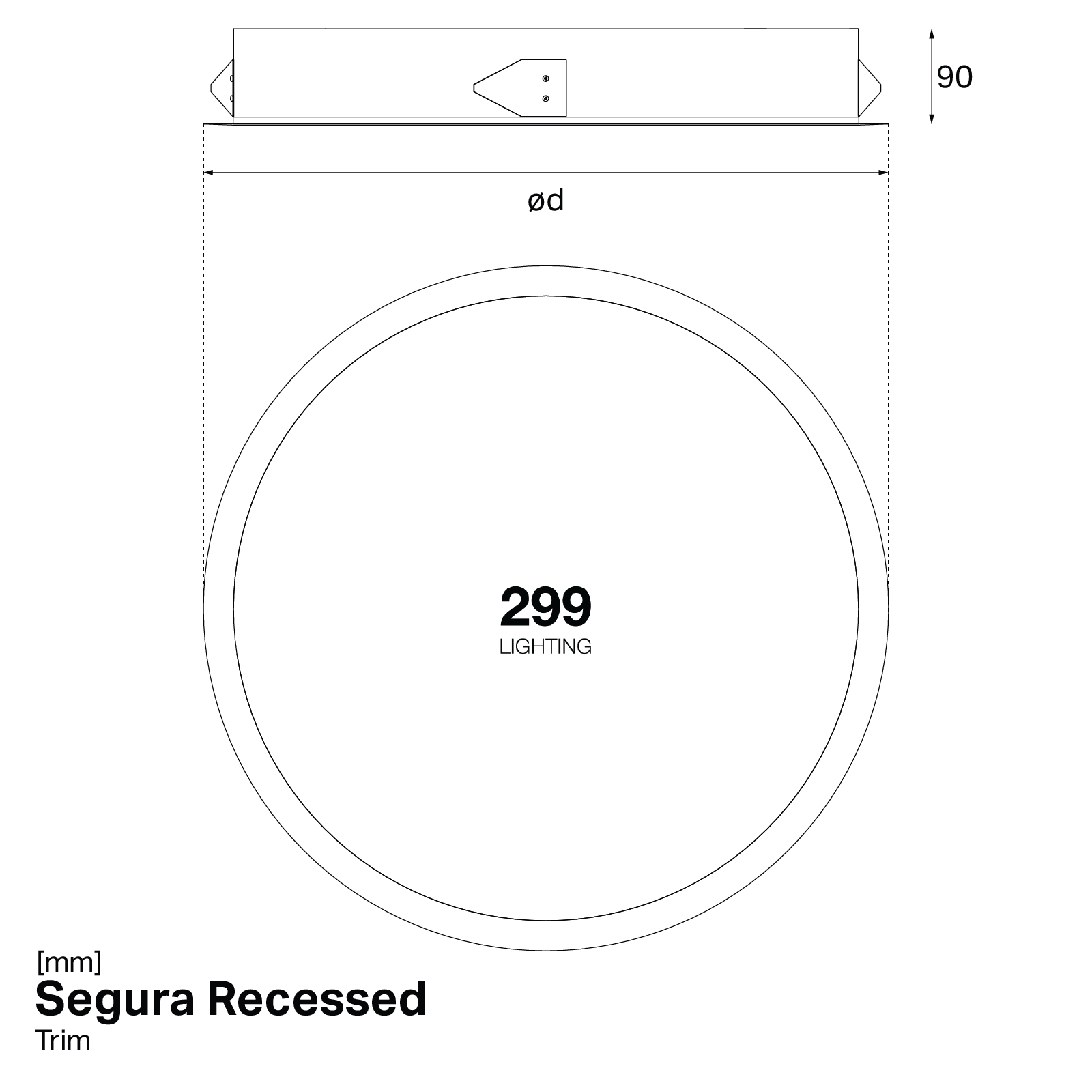

· Available in 6 standard sizes from 266 mm to 1264 mm

Optics

· Opal Diffuser · Microprismatic Diffuser

Dimming

· Non-dimmable as standard
· DALI available on request

Integrated Controls (on request)

· CASAMBI

Installation

· For recessing only, cut specified size from plasterboard. Place unit into ceiling, allow 140mm min. recess cavity. Screw brackets to rotate them into place, securing luminaire in place

Miscellaneous

· 3hr Emergency available on request
· 2 year warranty
