Hexagon Pendant Light

The Aragon Suspended is a hexagon pendant luminaire for commercial and architectural interiors. Supplied as a complete fitting rather than a cut-to-length profile.

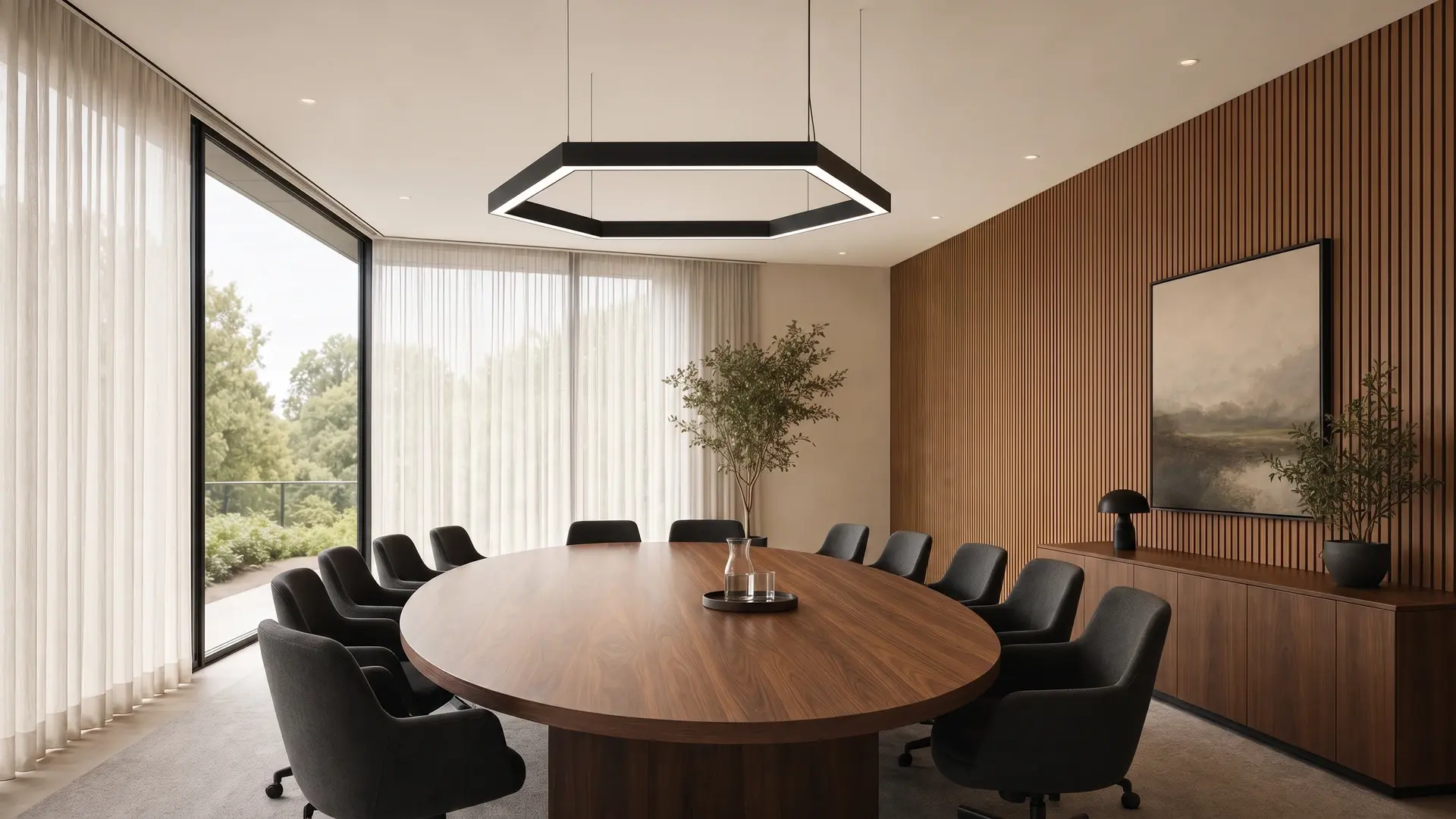

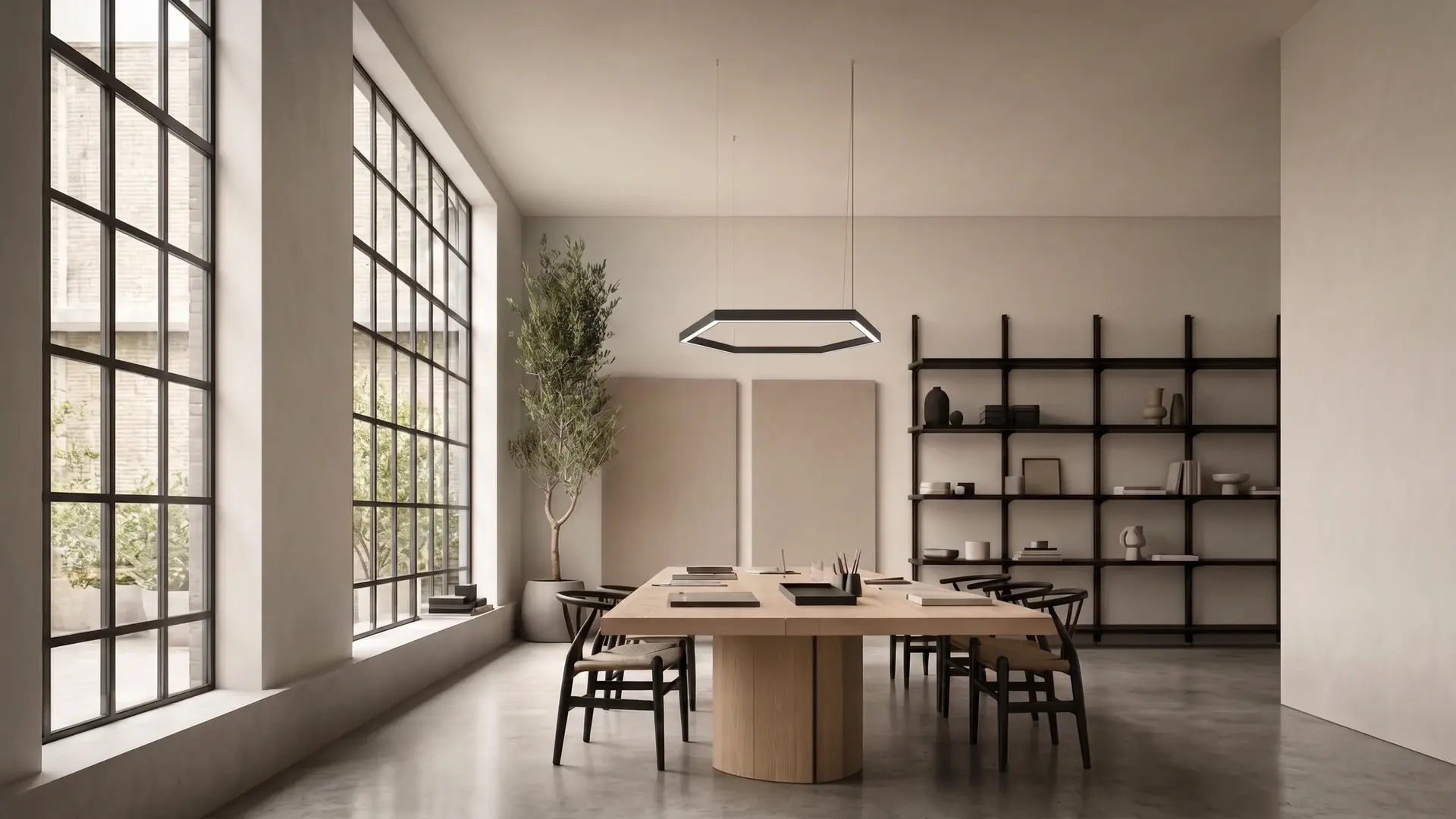

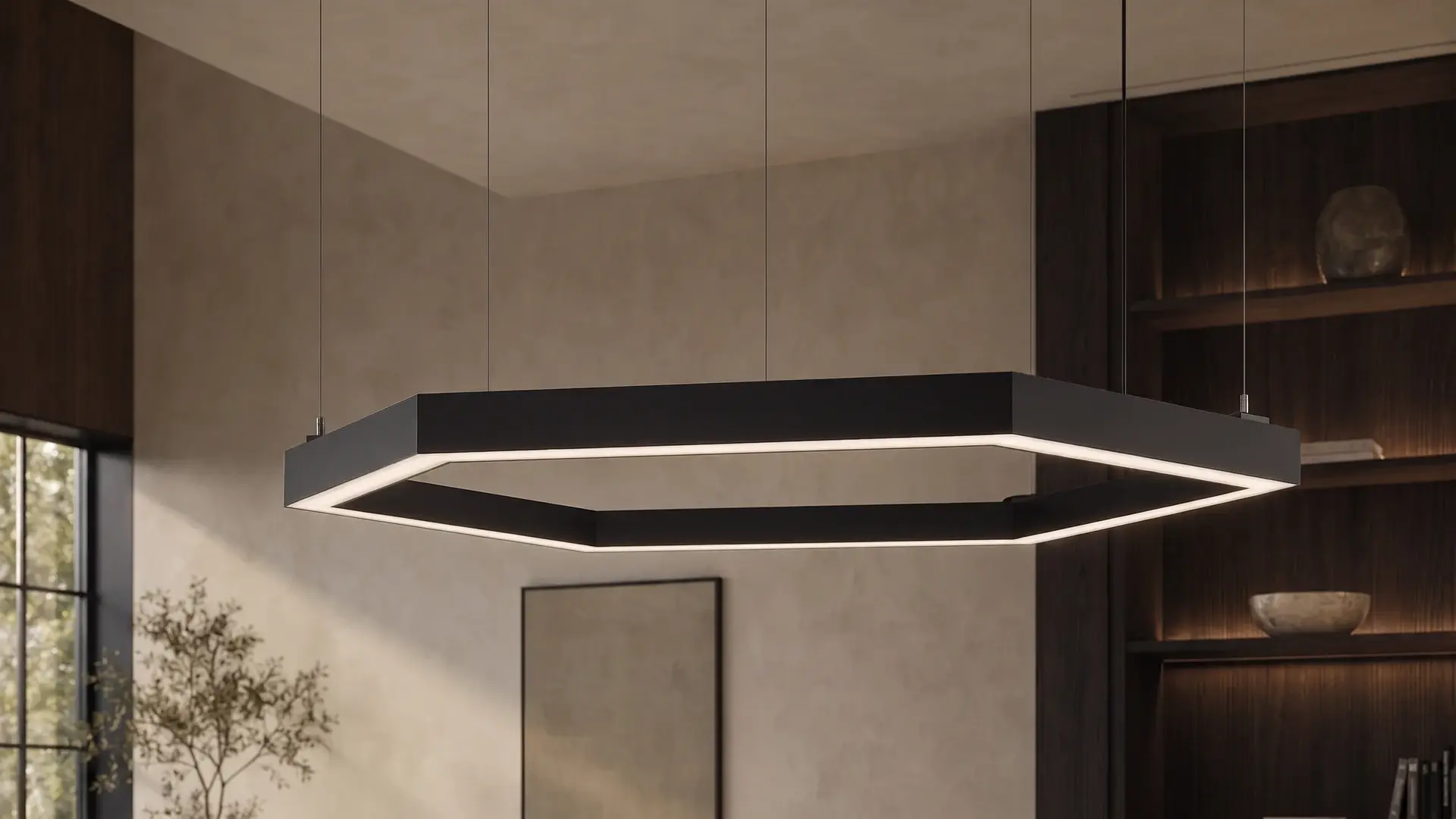

Use it as a single feature over a workplace island, reception or collaboration zone, or group several hexagons into a cluster. It suits CAT A and CAT B offices, coworking floors and other interior schemes that need a clear geometric pendant.

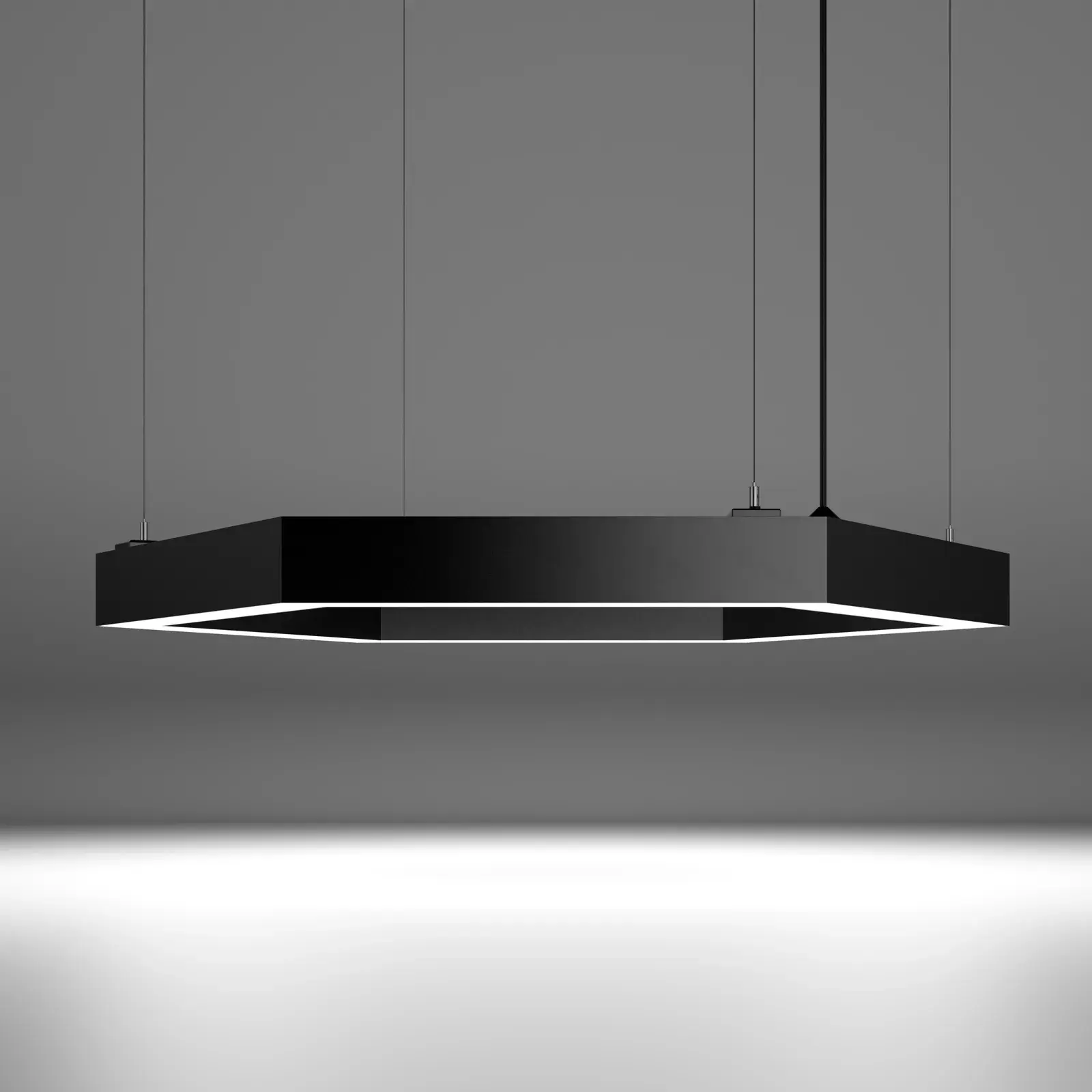

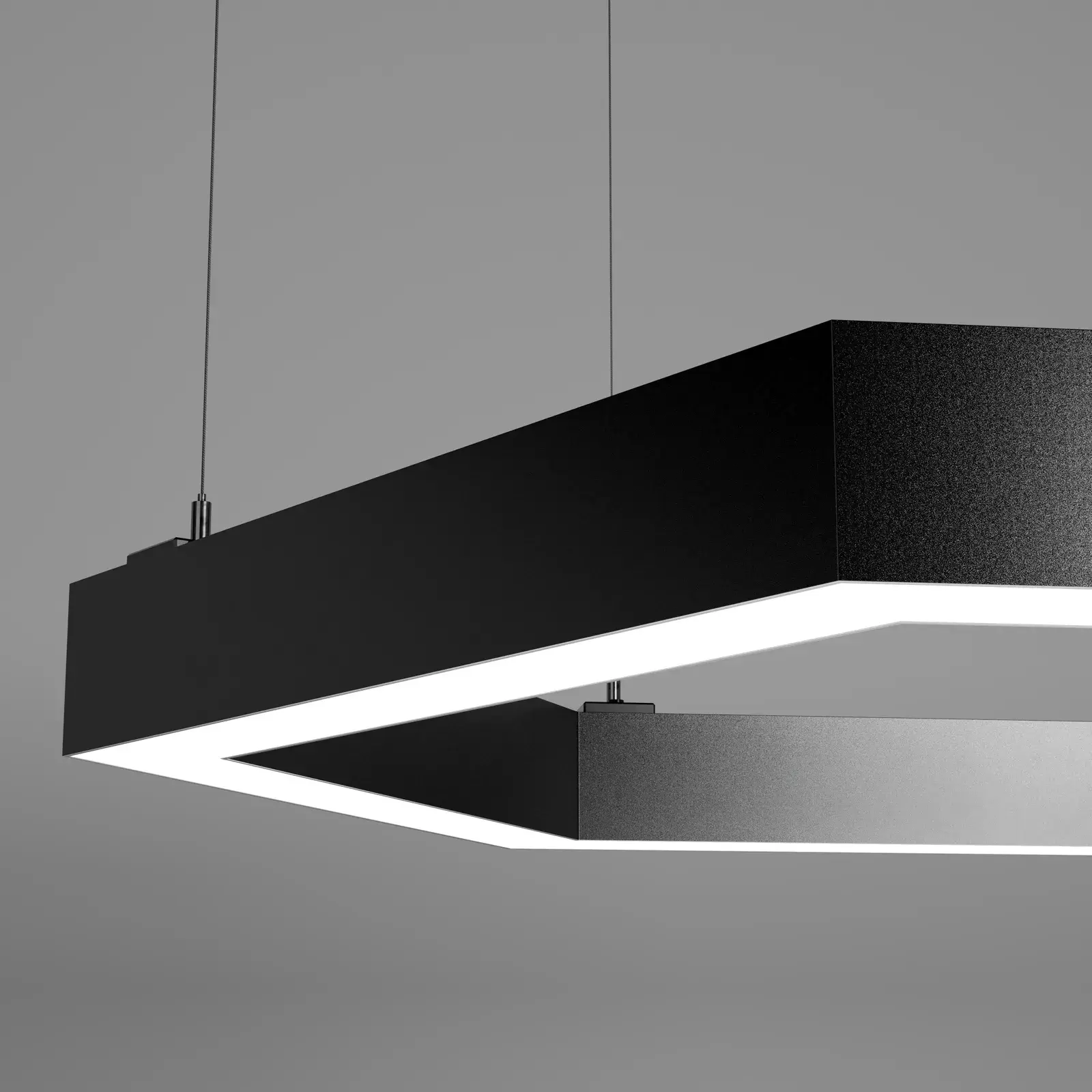

The fitting has a continuous hexagon body in aluminium. Light can be specified as downlight only or as up and down light, with opal, prismatic or nero optics to suit the interior.

Standard finishes are white RAL 9016 and black RAL 9005. Four sizes are available: 780 mm, 1200 mm, 1480 mm and 1760 mm. Colour temperatures are 2700 K, 3000 K, 4000 K and 5000 K, with Mains dimming, DALI-2, 2-channel DALI-2 or Casambi control.

Light Source Information
· LED
· Direct, Direct/Indirect Light Distribution
· Efficiency of 125 lm/W
· Colour Temperature 2700 K · 3000 K · 4000 K · 5000 K
· Colour rendering CRI > 80 · CRI > 90 · CRI > 97
· Colour consistency MacAdam Step 3
· Rated life L80 B20 at 100,000 h, Ta = 25 °C

Design
· Aluminium housing

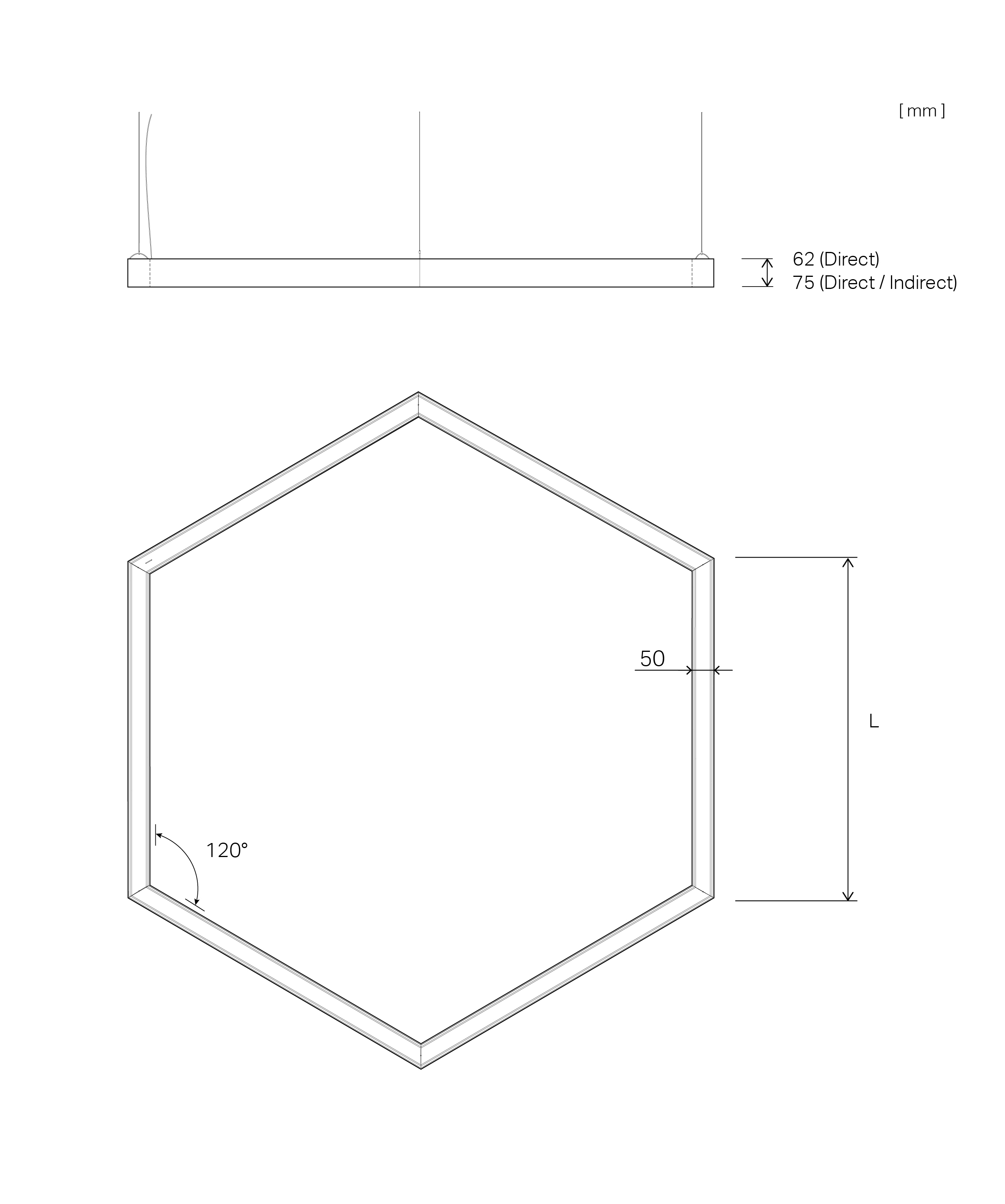

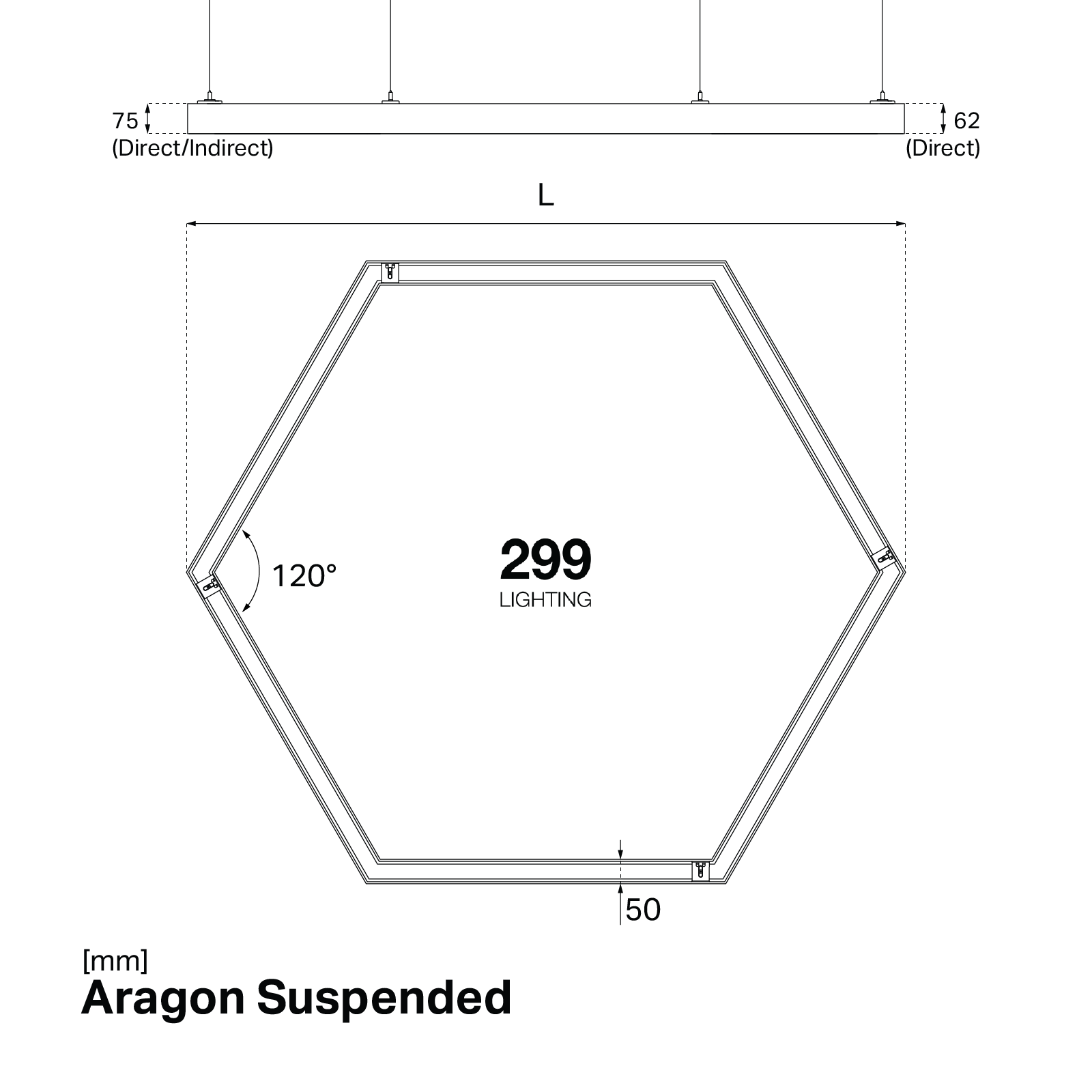

· Available in 4 standard sizes: 780 mm, 1200 mm, 1480 mm and 1760 mm
· Available in White RAL 9016 or Black RAL 9005

Optics
· Opal Diffuser
· Prismatic Diffuser
· Nero Diffuser

Installation
· Suspended pendant

Dimming
· Mains dimming
· DALI-2
· 2-channel DALI-2

Integrated Controls (on request)
· Casambi

Download datasheet

LDT Files - upon request

Installation Instructions - upon request

BIM Files - upon request

TM65 Report - upon request
