Tinto Suspended

Request a quote Request a sample

Reply within one working day. Layouts and calculations included when we supply.

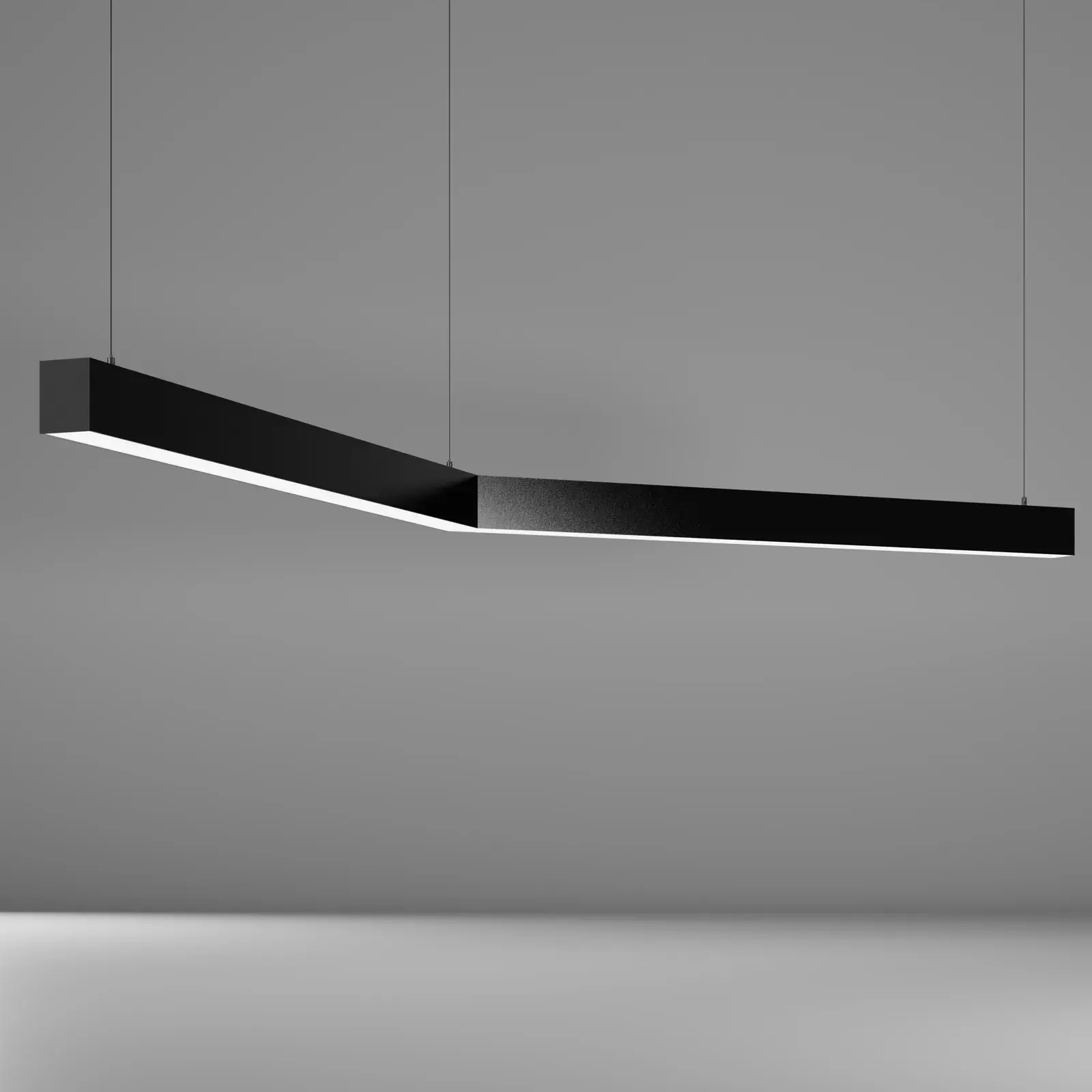

Boomerang-shaped linear feature lighting

The TINTO Suspended is a performance-driven linear feature lighting based on the shape of a boomerang with 2 equal sides and the possibility of a wide range of angles ranging from 45° up to 150° angle. A dynamic shape with a strong sense of direction, the boomerang-shaped Tinto can be used to help navigate through space in contemporary architecture or workplace.

Seamlessly welded, the Tinto is simple, contemporary and sleek. Used as an individual pendant luminaire, Tinto adds a neutral feel of order to any workplace or architectural spaces. Use it as a cluster of different sizes or even colours, and your design will be guaranteed to be full of dynamic energy. With a variation in mounting styles and diffusers, the standard Tinto offers two sizes with further possibilities of made to measure sizes.

And the best thing about Tinto? The luminaire is supplied pre-assembled as one unit, meaning a super easy installation!

The Tinto has become an early adopter of the latest LED Tunable White technology, giving the user the freedom to select any custom colour temperature between 2700K and 5000K with a proven positive effect on health and well-being. The Tinto is available in 3 standard colours or 'stand out from the crowd' and choose any RAL colour to match your interior design. It’s ideal as a premium suspended linear workspace lighting for CAT A and CAT B office fit-out and flexible coworking spaces.

The Tinto can be specified with both CASAMBI and Philips EasyAir wireless sensors to increase user control and enhance the sustainability of your development or commercial design scheme.

Product is also available as surface, wall and recessed mounting styles.

Light Source Information

· LED
· Direct, Direct/Indirect Light Distribution
· Outputs confirmed on the datasheet and your quotation · Efficiency of 105lm/W
· The Tinto can achieve schemes of <19UGR, meeting the CIBSE, SLL and BCO guide to lighting standards.
· Colour Temperature 3000K | 4000K | TW (2700K - 5000K)

· Internal Drivers supplied

Design

· Extruded aluminium profile
· IP20 Rated
· Standard and made-to-measure sizes; sizes confirmed on your quotation.
· Available in White, Black or Silver. Custom RAL available on request

Optics

· Opal Diffuser
· Microprismatic Diffuser

Installation

· Available on request

Dimming

· Non-dimmable as standard
· DALI available on request

Integrated Controls (on request)

· CASAMBI · Philips EasyAir

Miscellaneous

· 3hr Emergency available on request
· 2 year warranty

Downloads.

Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.

Questions about Tinto Suspended.

What is the efficacy of Tinto Suspended?

Tinto Suspended delivers up to 105 lm/W, depending on the output, optic and configuration chosen. The figure for your exact configuration is on the datasheet and your quotation.

How does Part L apply to Tinto Suspended?

Part L compliance is judged on the luminaire lumens per circuit-watt average that Approved Document L sets for general lighting across the whole installation, so one product's headline efficacy does not settle compliance. We check the average for your whole scheme when we prepare the layout.

Can Tinto Suspended be dimmed?

Yes. Tinto Suspended is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.

How do I get a quote or sample for Tinto Suspended?

Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.

Tormes CTA

Wireless Control

All mounting styles of Tinto can be easily upgraded with CASAMBI or Philips EasyAir controls, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

All mounting styles of Tinto can be easily upgraded with CASAMBI or Philips EasyAir controls, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
