Surface-Mounted Linear LED Lighting Made in Britain

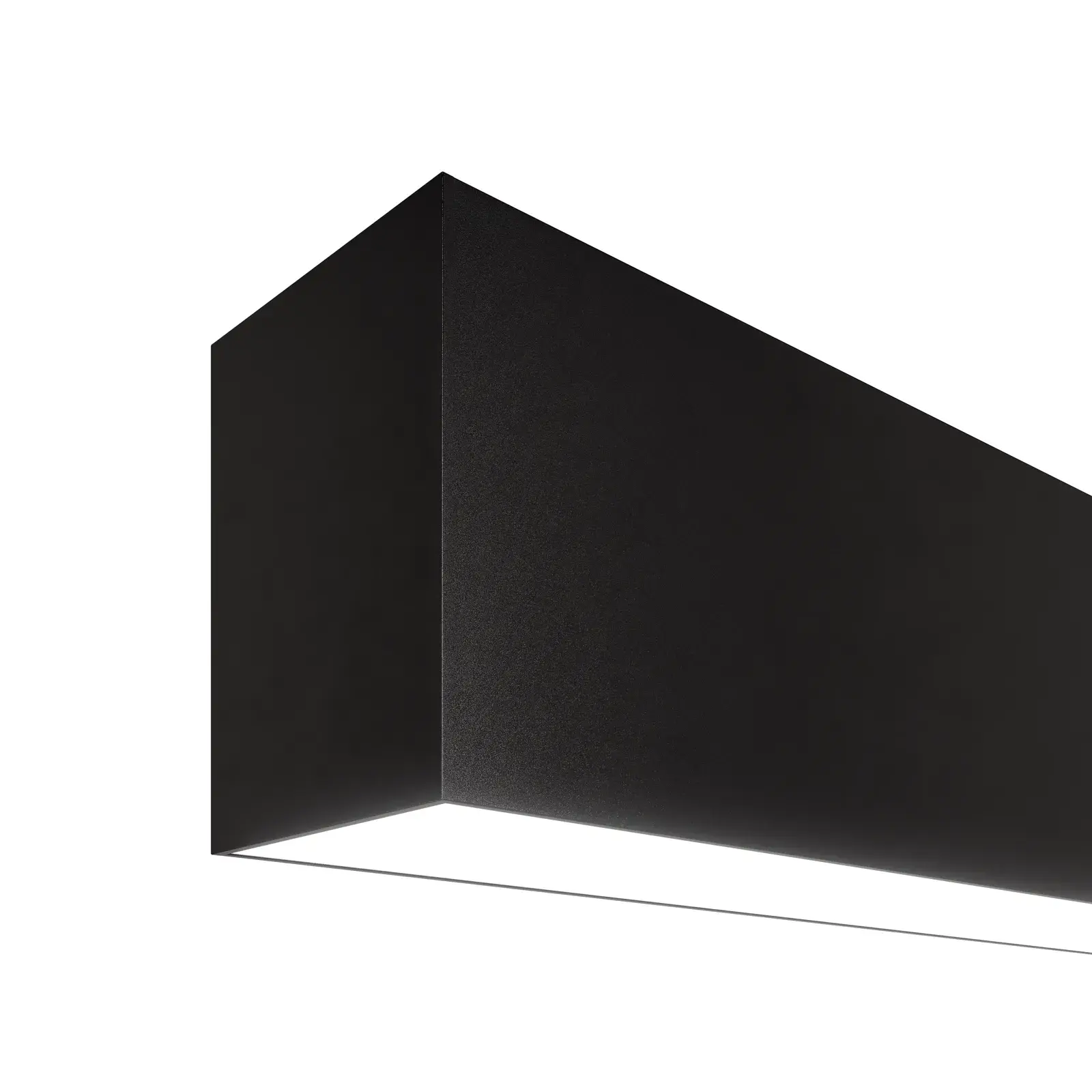

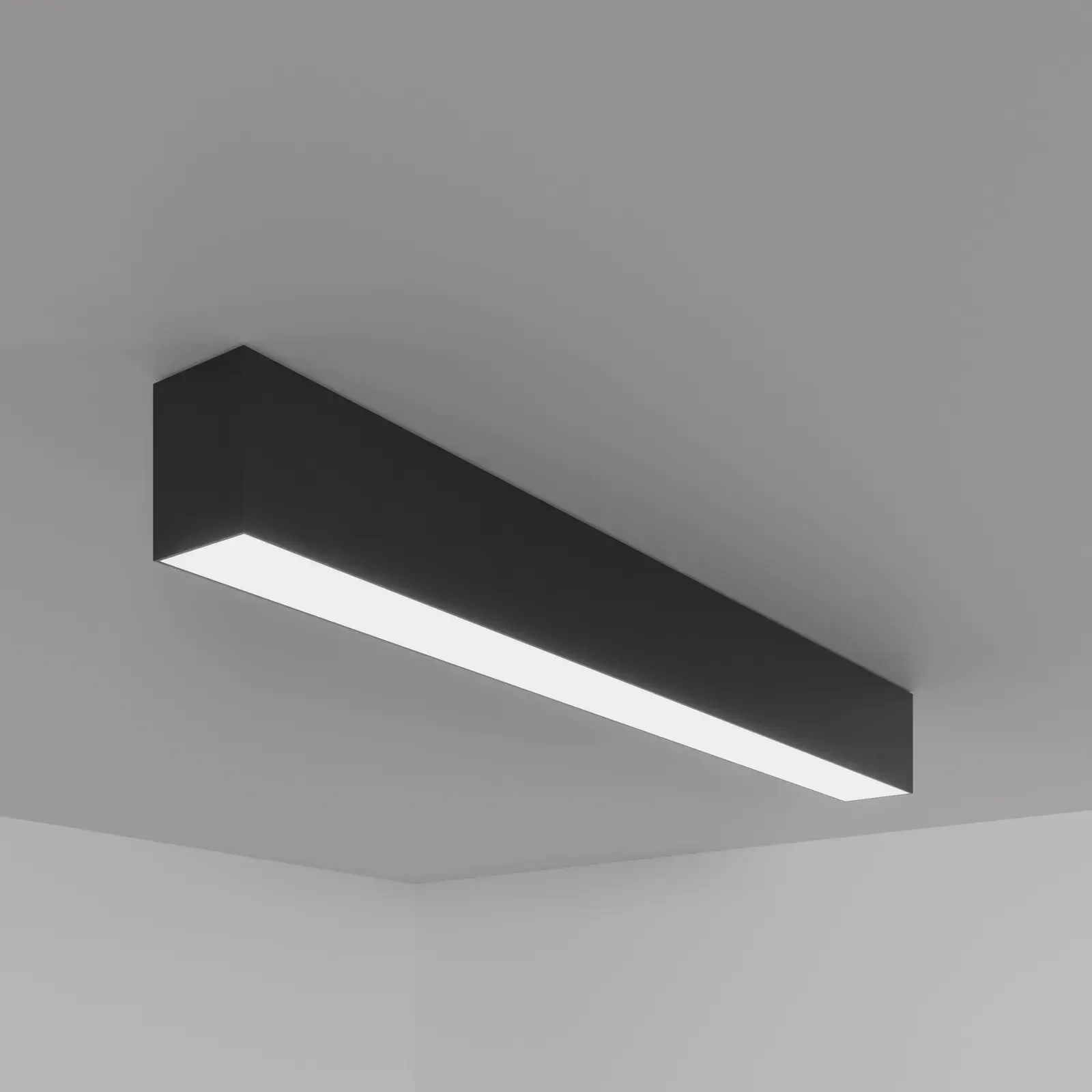

Clyde Surface is a surface-mounted linear LED light for commercial and architectural interiors. Designed and manufactured in the UK, Clyde is the first Made in Britain certified product in the 299 Lighting range. Its direct light distribution suits individual fittings and continuous linear lighting layouts.

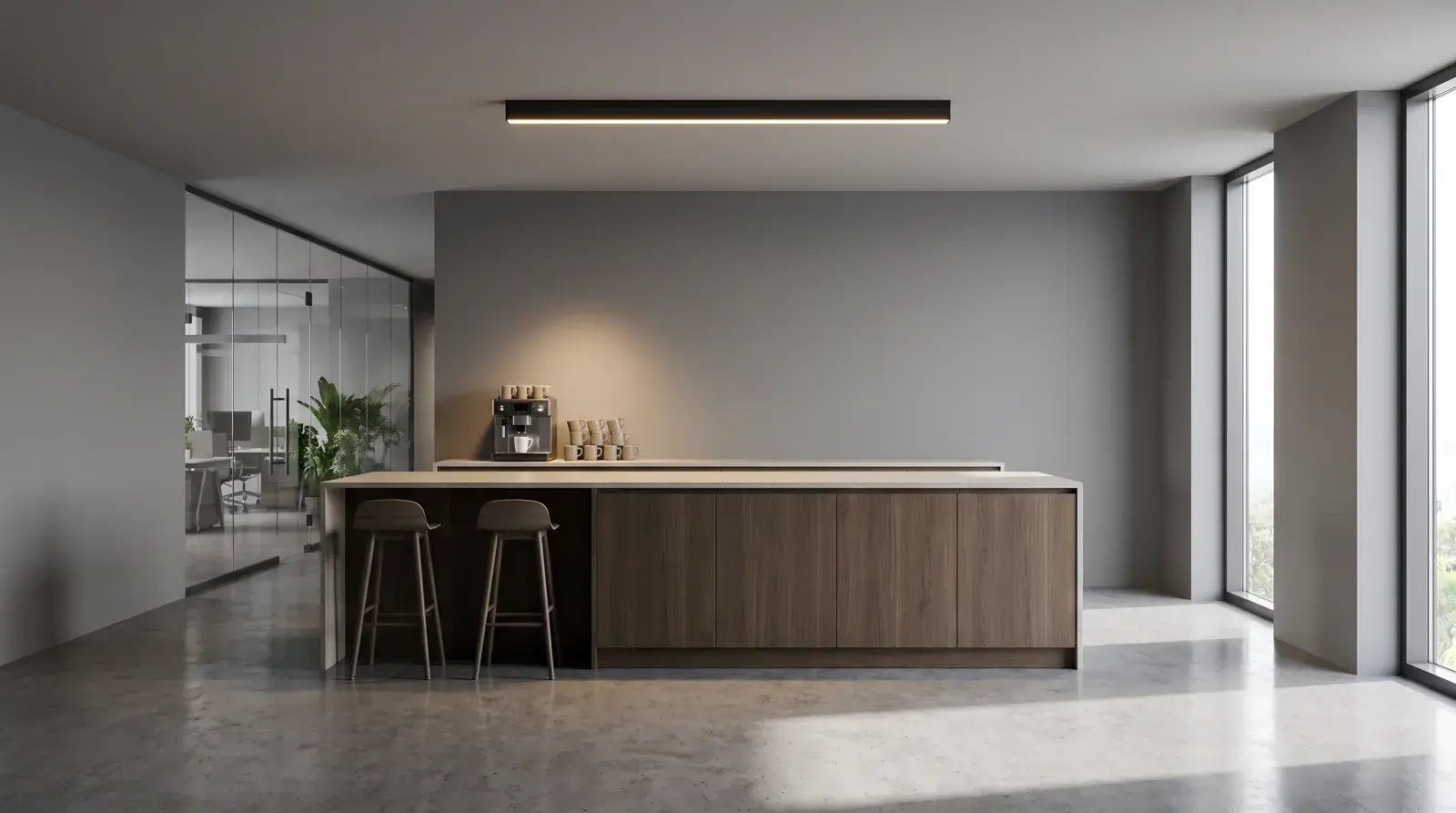

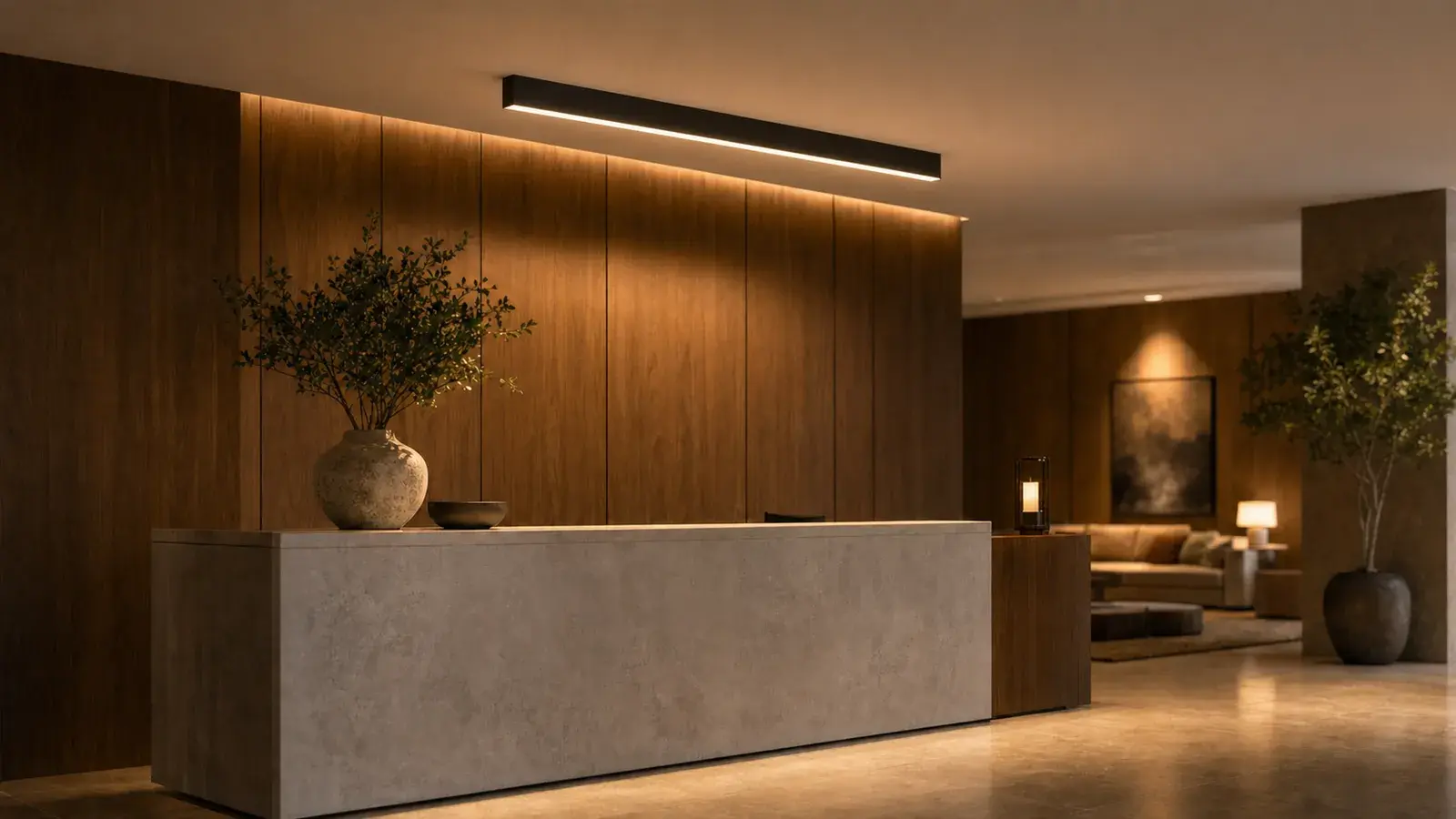

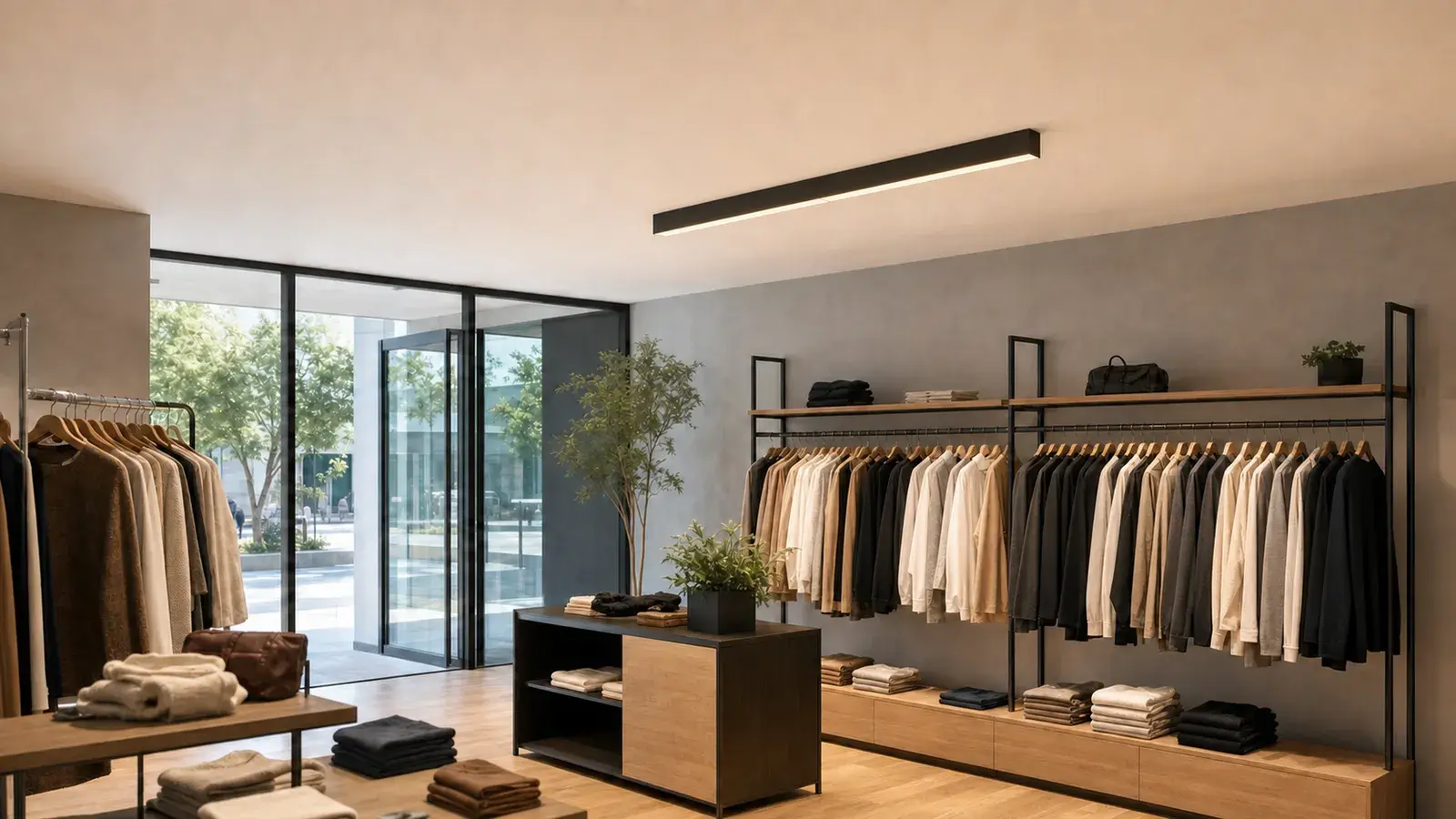

The extruded aluminium profile creates a defined linear form, making it suitable for spaces with low or restricted ceiling heights. Clyde Surface can be used in offices, corridors, reception areas, education settings, retail spaces and hospitality interiors where ceiling-mounted lighting is required.

Opal, microprismatic and quadrilateral prismatic optical options provide a choice of appearance and light control. Low, medium and high output options allow the fitting to be selected to suit the lighting requirements of the scheme, with 3000 K and 4000 K colour temperatures available.

Standard finishes are white, black and silver, with custom RAL finishes available on request. Clyde Surface can be specified for continuous runs and bespoke layouts. DALI dimming is standard, with Casambi and Philips EasyAir control options available on request.

Light Source Information
· LED light source
· Direct distribution
· Low, medium and high output options
· Colour temperature: 3000 K or 4000 K
· Tunable white available on request
· Internal drivers supplied

Design
· Product type: Surface-mounted linear LED light
· Designed and manufactured in the UK
· Made in Britain certified product
· First Made in Britain certified product in the 299 Lighting range

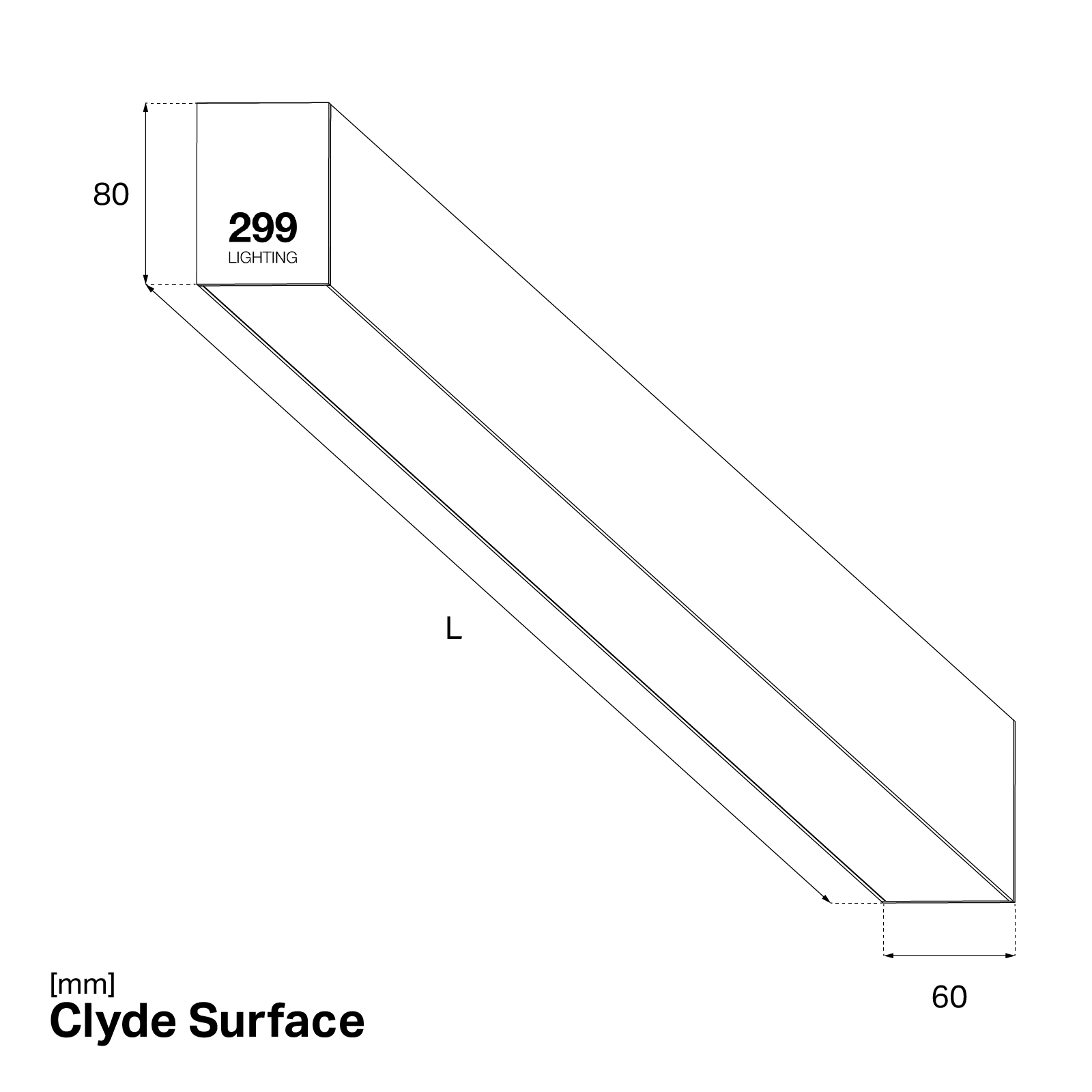

· Extruded aluminium profile and end caps
· IP20 rated
· Six standard lengths from 568 mm to 2248 mm
· Made-to-measure lengths available on request
· Finish options: white, black or silver
· Custom RAL finish available on request

Optics
· Opal diffuser
· Microprismatic diffuser
· Quadrilateral prismatic optic

Installation
· Ceiling surface-mounted
· Suitable for individual fittings and continuous linear systems
· Power and control connections for system installations

Dimming
· DALI-dimmable as standard
· Non-dimmable available on request
· Tunable white available on request

Integrated Controls (on request)
· Casambi
· Philips EasyAir
· 3-hour emergency option available on request
· Product warranty: 5 years

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Download datasheet

LDT Files

Installation Instructions - upon request

BIM Files - upon request

TM65 Report - upon request
