UK made Linear Lighting

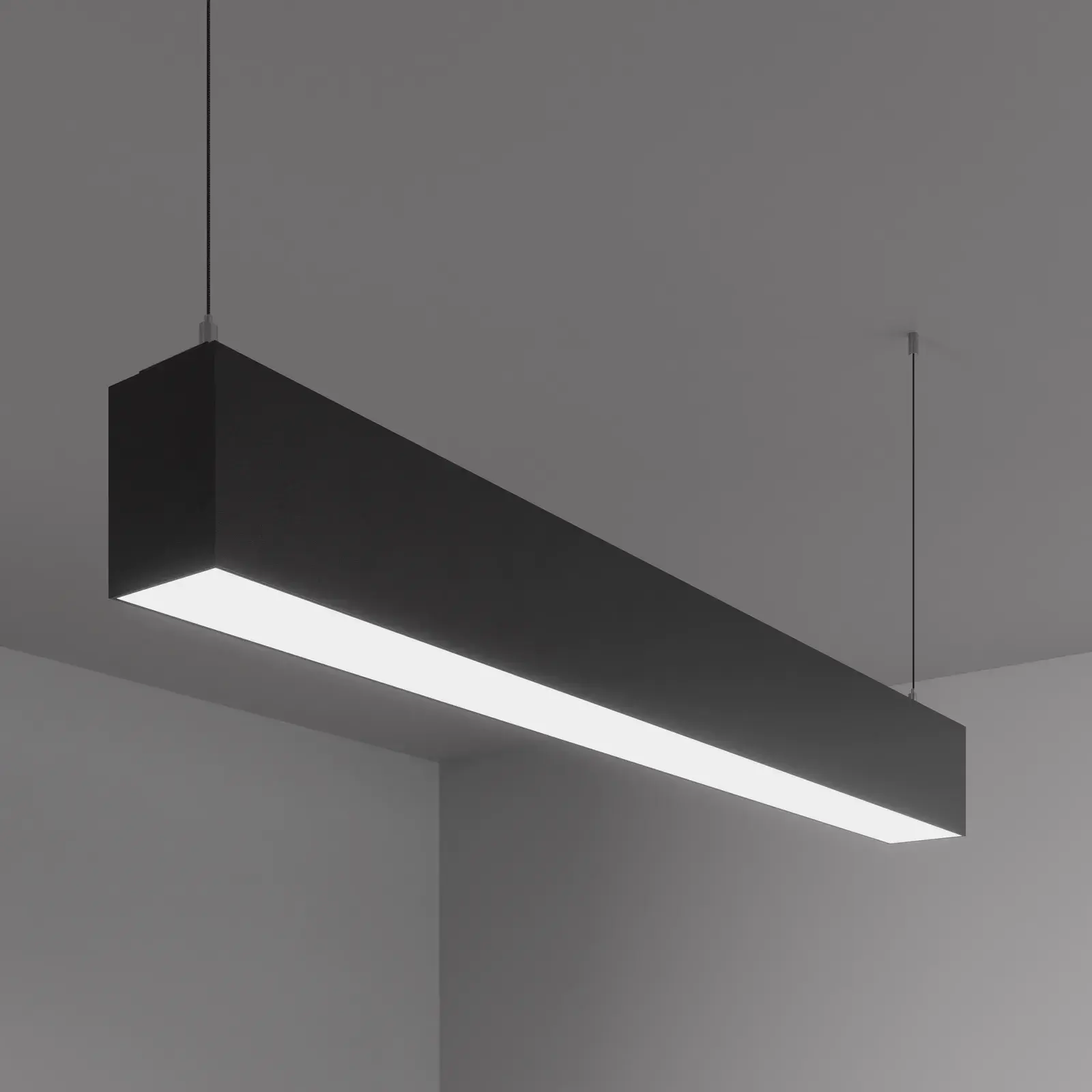

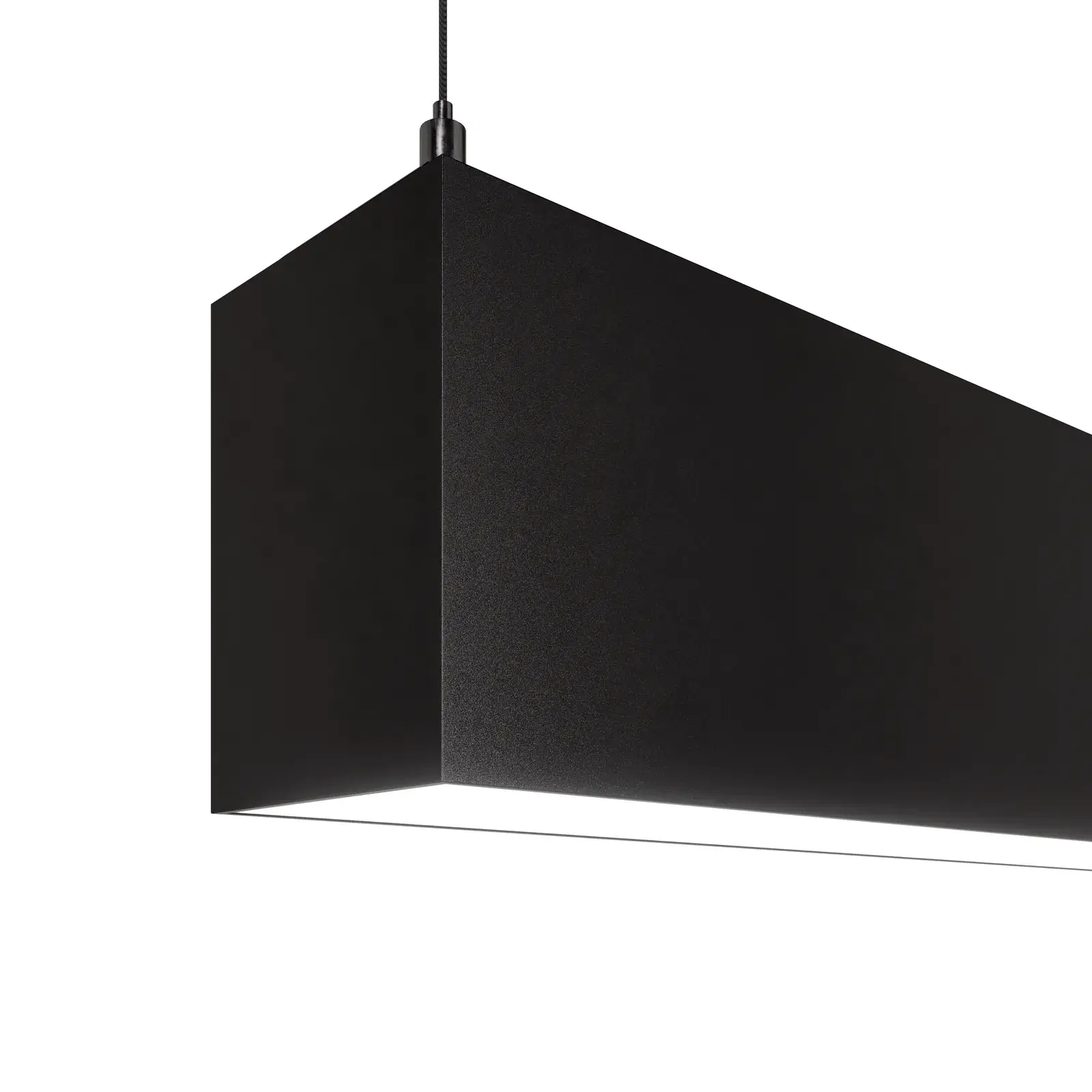

The Clyde Suspended Direct is a suspended linear LED luminaire for commercial and architectural interiors. Designed and manufactured in the UK, it is the first Made in Britain certified product in the 299 Lighting range, providing a UK-manufactured direct-light solution for individual fittings and continuous lighting systems.

Thanks to its high built quality, excellent performance, and high visual comfort, the 60 mm wide profile is a perfect linear lighting for projects looking to use sustainable product options. Standard body finishes are White RAL 9010, Black RAL 9005 and Silver Grey RAL 9006, with other RAL finishes available on request.

Choose from Smooth Opal or MicroPrismatic optics to suit the visual comfort and output requirements of the scheme. The MicroPrismatic options provide low-glare optical control for office applications and can assist with LG7 and UGR compliance when used as part of a compliant lighting design.

Clyde Suspended Direct is available in low, medium and high power versions, with 3000 K and 4000 K LED options as standard. It can be specified for workplaces, education settings, circulation areas, hospitality interiors, retail environments and other interior spaces requiring a continuous suspended linear lighting solution. Available in short 2-4 weeks delivery time.

Light Source Information
· LED light source
· Direct distribution
· LED colour temperature: 3000 K or 4000 K
· Colour rendering: CRI >80
· High CRI LEDs: Available on request
· Tunable white: Available on request
· Power options: Low, Medium or High
· Made in UK

· Luminaire efficacy: Up to 110 lm/W
· Lifetime: >60,000 hours L80/B10

Design
· Product type: Suspended linear LED luminaire

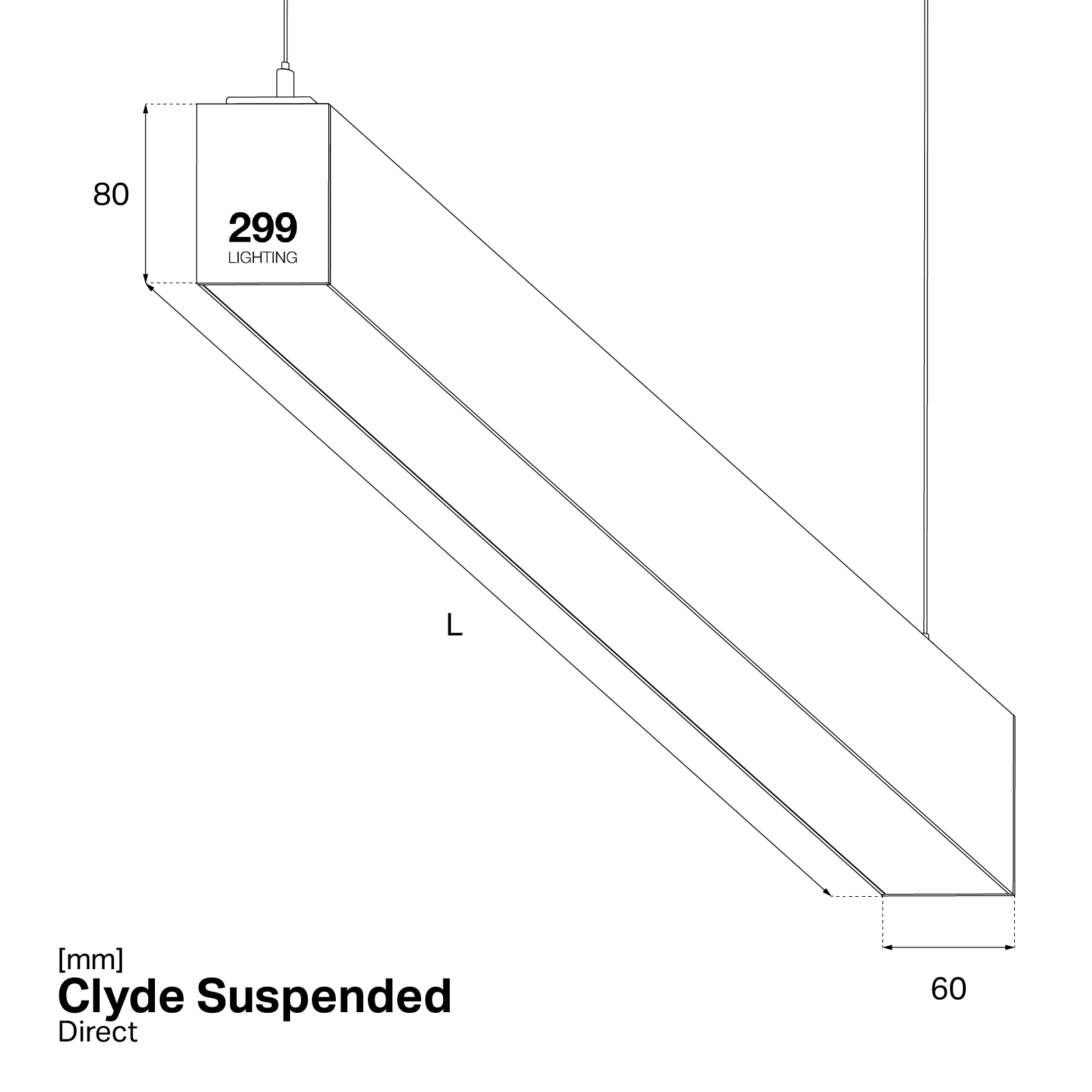

· Profile dimensions: 60 mm wide x 80 mm deep
· Body and end caps: Extruded aluminium
· Diffusers and optics: Polycarbonate
· Finish: White RAL 9010, Black RAL 9005 or Silver Grey RAL 9006
· Alternative RAL finishes: Available on request
· Standard complete fitting lengths: 568 mm to 3,651 mm
· Continuous systems: End-of-run and intermediate modules available
· Continuous system shapes: Flat corner, flat T and cross connections available

Optics
· Smooth Visual Opal diffuser: Homogeneous appearance for general areas and feature spaces
· MicroPrismatic optic: Low-glare microprismatic optic for office environments
· Prism optic: Quadrilateral prismatic optic with enhanced glare control
· Low-glare optics can assist with LG7 and UGR compliance when used within a compliant lighting design

Dimming
· non dimmable
· DALI dimmable
· Casambi

Emergency
· 3h Emergency lighting:

Warranty
· Product warranty: 5 years

Download datasheet

LDT Files

Installation Instructions

Download 3D Files

TM65 Report - upon request
