ARCHITECTURAL TRACK LIGHTING

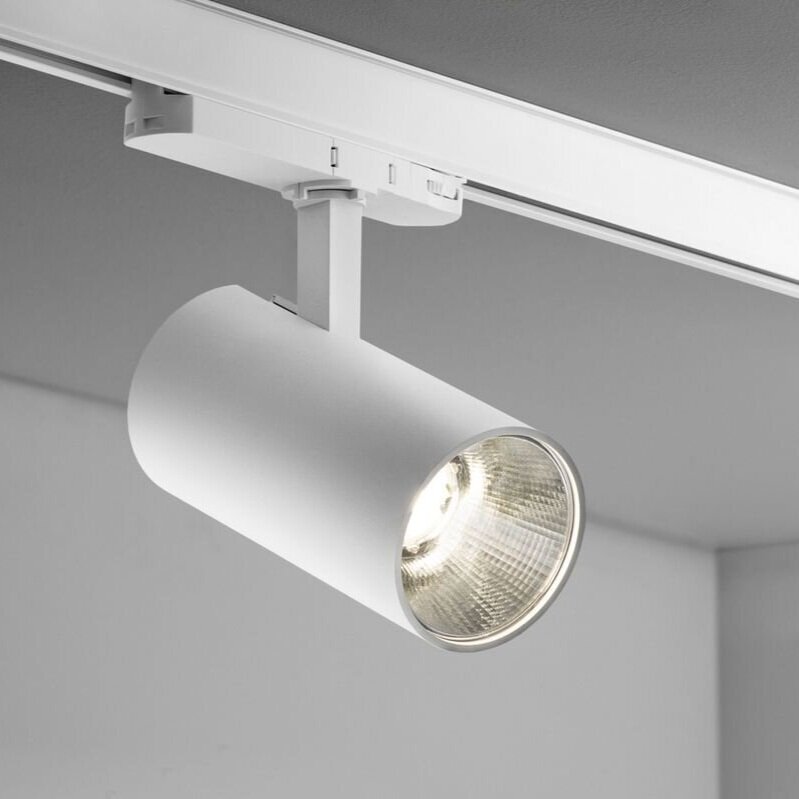

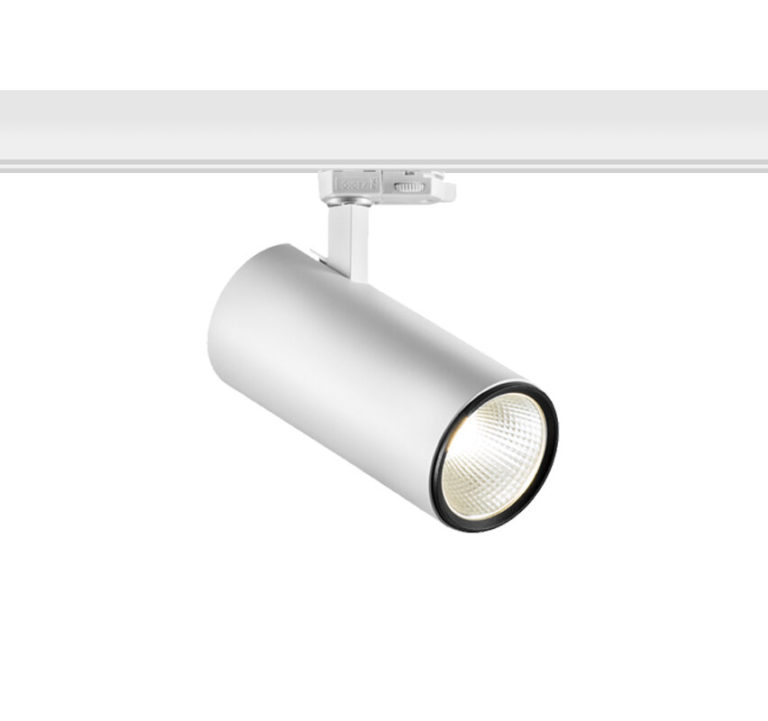

Slim, tubular and minimalist - the LED track spotlight, Roe can meet multiple lighting requirements across many commercial spaces, from retail to workplace. Made from die-cast aluminium, and available in black, white and grey as standard*, the Roe offers clean lines with a contemporary feel to create an overall superb finish. Roe is available in two sizes - a smaller version for minimal impact or a larger version to make a real statement.
The Roe can be truly unique, with front rings available in standard black, white and silver or complement your design scheme with alternative RAL colours. Mix and match front ring colours to create a unique design. Beam angles ranging from narrow 18° to wide 63°, and a range of optional accessories, the Roe gives the interior designer true freedom.
And the best thing about Roe? Its minimalist yet powerful stance.
The optional anti-glare snoot and honeycomb light refining accessories are equipped with the larger variant, for ultimate control of the light whilst minimising glare.
DALI DIM is only available on request.
Light Source Information
· Track Mounted
· LED outputs available from 10W/1090Lm up to 33W/2960Lm
· Efficiency up to 90 Lm/W
· Colour Temperature 3000K / 4000K
· IP20 Rated
· CRI 80/90 (CRI 90 only in Ø80)
· 50,00hrs, L80 B20
· 3 Step MacAdam
· Part L compliant
Design

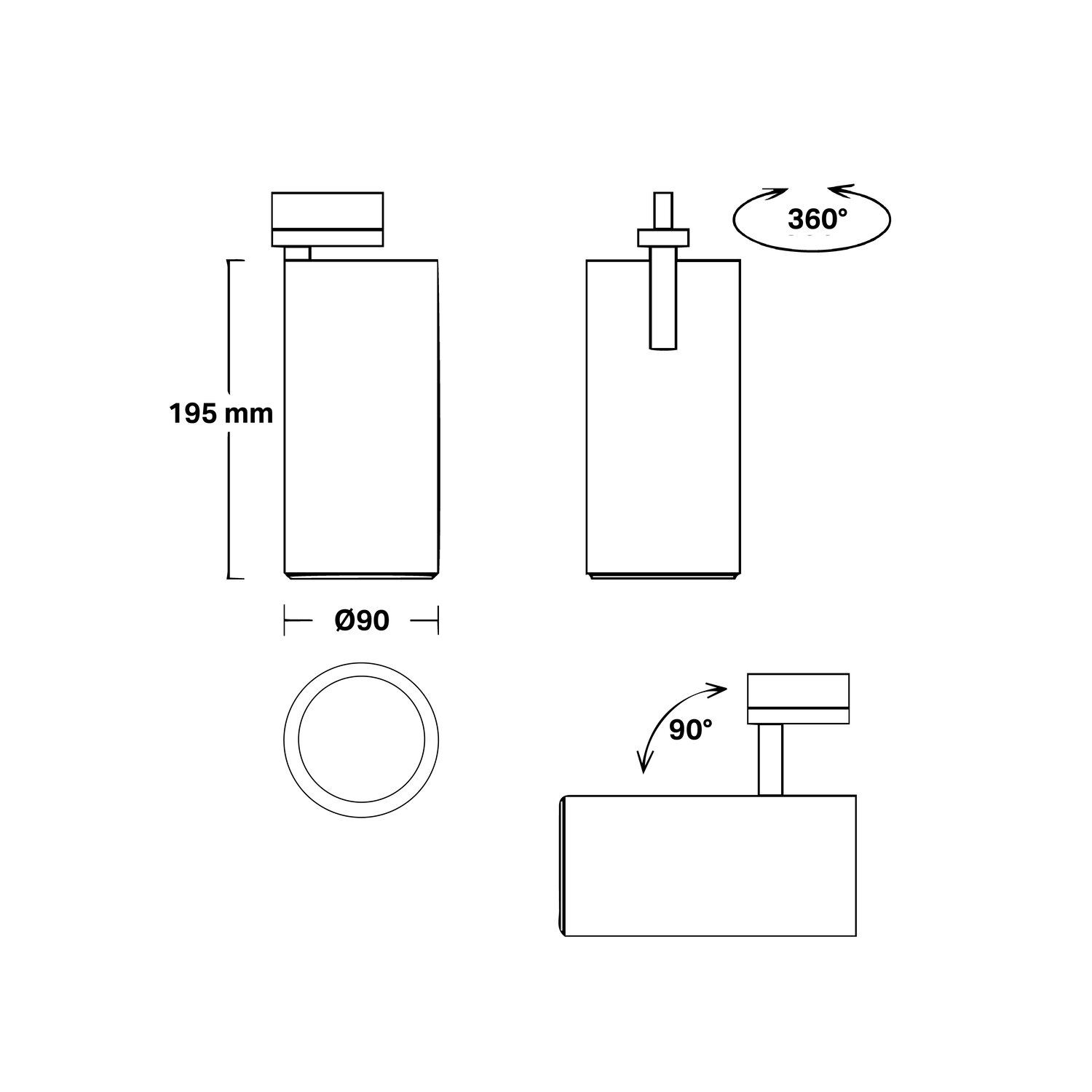

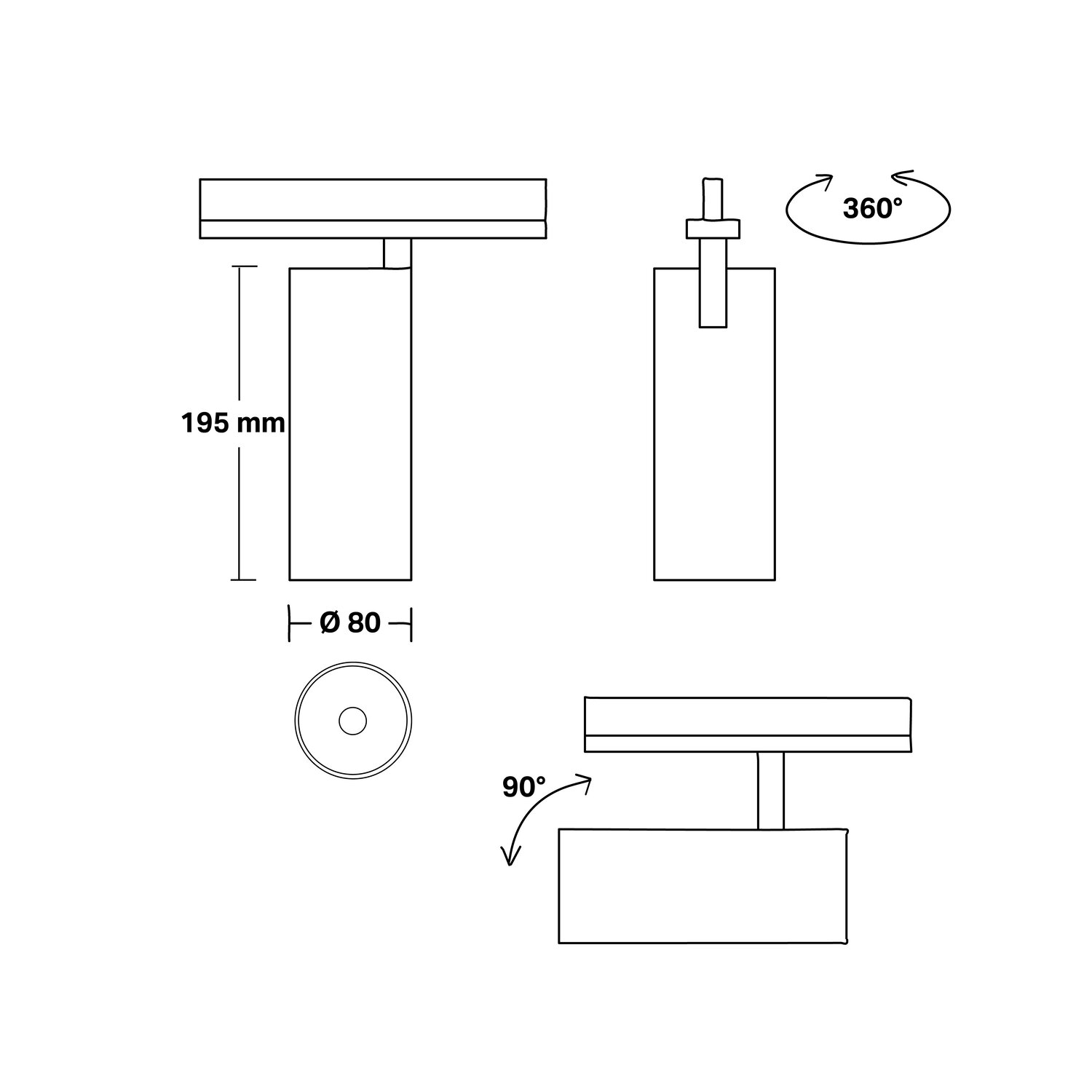

· Diameter Ø80 / Ø90
· Standard Body Finish White, Black and Grey*
· Front Ring Finish are Black, White and Grey*
· Made from aluminium
· Optional accessories (90 only): Satin Diffuser / Linear Optics / Snoot / Honeycomb Louvre
· * available with alternative RAL colours
Optics
· Beam Angle Ø80 18° / 25° / 32° / 52° / 63°
· Beam Angle Ø90 21° / 28° / 40° / 63°
· Provided with lens optics.
Dimming
· DALI DIM is available on request
Installation
· 360° Rotation
· Nordic 3-Phase Global Track-adapter
Miscellaneous
· Emergency not available
· 2 years warranty
Download datasheet
LDT Files - upon request
Installation Instructions - upon request
BIM Files - upon request
TM65 Report - upon request
