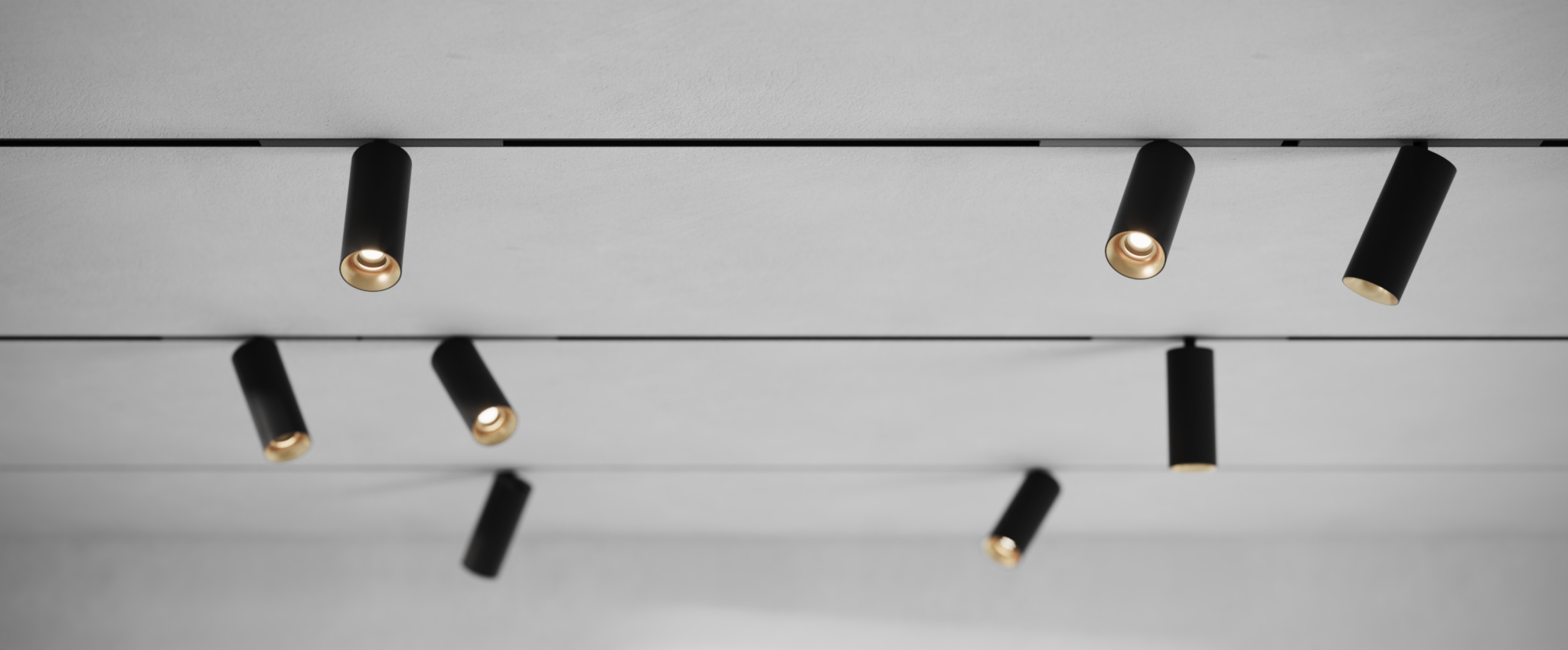

The Dea Juno-Q1/Q2 Series is family of compact 48V track spotlights. Blending deeper-set adjustable light sources and deep-positioned optical lenses for versatile, glare-controlled illumination in its 40 mm body, the Dea Juno is perfect for hospitality, museums, galleries, boutiques and high end residential.
The Dea Juno is compatible with Q1 mini surface/suspended tracks and Q2 recessed/surface/suspended tracks. It is available in contemporary black and white version and can be further customised by choosing from wide selection of reflector finishes- gold, silver, chrome, copper and matte or glossy black.
Light Source Information
Light Source: LED
Output:

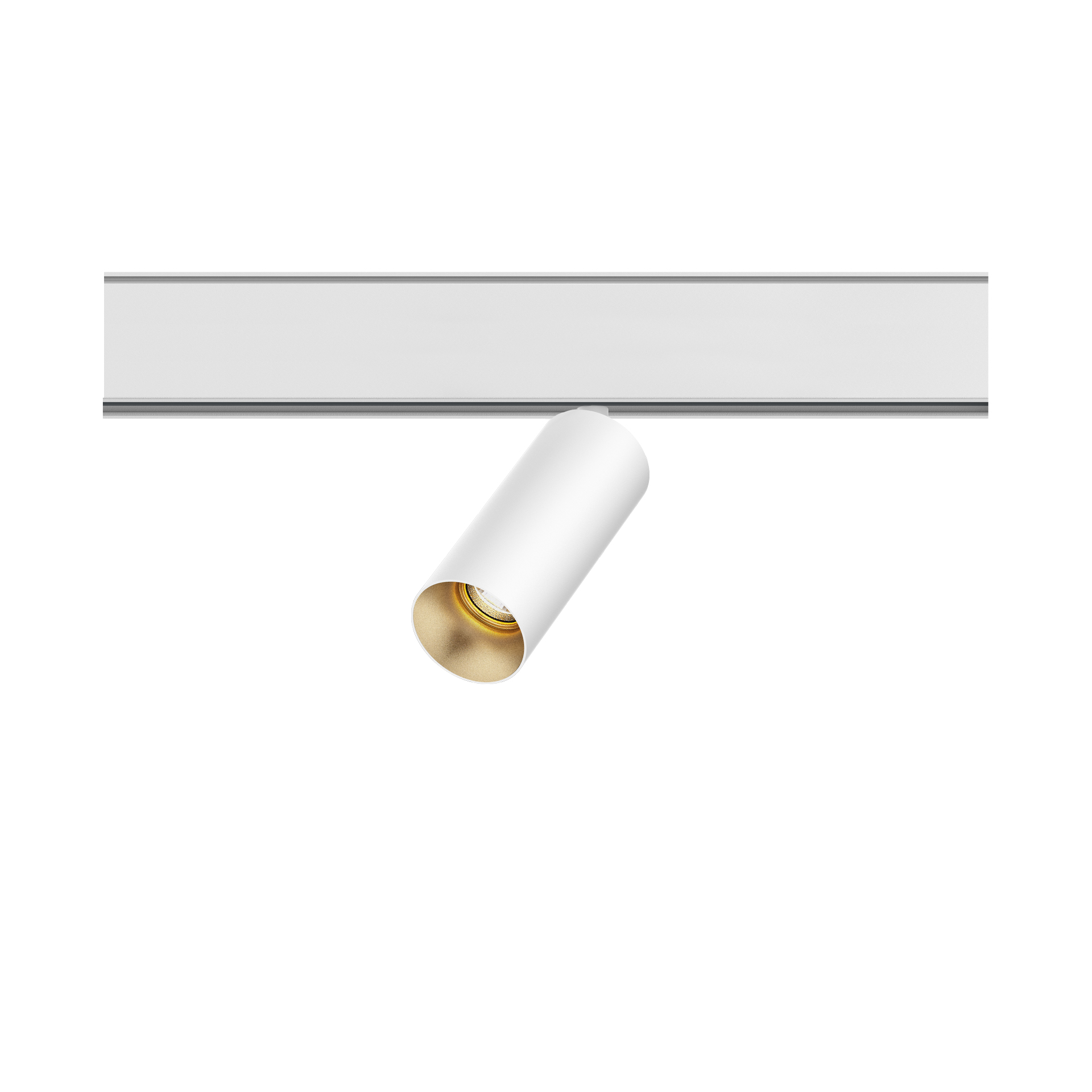

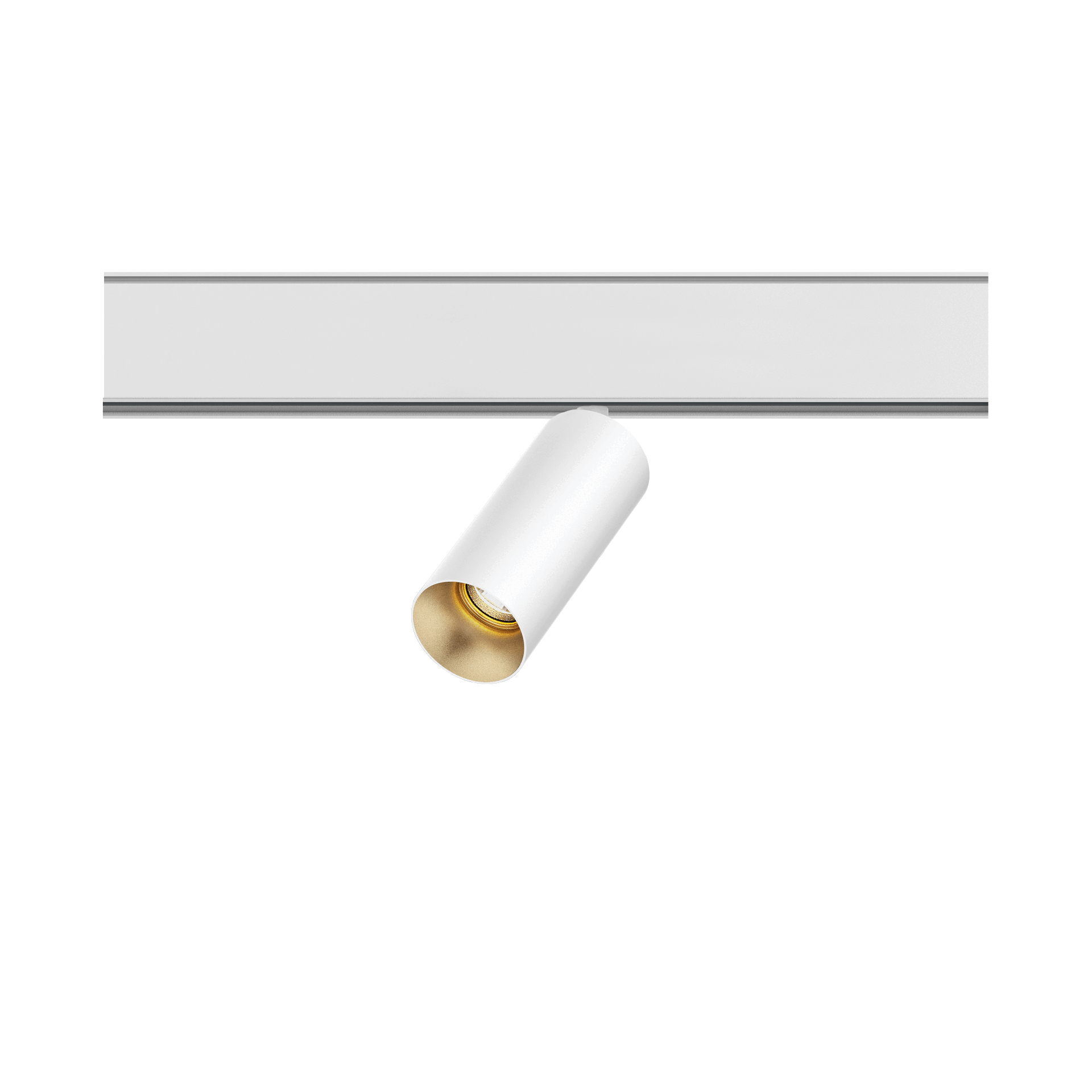

Single: 490 lm (2700K), 500 lm (3000K), 510 lm (4000K), 380 lm (DTW - Dim-to-Warm)

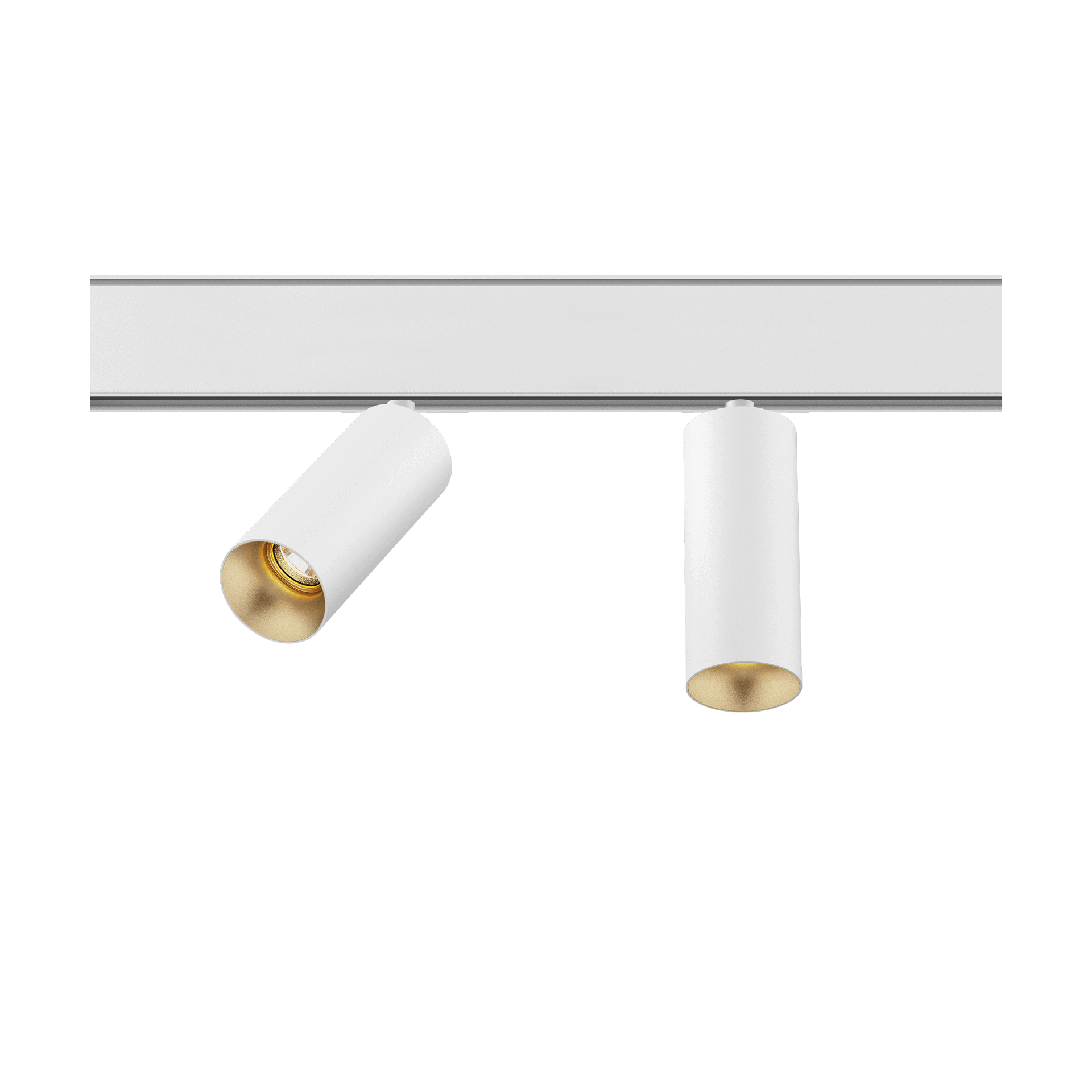

Duo: 2x490 lm (2700K), 2x500 lm (3000K), 2x510 lm (4000K), 2x380 lm (DTW - Dim-to-Warm)

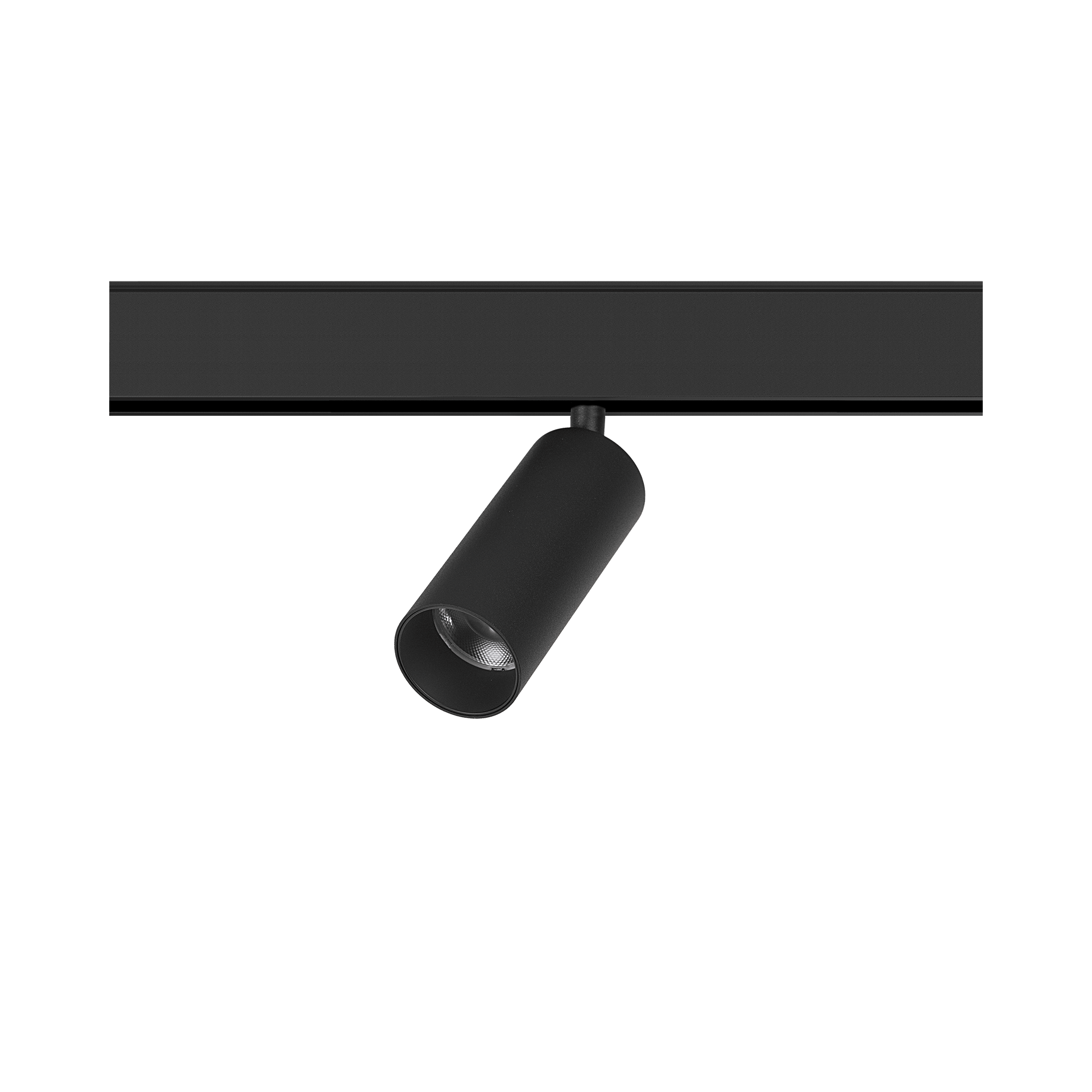

Lente: 380 lm (2700K), 400 lm (3000K), 420 lm (4000K)
Colour Temperature: 2700K / 3000K / 4000K / 1800K-3000K (Dim-to-Warm)
CRI: 90
Power: 7W/14W (fixed CCT), 8W/16W (DTW - Dim-to-Warm)
Design:
Diameter: Ø40mm (per head)
Colour finish: Black, White
Made from aluminium
Dimensions:

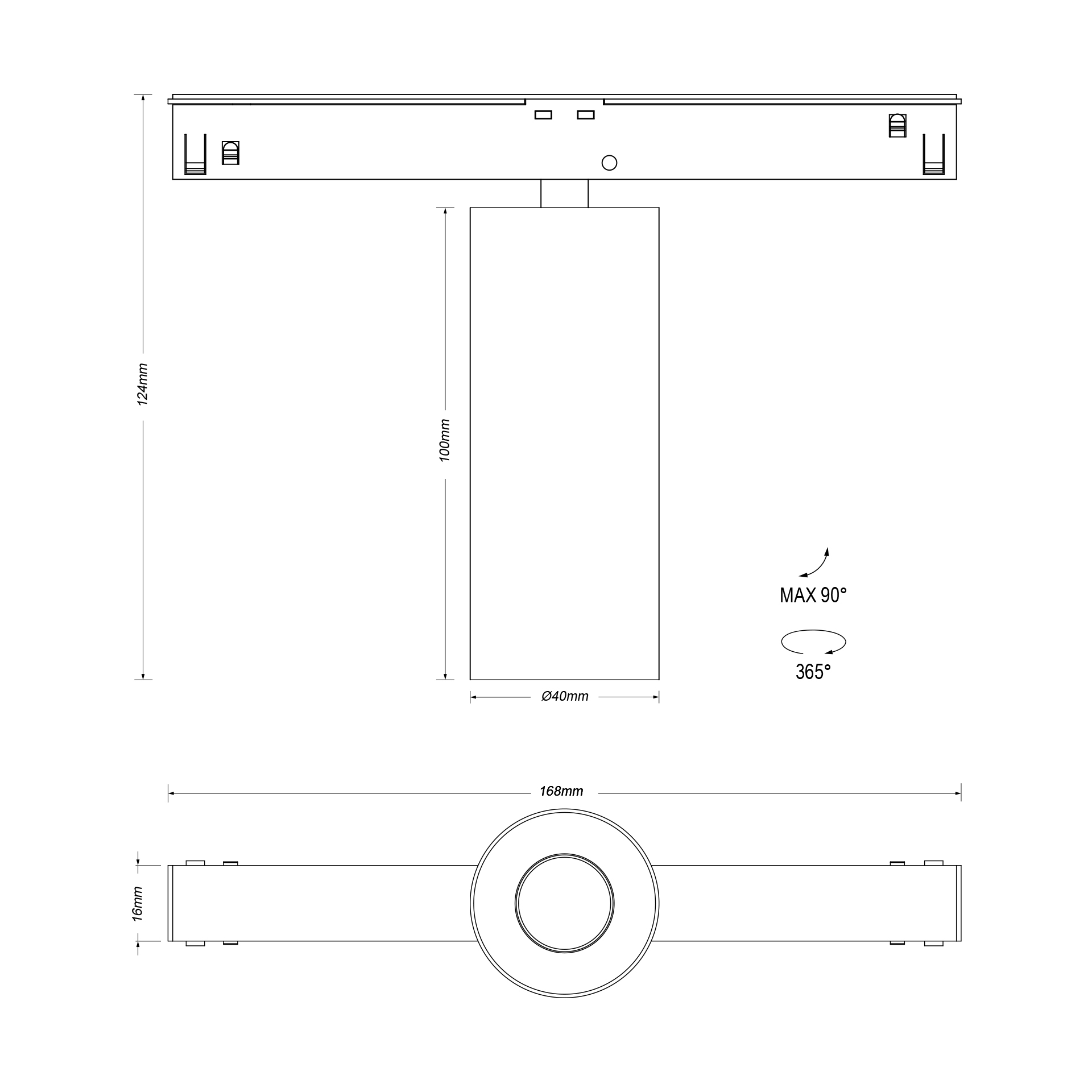

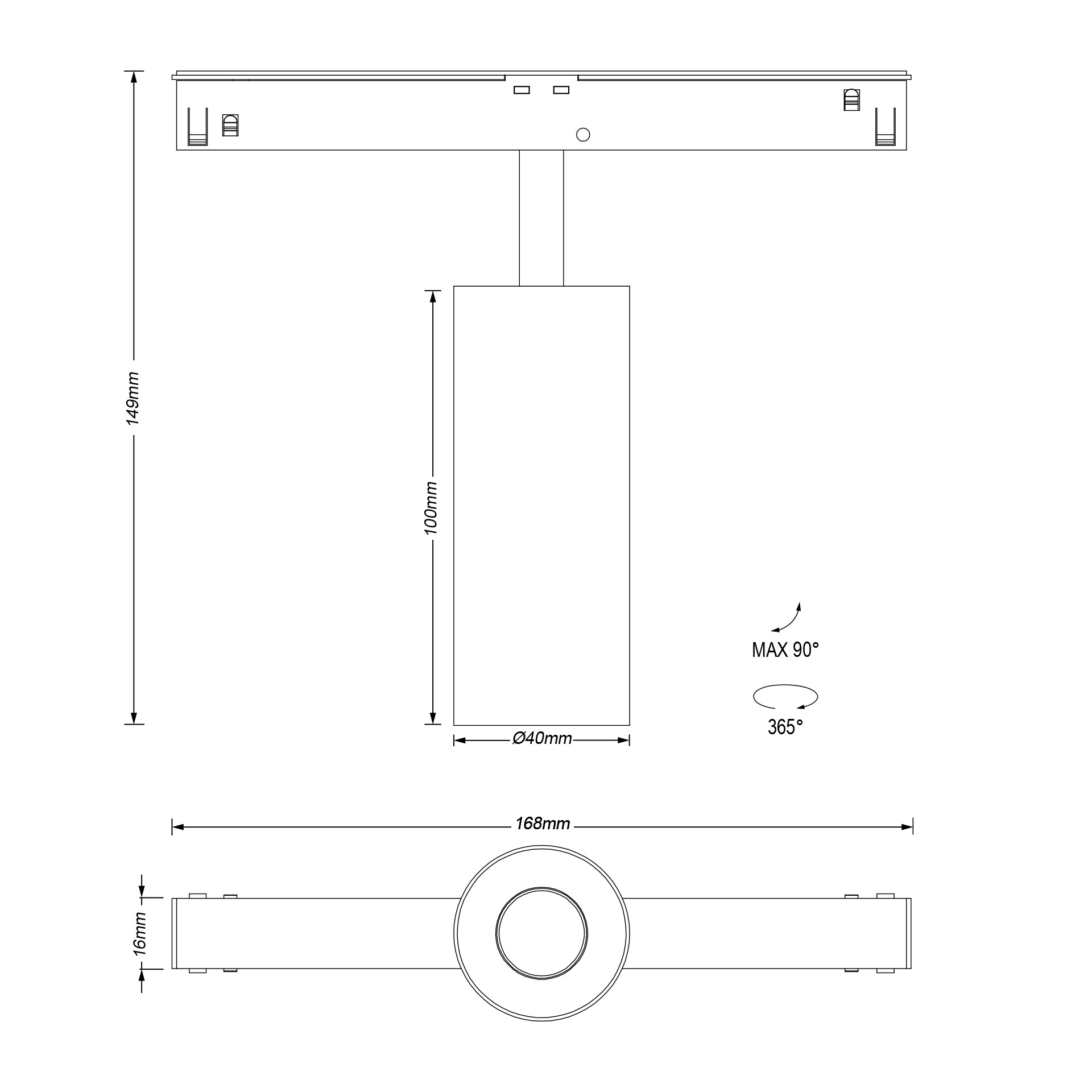

Q1 & Q2 Single: 100mm x 40mm

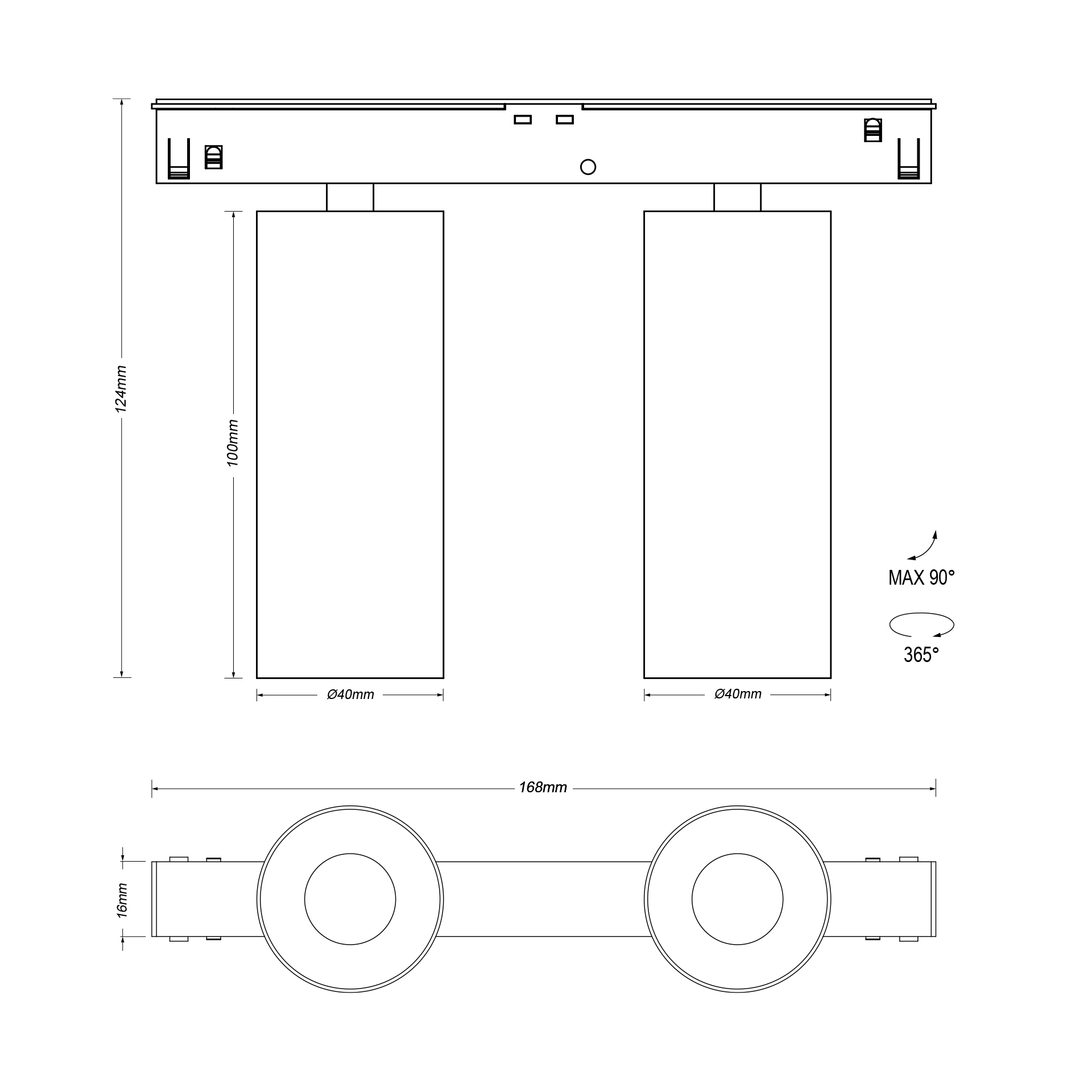

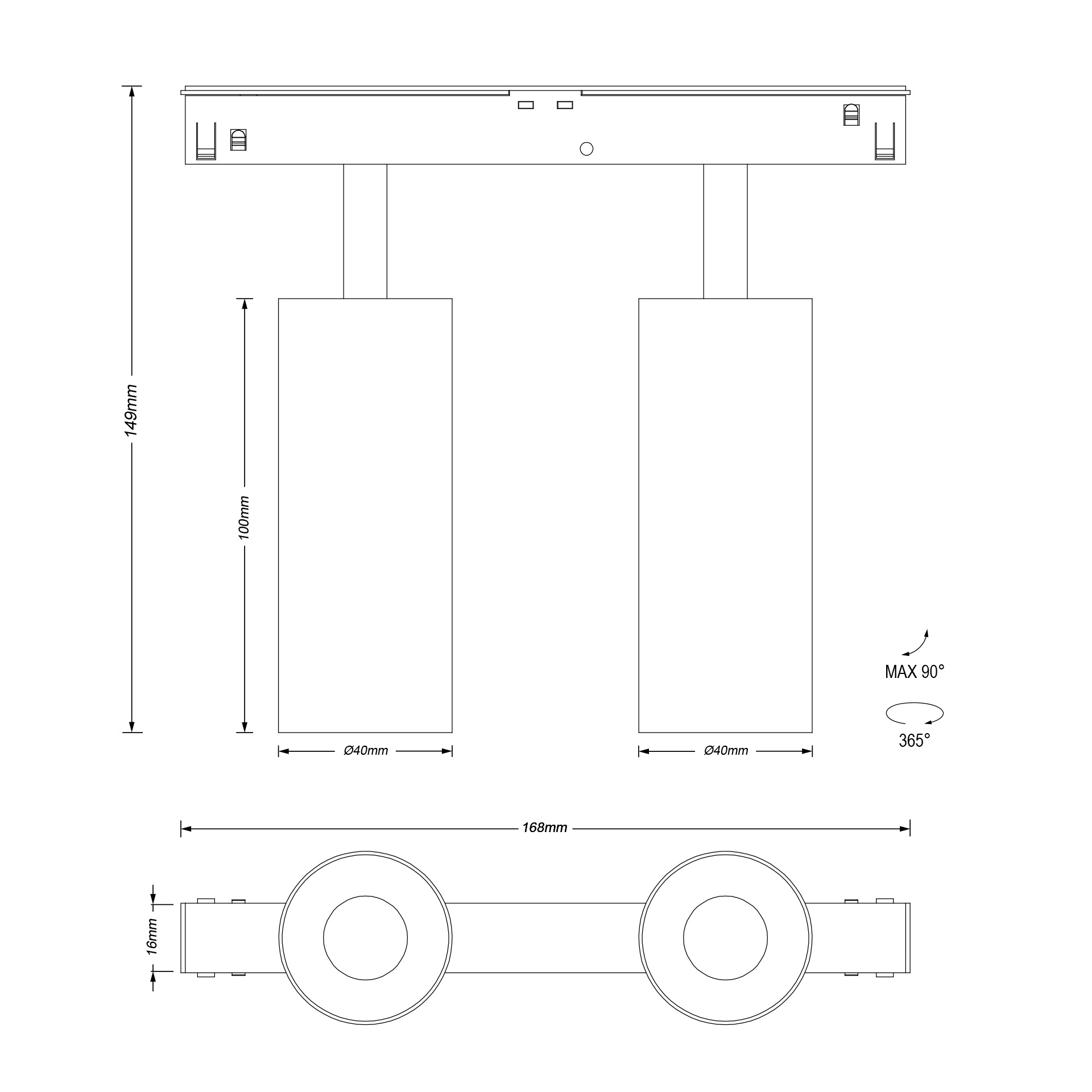

Q1 & Q2 Duo: 2x 100mm x 40mm

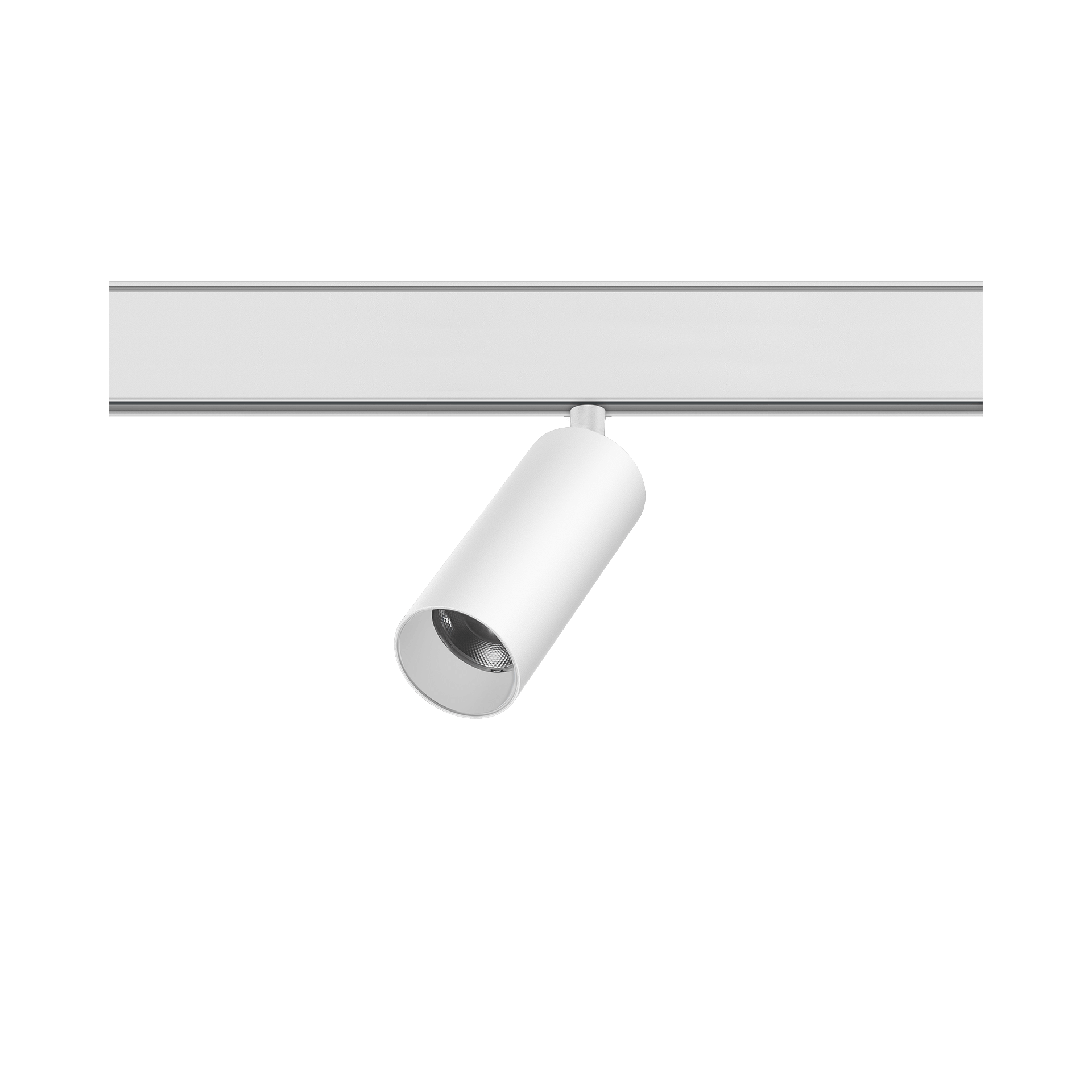

Q1 & Q2 Lente: 100mm x 40mm
Weight: 0.3kg (single & Lente), 0.4kg (duo)
Optics:
Beam Angle: 34° (Standard), 10°(Lente)
Reflector finishes: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt (White or Black for Lente)
Dimming/Controls:
On-Off
DALI
BT Casambi
Miscellaneous:
Track Compatibility: Q1 & Q2 Systems
Part of Dea Della Luce collection
IP20
Note: 299 Lighting reserves the right to change the specification of any product without notice or public announcement. Please refer to product datasheets for detailed electrical and installation information.
Download Datasheet
LDT Files - Upon Request
Installation Instructions - Upon Request
BIM Files - Upon Request
TM65 Report - Upon request
