Bellart BCN Surface
from Nexia

MINIMALIST SURFACE MOUNTED DOWNLIGHT

Slim and understated or muscular and bold, the tubular BELLART embodies versatility. With its contemporary finish and endless specification options, the BELLART Surface Mounted will make an impact and enhance any  commercial interior. With a selection of low to high lumen packages, narrow to wide beam angles and a range of accessories, the BELLART gives interior designers a true freedom.

Also available as Mini version and suspended option, the BELLART is a true all-rounder, it is equally at home in an office, hospitality, retail or as architectural feature lighting.

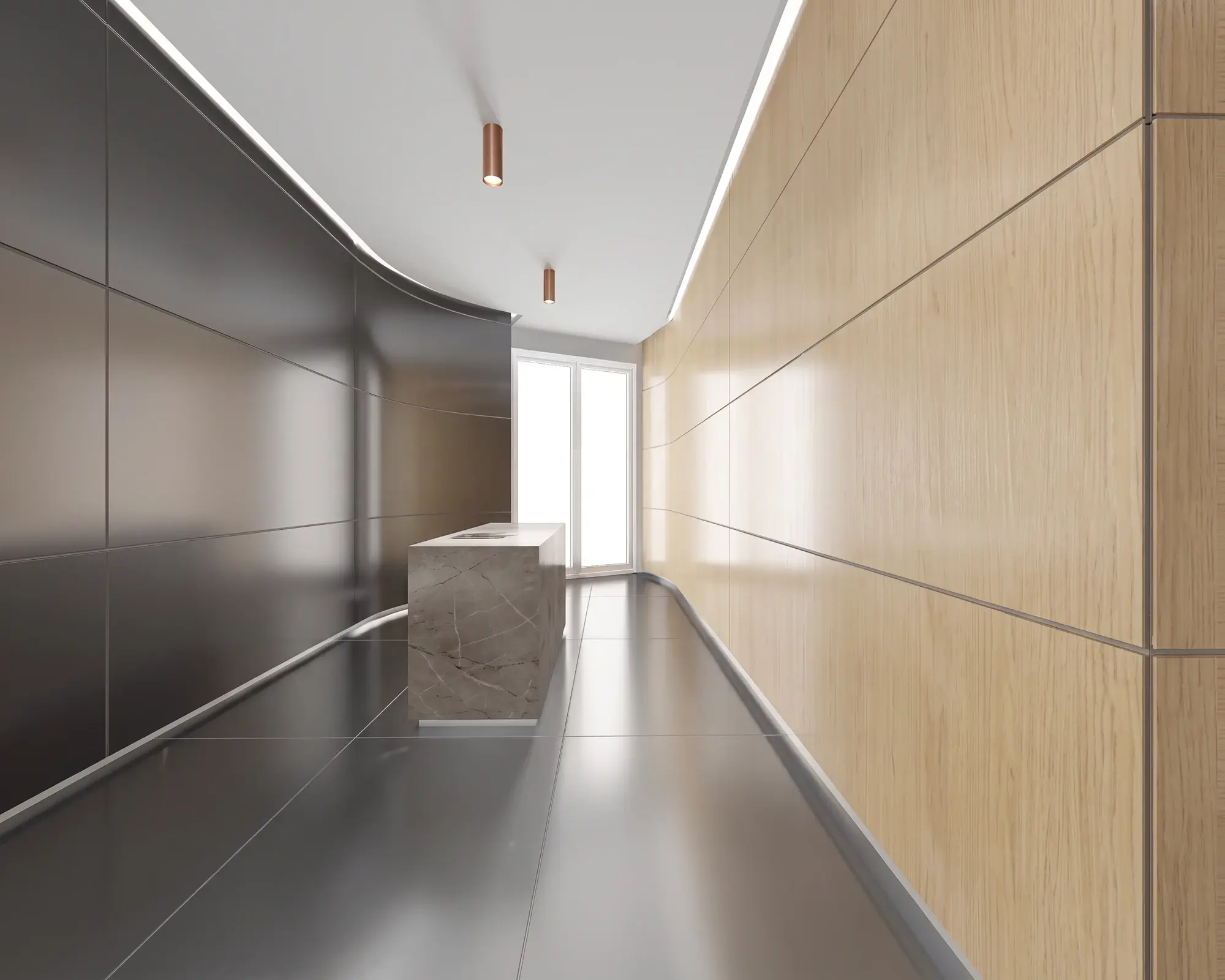

And the best thing about BELLART? The contemporary aesthetics and a high visual comfort. Using the latest LED technology, the BELLART can be specified with settings for bringing out specific colours, making it a perfect straight out of the box lighting solution for retail. The BELLART Surface Mounted is ideal as a contemporary accent lighting across many commercial applications. Use it in small meeting pods, above a reception desk, in hotel and retail environment.

With the 3168 options across sizes, colour finishes, beam angles, controls and outputs, the BELLART inviteS you to play and put your own mark on a project.

The BELLART can be specified with CASAMBI to increase user control.

Light Source Information

· LED
· Direct Distribution
·  Output  6W / 760 lm,  9W/1030lm, 12W/1500 lm, 17,5W/2000 lm, 25W/3000 lm,  33W / 4000 lm
·  Colour Temperature 2700K | 3000K | 4000K
· 3- Step MacAdam ellipse ·  CRI>90
· Internal Drivers supplied
· L80B20, Life-time of 50,000 hrs

· Part L compliant

Design

· Surface Mounting
· Extruded aluminium body
· Passive thermal management system

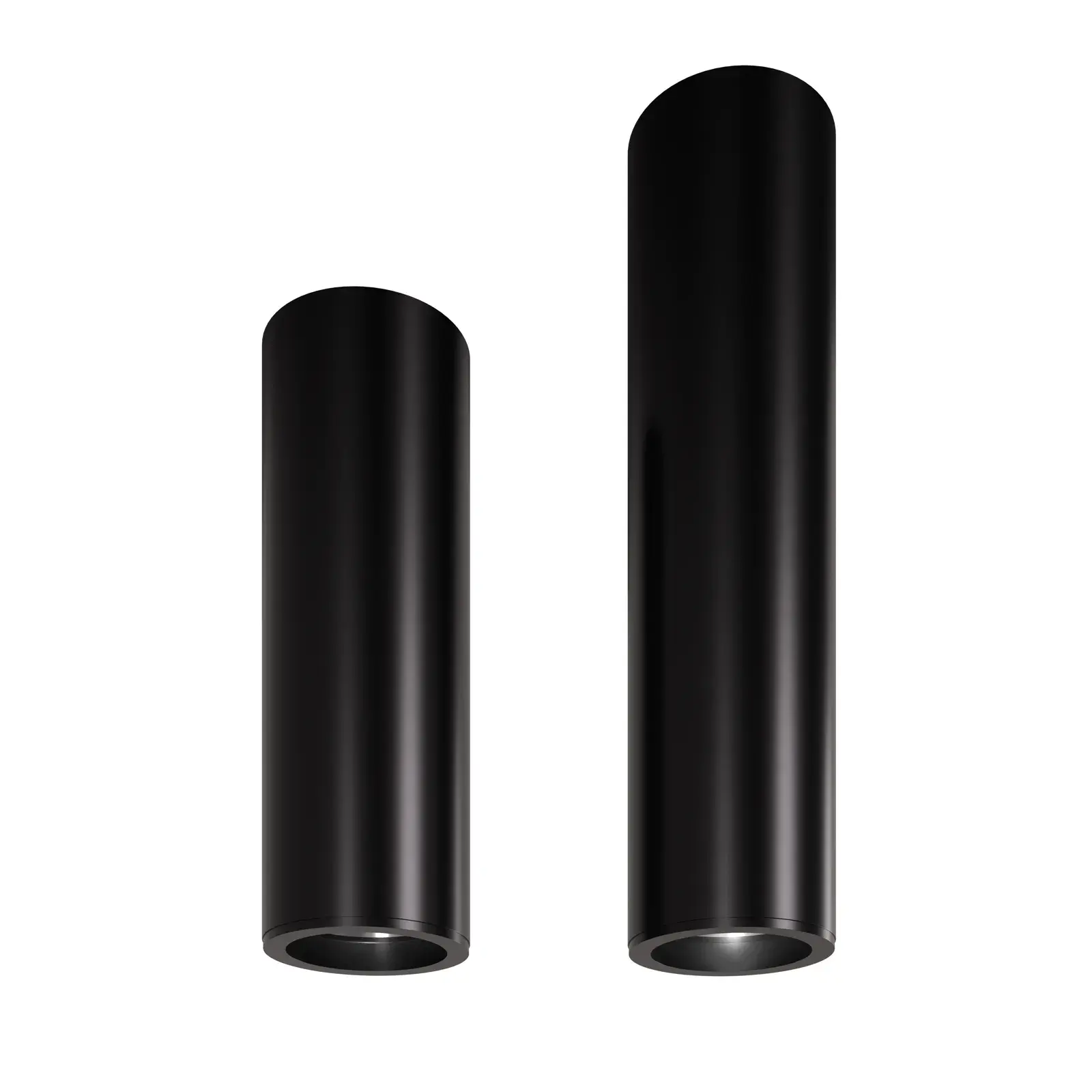

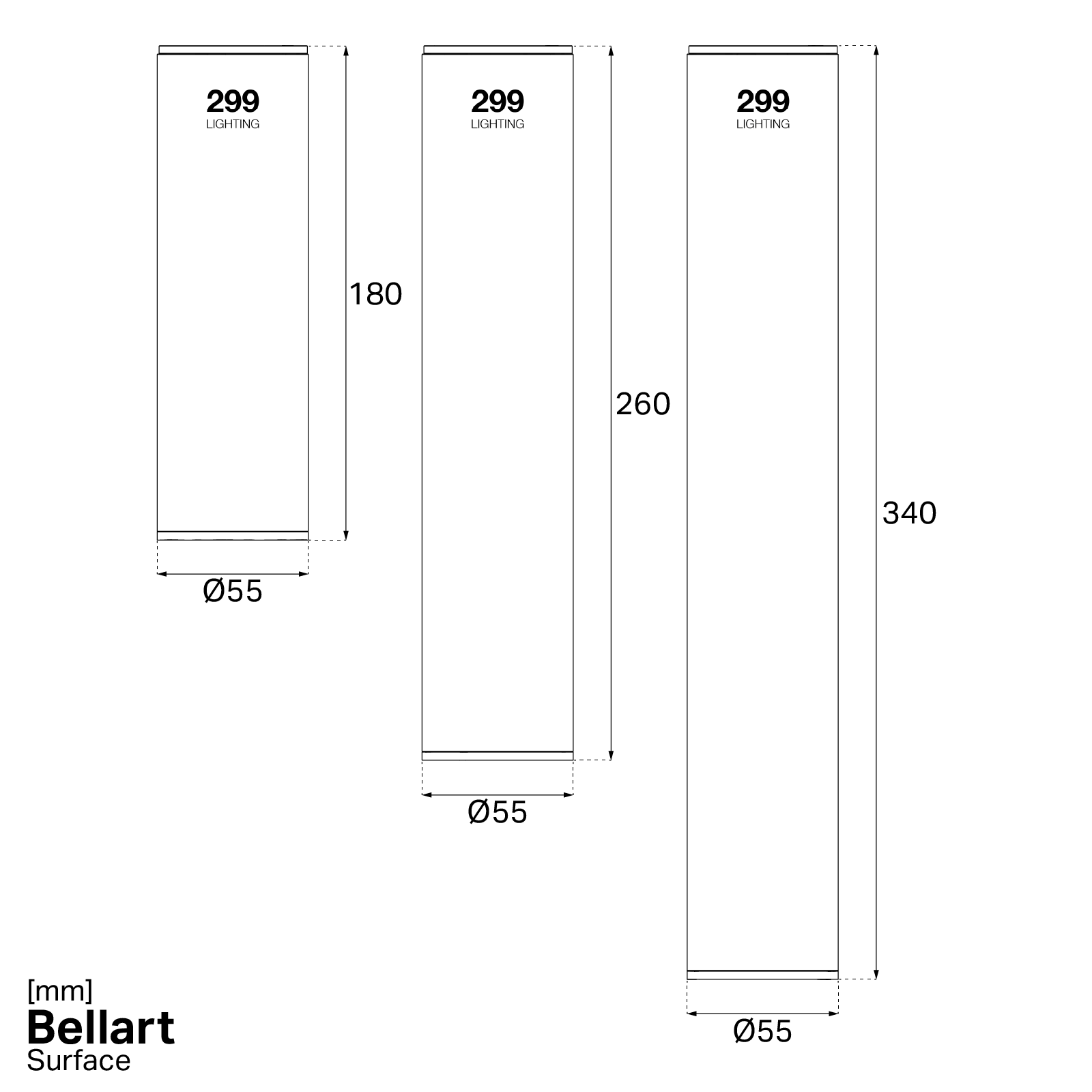

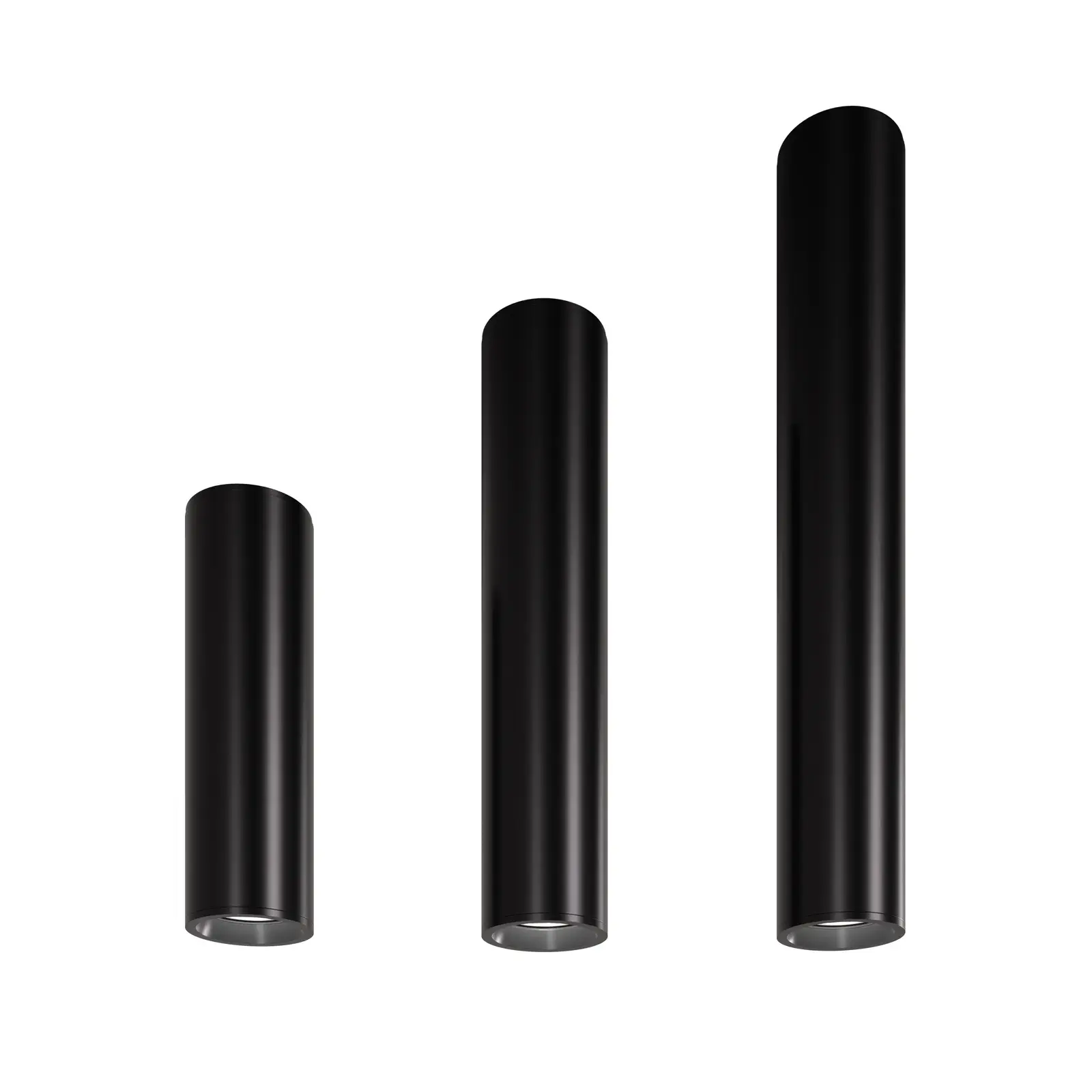

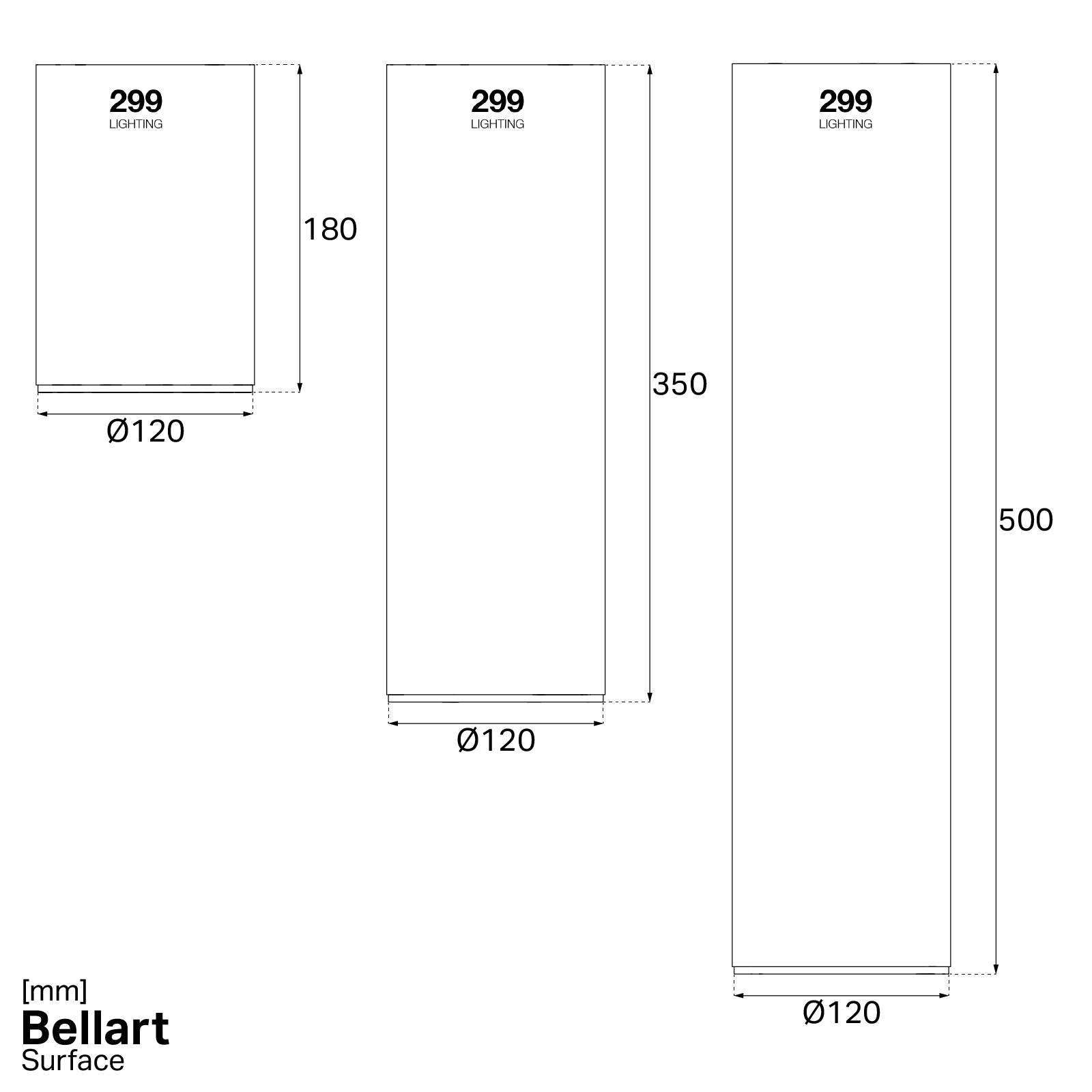

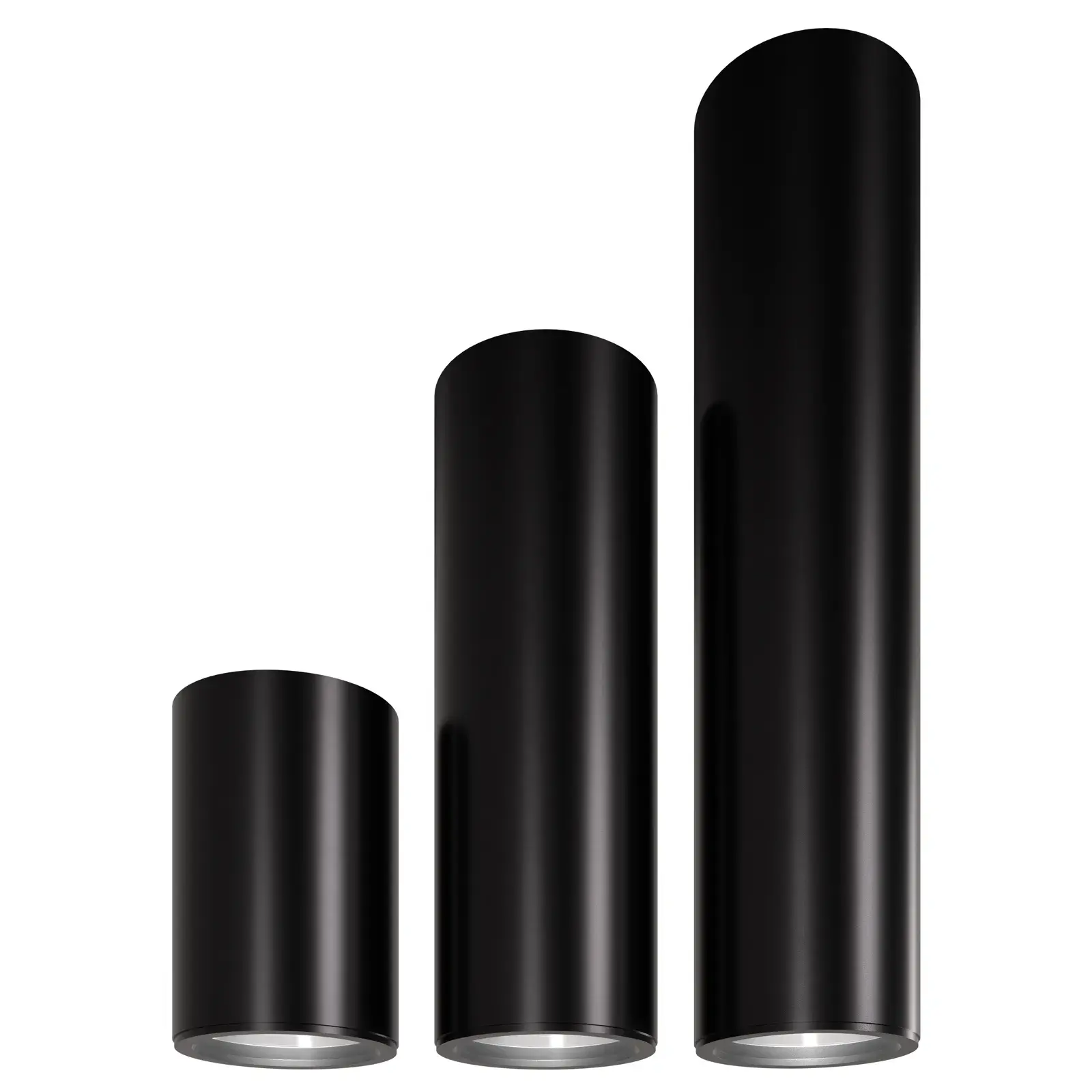

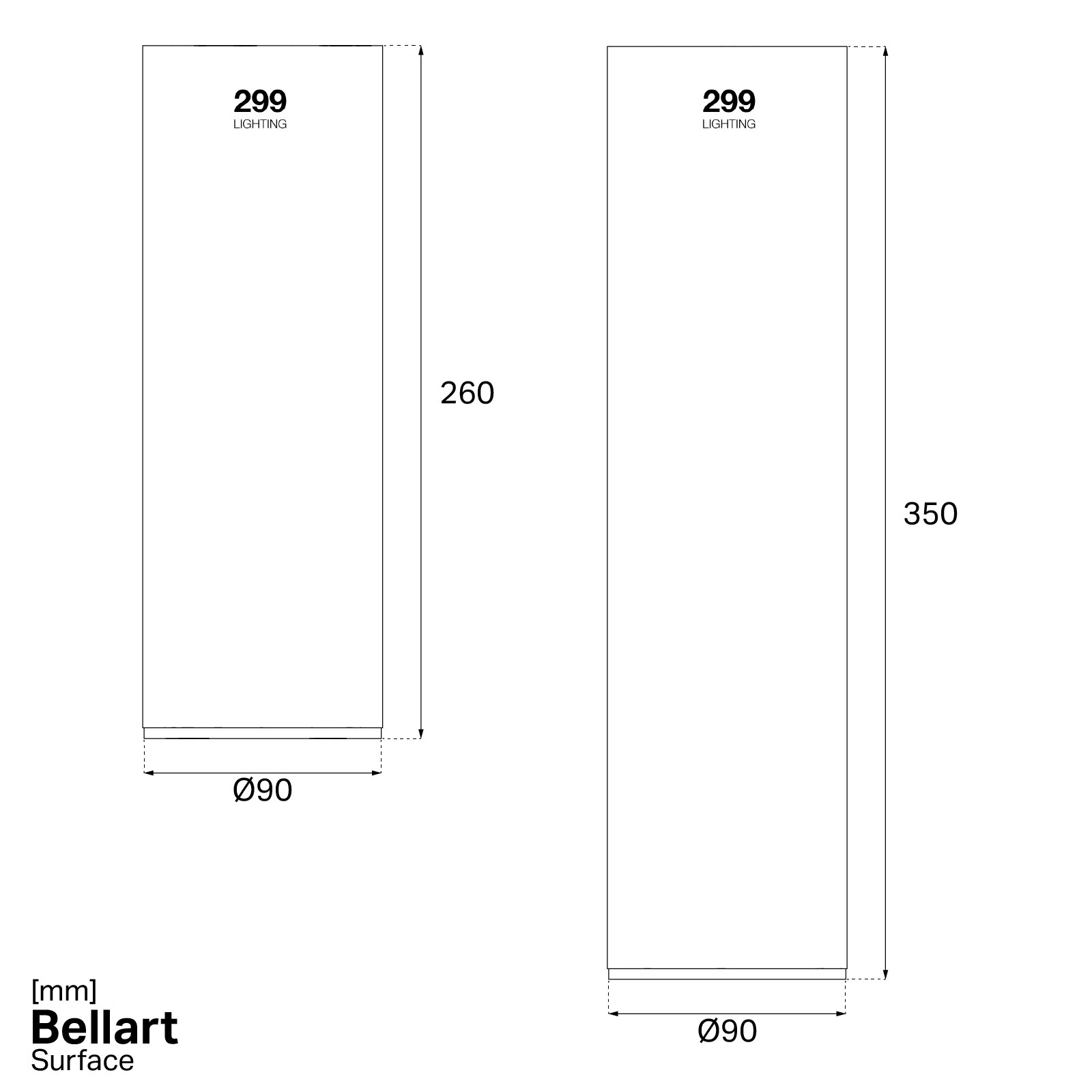

· Diameters Ø55mm, Ø90mm and Ø120mm
· IP20 Rated
· Front Ring Finish (White, Black, Copper, Grey, Gold, and Graphite). More RAL Colours on Request · Front Ring Finish supplied in Black for Copper, Gold and Graphite

Optics

· Ø55mm - Beam Angles available 20° | 40° | 60°
· Ø90mm and Ø120mm - Beam Angles available 15° | 36° | 60°
· Honeycomb, Sculptural Lens and Optical Filters - Accessories

Dimming

· Non-dimmable as standard
· Edge Cut available on request (Ø55mm)
· DALI available on request (Ø90mm and Ø120mm)

Integrated Controls (on request)

· CASAMBI

Miscellaneous

· 3hr Emergency not available
· 2 Year Warranty


Special Characteristics

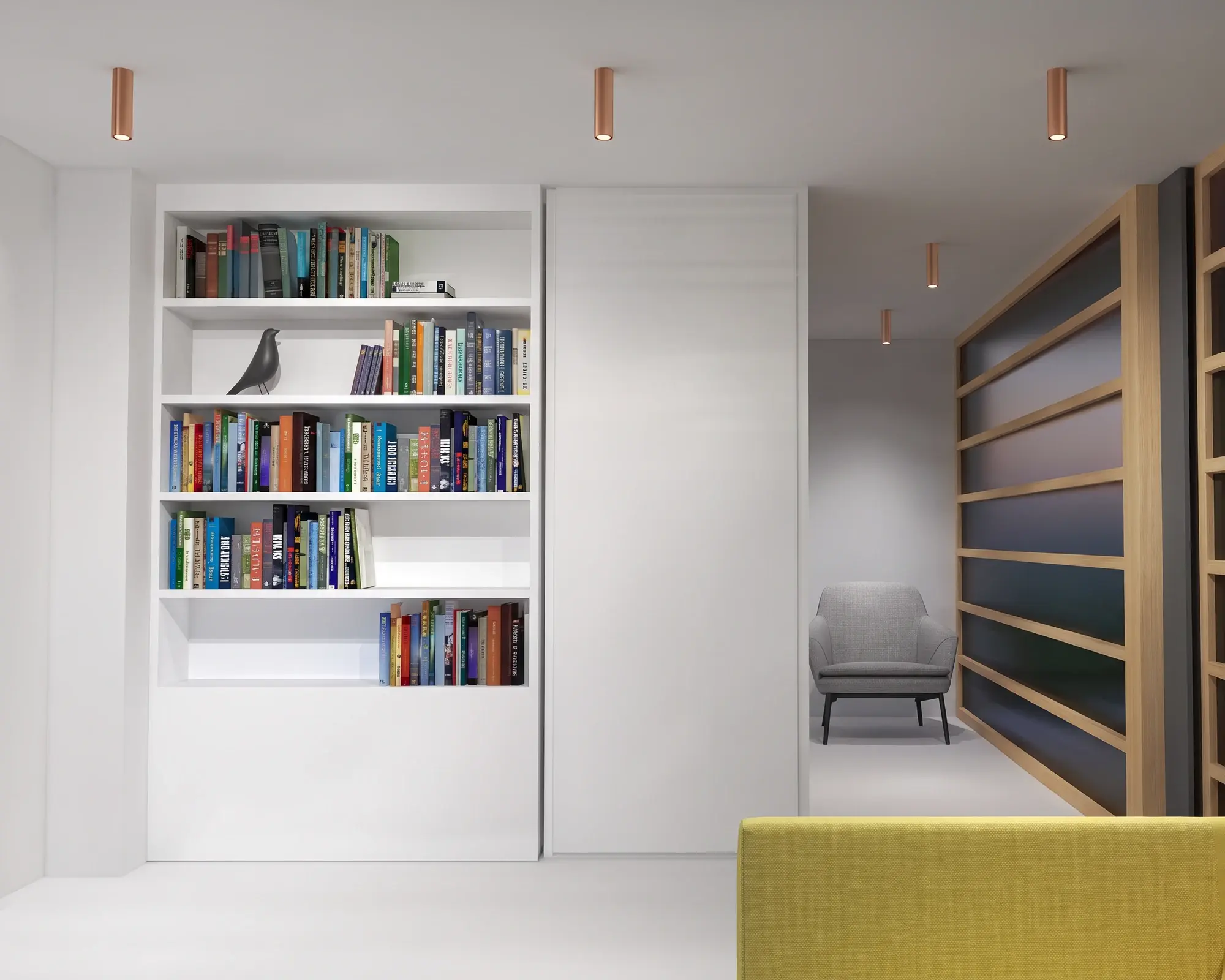

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/bellart-surface-breakout-areas-1.jpg

Good control of light distribution

Used as an individual downlight, or as an eye catching cluster, the BELLART will add soft ambient light or a punchy and focused illumination. Or something in between.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/bellart-surface-thumbnail-center-300x300.jpg

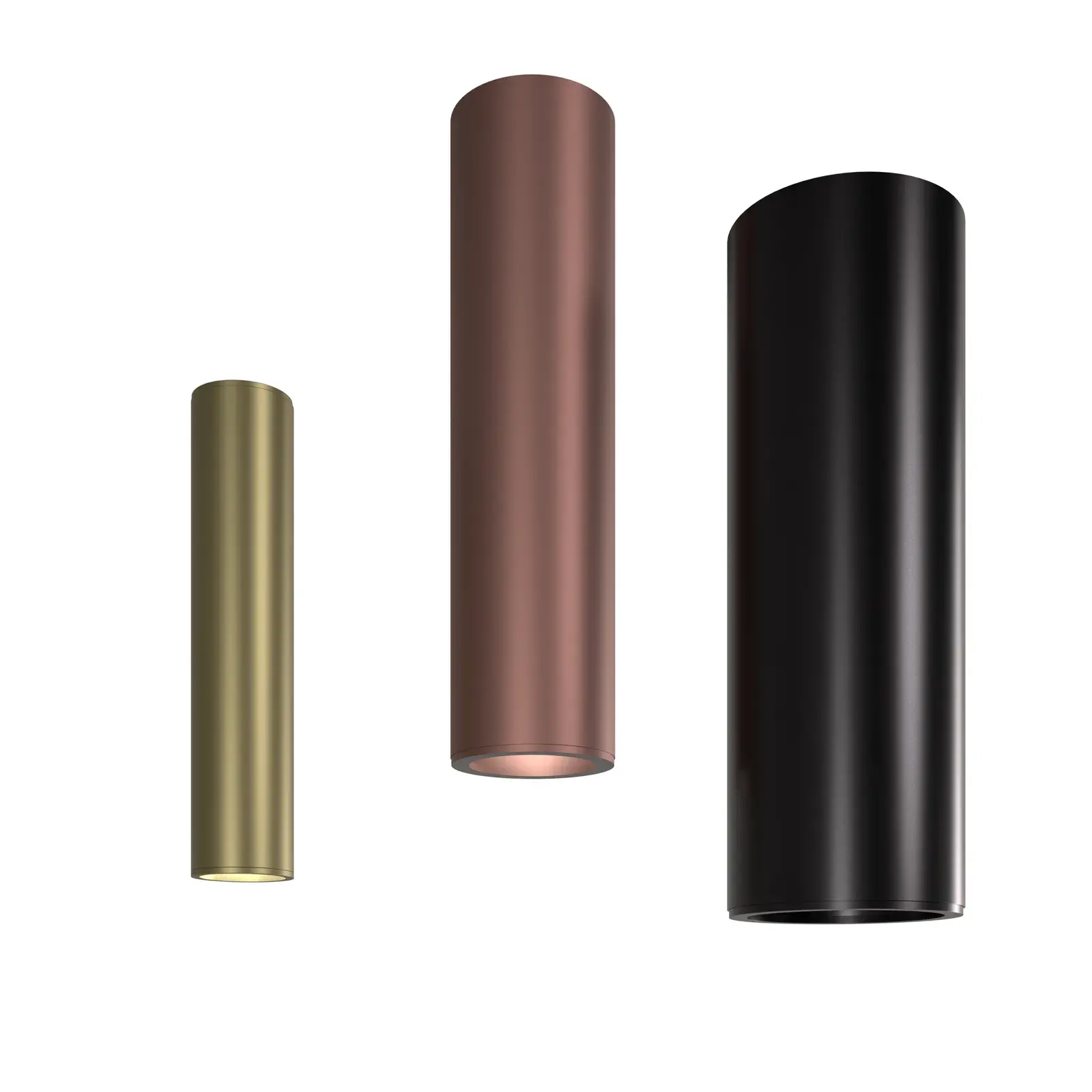

6 standard finishes available

The BELLART is available in 6 standard colours or ‘stand out from the crowd’ and choose any RAL colour to match your interiors design. 3168 (sizes, colours, colour temp, beam angles, controls and outputs)

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/bellart-surface-cantina-hq-3.jpg

3168 possible combinations

Your downlight can be truly unique considering the staggering 3168 possible combinations between 3 standard sizes, 6 standard colours, 3 colour temperatures and 4 different beam angles and several dimming options.

tubular lighting

Wireless Control

All mounting styles of Bellart can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

All mounting styles of Bellart can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
