The Linea Q series from Karizma Luce is the almost invisible linear magnetic light. The magnetic nature of the light inserts allows you to just click the profiles into place, so you can be as precise or subtle as you need to be. Designed for seamless integration into Q1 and Q2 48 V track, this track lighting systems can be also used with spots, downlights or pendants, which can be easily rearranged with a simple click. The choice is yours.
Available in black or white housings, these fixtures are ideal for creating invisible lines of light in offices, galleries, retail, and premium interiors. The Lente models (L and S) feature precision lenses for low-glare spot lighting with beam angles of 15°, 30°, or 45°, The Opal models (L and S) provide uniform diffused light with a 90° beam angle.
Light Source: LED
Output:
L Lente: 2250 lm (3000K), 2400 lm (4000K)
S Lente: 1000 lm (3000K), 1100 lm (4000K)
L Opal: 1700 lm (3000K), 1800 lm (4000K)
S Opal: 850 lm (3000K), 900 lm (4000K)
Colour Temperature: 3000K / 4000K
CRI: 90
Dimensions:

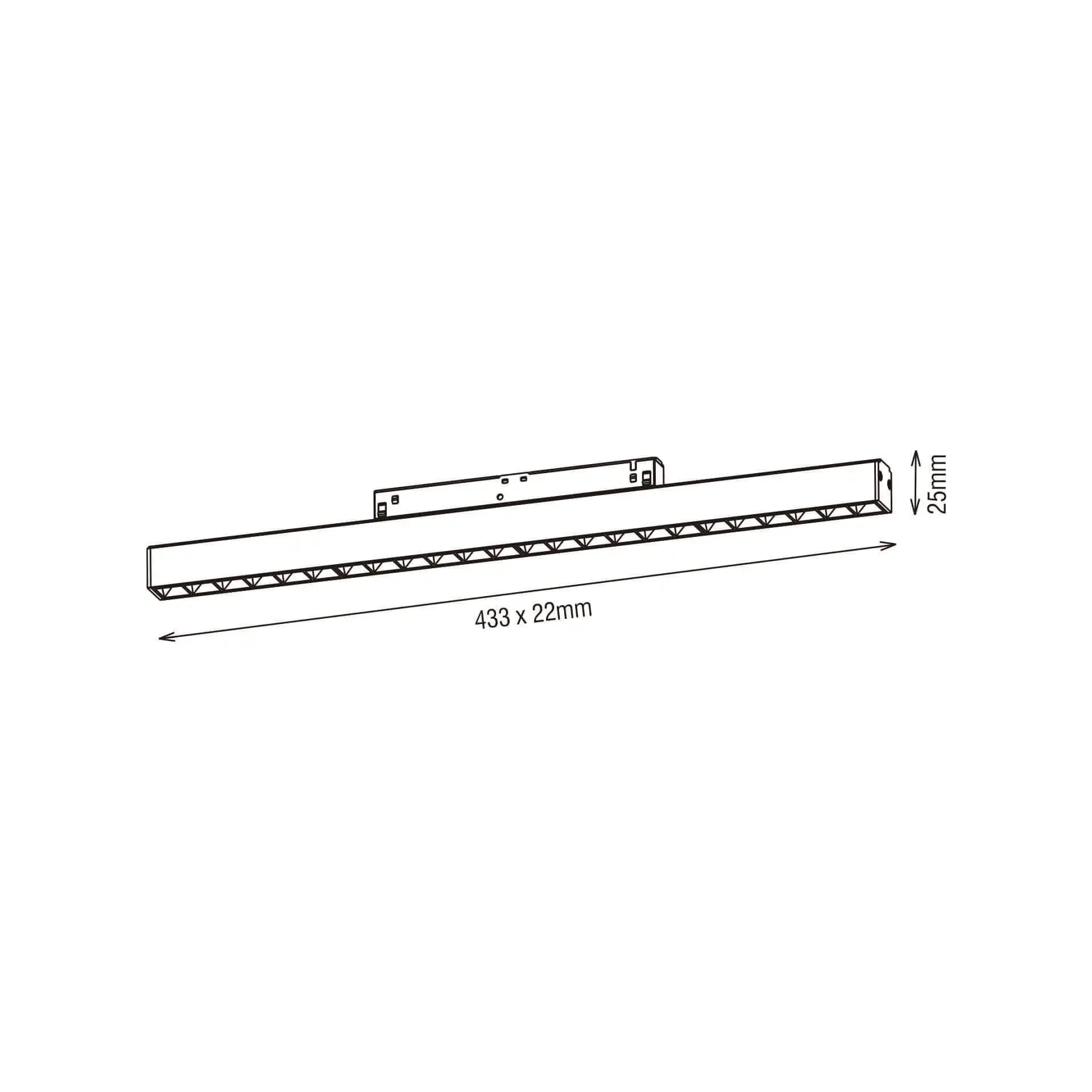

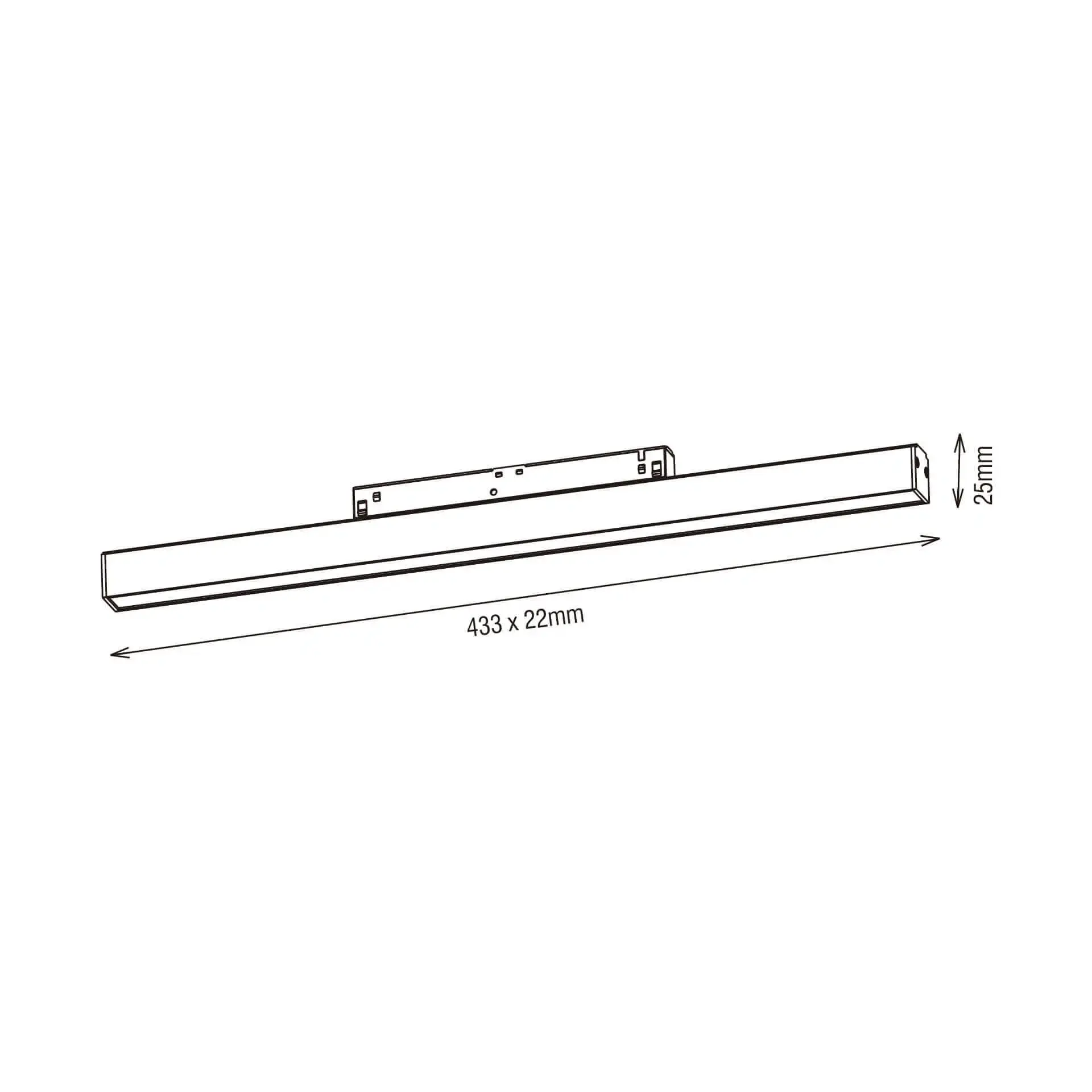

L models: 433 x 22 x 25 mm

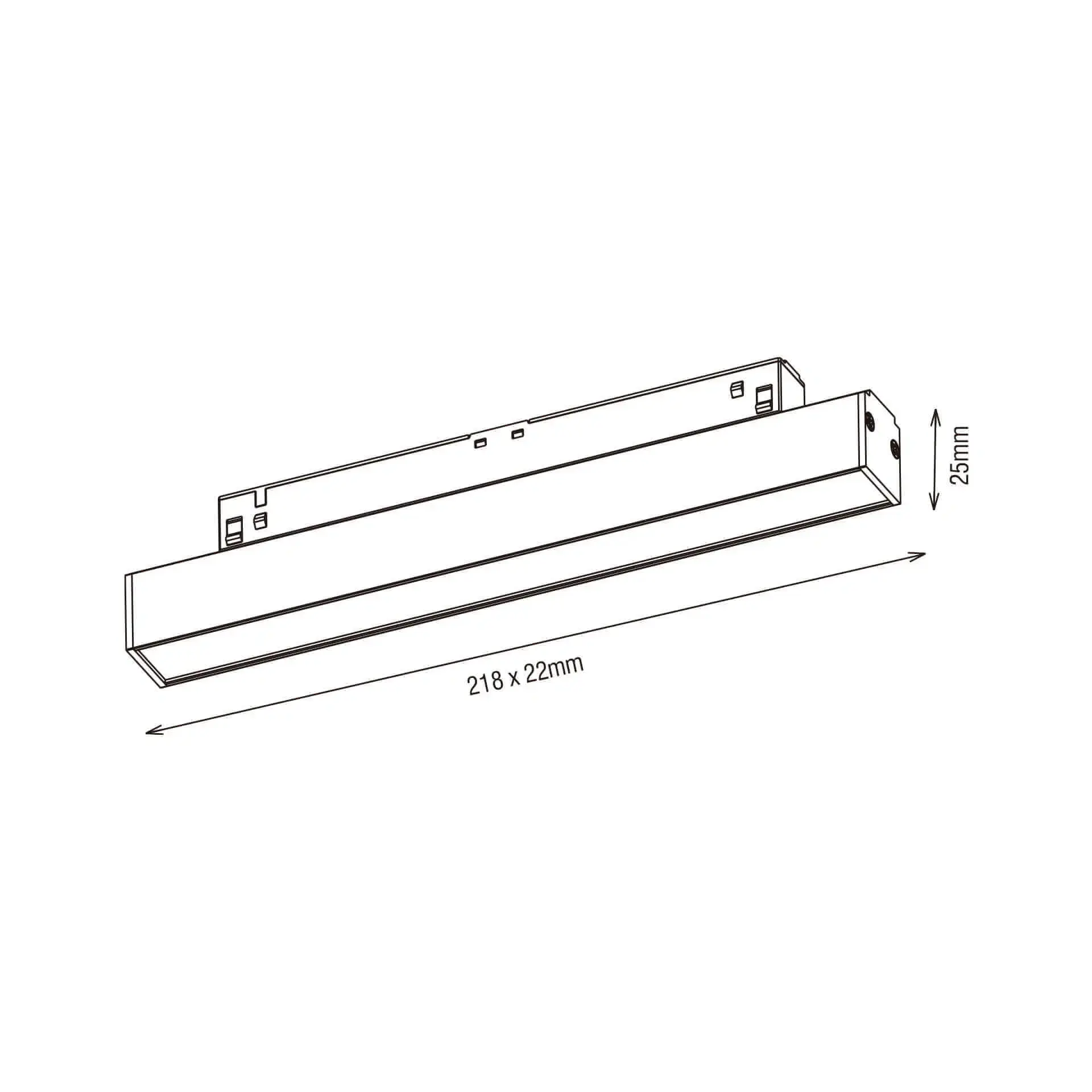

S models: 218 x 22 x 25 mm
Colour finish: Black, White
Made from aluminium
Optics:
Lente models: 15°, 30°, 45°
Opal models: 90°
Dimming/Controls
On-Off
DALI
BT Casambi
IP Rating: IP20
Note: 299 Lighting reserves the right to change the specification of any product without notice or public announcement.
Download Datasheet
LDT Files - Upon Request
Installation Instructions - Upon Request
BIM Files - Upon Request
TM65 Report - Upon request
