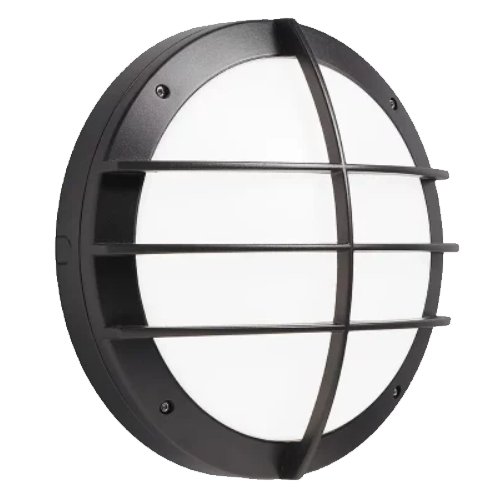

Eam Emergency Bulkhead Light


The EAM is an emergency bulkhead light. Compliant with the current emergency lighting regulations, the Eam is attractive, robust and reliable. Its low profile body forms a perfectly neat bulkhead for the most back of house commercial applications, tunnels, car parks, walkways etc.

The Eam is sealed to IP65. The robust cast aluminium and polycarbonate enclosure is vandal resistant and provides protection to IP65/IK10.

Choose between the white body for a more subtle effect or black finish for a more contemporary installation. The opal diffuser provides a consistent light output whilst minimising glare, and with the output option of 2500Lm, the Eam can deliver the light you need. Providing up to 120 lm/W, the Eam is highly efficient.

Eam is suitable for ambient temperatures of up to 35°C (25°C  for emergency versions).  Eam is available as standard, eyelid and crossblade design.

Dimming isn’t a problem, with options for DALI dimming and integrated emergency, this emergency bulkhead light can become part of complex lighting schemes. And if automation is required, the Eam can be specified with an integral microwave sensor so it can switch itself off (or just dim down to 10%) when no one is in the area providing maximum energy savings and increasing the luminaire life span.

Looking for something more special? Check out the Talla Wall – beautifully made timeless classic featured on many prestigious projects!

Light Source Information

· Surface-Mounted
· Direct
· Maintained
· Output: 20.8W - 2500Lm
· LED Efficiency of 120 lm/W
· Colour Temperature 4500K
· Part L compliant


· Diameter Ø360mm
· Standard White and Black finish
· Made from polycarbonate
· Available as standard, eyelid and cross blade


· Opal


· Dali Dim


· Casambi


 3 Hr Emergency
· 3 years warranty

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Datasheet - Upon Request

Installation Instructions - Upon Request
