Tubs Modular - Modular Lighting
from LedsC4

Modular lighting

Slim, structural and completely unique, the Tubs Modular combines the beauty of geometry and architecture and takes the freedom to design to a completely new level. Thanks to the huge choice of connectors and accessories including acoustic panels, the designer is invited to create a totally unique combination, both vertical and horizontal.

Straight lines, curves, corners, triple or quadruple connections, 360 degree rotation of the point of the light, it is all possible with this contemporary looking modular lighting system. The only limit is your imagination.

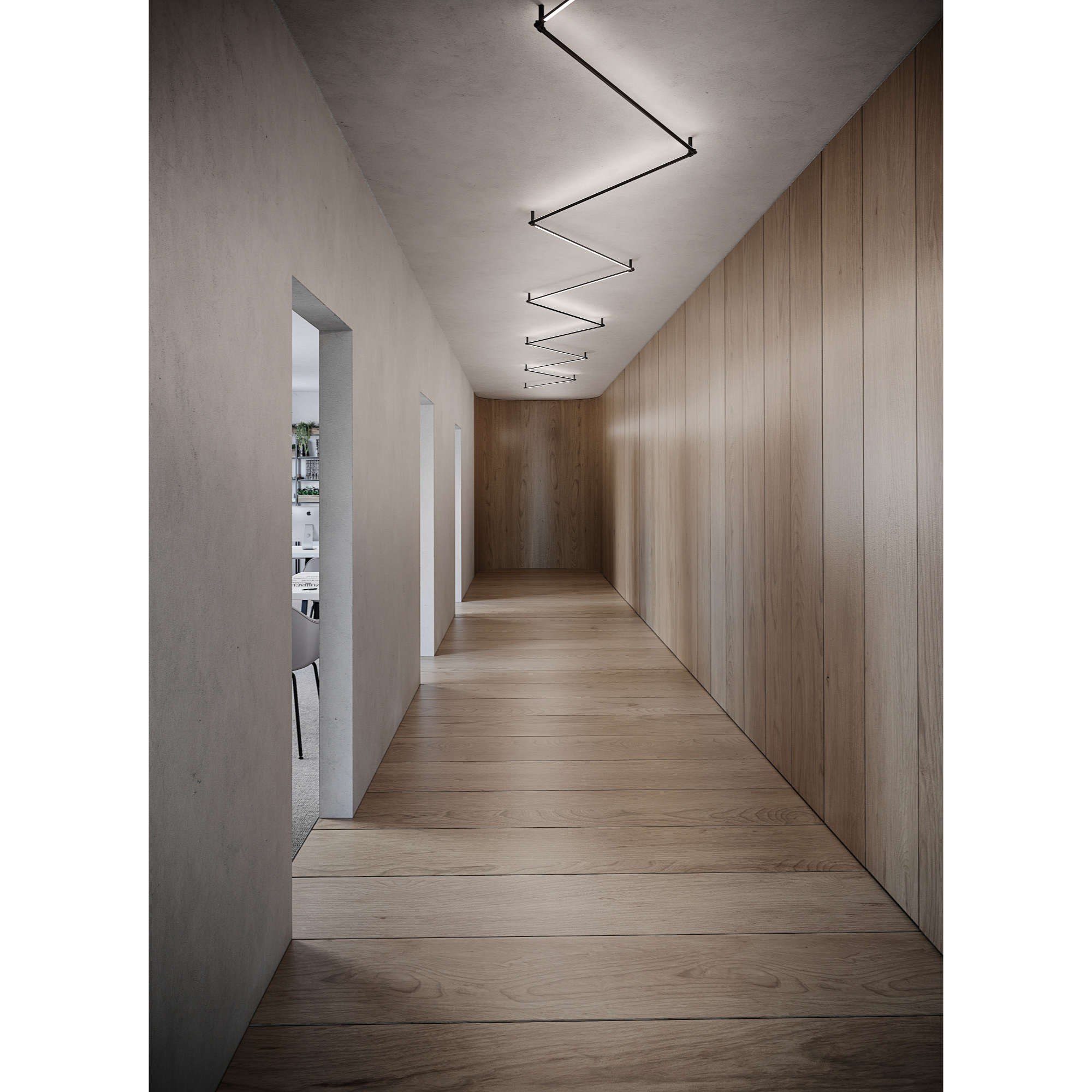

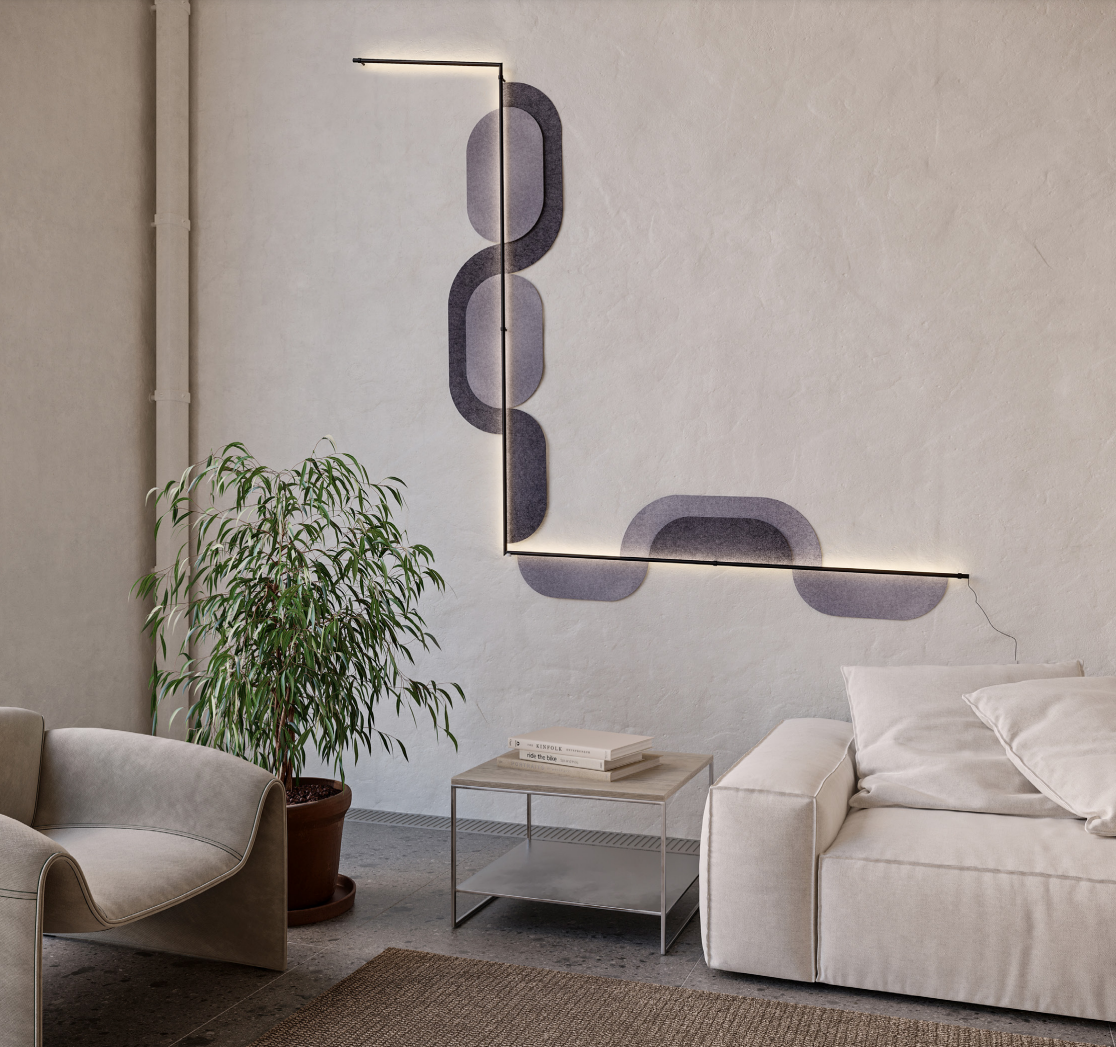

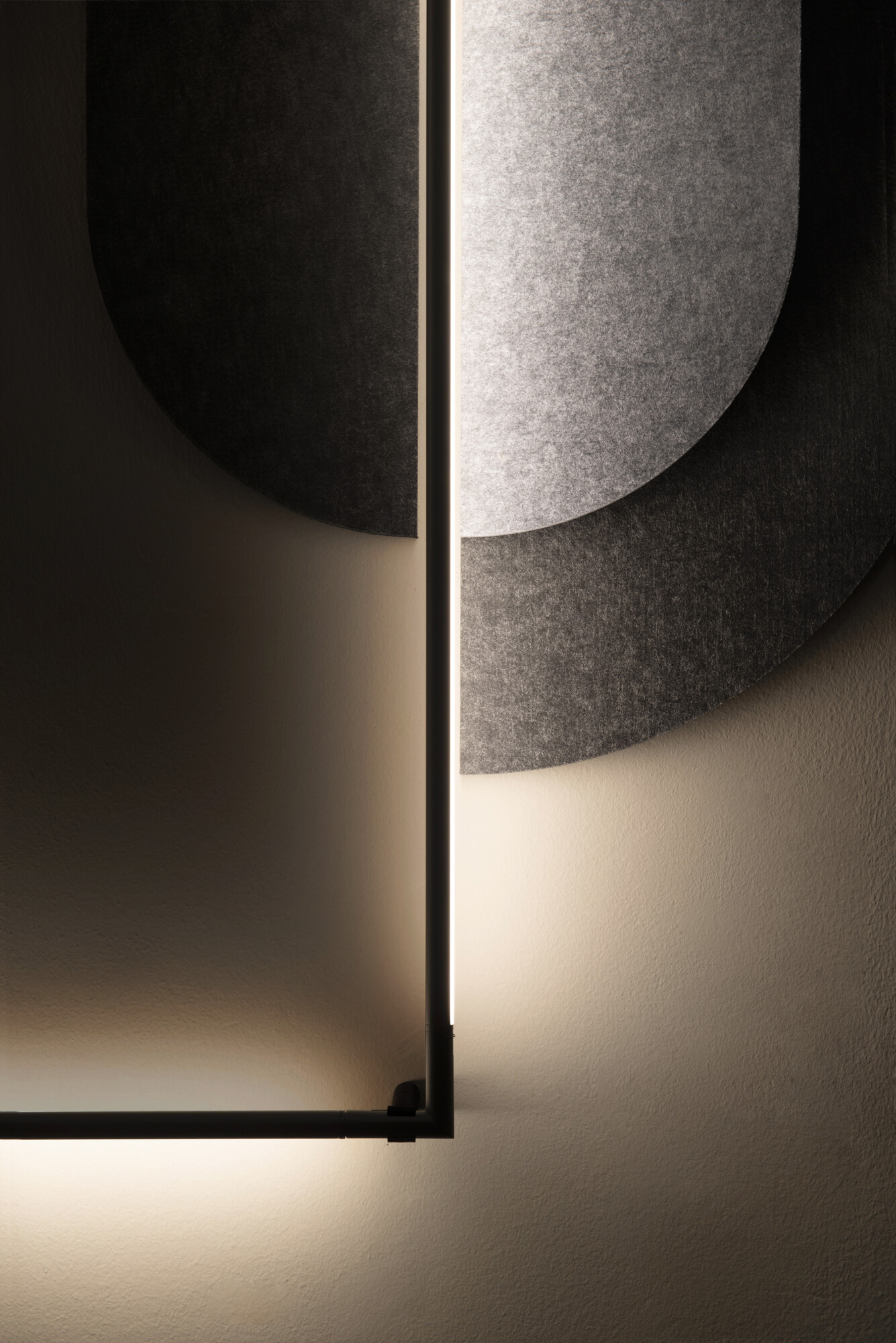

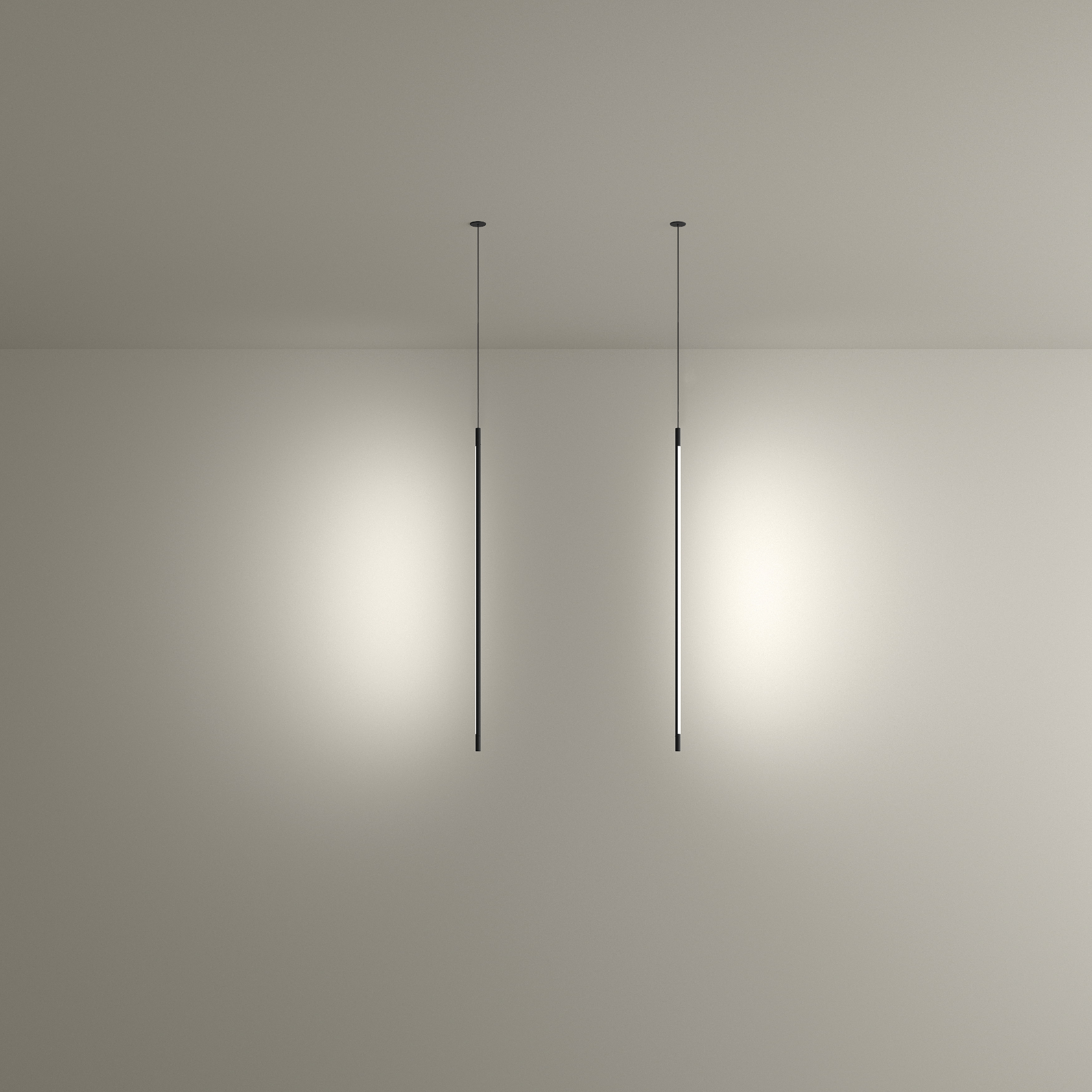

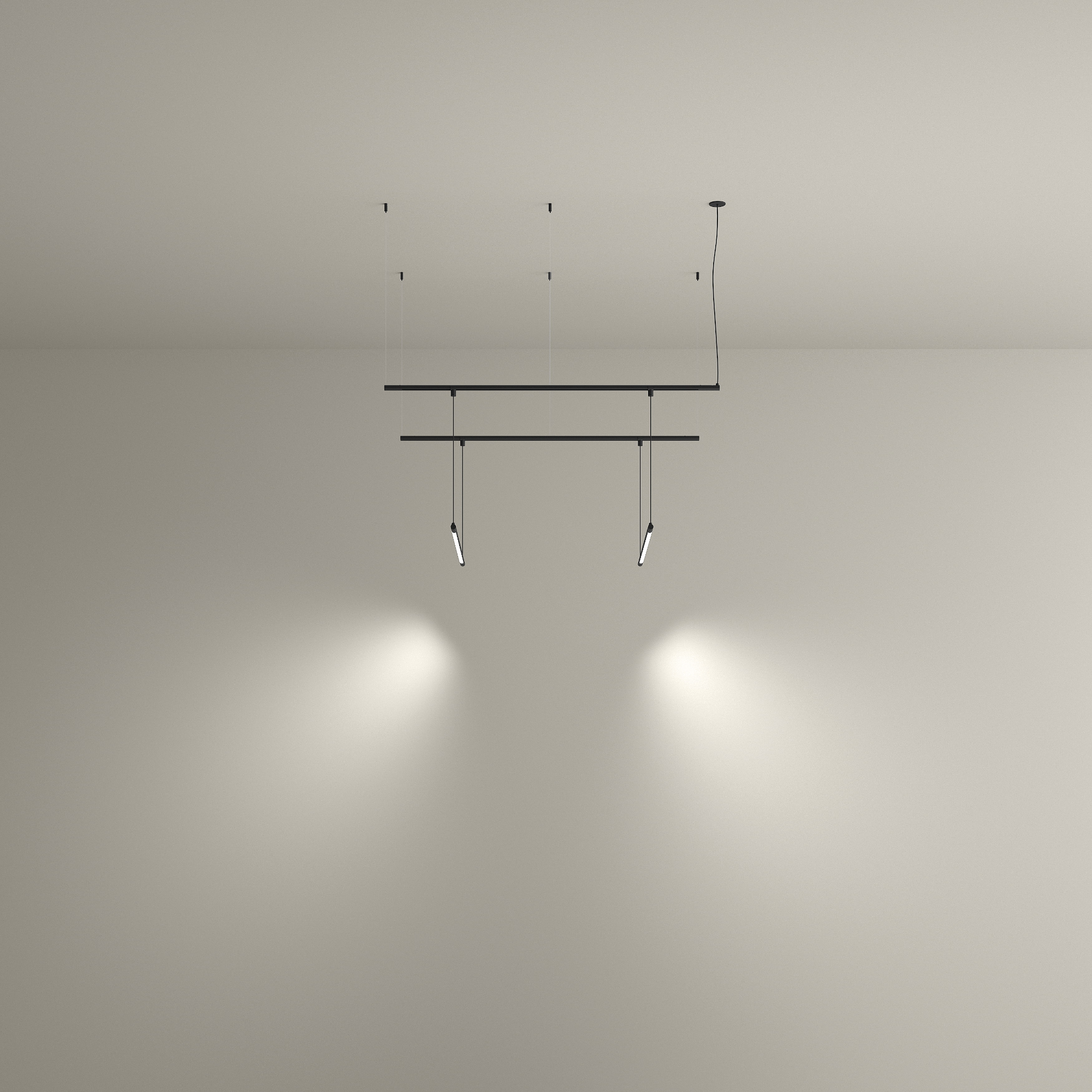

Choose between suspended or surface mounted, pick the minimalist suspension kit to make these elegant geometric pendant lights appear floating in space. The modular systems can be further enhanced by adding acoustic felt panels in beautiful earthy colours. Not only will these enhance the design aspect of the scheme, they will also help with reducing the noise levels.

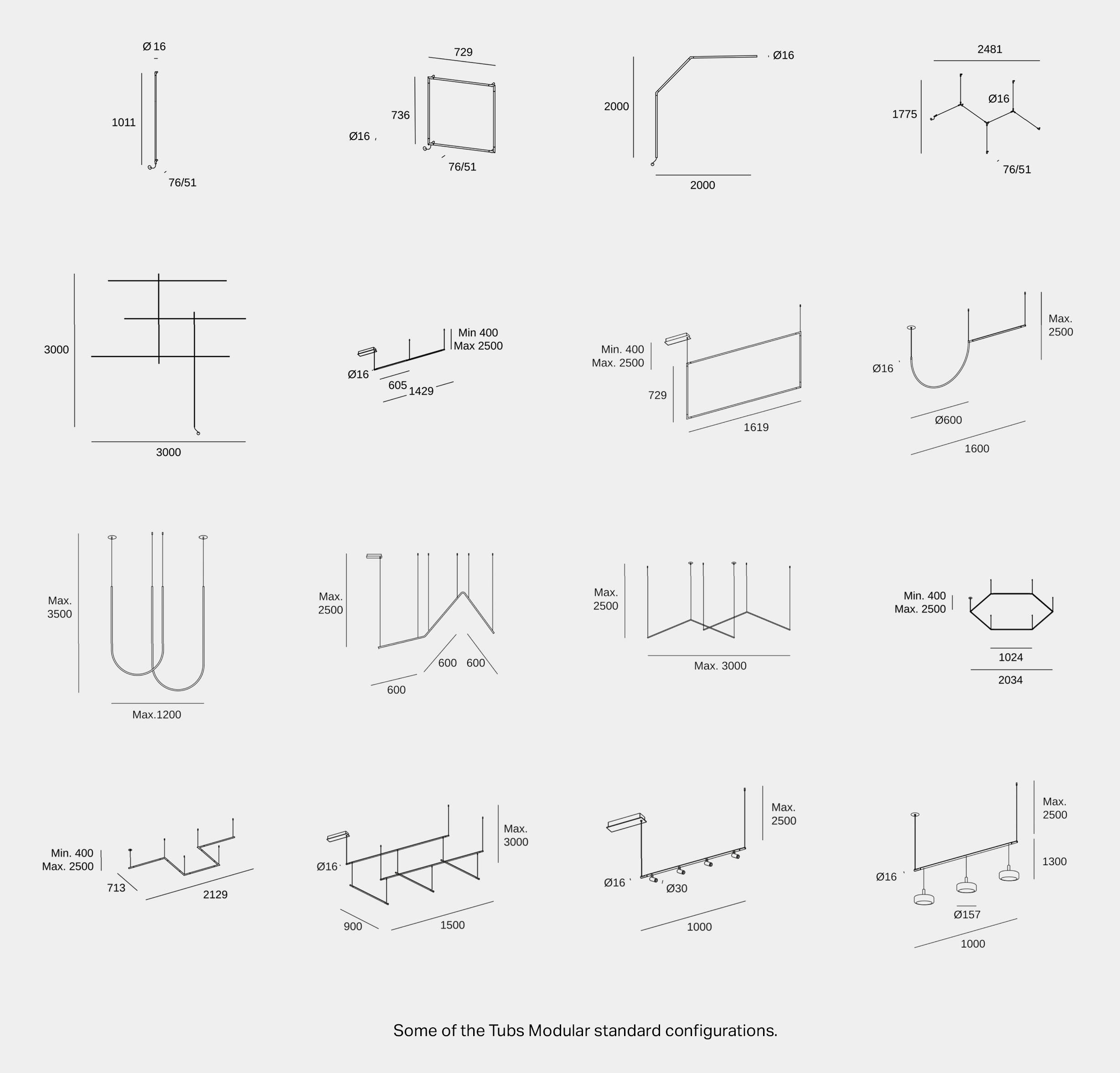

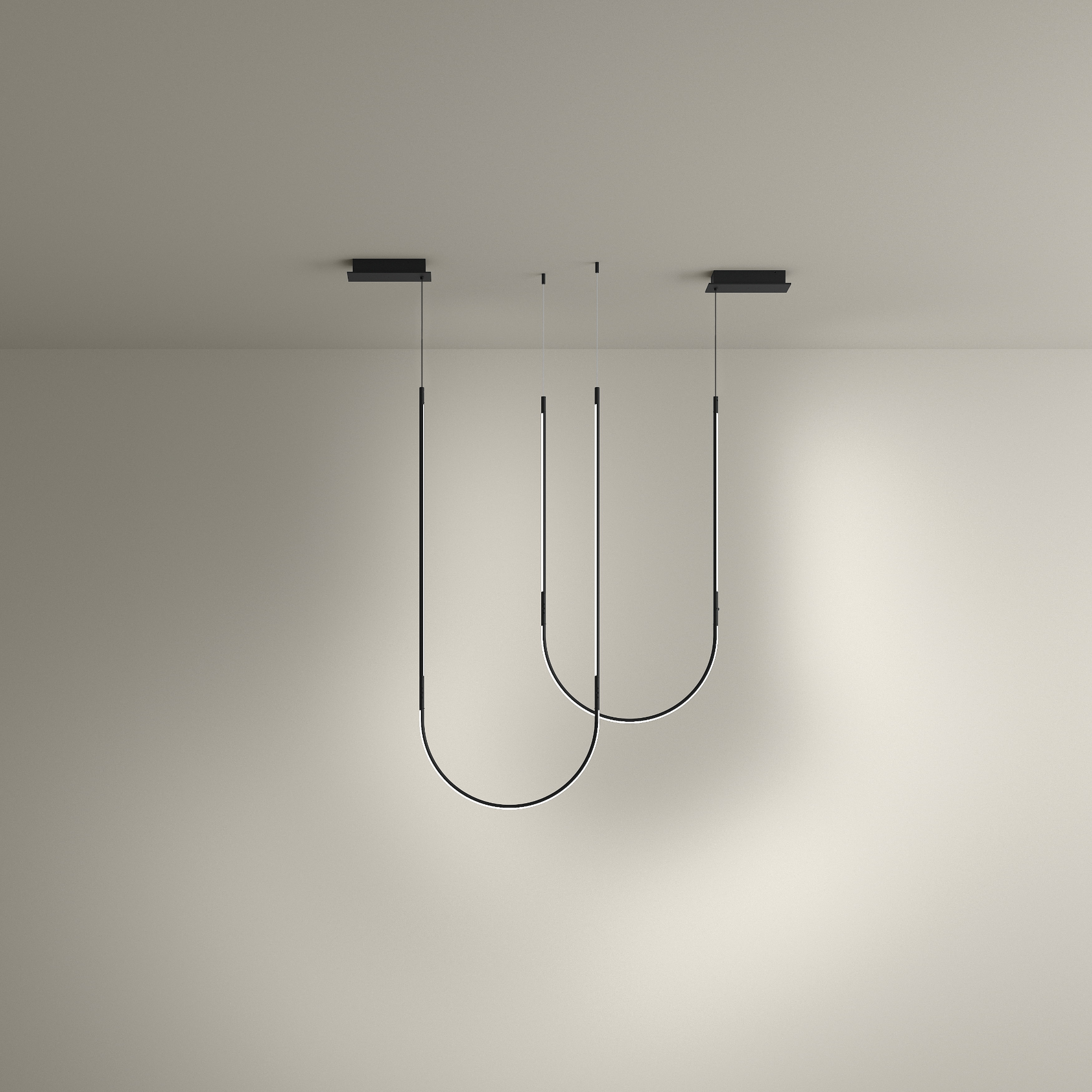

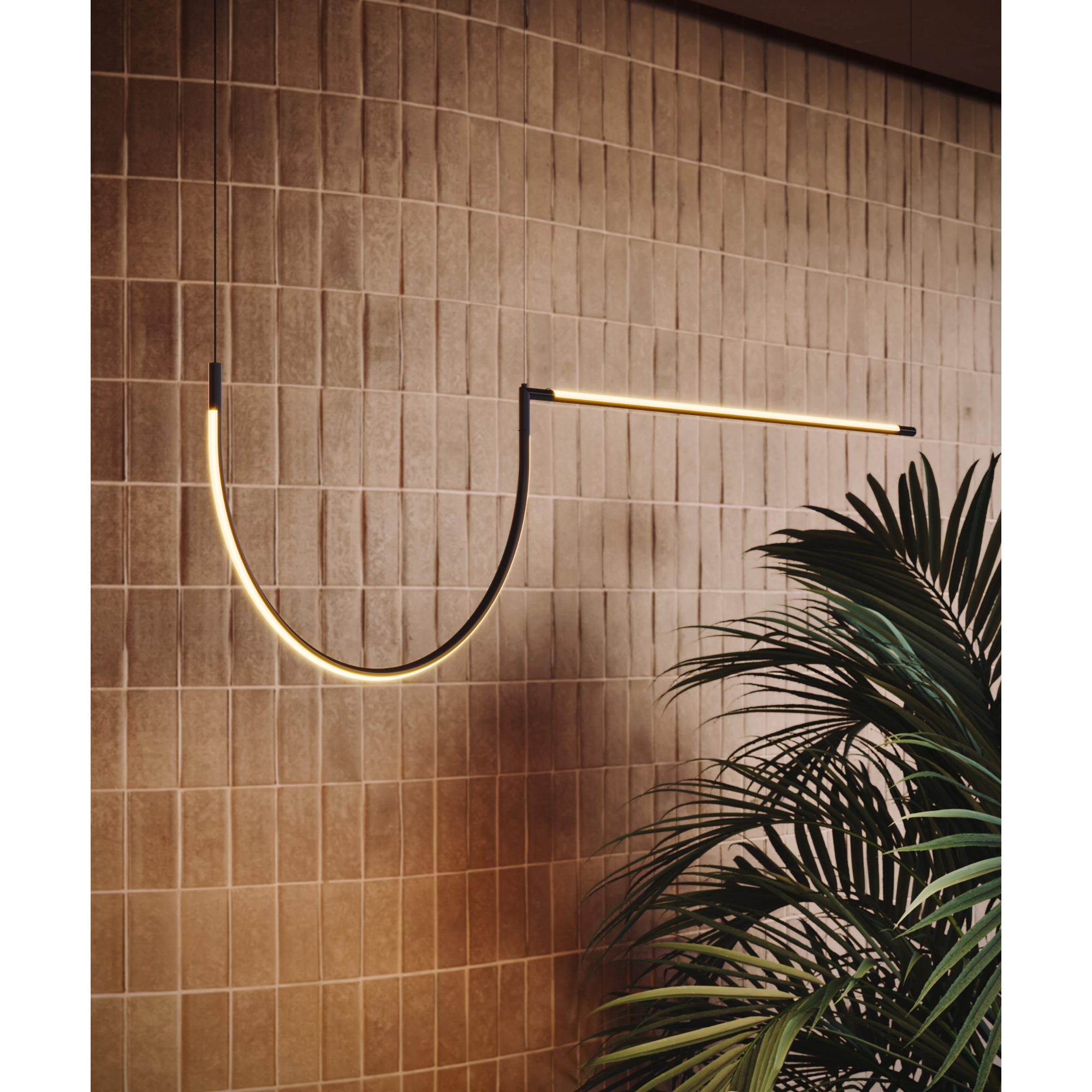

The Tubs Modular also offers a wide selection of ‘premade’ unique shapes, like the molecular shape, modular hexagon lights, modular triangular, modular rectangular vertical or horizontal shape or arch systems.

The Tubs Modular available in a contemporary black finish . Ideal as a modern feature light fittings for Cat A and Cat B office fit-out, hospitality lighting, or retail lighting.It would also work really well in a high end residential settings.

The Tubs Modular can be specified with CASAMBI to increase user control.

Light Source Information

·  LED
·  Direct  Distribution
·  2700K, 3000K
·  CRI90
·  LED modules available from: 605mm, 900mm, 1200mm, 1495mm,

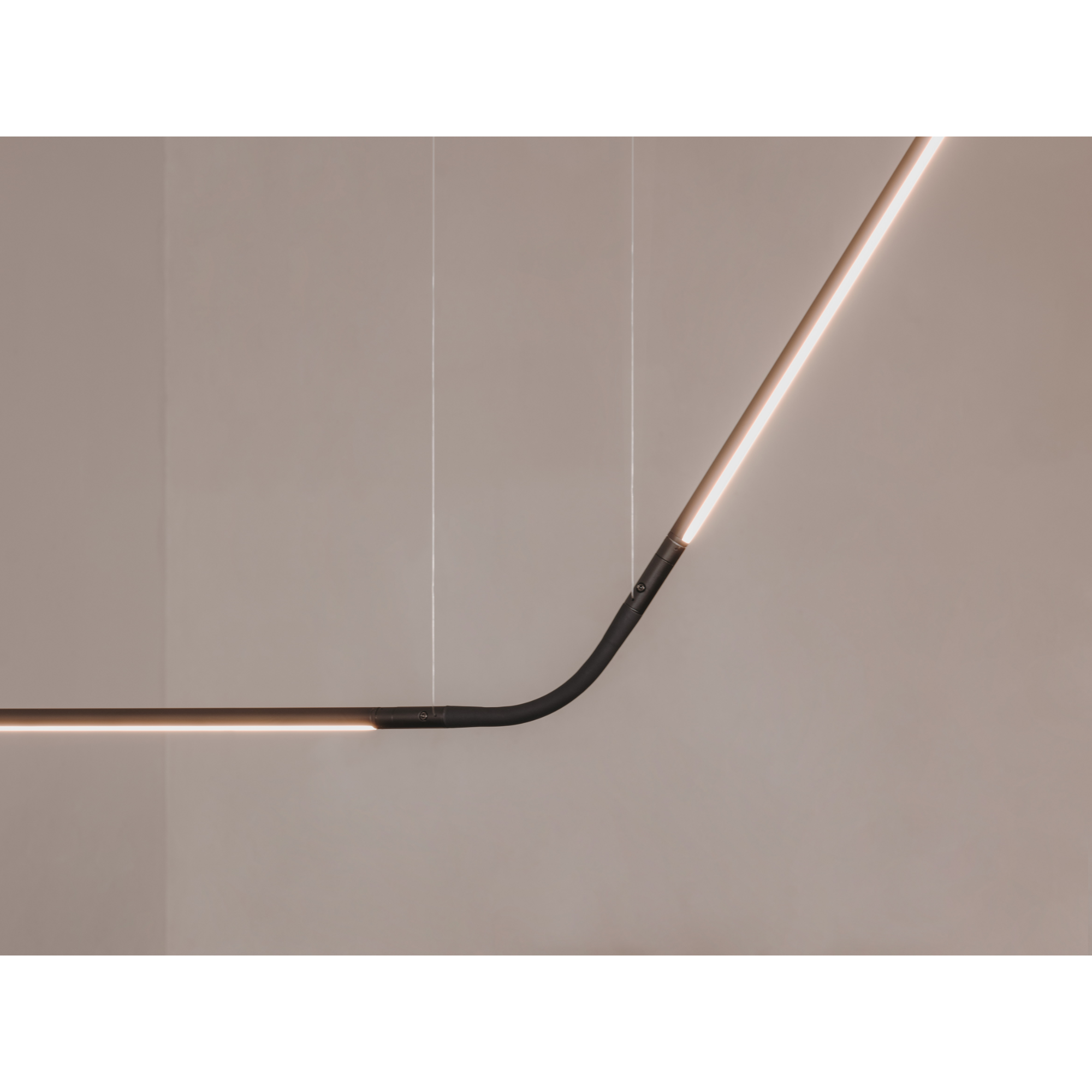

·  connectors: 90,120 and 135 degrees, flexo, triple and quadruple
·  Internal Driver supplied
·  L80B20, Life-time of 50,000 hrs

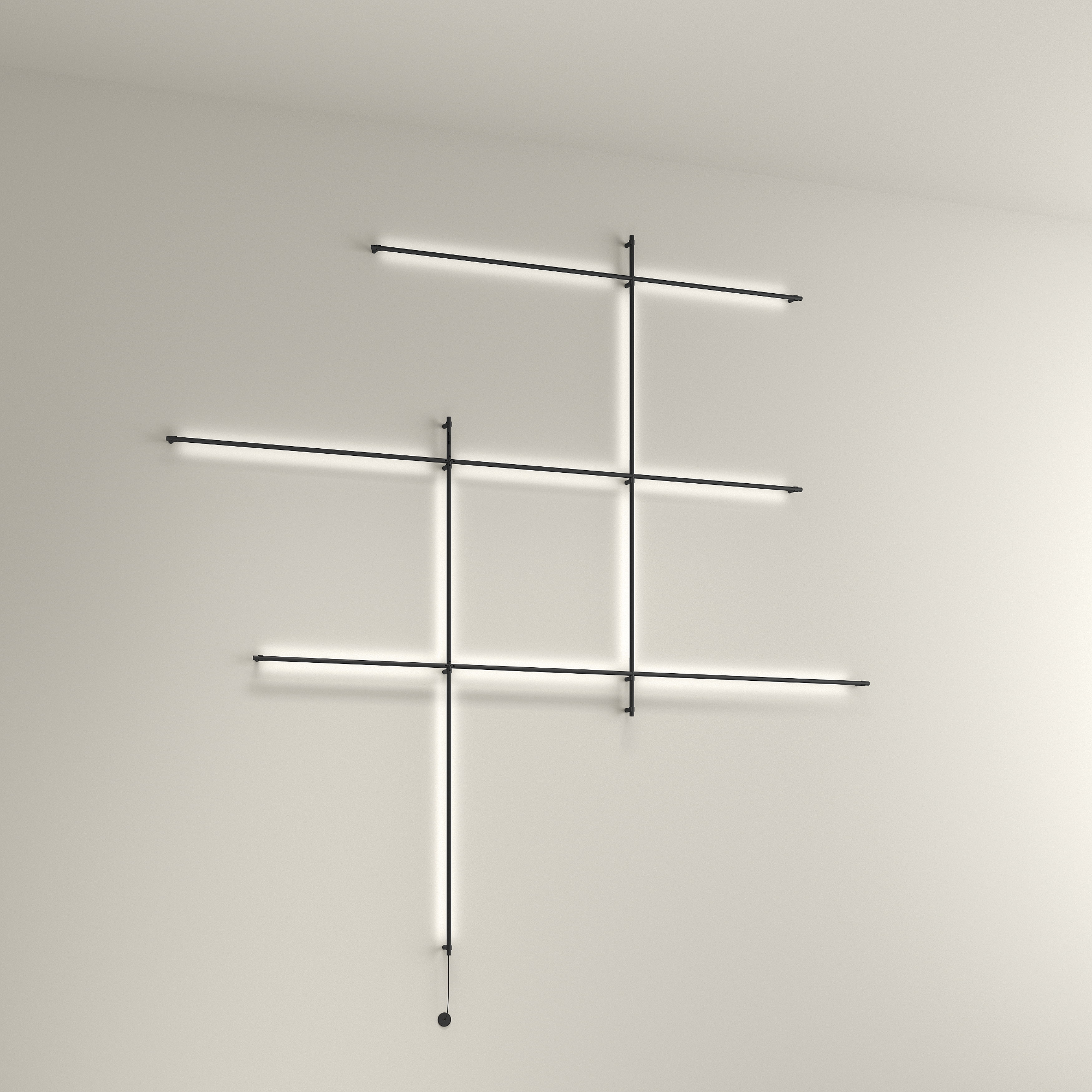

Premade shapes include: wall combinations, molecular shapes, reticle shapes.

Design

· Extruded & formed aluminum profile
· IP20 Rating
· Suspended with wall mounted, built-in or mini ceiling rose
· Available in triangle sizes
· Black, white, and gold powder-coating.
· Custom RAL available on request

Optics

· Opal diffuser

Dimming

· On-Off
· DALI DIM

Integrated Controls (on request)

· Casambi

Miscellaneous

· Suspension max 6000 mm
· 3 Hr Emergency available on request
· 2 years warranty

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Data Sheet - Configure with a project engineer

LDT Files - Upon Request

Installation Instructions - Upon Request

BIM Files - Upon Request

TM65 Report - Upon request

Request a TM65 report.

We offer TM65 reports on all our products, and those from our partners. Request a report for this product, or find out more about the TM65 methodology.

Make an enquiry.

If you have a question about this product or a bespoke request, use our product enquiry form. One of our Light Engineers will be in touch as soon as possible.
