Lopen Surface


The LOPEN Surface mounted is a clean-cut linear profile suitable for continuous LED lighting systems. With the 80 mm wide body, the Lopen has a big bone and bold presence, which makes it a perfect fitting for spaces with high ceilings. Designed with simplicity and attention to detail, the Lopen is contemporary and stylish. Thanks to its high build quality, excellent performance, and high visual comfort it is a perfect surface mounted linear lighting for stimulating working environments and schemes looking to achieve LG7 compliance.

Used as an individual luminaire or a continuous LED linear lighting system, the LOPEN adds a contemporary industrial look and feel to any workplace or architectural spaces, creating clean wide lines of light.

With the variation in mounting styles, the LOPEN is a true all-rounder, equally at home in an office and as linear architectural lighting.
The design of the LOPEN lends itself perfectly to be made to measure linear lighting or bespoke systems. It gives the designer a true freedom creating a vast array of dimensional combinations.

And the best thing about LOPEN?

Easy installation! Both standard sizes and bespoke surface mounted profiles have ceiling brackets, making a popular choice for installation and maintenance.

The LOPEN utilises the latest LED Tunable White technology, giving the user the freedom to select any custom colour temperature between 2700K and 5000K with a proven positive effect on health and wellbeing.
The LOPEN is available in 3 standard colours or 'stand out from the crowd' and choose any RAL colour to enhance your design scheme.

Ideal as a wide surface mounted workspace lighting for CAT A and CAT B office fit-out and a flexible solution for bespoke schemes in architectural environment, retail or education.

The LOPEN can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

· Direct and Direct-Indirect Distribution
· Direct LED outputs available from 3.9W 530 lm up to 87.6W 9,950 lm
· Direct-Indirect LED outputs available from 14.6W 1,930 lm up to 117.6W 13,780 lm
· LED efficiency of 151 lm/W
· Internal Ballasts or Drivers supplied
· L80B20, Life-time of 50,000 hrs

· Part L compliant


· Extruded aluminium profile
· IP20 rated
· Suspended, surface, wall and recessed trim
· Available in 6 standard sizes from 561mm to 2244mm. Custom lengths available on request
· White, black and silver powder-coating. Custom RAL available on request
· Opal or microprismatic diffusers


· Non-dimmable as standard
· DALI available on request
· Bluetooth casambi available on request


· L-Click system - Installation bracket sits above profile, use screwdriver to rotate bracket once in place to secure
· Ceiling mount bracket screws onto ceiling, and slides into profile groove
· Diffuser clicks out and into place for cleaning and easy access


· 3hr Emergency available on request from 1122mm+
· 2 year warranty

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Special Characteristics


Create systems with custom angles

Lopen surface enables the design hungry environments to have true freedom with its variation of mounting styles, combinations of connections and illuminated corners.


Bold line

The bold lines of Lopen makes it stand out from the crowd. The diverse range of lengths can be combined to create intriguing design or simply blend in with the architecture.


The original

Lopen surface is one of the original products in 299 Lighting’s collection. It remains a favourite for many years.


All variations

Why not use a variety of Lopens in your project? It is available as suspended, surfaced, recessed trim, recessed trimless and wall.

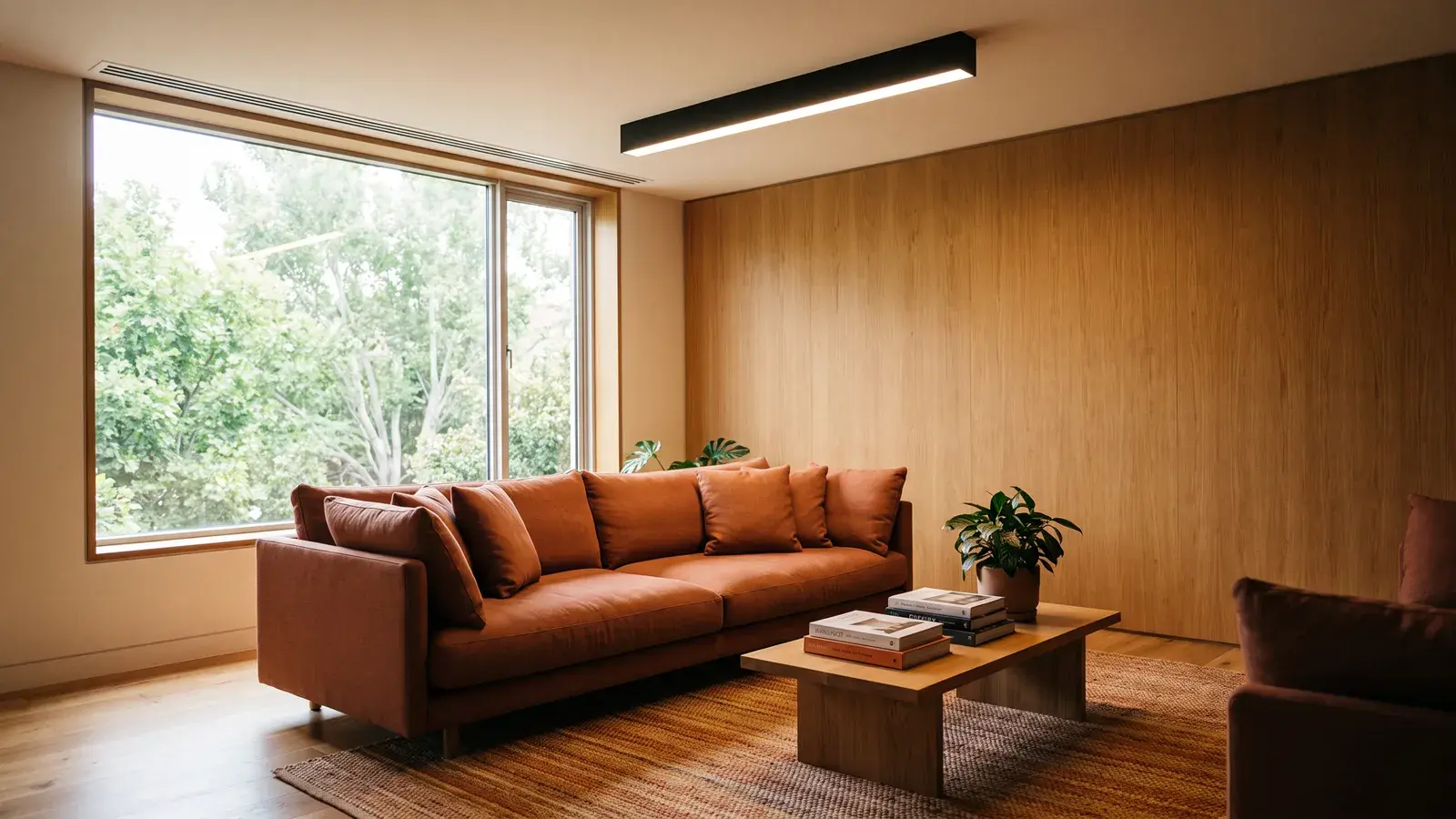

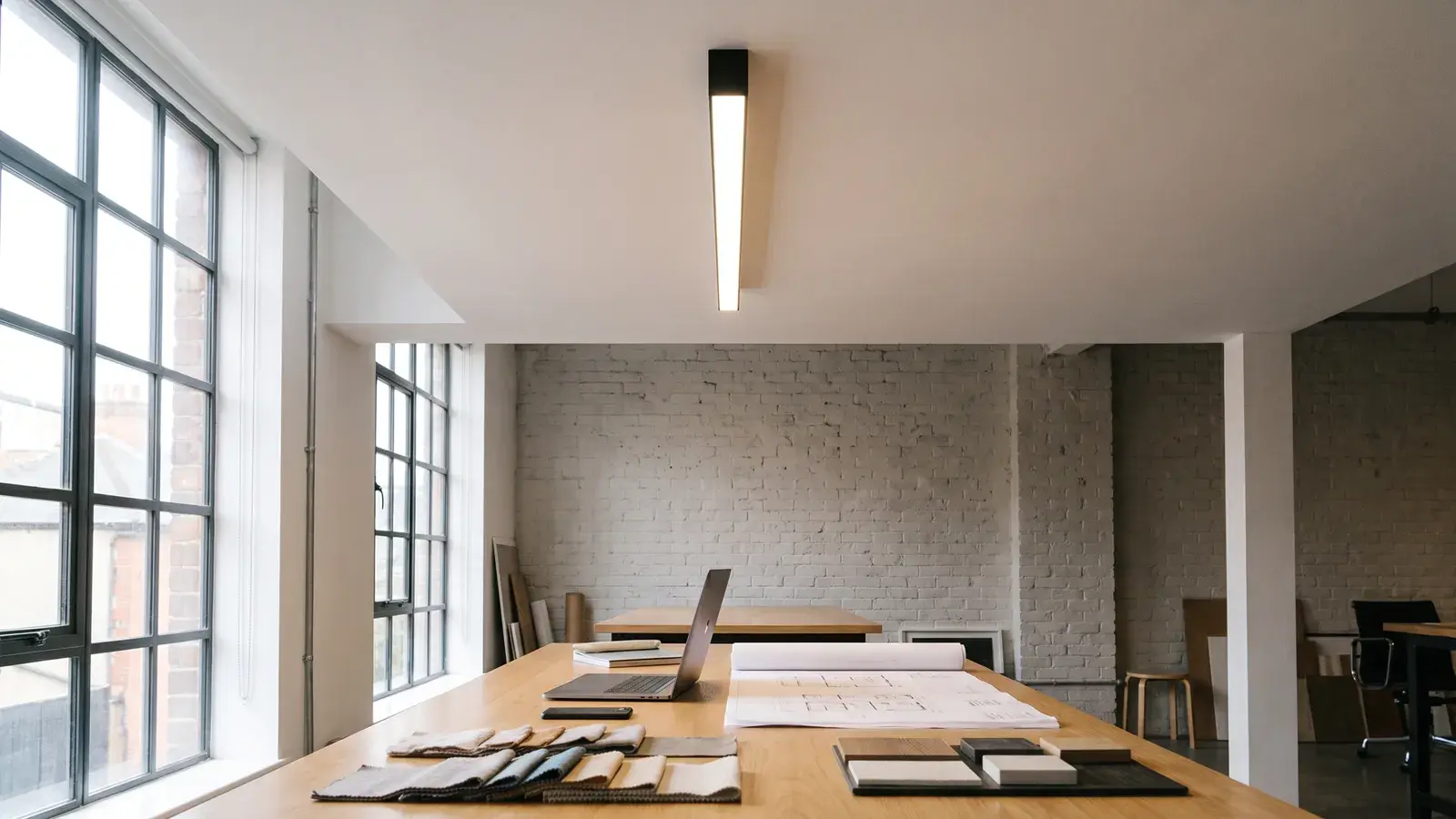

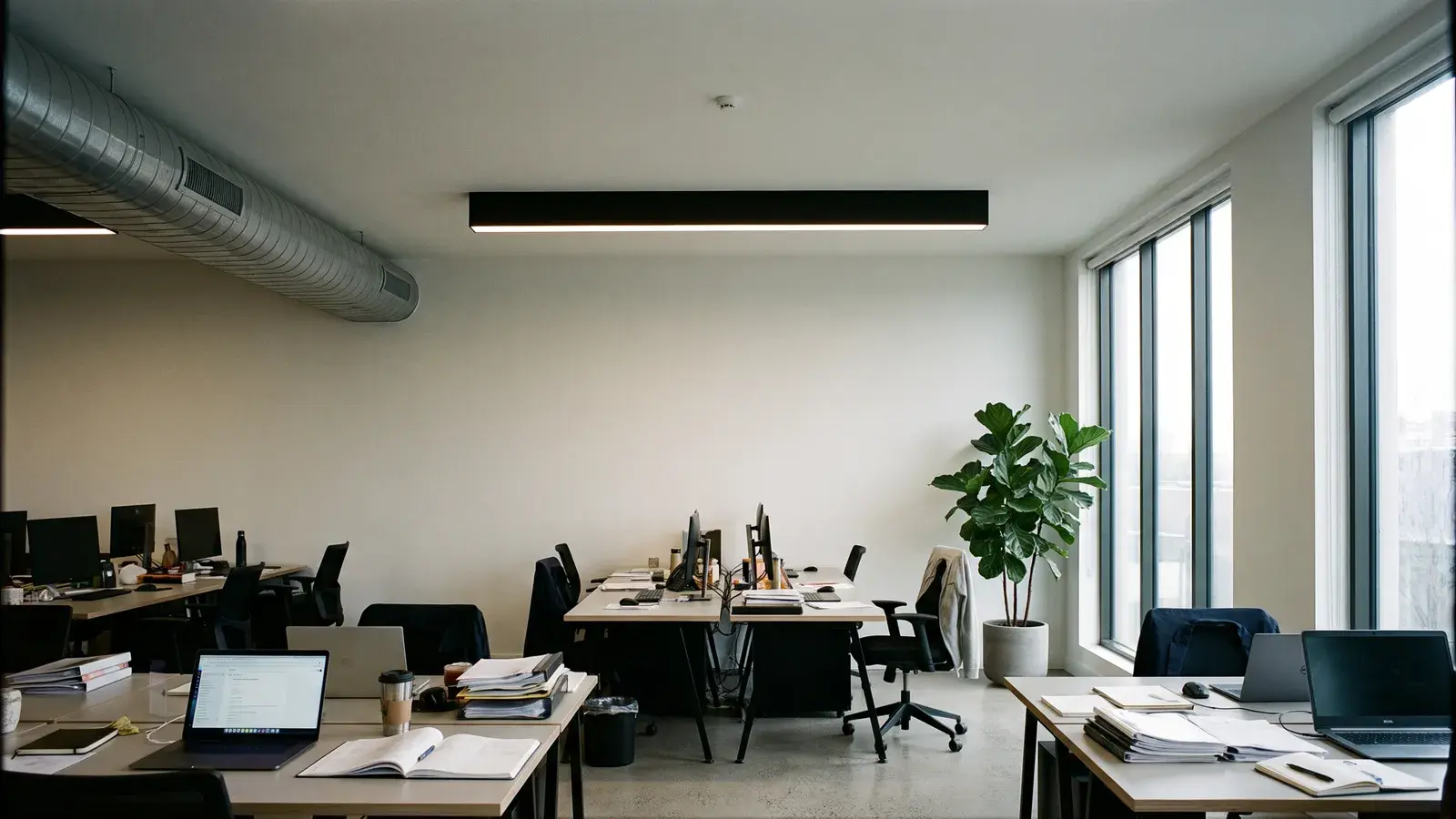

Product In Use
