Tonge Surface

Reply within one working day. Layouts and calculations included when we supply.

Description
Specification

Architectural lights

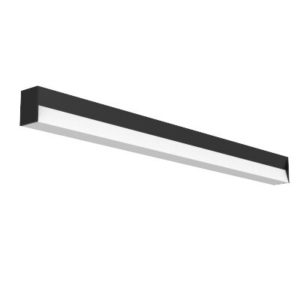

The Tonge combines rectilinear form with soft contours to create a soft light output. The round corners make the Tonge unique amongst others, and with its slim 70mm deep body, it seamlessly gives a harmonious, glare-free light.

The variety of mounting options make Tonge an outstanding product for office areas, showrooms and other commercial spaces.

The TONGE can be specified with CASAMBI to increase user control.

Light Source Information

· LED
· Direct Light Distribution
· LED outputs available from 28W / 3050 lm up to 47W / 5090 lm
· High efficiency up to 108 lm/W
· Colour Temperature 3000K | 4000K
· CRI (RA) min. 80+
· L80B20, Life-time of 50,000 hrs

Design

· Extruded & formed aluminium profile
· IP20 Rated
· Available in lengths of 922mm, 1222mm or 1522mm
· White, black and silver powder-coating. Custom RAL available on request

Optics

· Opal Diffuser
· Microprismatic Diffuser

Dimming

· Non-dimmable as standard
· DALI available on request

Integrated Controls (on request)

· CASAMBI

Installation

· Four securing holes securely mount the back of luminaire directly to surface. Frame uses secure clasps to lock to baseplate

Miscellaneous

· 3hr Emergency available on request (not available in 922mm size)
· 2 year warranty

Downloads.

Download datasheet

Download LDT files

Download Installation Instructions

BIM files (on request)

TM65 report (on request)

Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.

Questions about Tonge Surface.

What is the efficacy of Tonge Surface?

Tonge Surface delivers up to 108 lm/W, depending on the output, optic and configuration chosen. The figure for your exact configuration is on the datasheet and your quotation.

How does Part L apply to Tonge Surface?

Part L compliance is judged on the luminaire lumens per circuit-watt average that Approved Document L sets for general lighting across the whole installation, so one product's headline efficacy does not settle compliance. We check the average for your whole scheme when we prepare the layout.

Can Tonge Surface be dimmed?

Yes. Tonge Surface is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.

How do I get a quote or sample for Tonge Surface?

Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.

Product Configurator

Select your configuration options below

Products Available: 72 | Matching: 72

Main Configuration

Unique shape

The round corners make the Tonge unique amongst others, and with its slim 70mm deep body, it seamlessly gives a harmonious, glare-free light.

Versatile

The variety of mounting options make Tonge an outstanding product for office areas, showrooms and other commercial or architectural spaces that need lighting.

Wireless Control

All mounting styles of Tonge can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

Foss Recessed Trim Fixed-wireles_control_casambi_easyair
