48V / DALI-SELFTEST WIRELESS
Designed as a discrete and practical emergency lighting solution for 48V track fed lighting schemes, the Eddy track is a popular choice for 3 hours standalone low- voltage track emergency lighting.
The device is supplied complete with the latest LiFePO4 battery packs. The lithium phosphate batteries consume less power and last longer than traditional emergency lighting batteries.
Designed as Plug and Play, the device is locked in place on the track to avoid post installation relocation. This retains the position of agreed emergency lighting scheme as per emergency lighting regulations.
As a complete emergency lighting solution, Eddy can offer up to a 209 lumen output.
Eddy is available as a DALI 2 model in white and black finish.
In terms of emergency lighting testing for the DALI addressable model, the unit will revert to standalone self-test if not wired to a DALI operating system.
This product is also available as a wireless control solution and is DALI 2 certified.
The product is suitable for Global Trac, Eutrac and Stucchi track systems.
Light Source Information
· Track mounted
· Non-maintained
· Output: 2.5W/ 254
Design

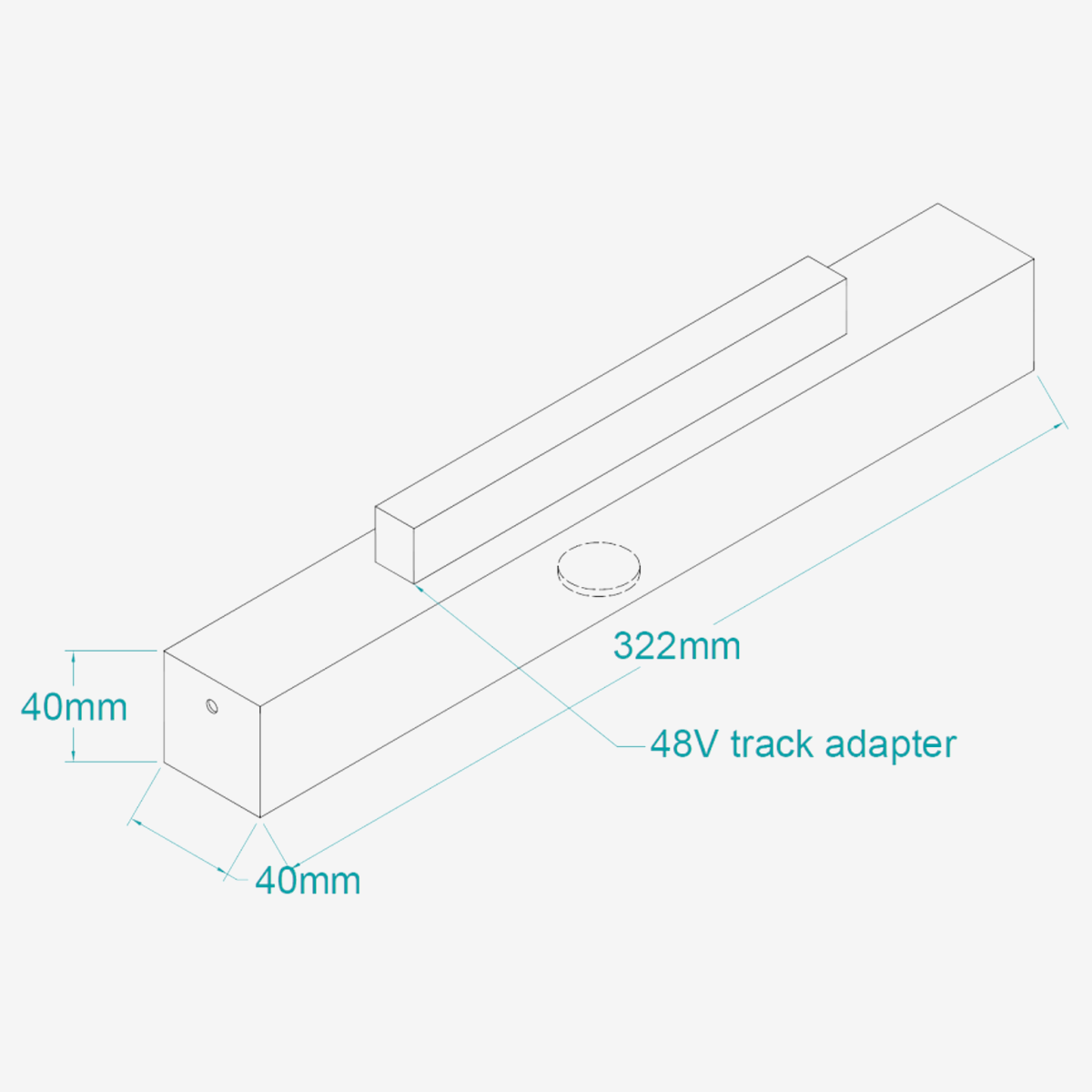

· Size: 325 mm x 40 mm x 40 mm
· Colour finish: Black, White
· IP20
· Duration: 3 Hours
· Compatible with Global Trac, Eutrac and Stucchi Systems
· Warranty: 4 years
299 Lighting reserve the right to change the specification of any product without notice or public announcement.
Datasheet - Upon Request
Installation Instructions - Upon Request
