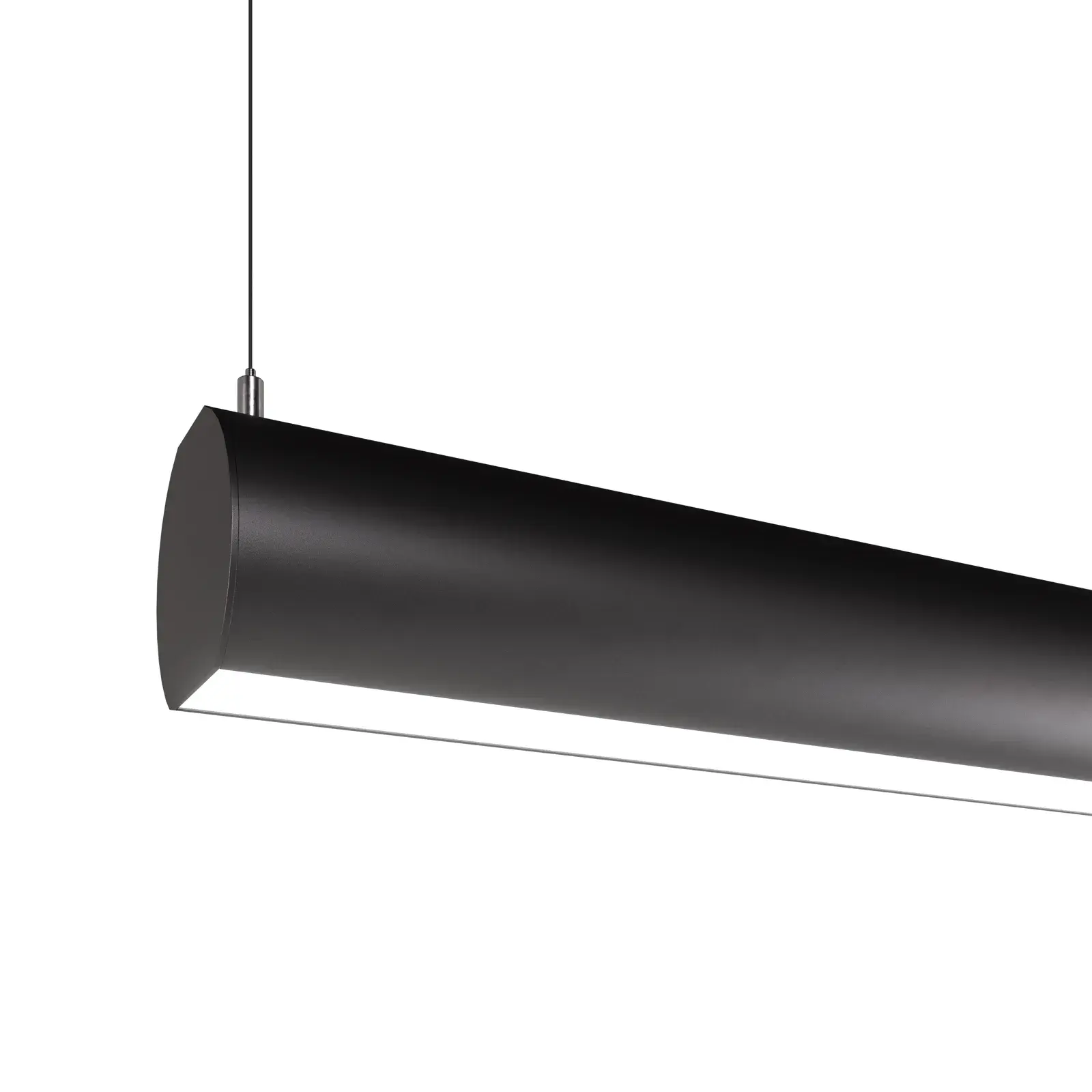

Arno Suspended Direct/Indirect

LINEAR LIGHT FIXTURE

Introducing the concept of blending the task lighting with industrial design, the ARNO Suspended Direct/Indirect is the ultimate performance-driven industrial style linear lighting.  ARNO is the first of its kind. Raw and industrial, yet contemporary and tactile, the ARNO Suspended Direct/Indirect offers a new option to workplace lighting. Thanks to its superb build quality, excellent performance, and high visual comfort it is a perfect linear LED lighting system for stimulating working environments and schemes looking to achieve LG7 compliance.

Used as an individual task luminaire above workstations, or as a continuous linear lighting system, the ARNO Suspended Direct/Indirect adds a contemporary feel to any workplace or architectural spaces, creating clean lines of light. First, in its class, the ARNO Suspended Direct/Indirect is not just about being office lighting in a different body.

And the best thing about ARNO? The super easy installation! The ARNO Suspended Direct/Indirect has become an early adopter of the latest LED Tunable White technology, giving the user the freedom to select any custom colour temperature between 2700K and 5000K with a proven positive effect on health and wellbeing. The ARNO Suspended Direct/Indirect is available in 3 standard colours or 'stand out from the crowd' and choose any RAL colour to match your interiors design. Ideal as a premium suspended workspace lighting for CAT A and CAT B office fit-out and a flexible solution for bespoke schemes.

The ARNO can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

·  LED
·  Direct/Indirect Distribution

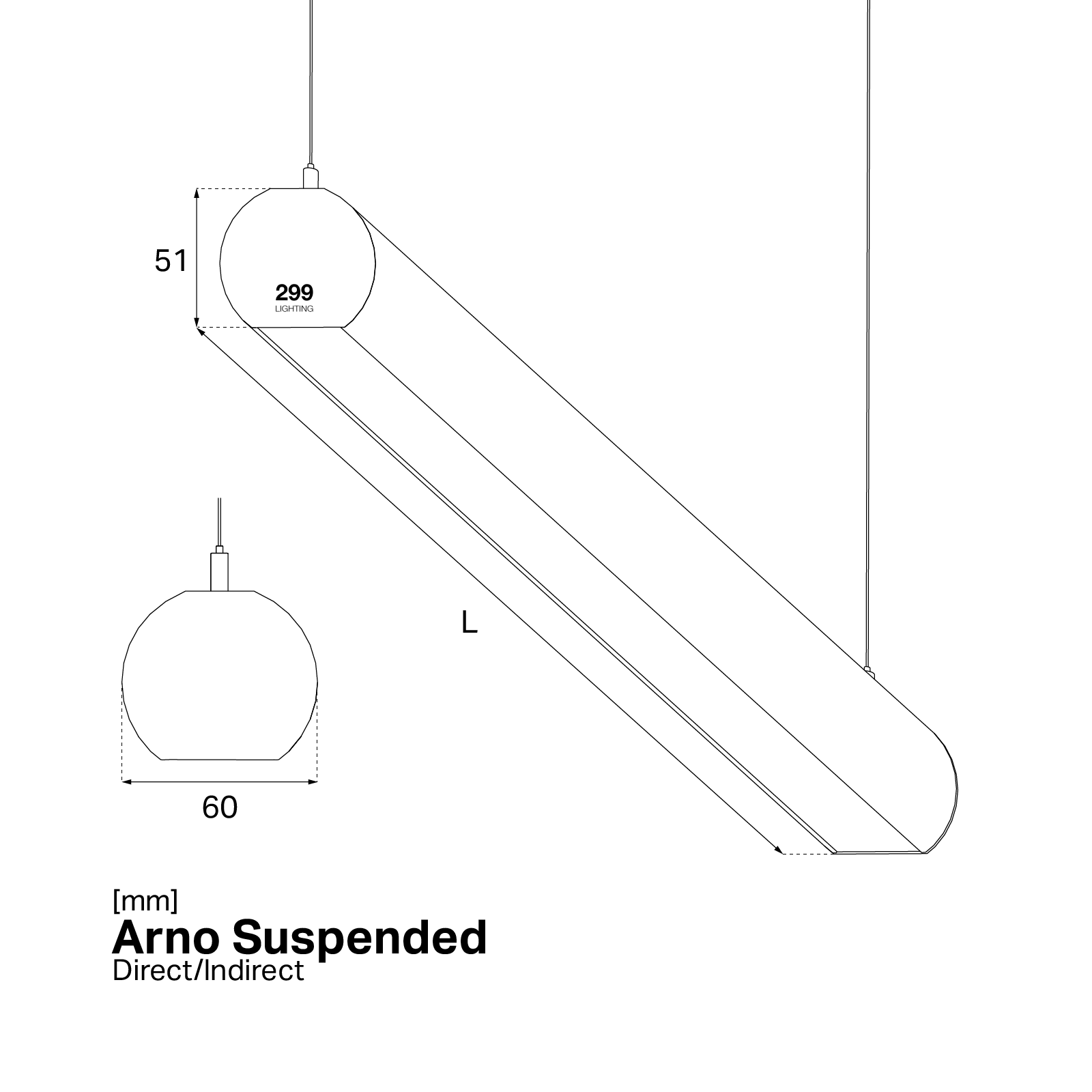

·  Available as 80 and 60 mm diameter
·  LED outputs available from 22W 2,703lm up to 134W 16,369lm
· Efficiency of 125lm/W
· The Arno can achieve schemes of <19UGR, meeting the CIBSE, SLL and BCO guide to lighting standards.
· Colour Temperature 3000K | 4000K | TW (2700K - 5000K)

· Part L compliant

· Internal Drivers supplied

Design

· Extruded aluminium profile
· IP20 Rated
· Ceiling Suspended
·  Available in 7 standard sizes ranging from 566mm to 2246mm

Optics

· Opal Diffuser
· Microprismatic Diffuser
· Asymmetric Reflector
· Black Opal
· Modular Optics

Installation

· Can easily be connected into a system. Quick and simple power and control connection.

Dimming

· Non-dimmable as standard
· DALI available on request
· Tunable White available on request. It uses DALI DT 8 control drivers

Integrated Controls (on request)

· Casambi
· Philips EasyAir

Miscellaneous

· 3hr Emergency available on request
· 2 year warranty
· Integral Emergency Dimensions Above 1266mm

299 Lighting reserve the right to change the specification of any product without notice or pubic announcement


Special Characteristics

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/linear-lighting-diffusers-off-3.jpg

5 different diffusers

First in its class, the ARNO is not just about being office lighting in a different body, it offers 5 different types of diffusers, the ARNO presents a welcome change to the usual linear LED lighting.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/arno-suspended-banner-1.jpg

2 different sizes

The ARNO is now available as 80 and 60 mm diameter.  A true all-rounder, it is equally at home in an office and as linear architectural lighting.



https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/arno-plug-play-1-1.jpg

Easy installation

Thanks to the wago connect system, the luminaire distributes edge-to-edge light with zero light bleed.

Both standard sizes and bespoke lighting systems come with ready to install suspension kit, making it the perfect straight out of the box LED linear lighting solution.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/arno-suspended-banner-shapes-1.jpg

Customization system and shapes

The design of the ARNO lends itself perfectly to made-to-measure linear lighting solutions. It gives the designer a true freedom creating a vast array of dimensional combinations.

The clean-cut illuminated corner modules invite you to play and create unique shapes in made to measure lengths.

Tonge Suspended CTA

Wireless Control

All mounting styles of Arno can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

All mounting styles of Arno can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Light Distribution Example

light-distribution-tubular-lighting-directindirect-1
