Aril Suspended.
The almost invisible line.
Aril Suspended
Reply within one working day. Layouts and calculations included when we supply.
Linear pendant
Minimalist and classic in design, the Aril is a clean cut linear pendant that can take your interior design to the next level. With the driver included in its slim body, there is no need for remote drivers, making the Aril a perfect linear lighting for spaces with low ceiling void.
The clean aesthetics of the 28mm wide body will enhance any modern space. The high level of finish will allow the luminaire to be viewed from any angle, making it a great choice for atriums, viewing galleries and large staircases.
With 6 different lengths to choose from, the Aril allows for a comprehensive range of applications. Ideal as architectural lighting for breakout spaces, reception areas and public areas.
The Aril can be specified with both CASAMBI and Philips EasyAir to increase user control.
Light Source Information
LED
· Direct and Direct-indirect distribution
· Output from 1140 to 11670 Lm
· LED Efficiency of 106 Lm/W
· Colour temperature; 3000K, 4000K
· Built-in driver
· CRI >80

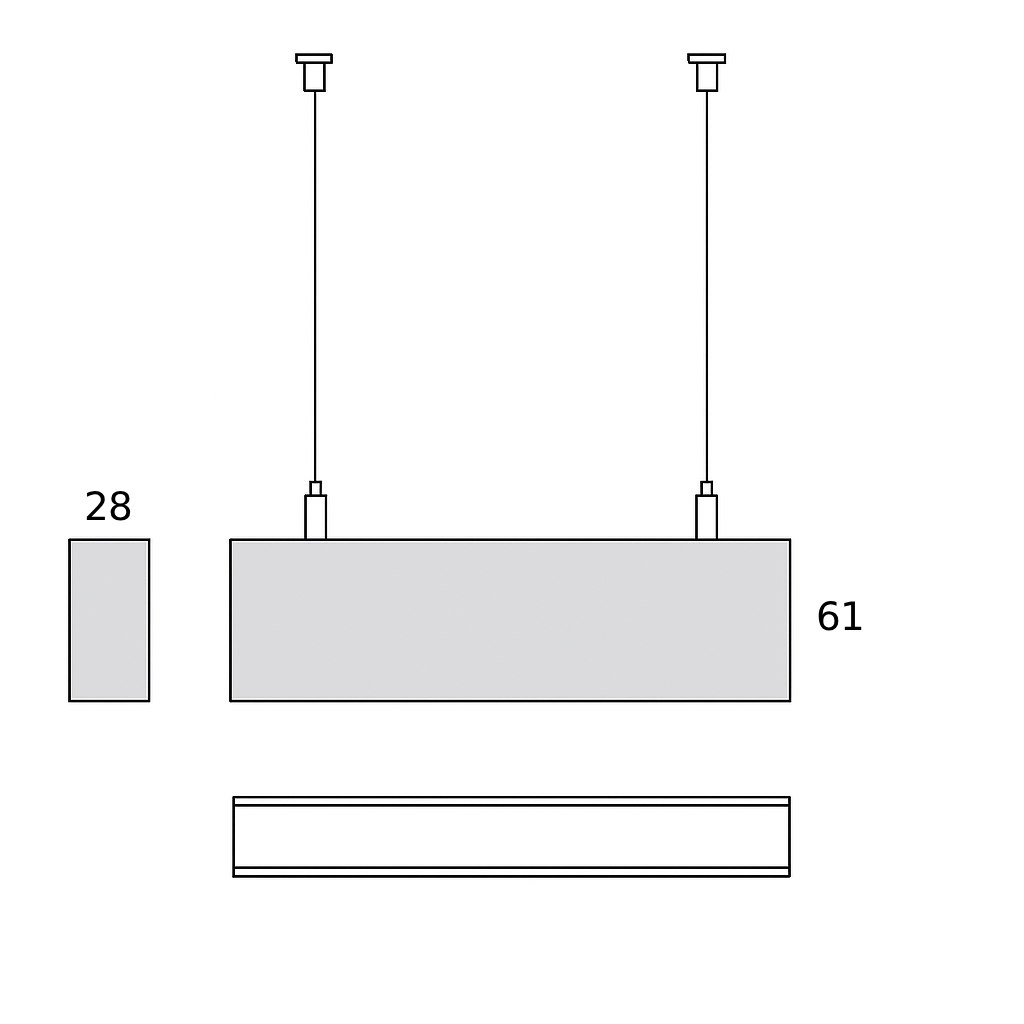

· 28mm wide body
Design
Suspended
· High quality Polycarbonate Opal diffuser
· Black, Silver, White
· Available in standard lengths 847mm, 1127mm, 1408mm, 1688 mm, 1969 mm, 2249 mm
· IP20 rated as standard
Optics
· Opal Diffuser
· Microprismatic Diffuser
· Low UGR Diffuser
Dimming
· Non dimmable
· DALI
Integrated Controls on request
· Casambi
· Philips EasyAir (External EasyAir Sensor)
Miscellaneous
· 3hr Emergency Remote
· 5 year warranty
Downloads.
LDT Files - upon request
Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.
Questions about Aril Suspended.
What is the efficacy of Aril Suspended?
Aril Suspended delivers up to 106 lm/W, depending on the output, optic and configuration chosen. The figure for your exact configuration is on the datasheet and your quotation.
How does Part L apply to Aril Suspended?
Part L compliance is judged on the luminaire lumens per circuit-watt average that Approved Document L sets for general lighting across the whole installation, so one product's headline efficacy does not settle compliance. We check the average for your whole scheme when we prepare the layout.
Can Aril Suspended be dimmed?
Yes. Aril Suspended is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.
What colour rendering does Aril Suspended offer?
Aril Suspended is available with CRI 80. Ask us if your scheme needs a higher CRI.
How do I get a quote or sample for Aril Suspended?
Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.
Product Configurator
Select your configuration options below
Main Configuration
Optional Features
These features may not be available on all products
⚠️ This combination may require custom configuration. Please contact sales for availability.
Extended Configuration Options
⚠️ Not all combinations may be available as standard. Please confirm with sales.
Custom Specifications
✓ Product Found
Selected Options:
⚠ Multiple Products Found
✗ No Matching Products
Try adjusting your filters to find a matching product.
Request Product Pricing
Selected Configuration:
Special Characteristics
Super Slim Profile
Optic Options
Illuminated Up & Down
Wireless Control
The Aril can be easily upgraded with Casambi or Philips EasyAir controls, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
Wireless Control
The Aril can be easily upgraded with Casambi or Philips EasyAir controls, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
Product In Use
The Melville Building at Royal William Yard, Plymouth.
Alternative Products
Ask about this product
Prices, lead times, samples or a layout. Tell us what you need and a Light Engineer will reply within one working day.
- Pricing and lead times
- Samples, finishes and colour temperatures
- Photometrics, BIM and LDT files
- Layouts and lux calculations
