Mono and multi-optic linear downlight

Bold and subtle at the same time, the FOSS is a small yet powerful multi-optic downlight. The minimalist design of the FOSS makes it a perfect lighting solution achieving a clean look in contemporary architecture. Offering a high visual comfort, a cool design and easy installation, the FOSS is a welcoming change to traditional recessed downlights. It has all qualities for setting new standards in recessed lighting. Using one or multiple optics to diffuse the light, the FOSS offers a high visual comfort improving the well-being in the workplace. The contemporary and unique design of this small linear downlight can turn into the design element of your commercial scheme.

The FOSS Recessed Trim 5 and 10 modules can be specified as adjustable and used as a wall washer, offering extra flexibility for your design.

The FOSS can be specified with CASAMBI to increase user control.

Light Source Information

· LED
· Direct Distribution
· LED outputs available from 10W / 1050 lm up to 20W / 2100 lm · CRI90 · Efficiency of up to 105 lm/W · Colour Temperature 3000K | 4000K · External Drivers supplied
· L80B20, Life-time of 50,000 hrs

Design

· Modular recessed downlight · Available in 2 standard sizes 5 Modules | 10 Modules · Available in three beam angles 12° | 34° | 48° · Tilting 30° · Made from die-cast aluminium · Standard Finish in White or Black · Each LED contains individual optics with black anti glare properties · IP20 Rated ·  Low Profile H50mm

Dimming

· Non-dimmable as standard · DALI available on request

Integrated Controls (on request)

· CASAMBI

Installation

· Spring Clip Installation

Miscellaneous

· 3hr Emergency available on request · Internal Reflector only available in Black
· 2-year warranty

Downloads.

Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.

Questions about Foss Recessed Trim Adjustable.

What is the efficacy of Foss Recessed Trim Adjustable?

Foss Recessed Trim Adjustable delivers up to 105 lm/W, depending on the output, optic and configuration chosen. The figure for your exact configuration is on the datasheet and your quotation.

How does Part L apply to Foss Recessed Trim Adjustable?

Part L compliance is judged on the luminaire lumens per circuit-watt average that Approved Document L sets for general lighting across the whole installation, so one product's headline efficacy does not settle compliance. We check the average for your whole scheme when we prepare the layout.

Can Foss Recessed Trim Adjustable be dimmed?

Yes. Foss Recessed Trim Adjustable is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.

What colour rendering does Foss Recessed Trim Adjustable offer?

Foss Recessed Trim Adjustable is available with CRI 90. Ask us if your scheme needs a higher CRI.

How do I get a quote or sample for Foss Recessed Trim Adjustable?

Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.


Special Characteristics

foss-recessed-trim-adjustable

Low glare optic

The die-cast aluminium body combined with high gloss optics create the innovative anti-glare illumination of UGR <13.

The mono-optic downlights and smaller multi-optic downlights are ideal for accent lighting.

foss-recessed-ajusable-banner

Good control of light distribution

The Foss is available in three beam angles 12° / 34° / 48°. Offering a great control of light distribution.

The larger downlights with 10 modules are perfect for general lighting in circulation areas and breakout spaces.

Wireless Control

All mounting styles of Foss can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

All mounting styles of Foss can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

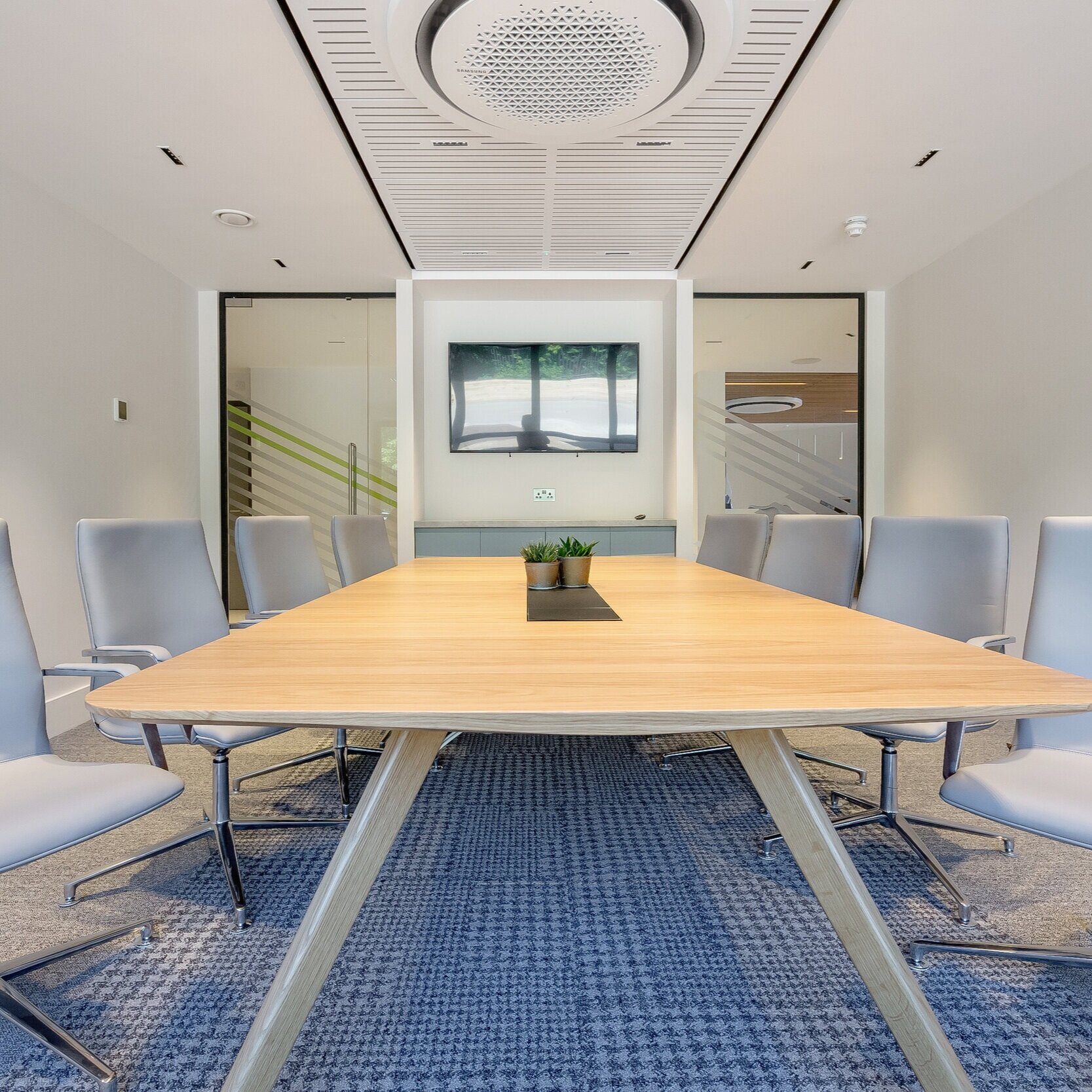

Similar product in use - Foss Recessed Trim Fixed
