Rio Suspended Direct

Suspended Linear LED Lighting

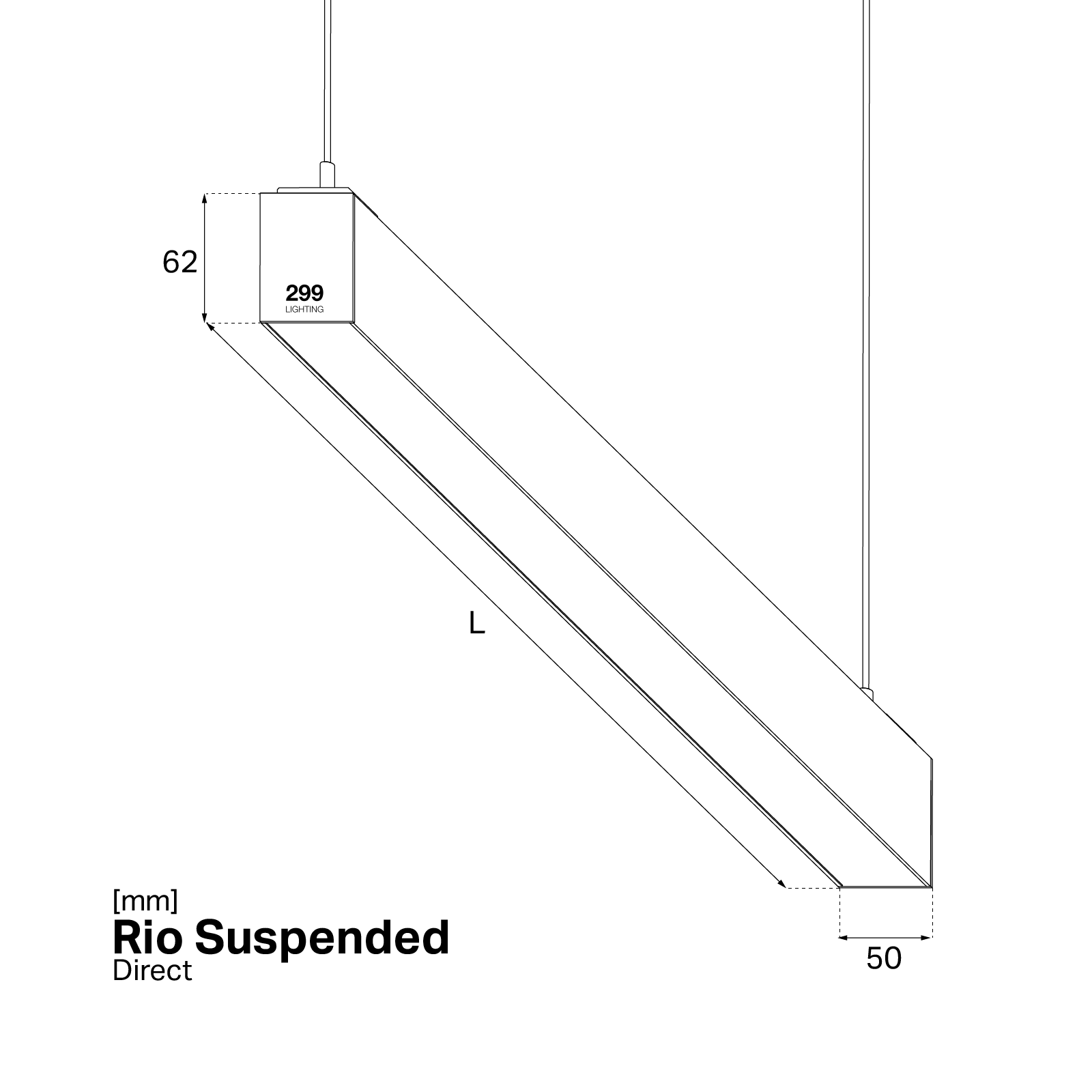

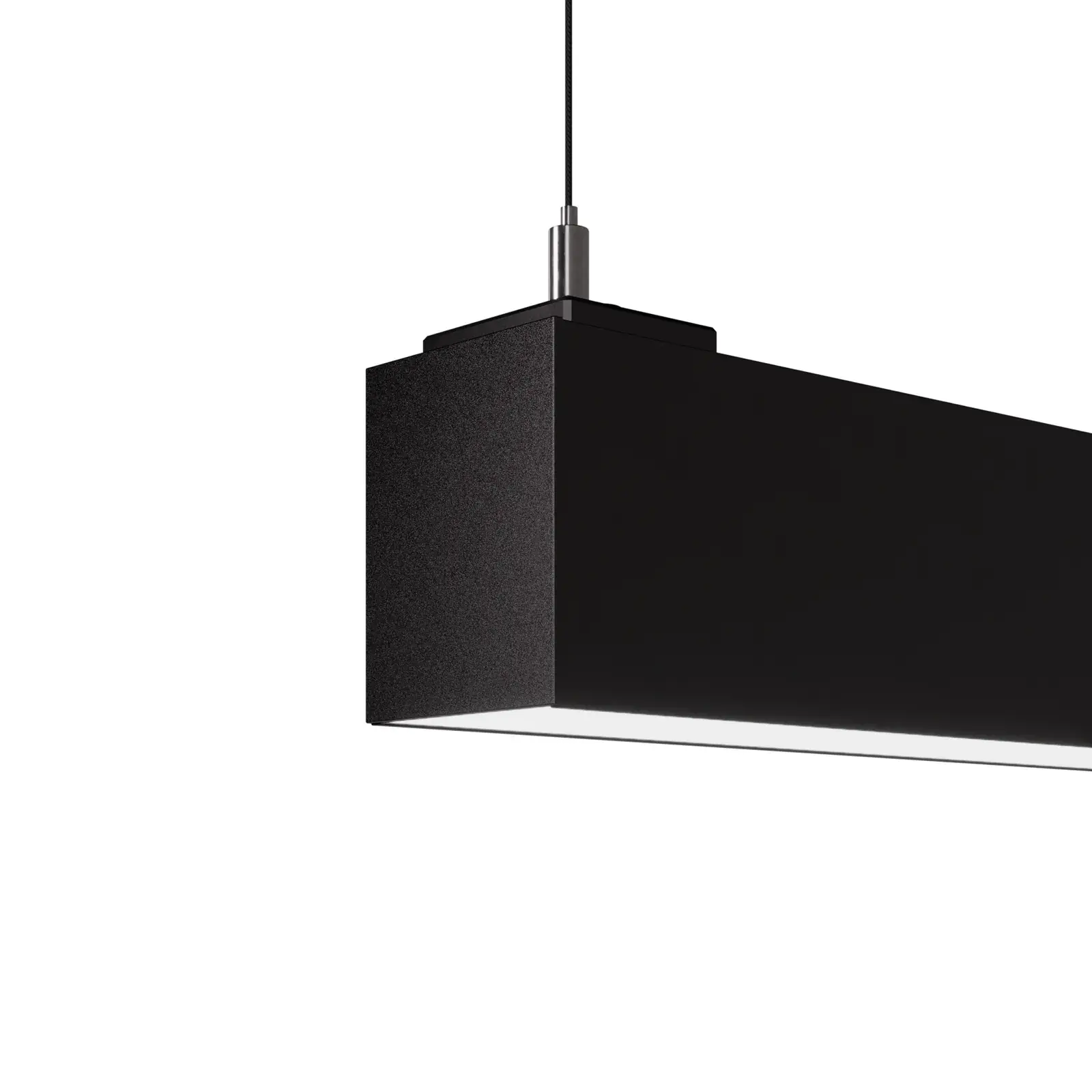

Rio Suspended Direct is a 50 mm ceiling-suspended linear LED luminaire with downward light only. It can be specified as a single standalone fitting, continuous line of light, or joined into a linear lighting system with corners for offices and architectural interiors.

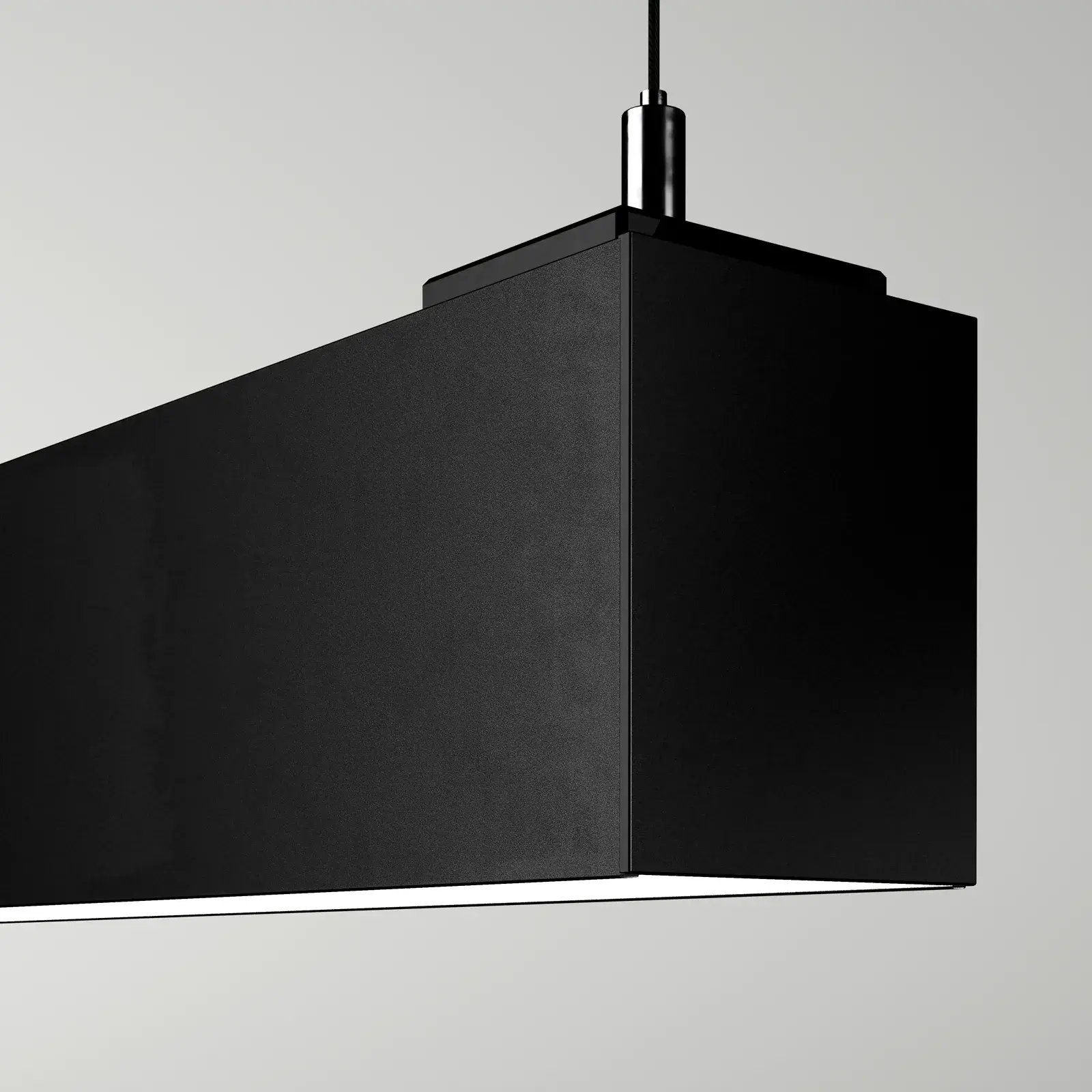

The extruded aluminium body gives a contemporary look and feel and creates clean line of light. Standard finishes are White, Black and Grey, with custom RAL available on request. The Rio family offers fantastic range of optics including opal, microprismatic, prismatic, black opal, asymmetric, modular and office optics, so the same linear profile can suit open offices, meeting rooms, and any architectural spaces.

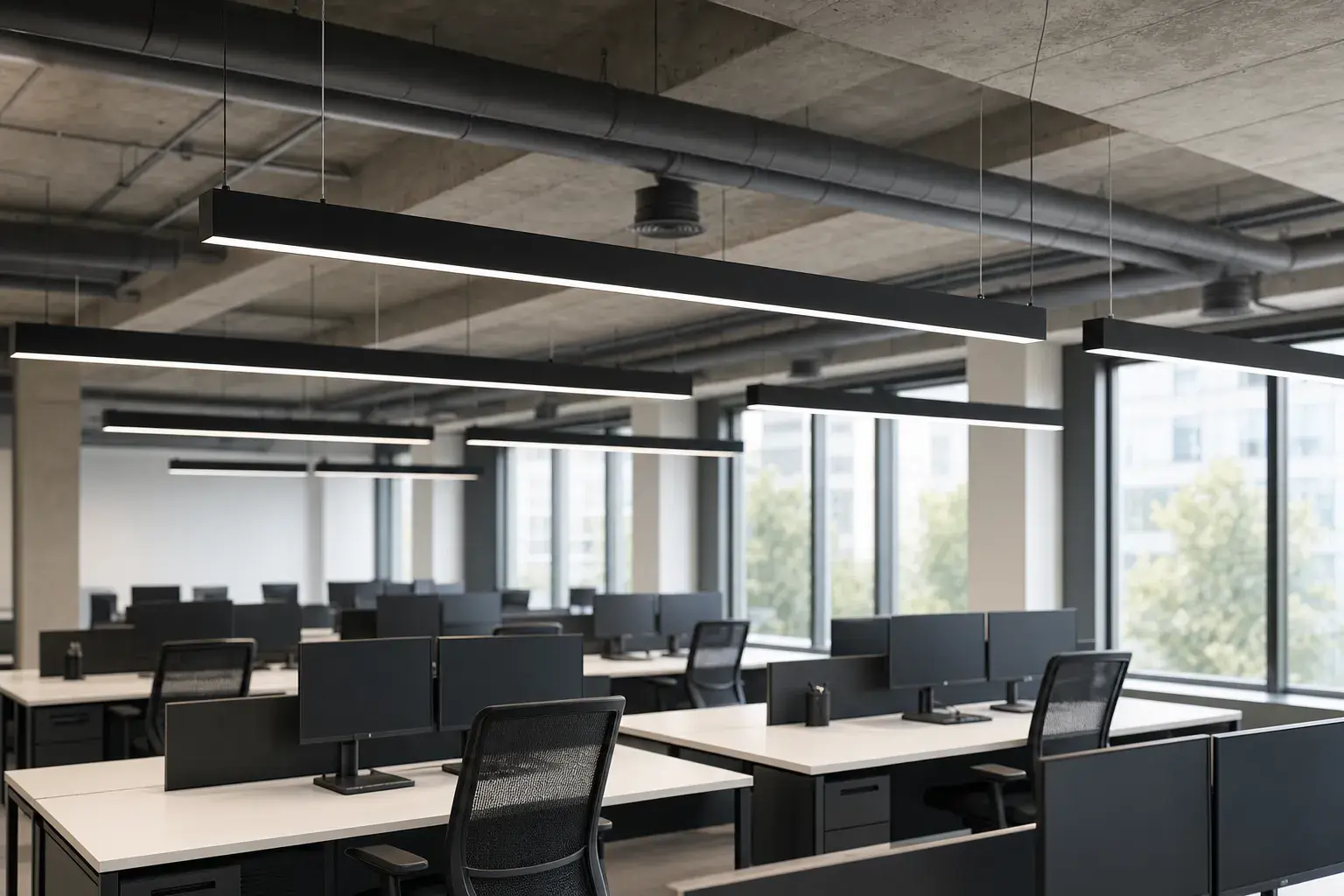

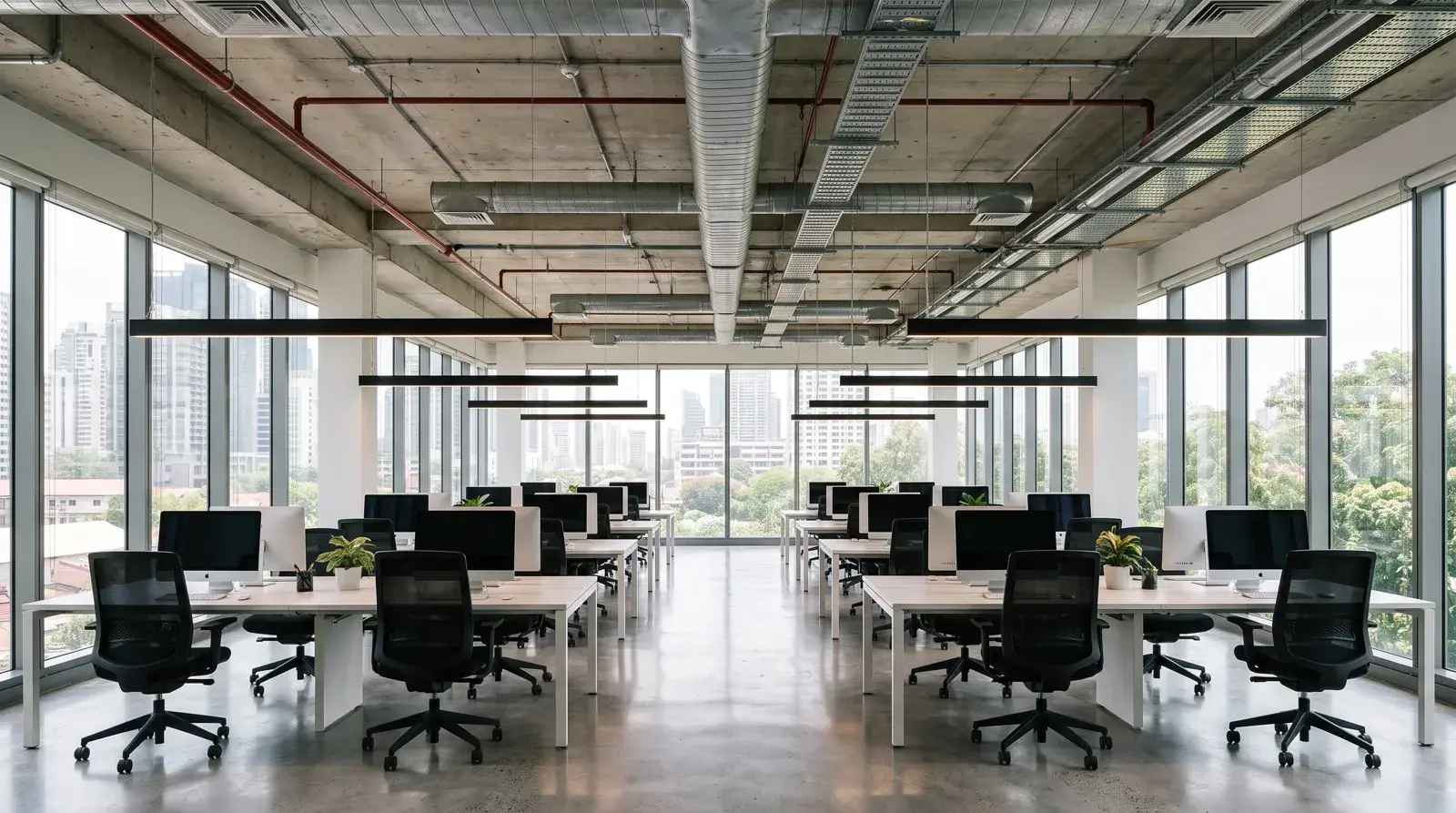

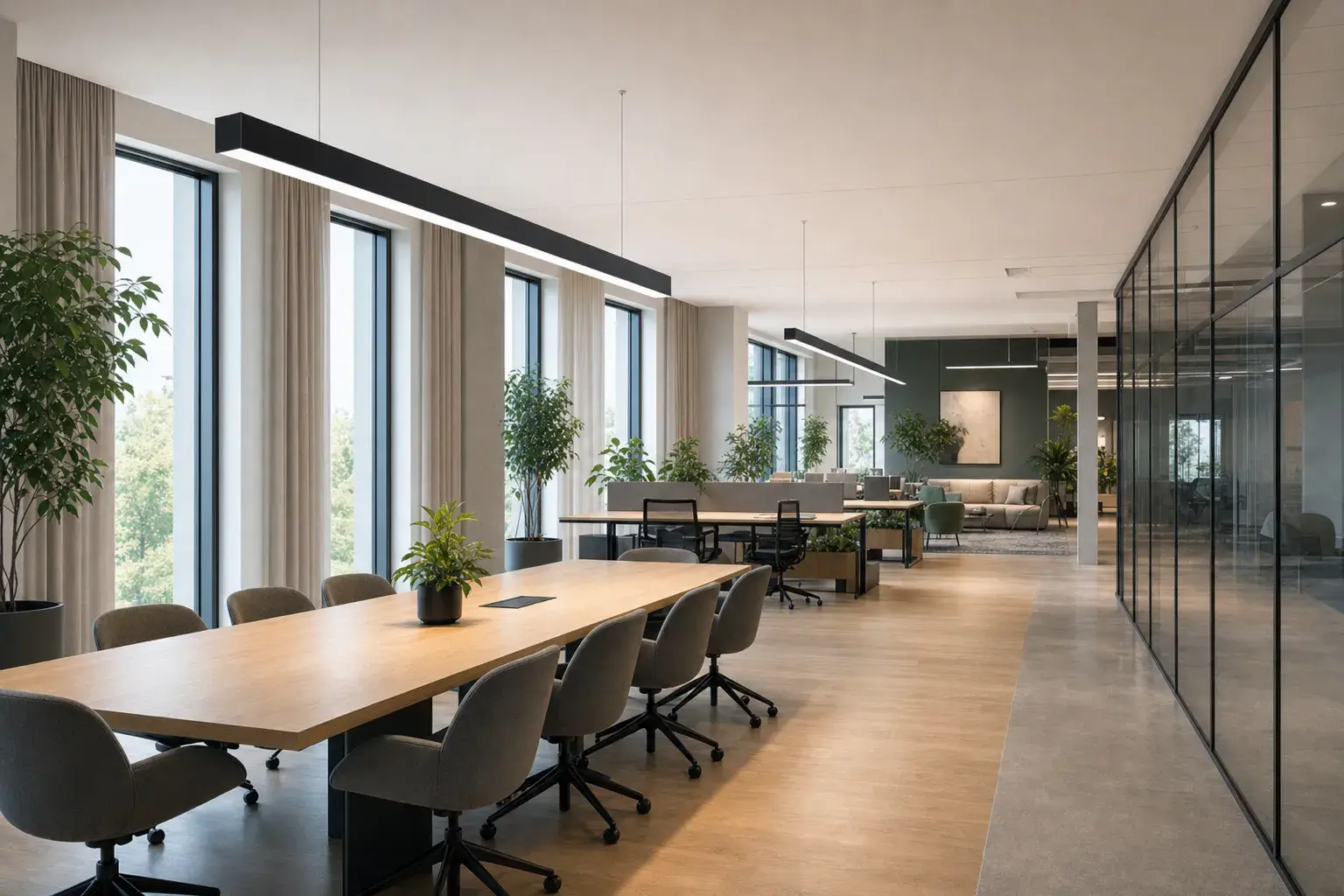

Rio is a practical choice for Cat A and Cat B workplace fit-out, education, retail and any commercial schemes that need suspended linear light. Individual lengths run from 706 mm to 2806 mm in 70 mm increments, with made-to-measure lengths on request. With a wide range of corner options, this fitting offers the widest range of customisation in our product offer.

Control options include non-dimmable, DALI, DALI-2 and CASAMBI. Tuneable White and 3 hour emergency can be specified on request.

Light Source Information
· LED
· Direct distribution
· Medium output from 16 W / 1,758 lm (706 mm) to 63 W / 7,032 lm (2806 mm)
· Luminous flux at 4000 K, opal diffuser
· Low output and high output available
· CRI 80 / 90
· Efficacy 125 lm/W
· Colour temperature 2700 K · 3000 K · 4000 K · 5000 K
· Tuneable White 2700 K to 5000 K on request. High output only, lengths above 1266 mm
· Internal drivers supplied
· Colour consistency MacAdam Step 3
· Rated life L80 B20 100,000 h at Ta 25 °C

Design
· Extruded aluminium profile, powder coated
· IP20
· Ceiling suspended
· Lengths 706 mm to 2806 mm in 70 mm increments
· Custom lengths on request
· White, black or grey. Custom RAL on request
· 5 year warranty

Optics
· Opal diffuser
· Microprismatic diffuser
· Prismatic diffuser
· Asymmetric
· Black opal
· Modular narrow beam
· Modular wide beam
· Office 60
· Office Basic

Installation
· Individual luminaire or continuous linear system
· Quick power and control connection
· Through wiring on request
· 3 hour emergency on request: non-reporting, reporting or self-test
· Integral emergency on lengths above 1266 mm only

Dimming
· Non-dimmable as standard
· DALI available on request
· DALI-2 available on request
· Tuneable White available on request. It uses DALI DT8 control drivers

Integrated Controls (on request)
· CASAMBI
· Philips EasyAir

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Download datasheet

Download LDT Files

Download Installation Instructions

Download BIM Files

TM65 Report - upon request

Product Configurator

Configure your Rio linear profile

Main Configuration

Product Model

Mounting Type

Light Distribution

Luminaire Optical System

Length

Light Output

CRI

Kelvin (K)

Control Gear

Colour/Finish

Reflector Texture

Reflector Colour

Product Code:

Description:

Power: -

Output: -

Efficacy: -

Length: -

Configure Your Rio Linear Lighting System

Select your system layout shape to begin configuration

Straight Run

Single continuous linear section

L-Shape

Two sections with 90° corner

Rectangular

Four sections with 90° corners

U-Shape

Three sections with two 90° corners

Z-Shape

Three sections with 90° offsets

S-Shape

Three sections with 90° offsets

Configure System

Base Product Specification

Product Family *

Mounting Type *

Light Distribution *

Optics *

Light Output *

Colour Temperature *

CRI *

Control Gear *

Finish *

Advanced Options

IoT Integration

Custom RAL Finish

Note: Emergency lighting is configured per-section below the technical drawing.

Technical Drawing

System Summary

Total Length -

Total Power -

Total Lumens -

System Efficacy -

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/TBWC-CarterLane.jpg

Versatile

Thanks to its superb build quality, excellent performance, and high visual comfort it is a perfect linear LED lighting system for stimulating working environments and schemes looking to achieve LG7 compliance.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/Versatil-rio-suspended.jpg

Customization system and shapes

The design of the RIO lends itself perfectly to made to measure linear lighting solutions.

It gives the designer a true freedom creating a vast array of dimensional combinations.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/rio-plugandplay.jpg

Easy installation

Thanks to the wago connect system, the luminaire distributes edge-to-edge light with zero light bleed.

Both standard sizes and bespoke lighting systems come with ready to install suspension kit, making the RIO the perfect straight out of the box LED linear lighting solution.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/linear-lighting-diffusers-off-3.jpg

High Visual Comfort

First in its class, the RIO is not just about being office lighting in a different body, it offers 5 different types of diffusers, the RIO presents a welcome change to the usual linear LED lighting.

Wireless Control

All mounting styles of Rio can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
