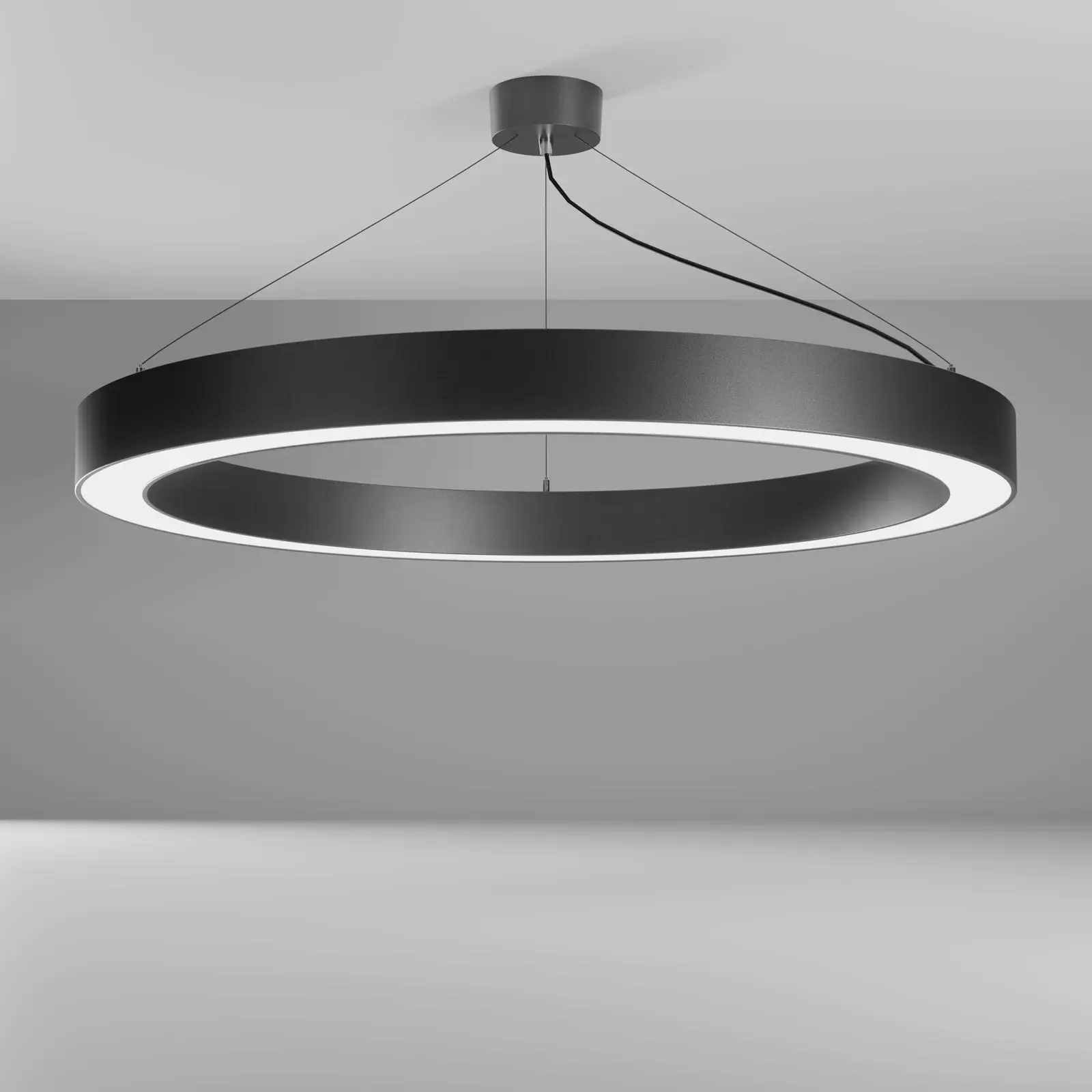

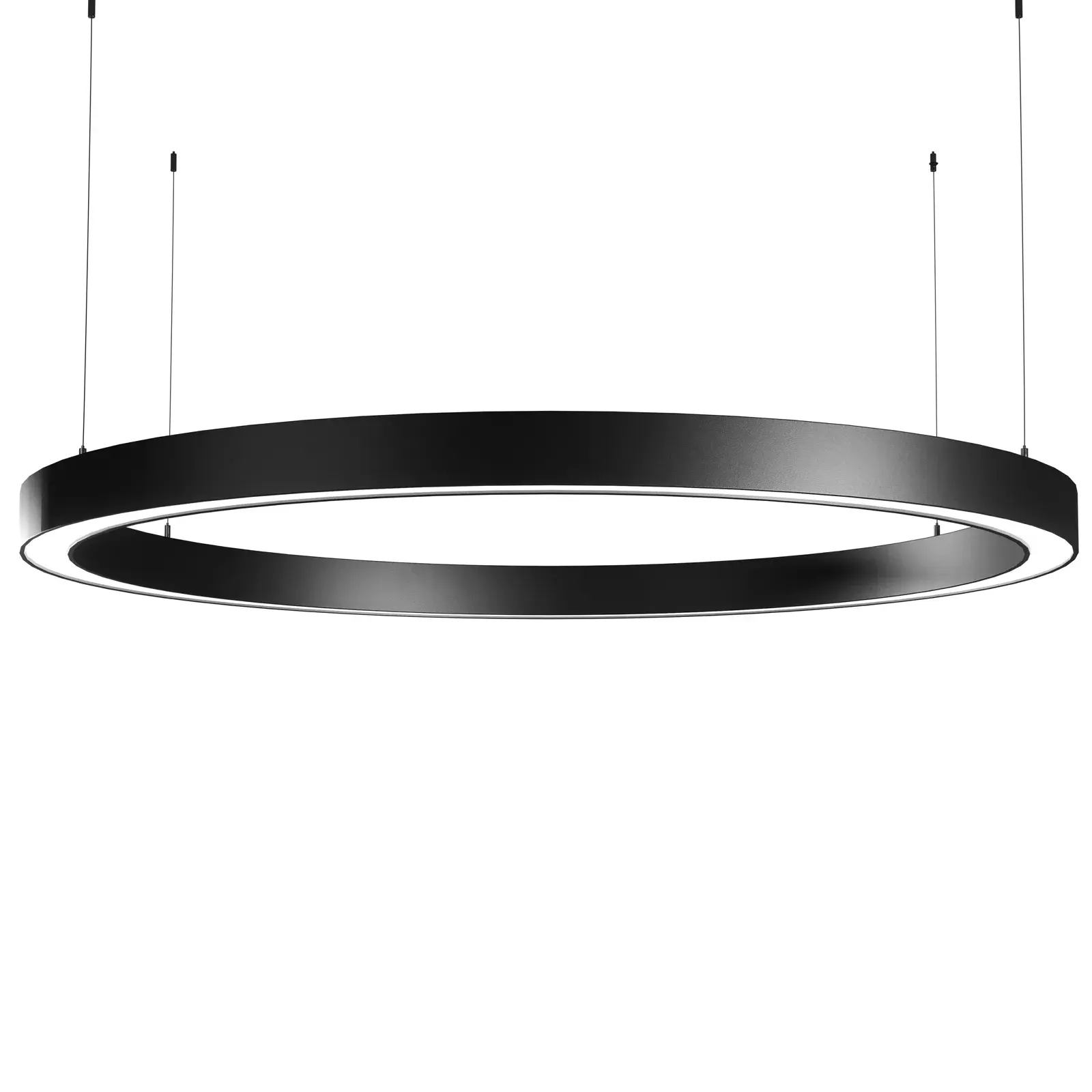

Rydal Suspended

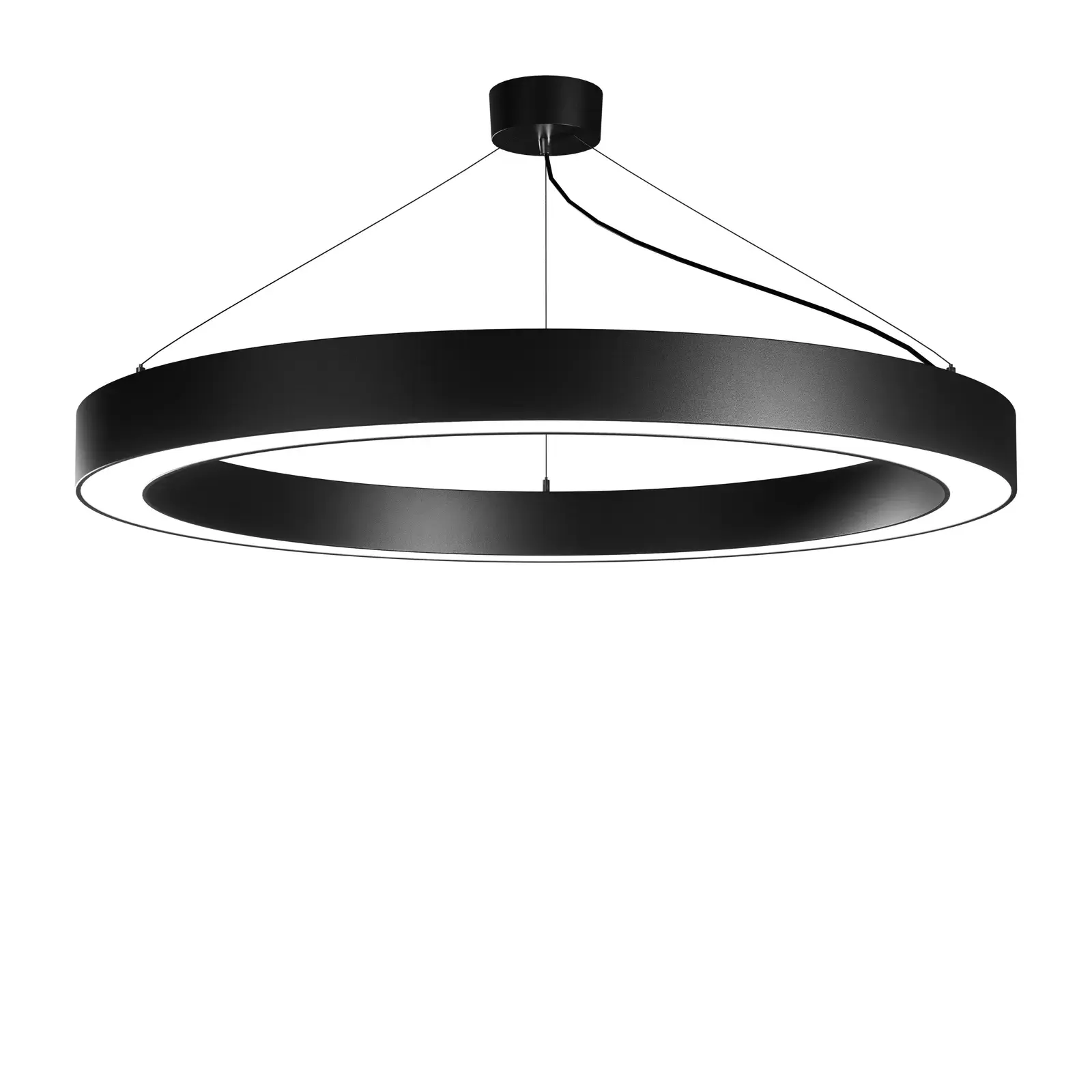

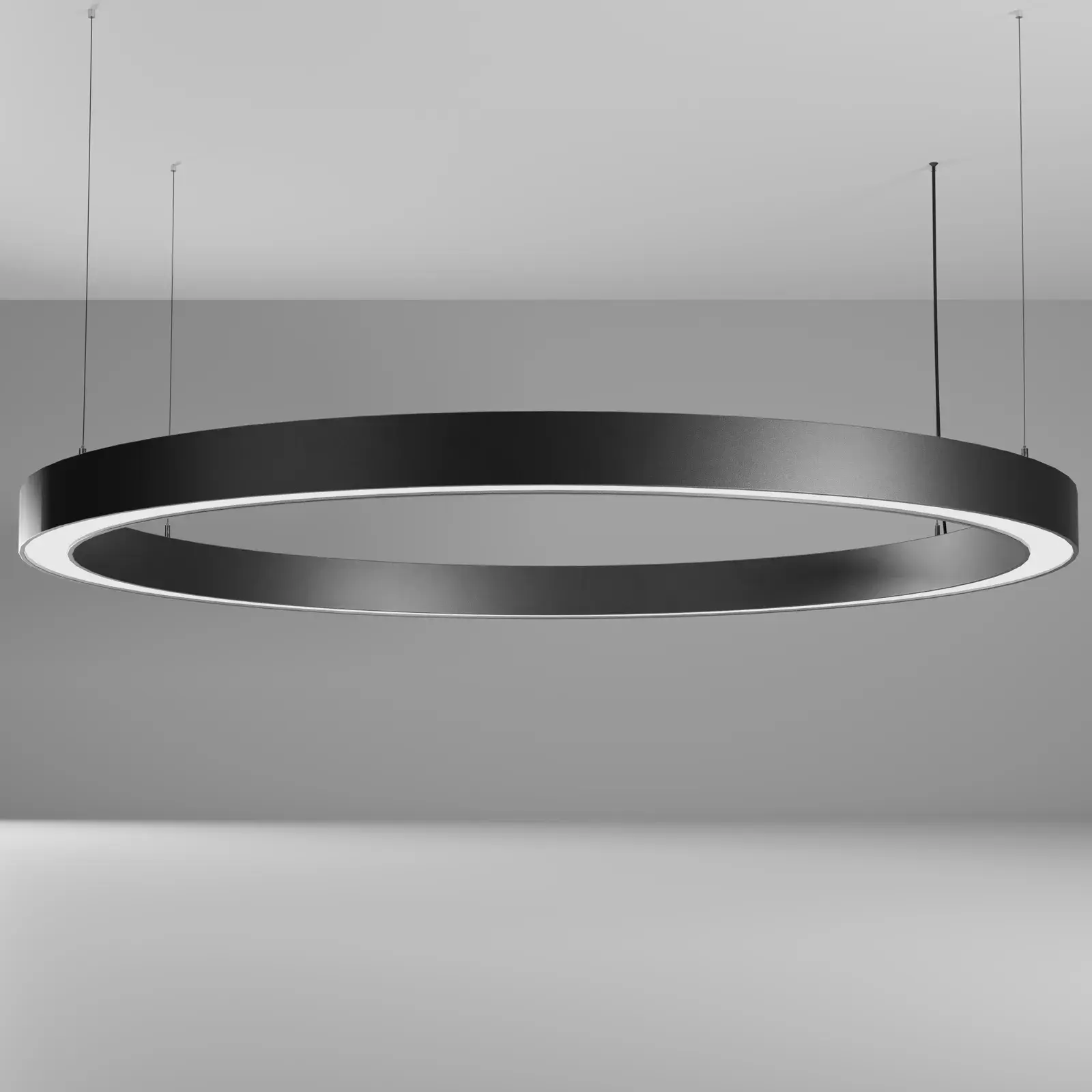

HALO CIRCULAR PENDANT

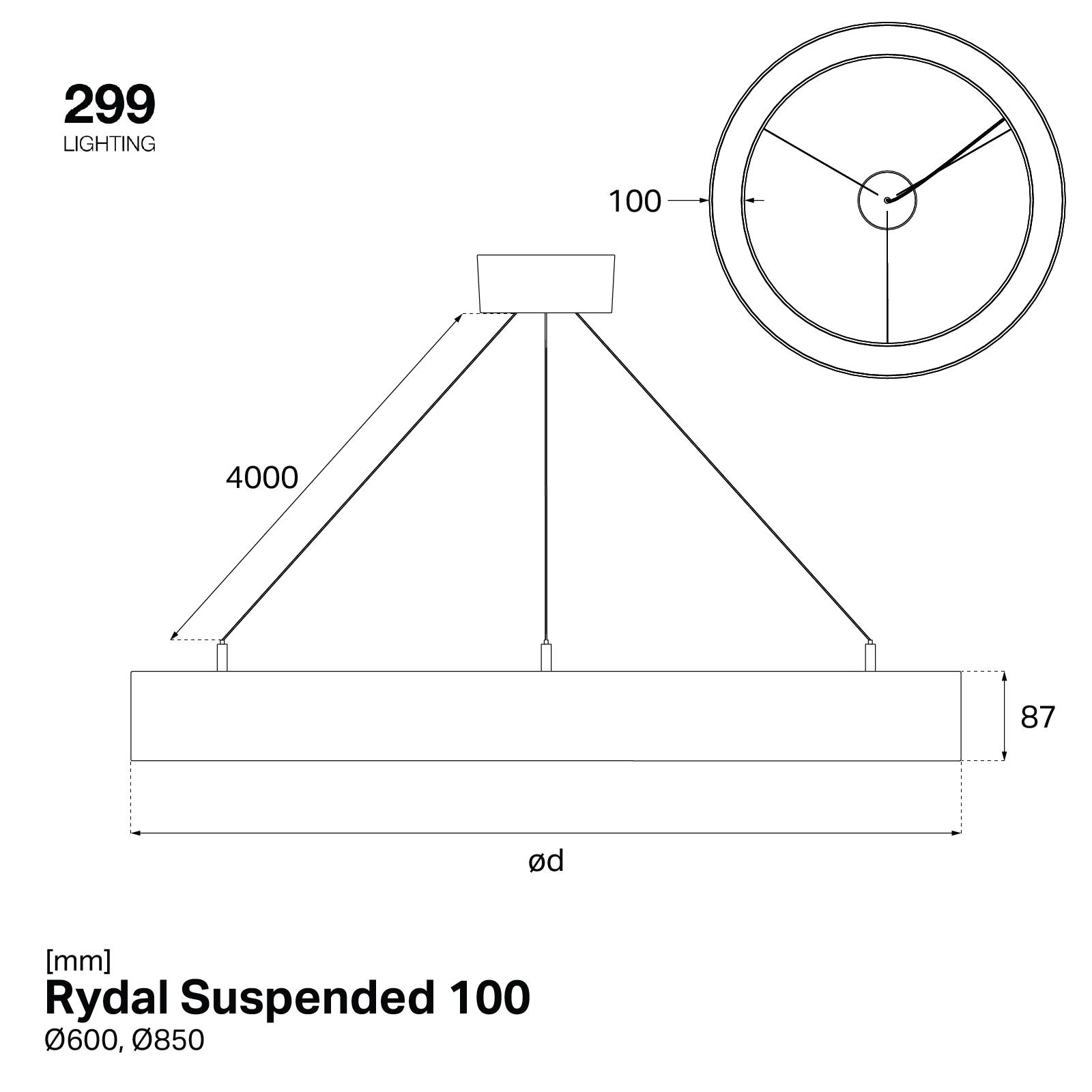

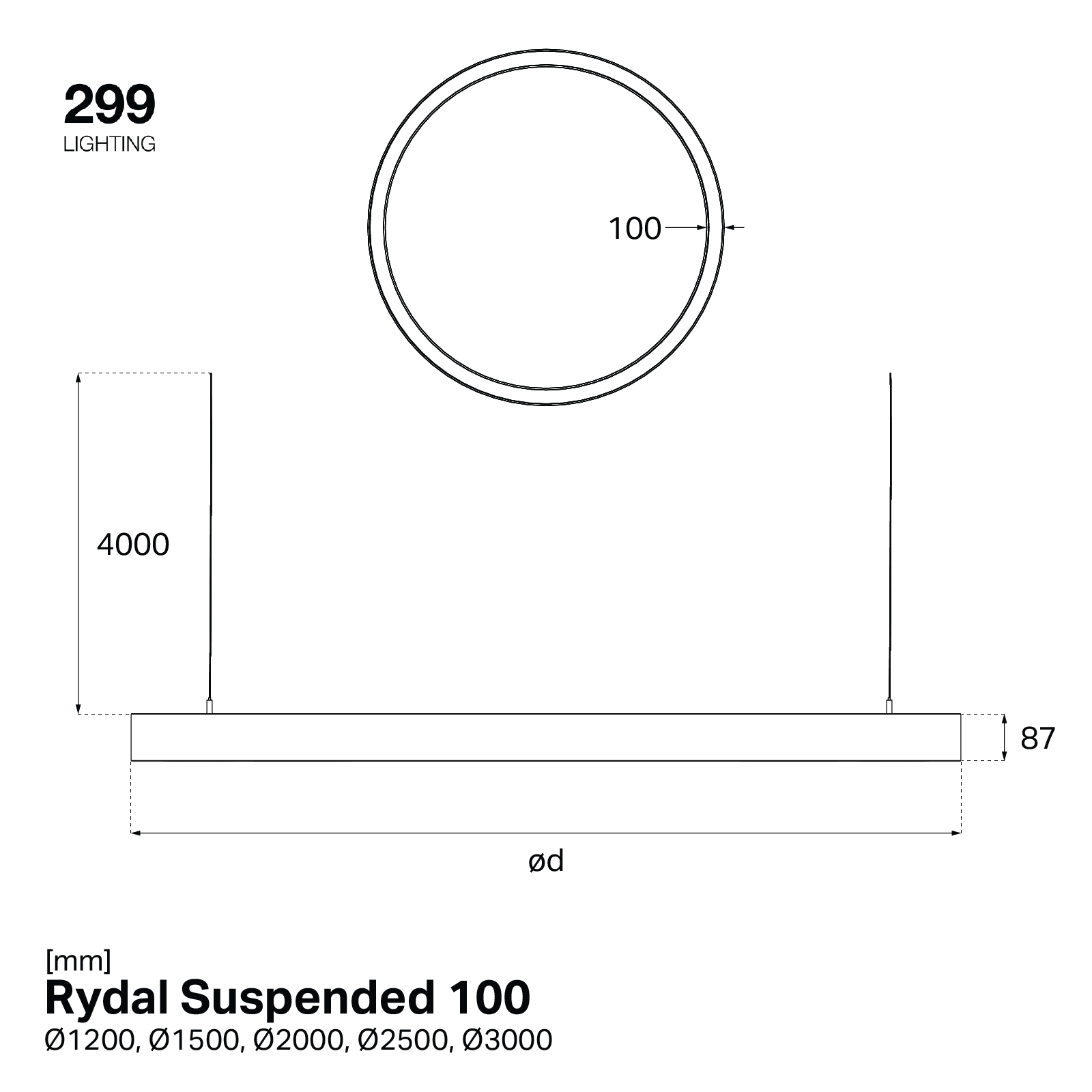

The RYDAL adds an instant visual presence to any commercial lighting requirement. Thanks to its flexible nature, the RYDAL is an ideal architectural luminaire for bespoke designs. The RYDAL can be tailored to your design with a diameter of up to 8m. The 100mm wide and 87mm deep body is ideal for large spaces or atrium's where a strong visual presence is required. Emitting direct and indirect light, these LED luminaires distribute homogeneous soft light.

The choice of two different colour temperatures suits applications where warm and neutral colour temperatures are required. The light intensity can be dimmed with DALI contributing to comfortable work spaces. Available in 7 standard sizes (600 mm to 3000mm), the RYDAL suspended has a wide range of uses in an architectural environment.

The smaller sizes are a great choice for office lighting, breakout spaces and circulation areas. The light is uniform, efficient and comfortable. The RYDAL is available in white, black, silver finish with a custom RAL solution on request.

The RYDAL can be specified with CASAMBI and Philips EasyAir to increase user control.

Light Source Information

· LED
· Direct - Direct / Indirect Distribution
· LED Direct outputs available from 20W / 2,394lm up to 196W / 16060 lm · LED Direct / Indirect outputs available from 24W / 2,844lm up to 250W / 27,929lm · 3- Step MacAdam ellipse · CRI80 · Efficiency of up to 103lm/W · Colour Temperature 3000K | 4000K · Internal Drivers supplied
· L80B20, Life-time of 50,000 hrs

Design

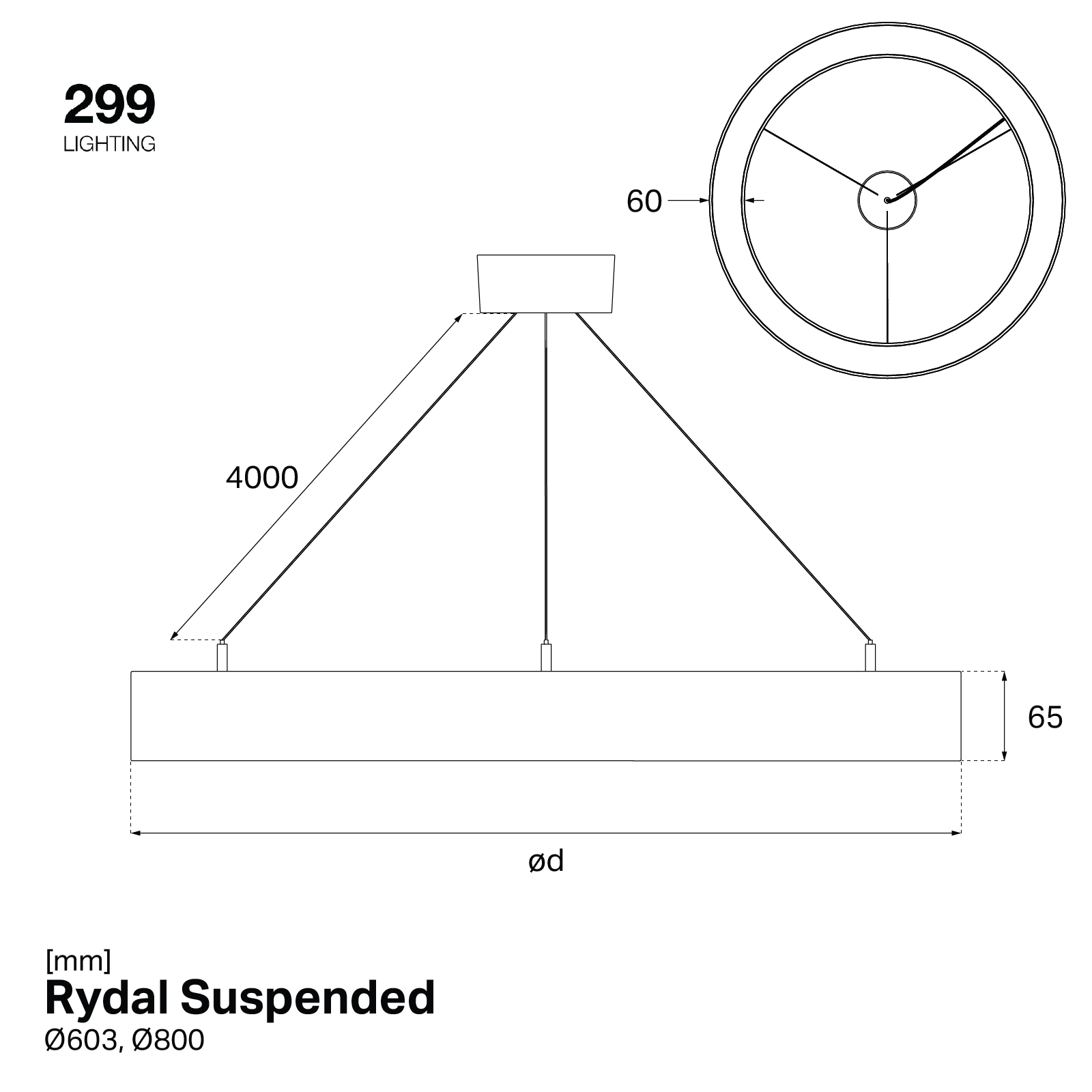

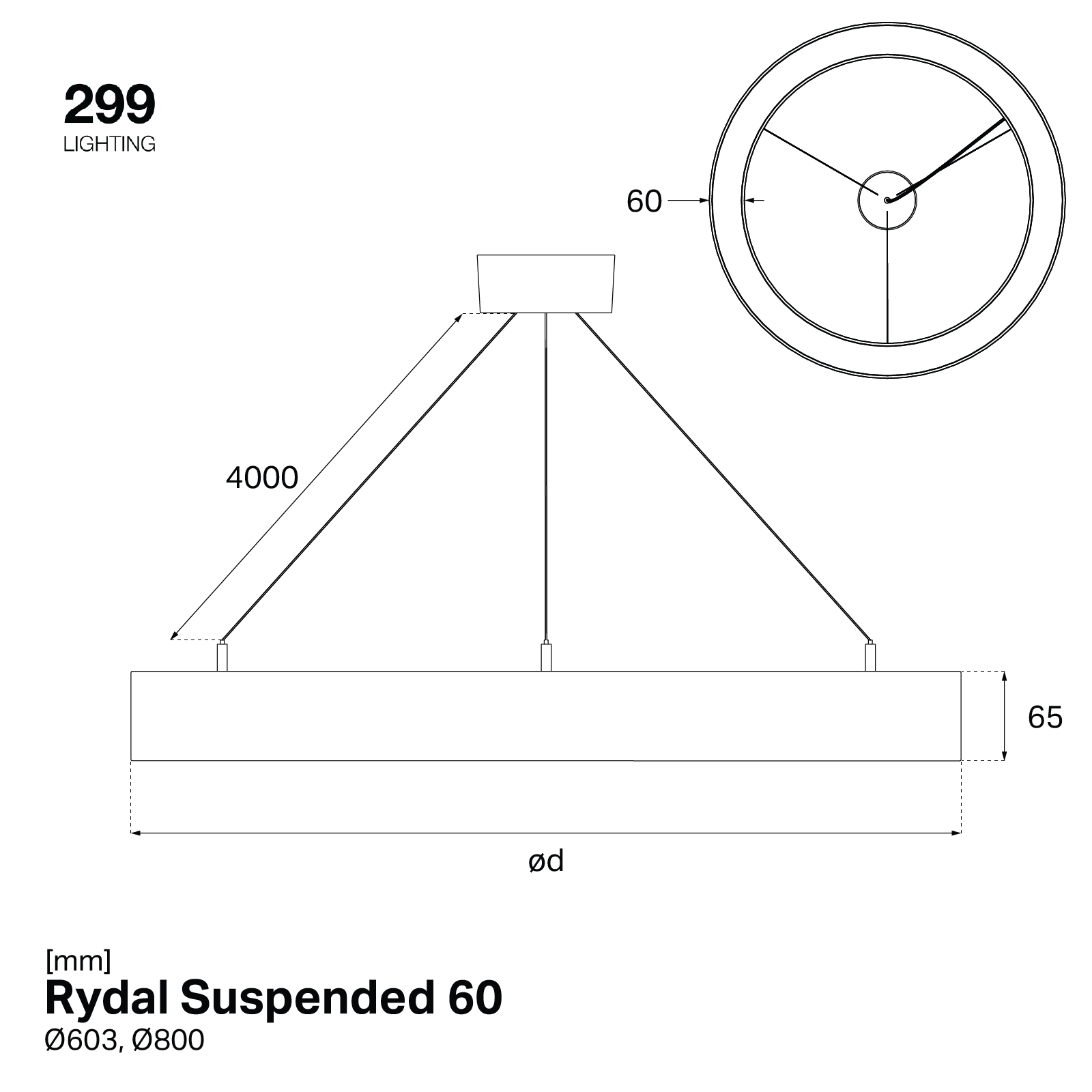

· Ceiling suspended · Extruded & formed aluminium profile
· Easy mounted luminaire
· IP20 rated

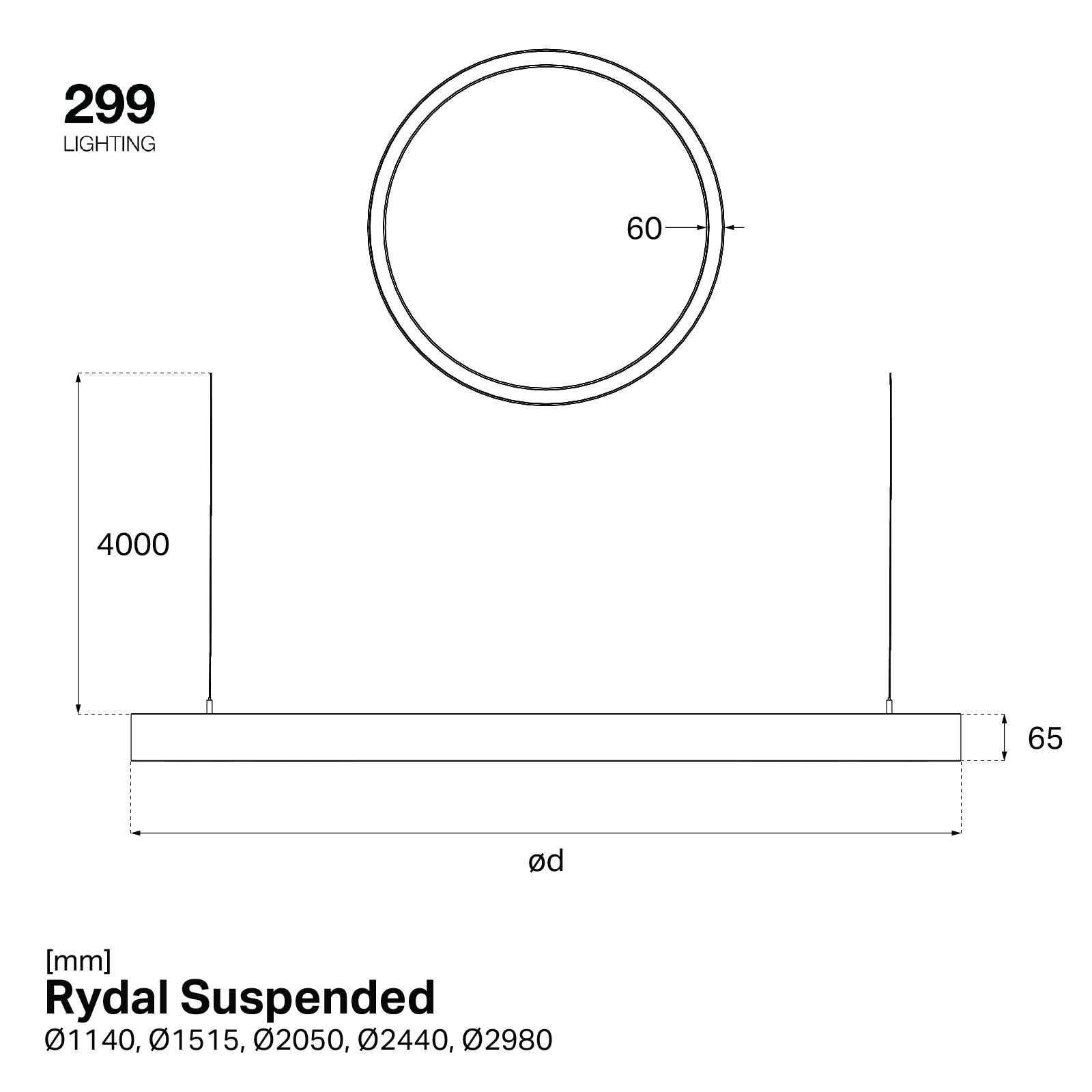

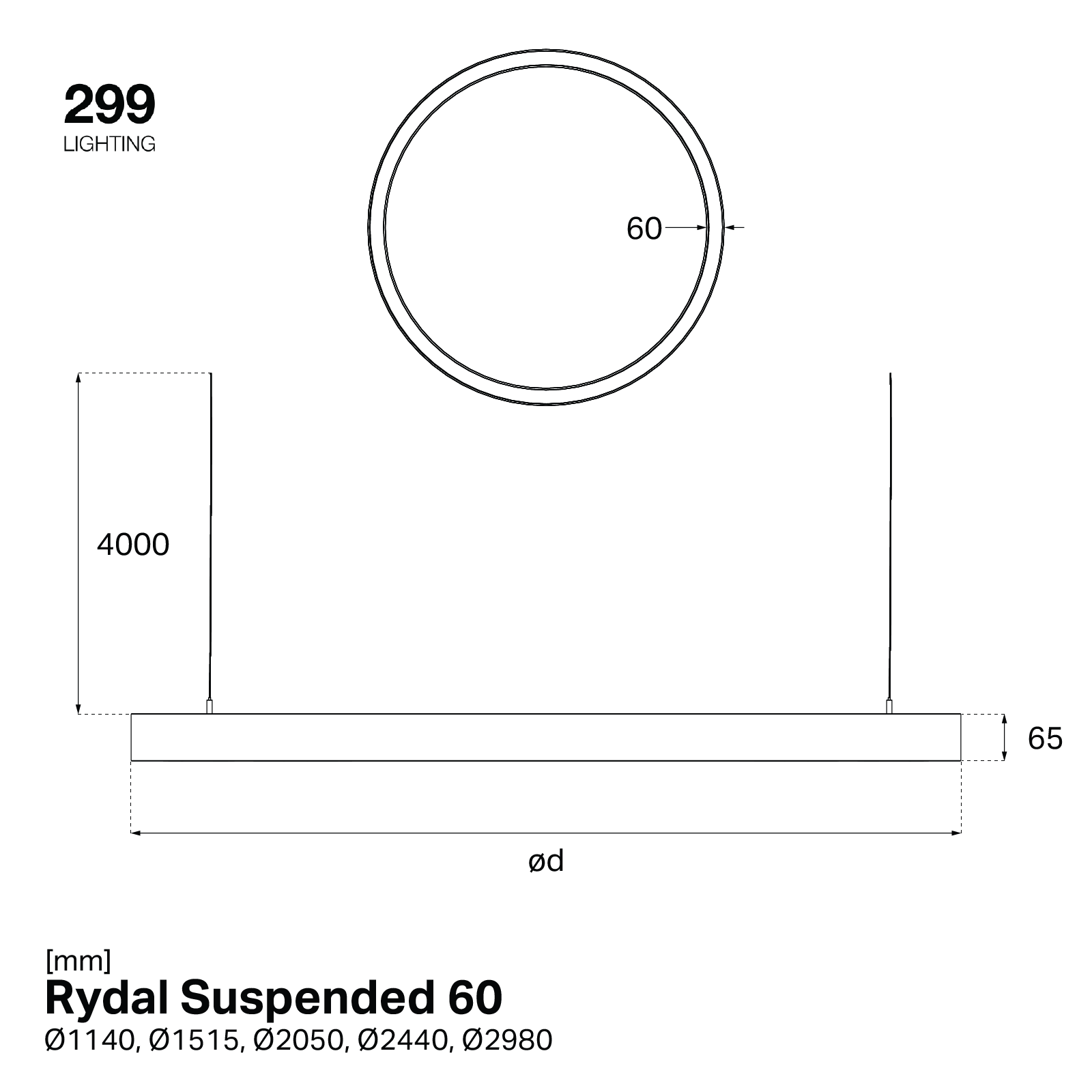

· Available in 7 standard sizes from 600 mm to 3000 mm
· Black, white, and silver powder-coating. Custom RAL available on request

Optics

· Opal Diffuser · Microprismatic Diffuser

Dimming

· Non-dimmable as standard
· DALI available on request

Integrated Controls (on request)

· CASAMBI · ON/OFF + Passive Infrared Sensor (PIR) · DALI + Passive Infrared Sensor (PIR)

Miscellaneous

· 2 Year Warranty

299 Lighting reserve the right to change the specification of any product without notice or pubic announcement.

Download datasheet - Suspended

Download datasheet - Surface

Download LDT Files

Download Installation Instructions

Download BIM Files

TM65 Report - upon request

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/halo_pendant_suspended_lighting_hallway.jpg

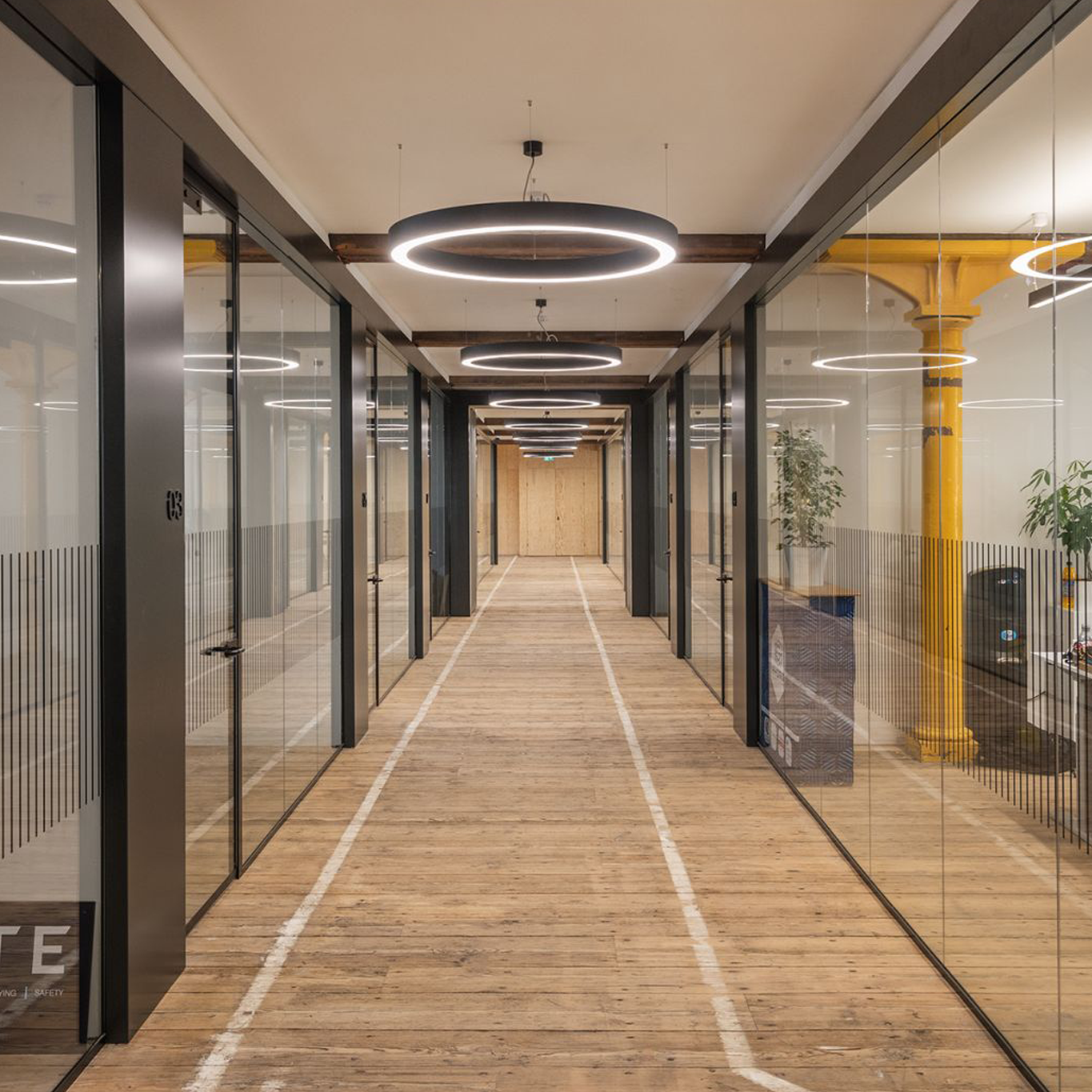

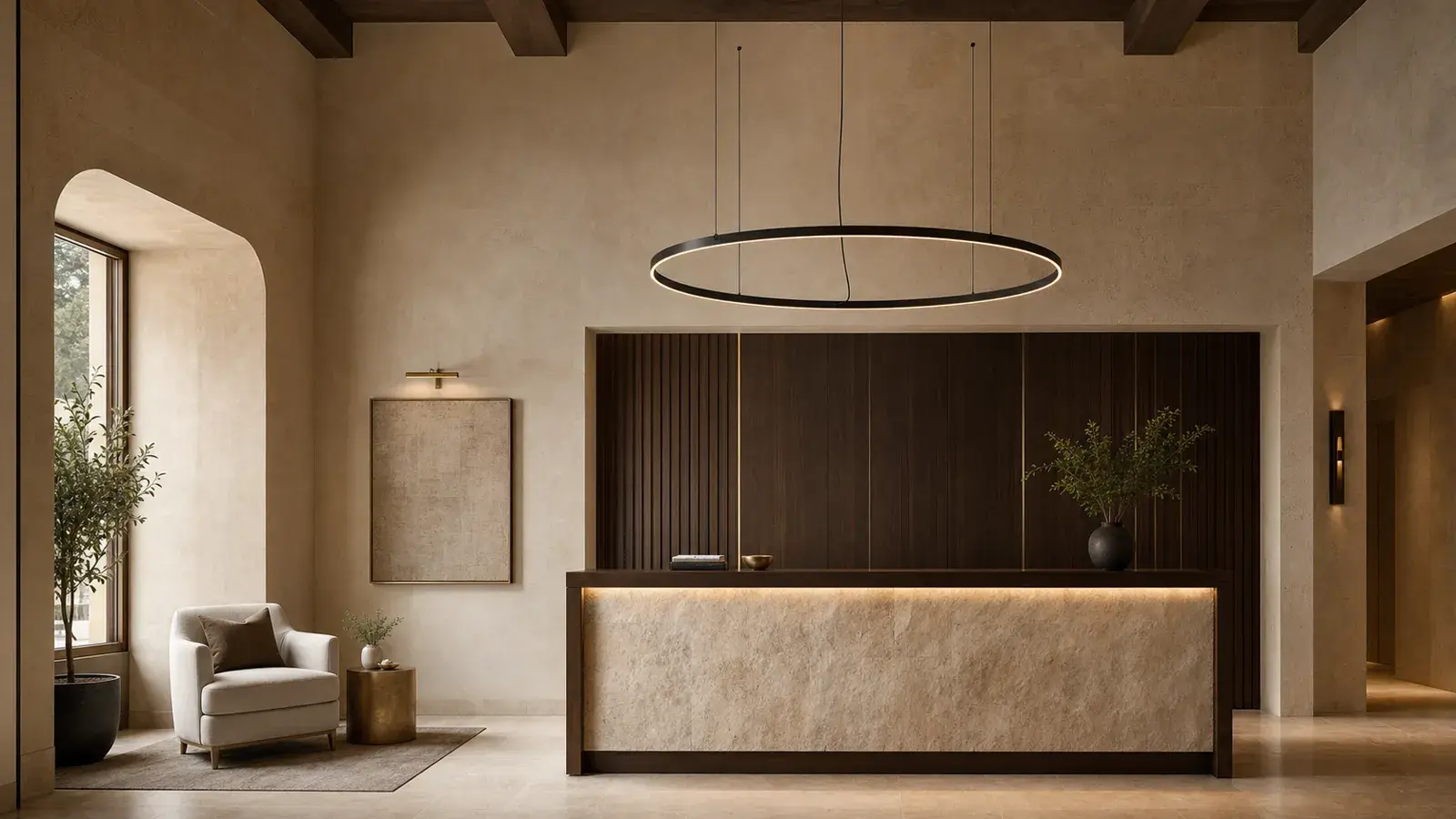

Chandelier

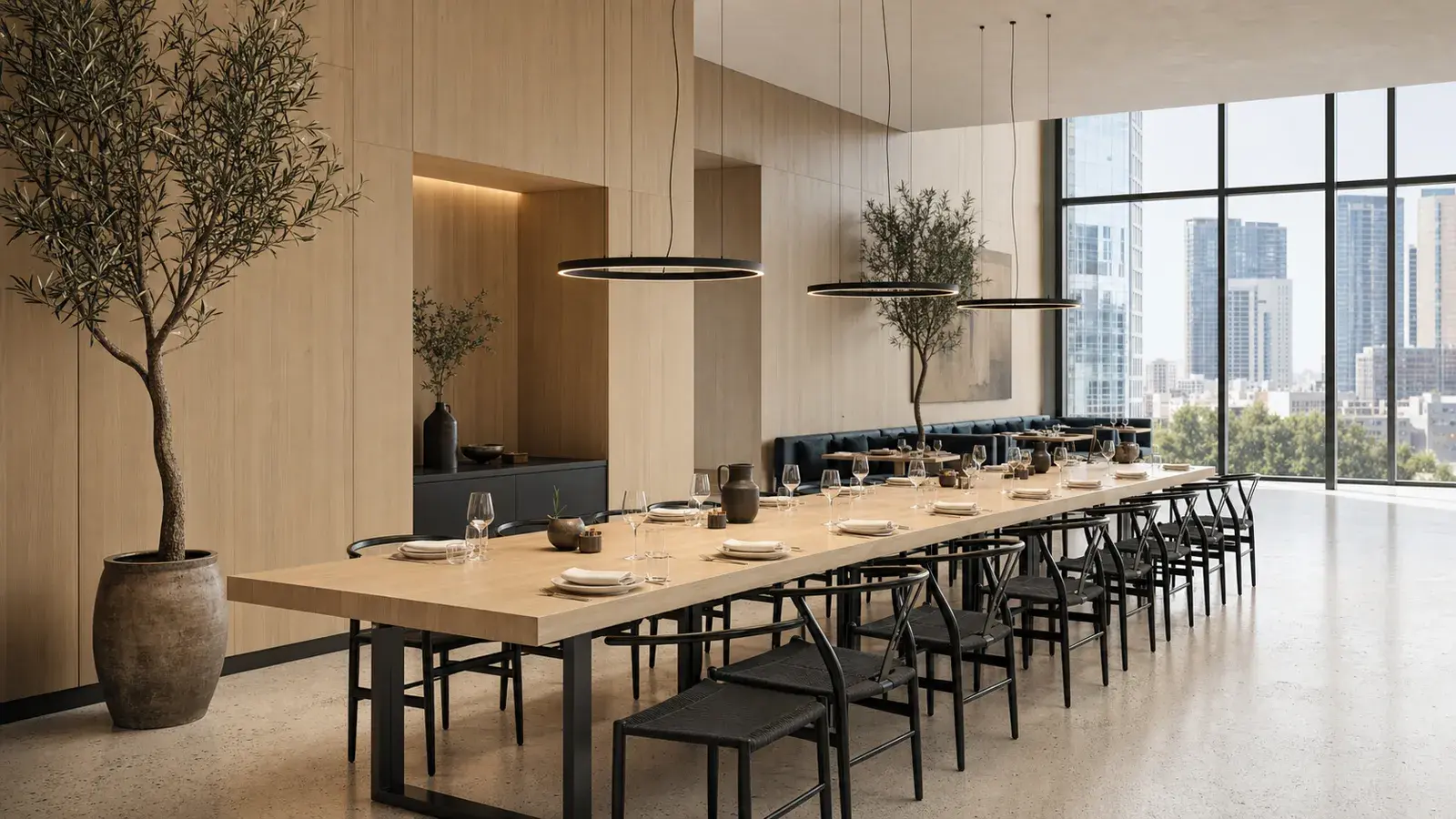

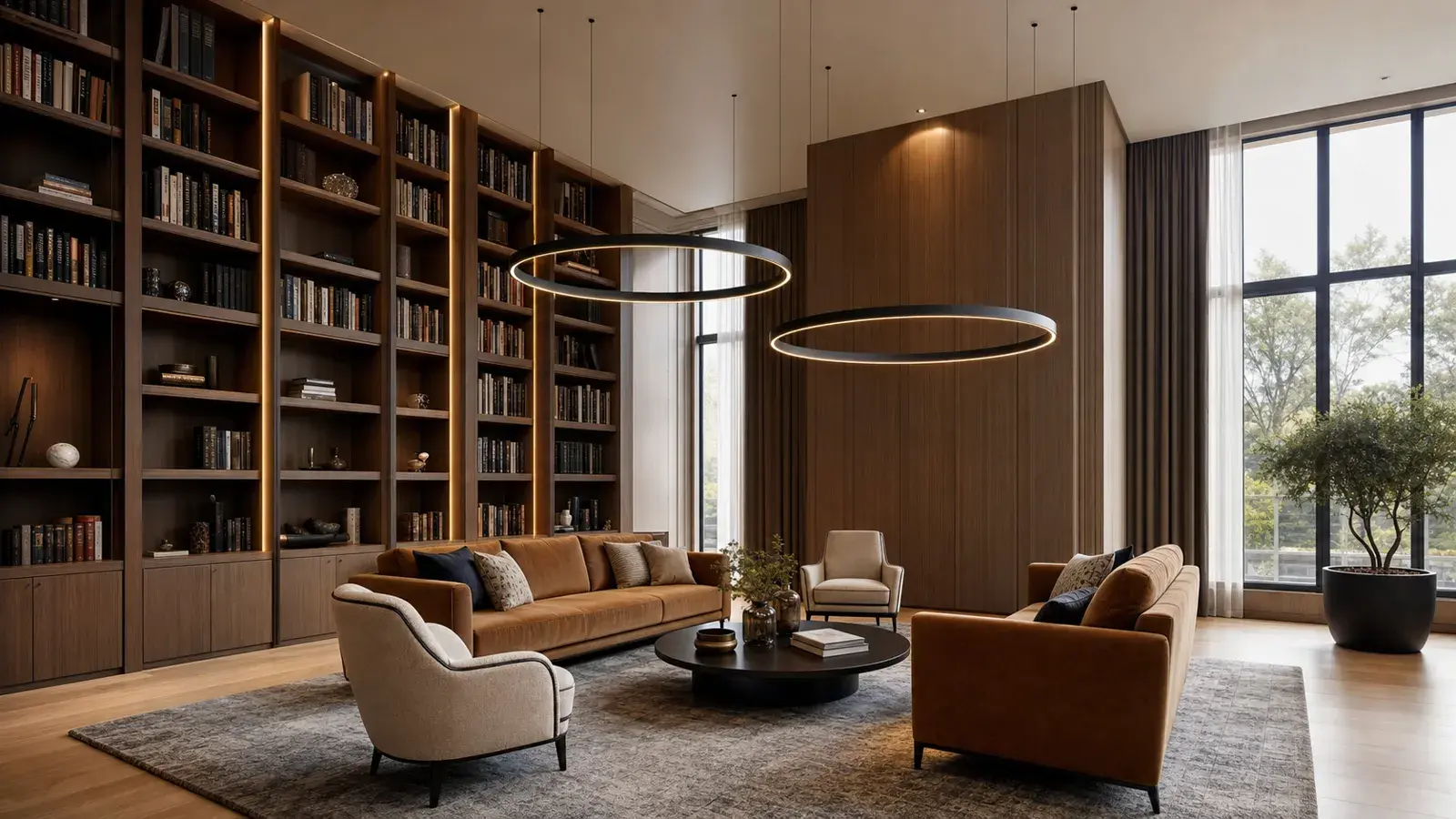

The large ring-shaped luminaires enhance atrium spaces, retail areas, office space and public buildings. The light is uniform, efficient and comfortable.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/rydal-project.jpeg

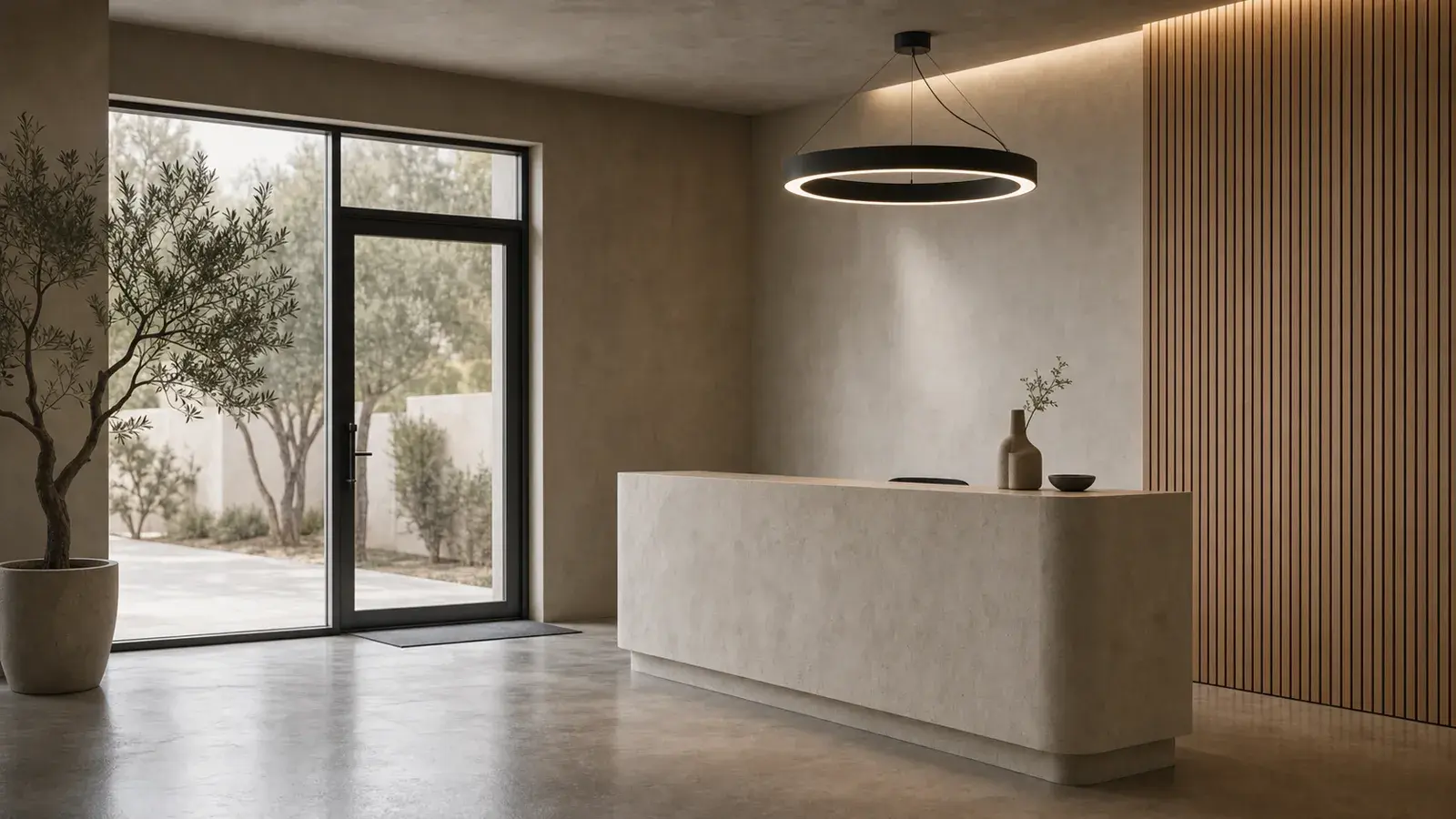

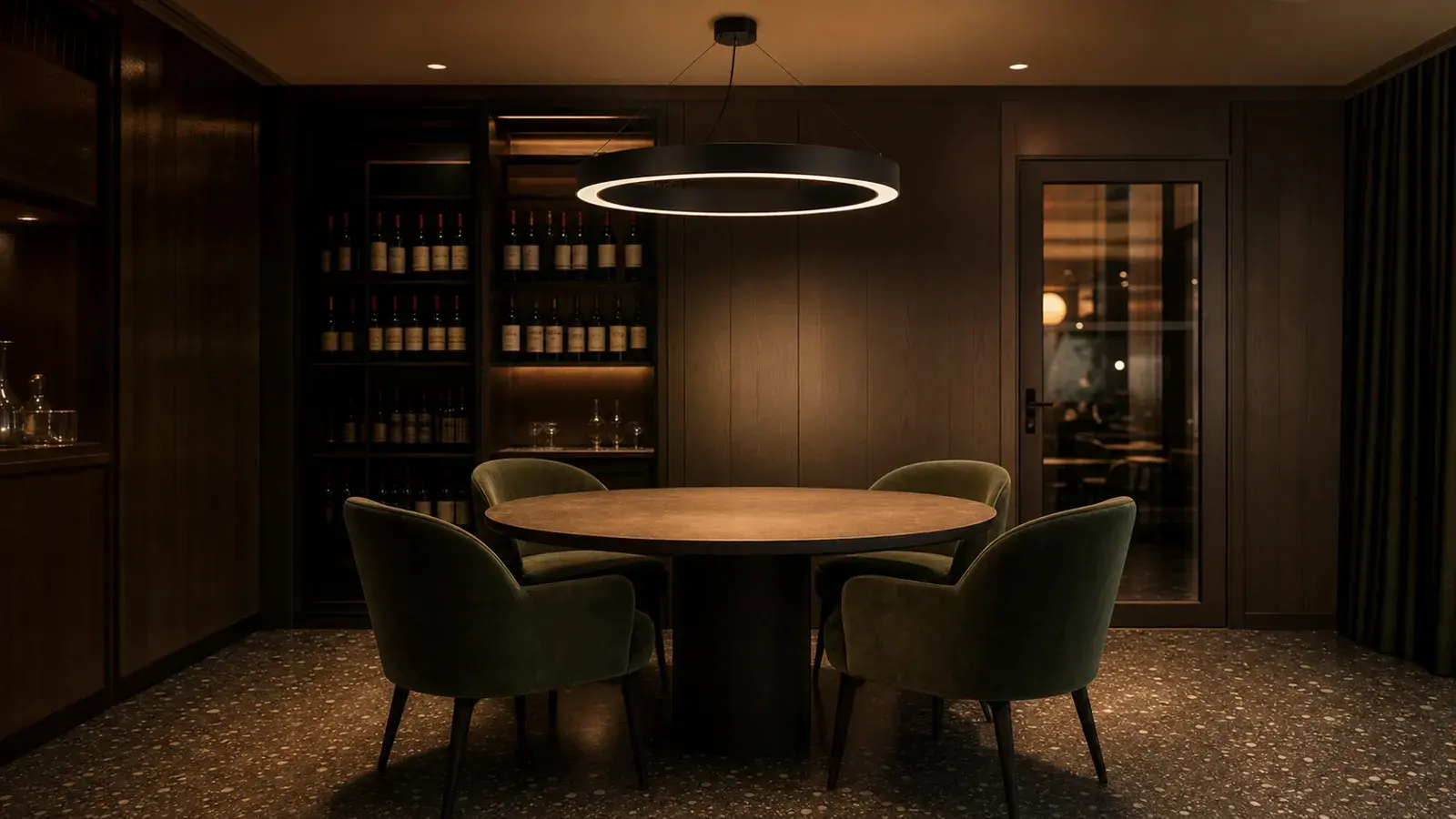

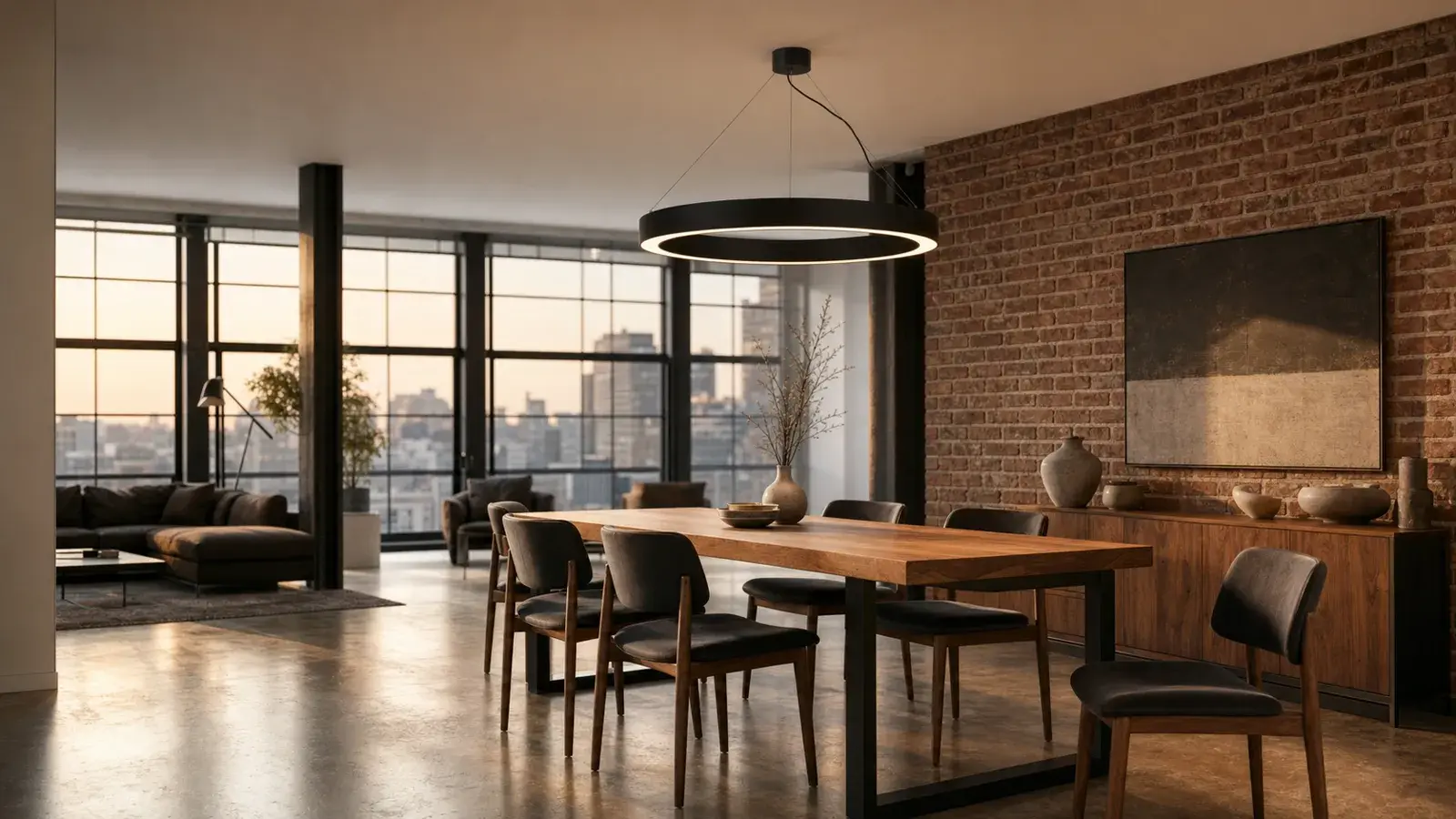

Contemporary look

The RYDAL adds an instant visual presence to any commercial lighting requirement. Thanks to its contemporary look, the RYDAL is an ideal architectural luminaire for bespoke designs.

Wireless Control

All mounting styles of Rydal can be easily upgraded with CASAMBI or Philips EasyAir controls, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
