Bellart Suspended

Request a quote Request a sample

Reply within one working day. Layouts and calculations included when we supply.

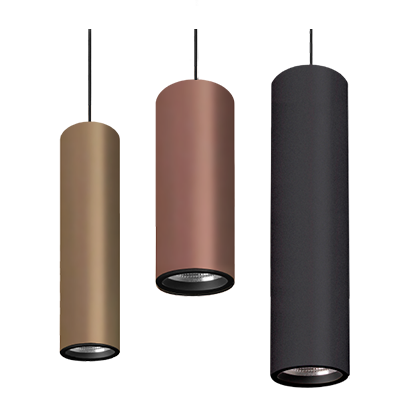

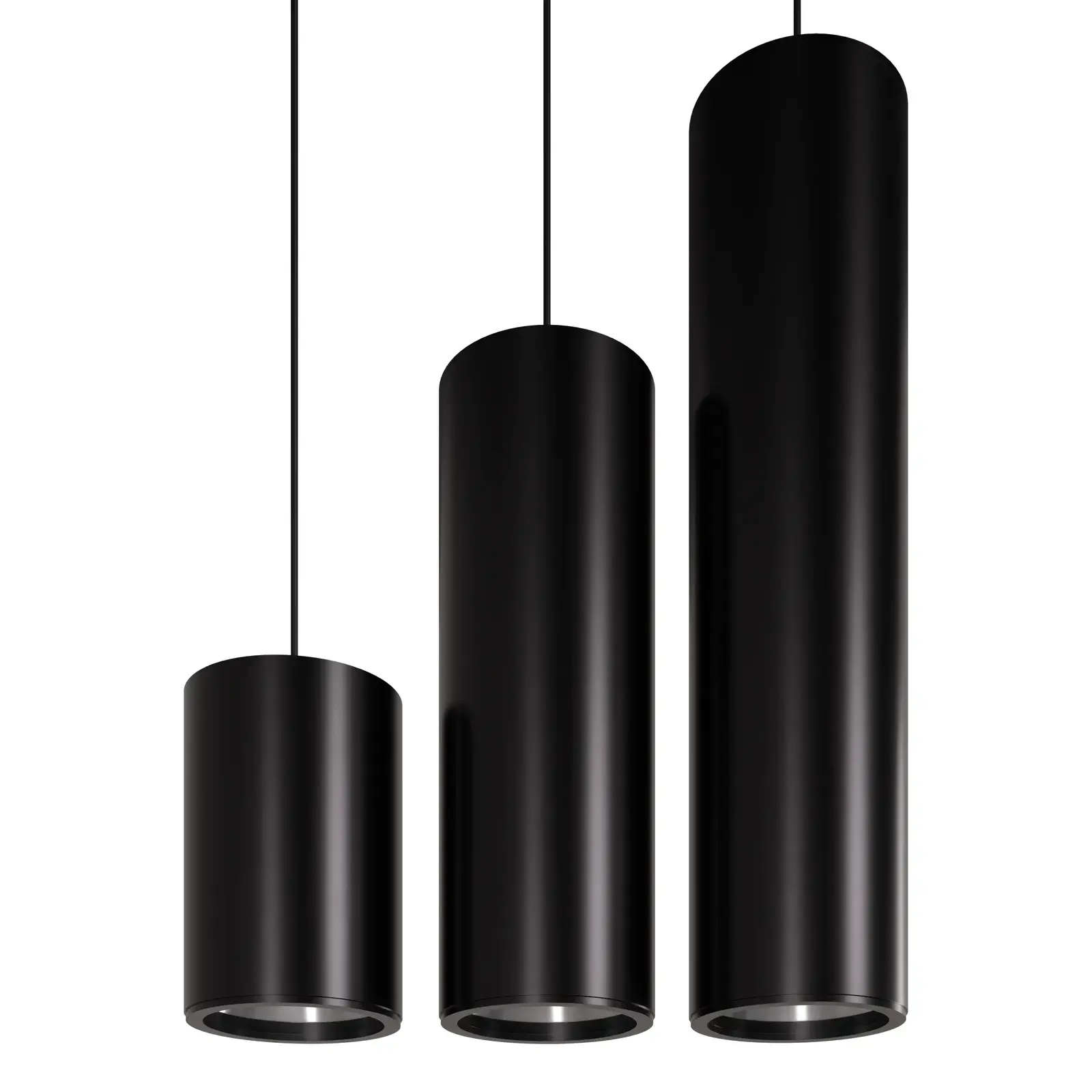

Minimalist tubular pendant

Slim and understated or muscular and bold, the tubular BELLART embodies versatility. With its contemporary finish and endless specification options, the BELLART Suspended will make an impact and enhance any residential or commercial interior.

With a selection of low to high lumen packages, narrow to wide beam angles and a range of accessories, the BELLART gives interior designers a true freedom. Also available as Mini version and surface mounted option, the BELLART is a true all-rounder.  It is equally suitable for suspended ceilings and exposed ceilings, making it a great choice for office, hospitality, retail or any front of the house areas where architectural feature lighting is required.

The BELLART is available in 6 contemporary colours as standard or 'stand out from the crowd' and choose any RAL colour to match your interior design. With the 3168 possible options across sizes, colours, colour temp, beam angles, controls and outputs,  the BELLART invites you to play and put your own mark on a project.

The BELLART can be specified with CASAMBI to increase user control.

Light Source Information

· LED
· Direct Distribution
· LED outputs available  6W / 760 lm, 9W / 1030 lm, 12W/1500 lm, 17.5W/2000 lm, 25W/3000lm , 33W/4000 lm
·  Colour Temperature 2700K | 3000K | 4000K
· 3- Step MacAdam ellipse ·  CRI>90
· Internal Drivers supplied
· L80B20, Life-time of 50,000 hrs

Design

· Suspended Mounting
· Extruded aluminium body

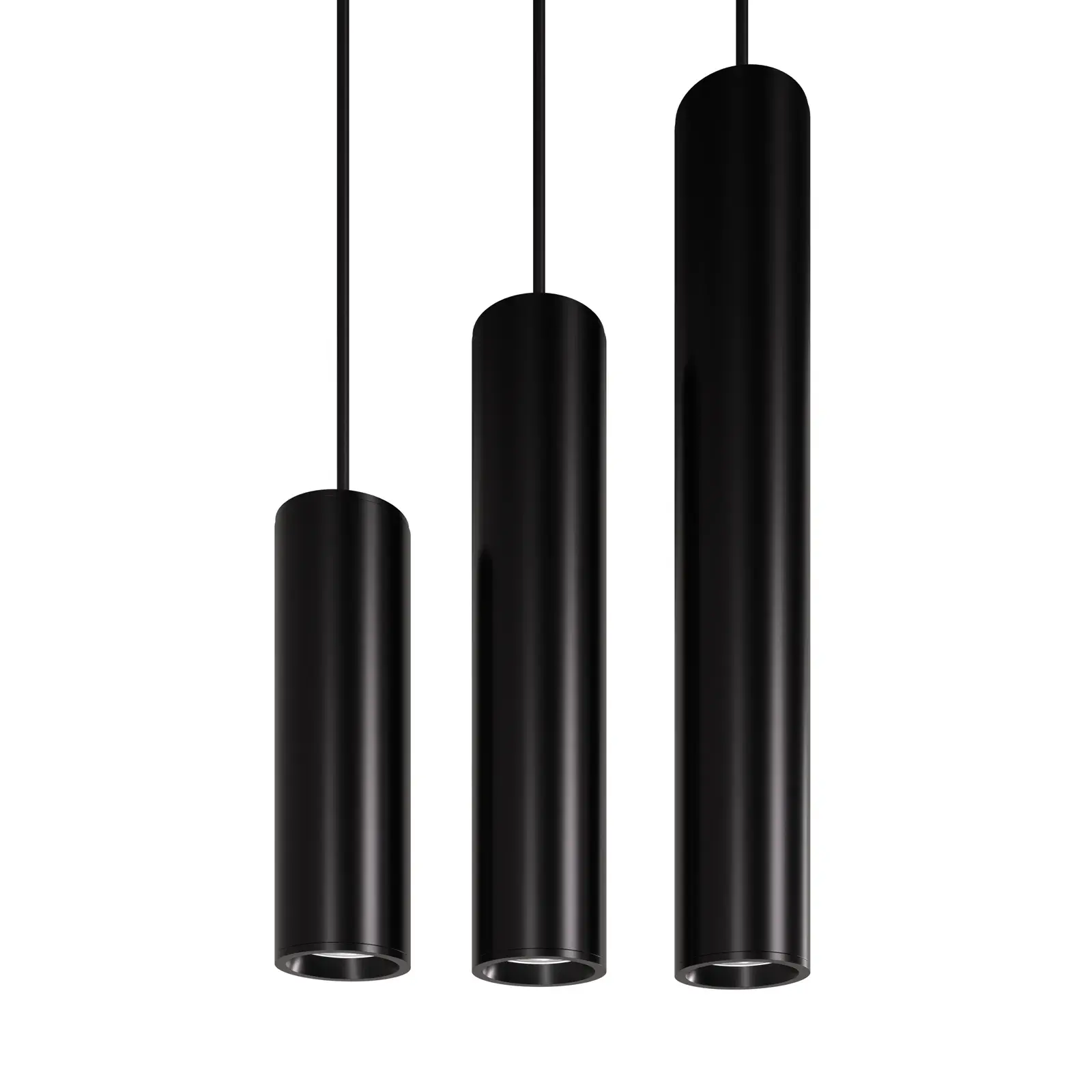

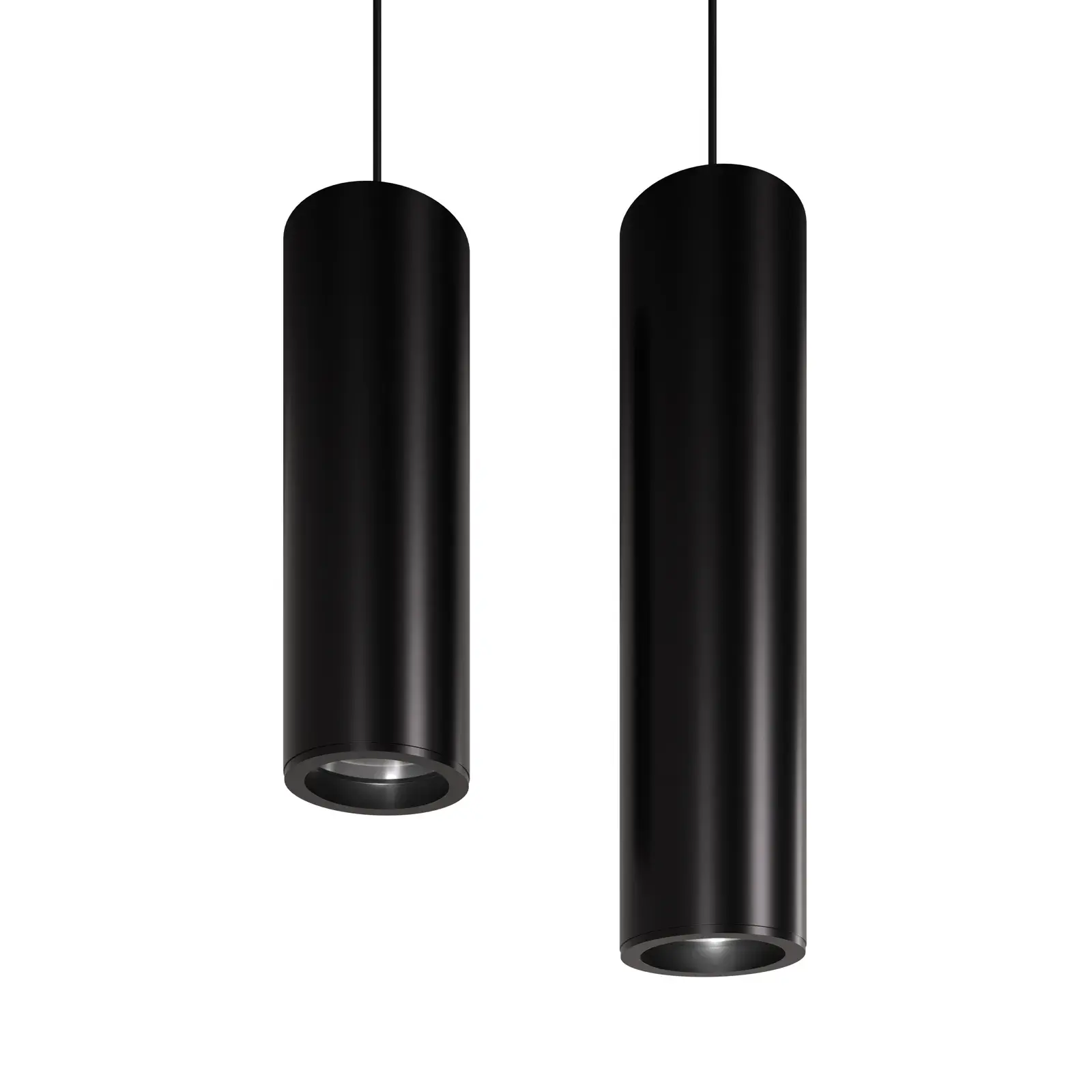

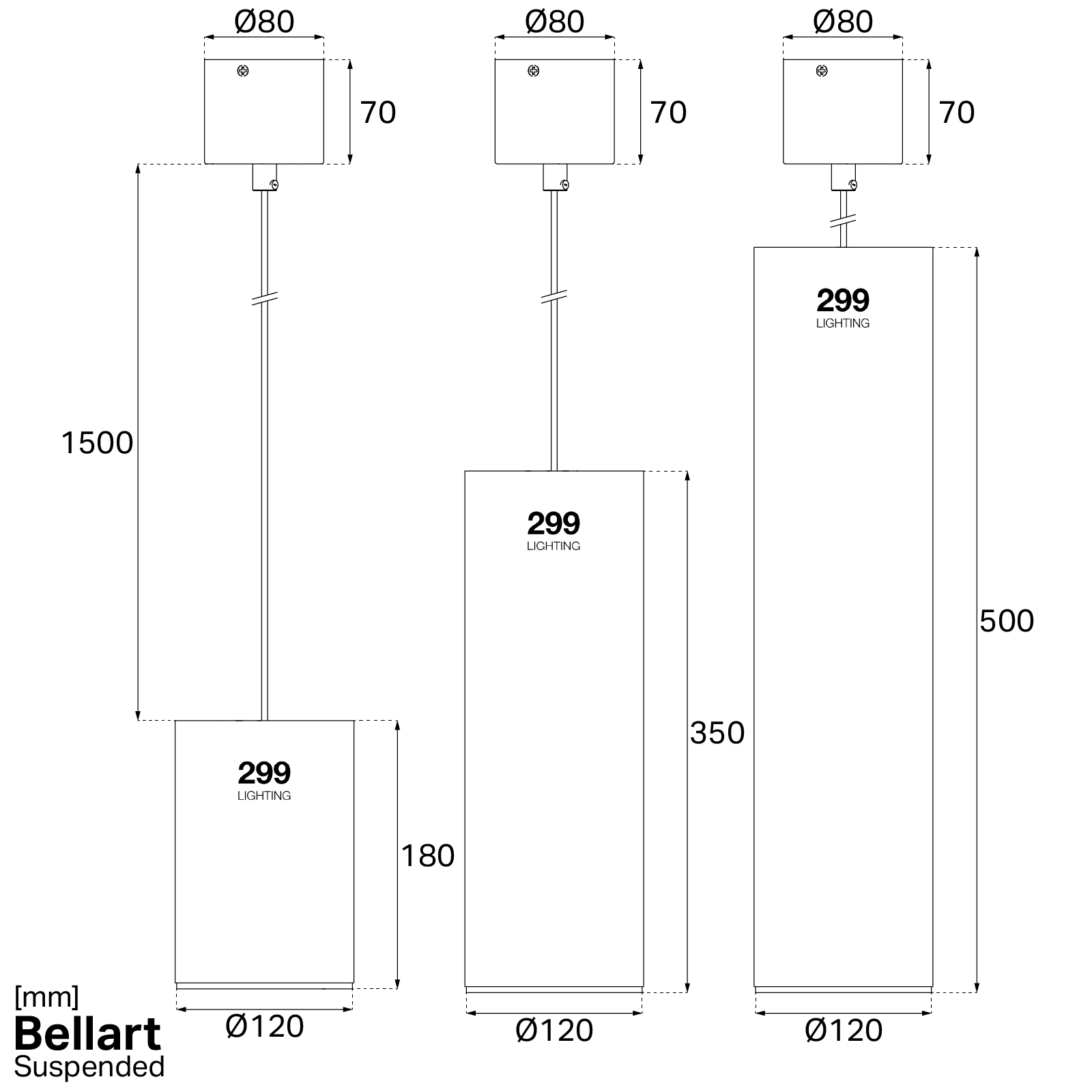

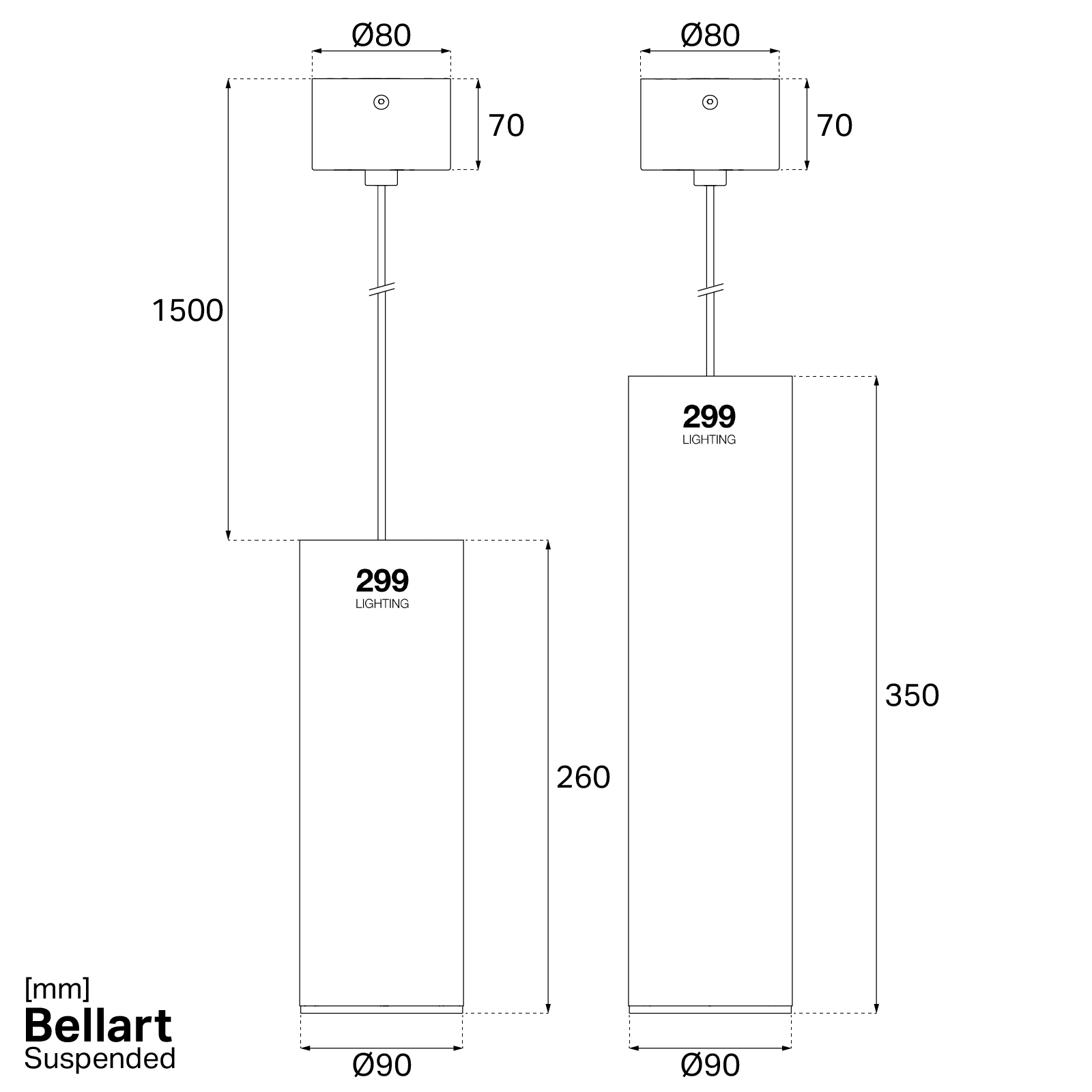

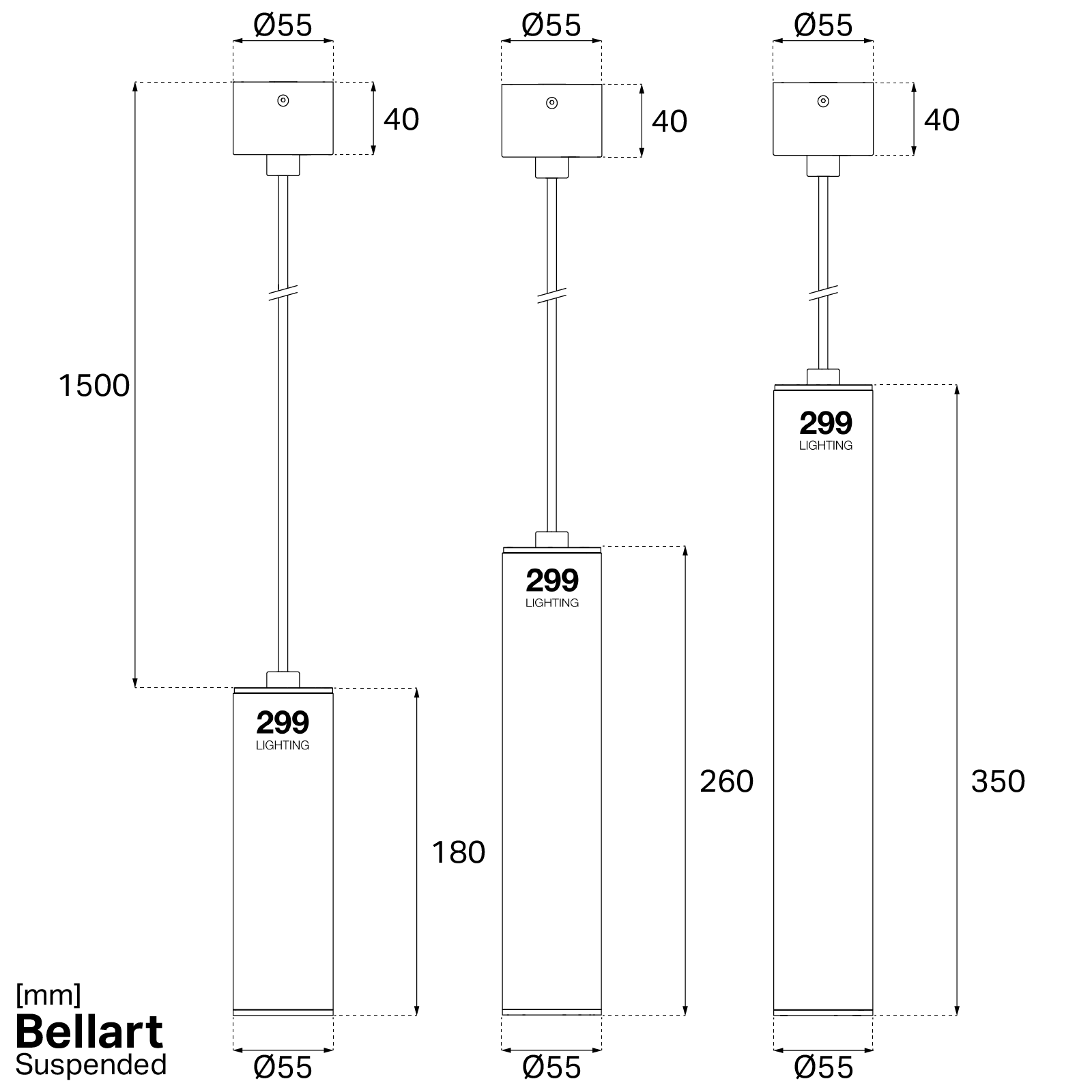

· Diameters Ø55mm, Ø90mm and Ø120mm
· IP20 Rated
· Front Ring Finish (White, Black, Grey,Copper, Gold, and Graphite). More RAL Colours on Request · Front Ring Finish supplied in Black for Copper, Gold and Graphite
· Standard Length Suspension Kit - 1500 mm
· Suspension cable in different colours on request

Optics

· Ø55mm - Beam Angles available 20° | 40° | 60°
· Ø90mm and Ø120mm - Beam Angles available 15° | 36° | 60°
· Honeycomb, Sculptural Lens and Optical Filters - Accessories

Dimming

· Non-dimmable as standard
· Edge Cut available on request (Ø55mm)
· DALI available on request (Ø90mm and Ø120mm)

Integrated Controls (on request)

· CASAMBI

Miscellaneous

· 3hr Emergency not available
· 2-year warranty

Downloads.

Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.

Questions about Bellart Suspended.

Can Bellart Suspended be dimmed?

Yes. Bellart Suspended is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.

What colour rendering does Bellart Suspended offer?

Bellart Suspended is available with CRI 90. Ask us if your scheme needs a higher CRI.

How do I get a quote or sample for Bellart Suspended?

Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.

Professional PDF Generator Active v3.8
Bellart Configurator v3.0

Product Configurator

Select your configuration options below

Main Configuration


Special Characteristics

bellart-suspended-fitting-hq-768x768

High Output

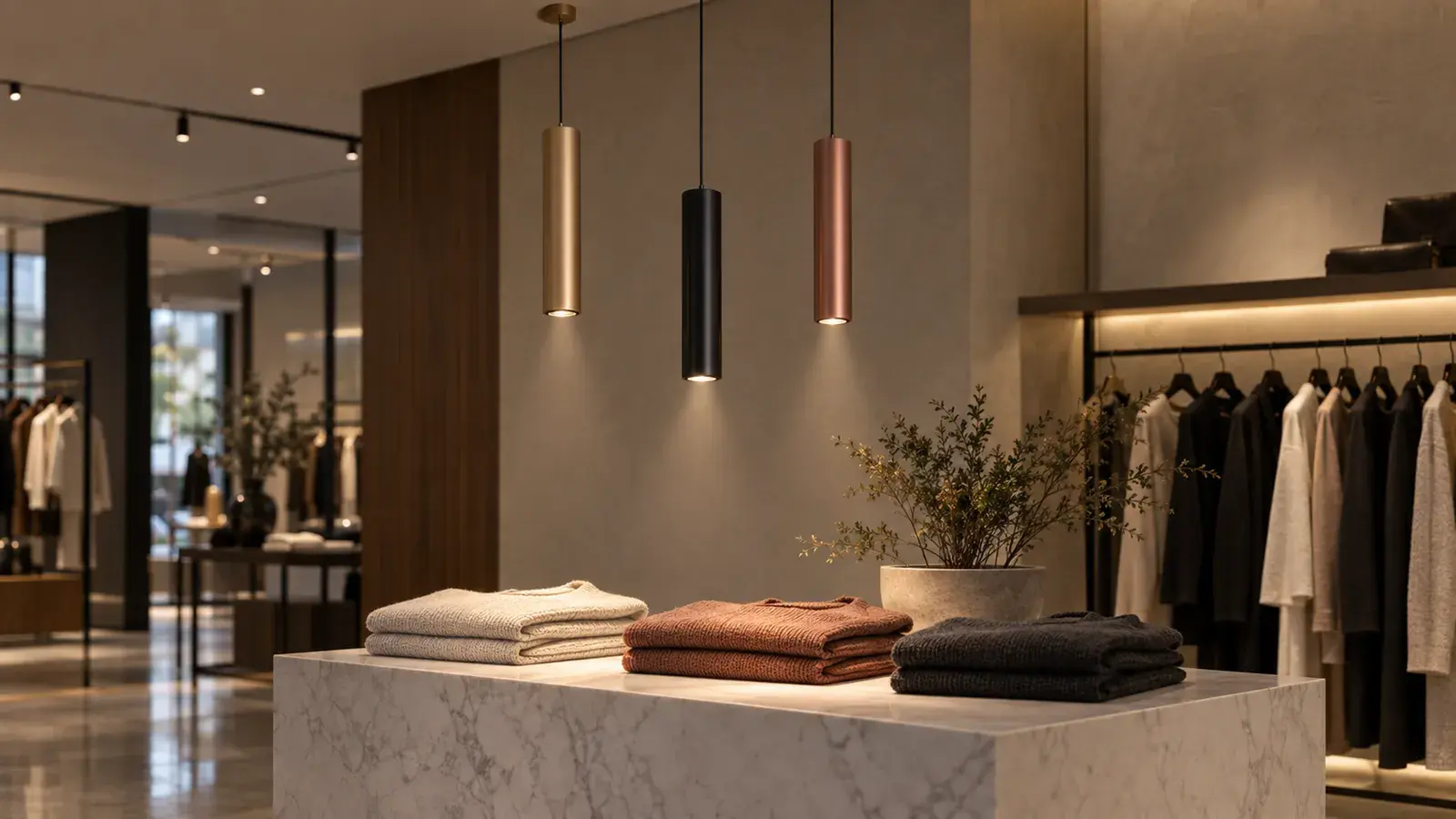

And the best thing about BELLART? The contemporary aesthetics and a high visual comfort. Using the latest LED technology, the BELLART can be specified with specially designed LED engines for bringing out specific colours, making it a perfect straight out of the box lighting solution for retail.

bellart-suspended-reception-area-2-768x768

Good control of light distribution

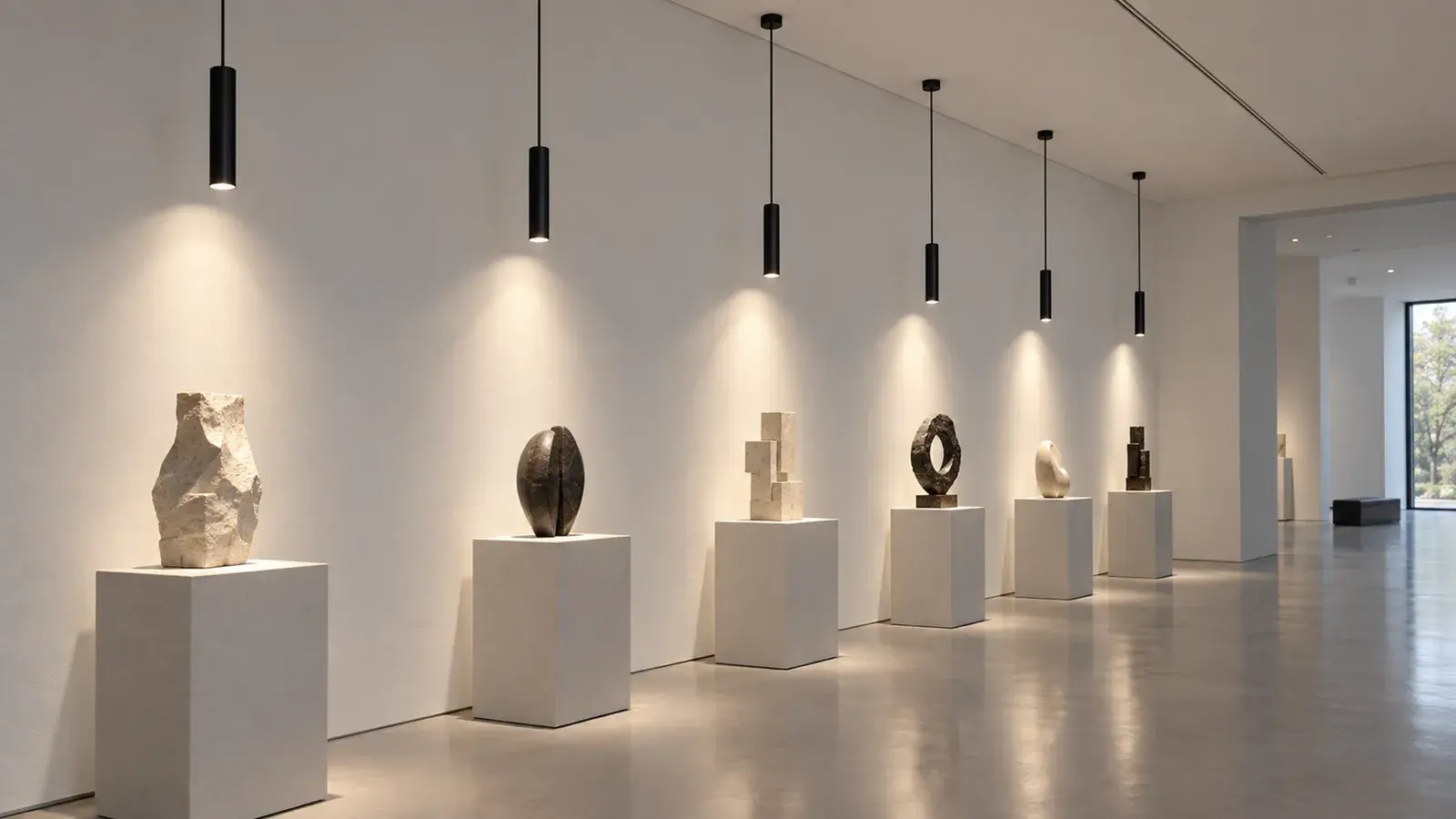

Used as an individual downlight, or as an eye catching cluster, the BELLART will add soft ambient light or a punchy and focused illumination. Or something in between.

bellart-suspended-cantina-768x768

3168 possible combinations

Your downlight can be truly unique considering the staggering 3168 possible combinations between 3 standard sizes, 6 standard colours, 3 colour temperatures and 4 different beam angles and several dimming options.

bellart-suspended-main-banner-1

6 standard finishes available

The BELLART is available in 6 standard colours or ‘stand out from the crowd’ and choose any RAL colour to match your interior design.

Pendant Globe Gold

Wireless Control

All mounting styles of Bellart can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Wireless Control

All mounting styles of Bellart can be easily upgraded with CASAMBI control, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.

Light distribution example

Slim Architectural Pendant Gold

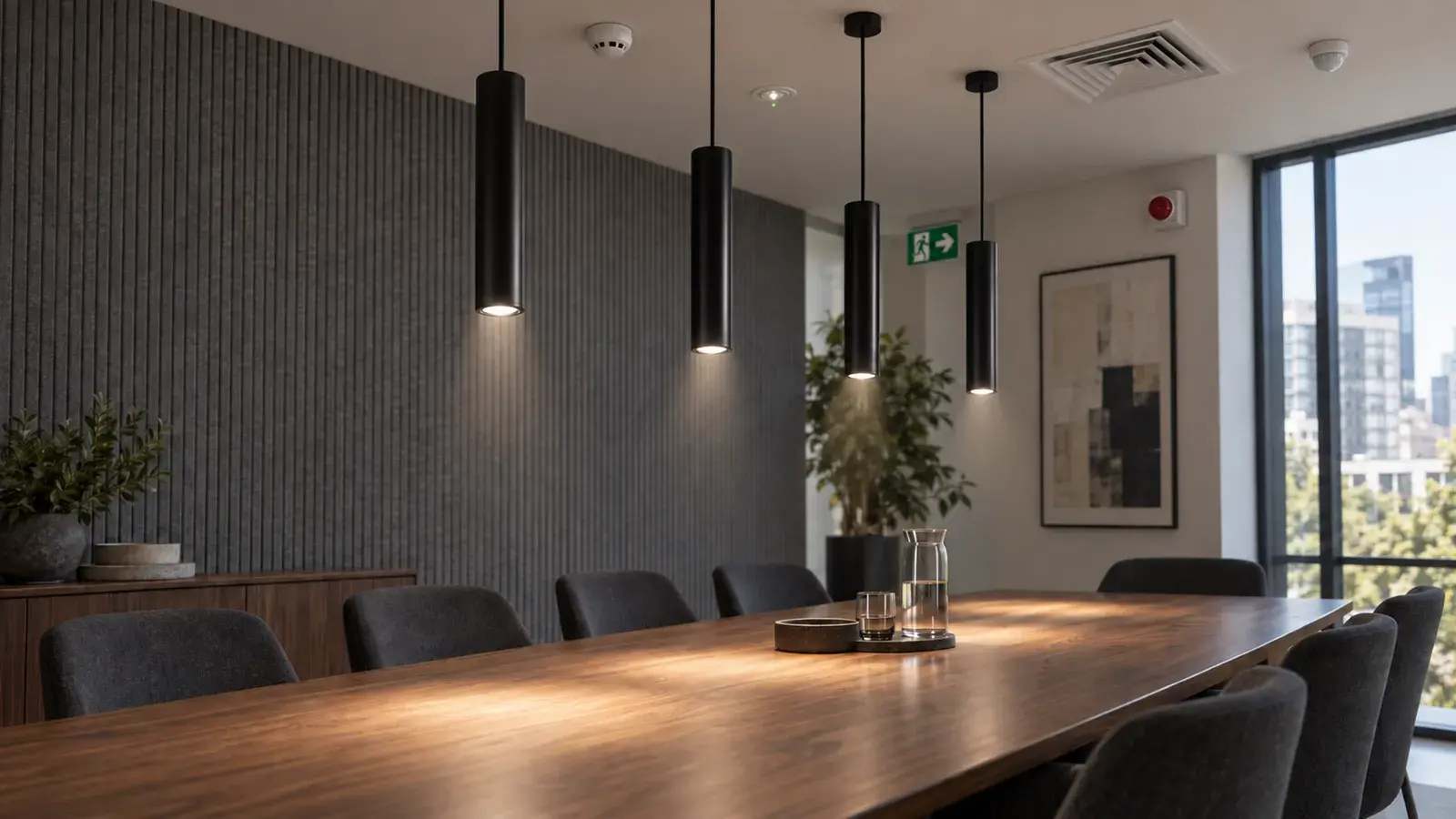

Product In Use
