Lopen Suspended

Request a quote Request a sample

Reply within one working day. Layouts and calculations included when we supply.

PERFORMANCE DRIVEN LINEAR PROFILE

The LOPEN Suspended is a clean-cut suspended LED linear lighting. With the 80 mm wide body, the Lopen has a bold presence, which makes it a perfect fitting for spaces with high ceilings. Designed with simplicity and attention to detail, the Lopen is contemporary and stylish. Thanks to its high build quality, excellent performance, and high visual comfort it is a perfect suspended linear lighting for stimulating working environments and schemes looking to achieve LG7 compliance.

Used as an individual luminaire or a continuous linear lighting system, the LOPEN adds a contemporary industrial look and feel to any workplace or architectural spaces, creating clean wide lines of light.

With the variation in mounting styles, the LOPEN is a true all-rounder, equally at home in an office and as linear architectural lighting.
The design of the LOPEN lends itself perfectly to bespoke linear lighting systems. It gives the designer a true freedom creating a vast array of dimensional combinations.

And the best thing about LOPEN?

Easy installation! Both standard sizes and bespoke suspended profiles come with ready to install suspension kit, making it the perfect straight out of the box LED linear lighting solution.

The LOPEN utilises the latest LED Tunable White technology, giving the user the freedom to select any custom colour temperature between 2700K and 5000K with a proven positive effect on health and wellbeing.

The LOPEN is available in 3 standard colours or 'stand out from the crowd' and choose any RAL colour to enhance your design scheme.

Ideal as a wide suspended workspace lighting for CAT A and CAT B office fit-out and a flexible solution for bespoke schemes in architectural environment, retail or education.

The LOPEN can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

· LED
· Direct and Direct-Indirect Distribution
· Direct LED outputs available from 3.9W 530 lm up to 87.6W 9,950 lm
· Direct-Indirect LED outputs available from 14.6W 1,930 lm up to 117.6W 13,780 lm
· LED efficiency of 151 lm/W
· Internal Ballasts or Drivers supplied
· L80B20, Life-time of 50,000 hrs

Design

· Extruded aluminium profile
· IP20 rated
· Suspended, surface, wall and recessed trim

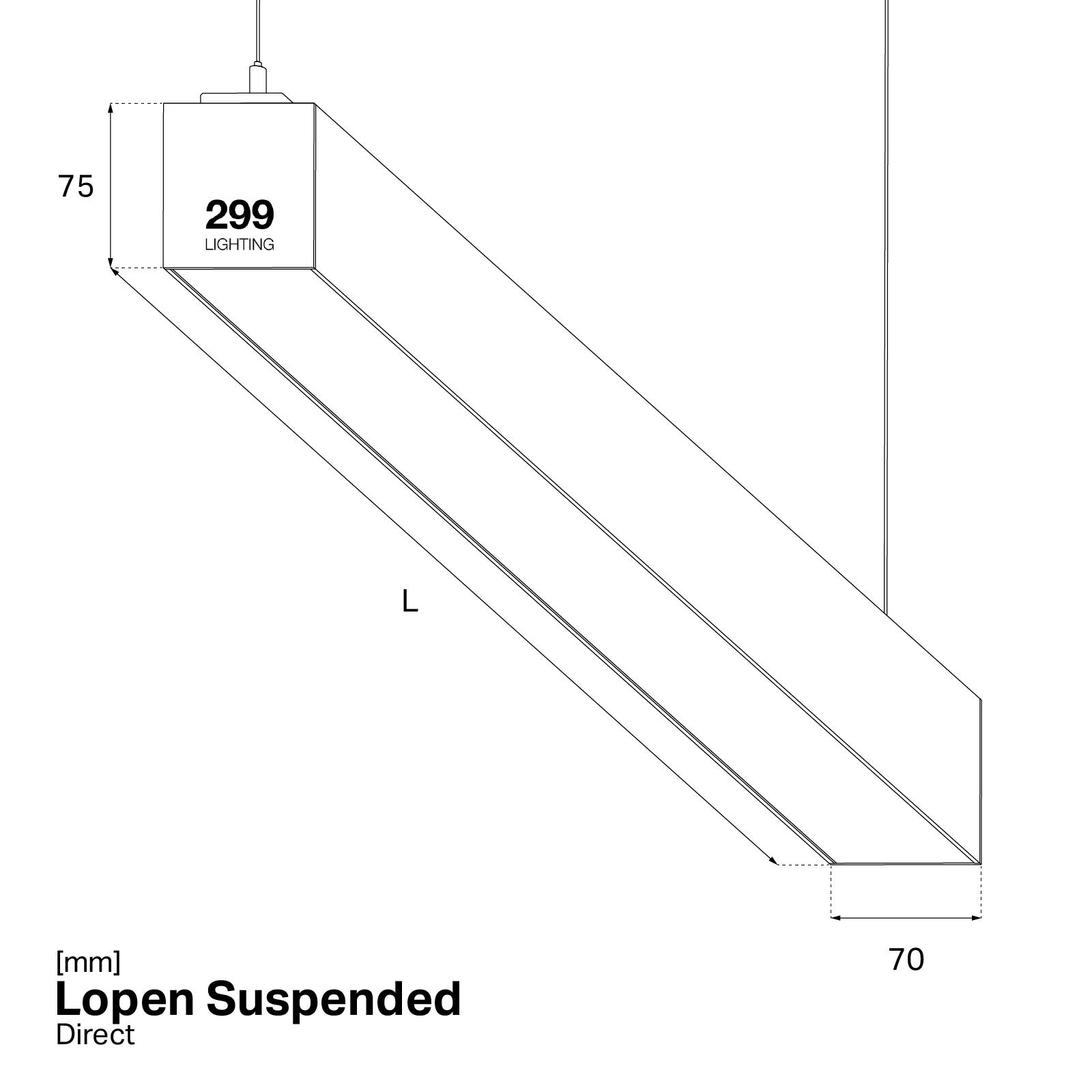

· Available in 6 standard sizes from 561mm to 2244mm. Custom lengths available on request
· White, black and silver powder-coating. Custom RAL available on request
Optics
· Opal or microprismatic diffusers

Dimming

· Non-dimmable as standard
· DALI available on request
· Bluetooth casambi available on request

Installation

· L-Click system - Installation bracket sits above profile, use screwdriver to rotate bracket once in place to secure
· Ceiling mount bracket screws onto ceiling, and slides into profile groove
· Diffuser clicks out and into place for cleaning and easy access
· Adjustable suspension bracket


Miscellaneous

· 3hr Emergency available on request from 1122mm+
· 2 year warranty

299 Lighting reserve the right to change the specification of any product without notice or public announcement.

Downloads.

Need a TM65 embodied-carbon report or BIM objects? Ask us and we will send them for your project.

Questions about Lopen Suspended.

What is the efficacy of Lopen Suspended?

Lopen Suspended delivers up to 151 lm/W, depending on the output, optic and configuration chosen. The figure for your exact configuration is on the datasheet and your quotation.

How does Part L apply to Lopen Suspended?

Part L compliance is judged on the luminaire lumens per circuit-watt average that Approved Document L sets for general lighting across the whole installation, so one product's headline efficacy does not settle compliance. We check the average for your whole scheme when we prepare the layout.

Can Lopen Suspended be dimmed?

Yes. Lopen Suspended is available with DALI or Casambi control. Tell us how the space will be used and we will recommend the right driver and controls.

How do I get a quote or sample for Lopen Suspended?

Use the Request a quote or Request a sample button on this page, or send your drawings to info@299lighting.co.uk. A Light Engineer replies within one working day, and we can include a lighting layout and calculations.


Special Characteristics

golate-house-cardiff

The original

Lopen Suspended is one of the original products in 299 Lighting’s collection. It remains a favourite for many years.

sun-room-project

Create systems with custom angles

The Lopen Suspended enables the design hungry environments to have true freedom with its variation of mounting styles, combinations of connections and illuminated corners.

35CockLane

All variations

Why not use a variety of Lopens in your project? It is available as suspended, surfaced, recessed trim, recessed trimless and wall.

BaskervilleHouseBirmingham

Bold line

The bold lines of Lopen makes it stand out from the crowd. The diverse range of lengths can be combined to create intriguing design or simply blend in with the architecture.
